Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-10 - FRONT AXLE
▶

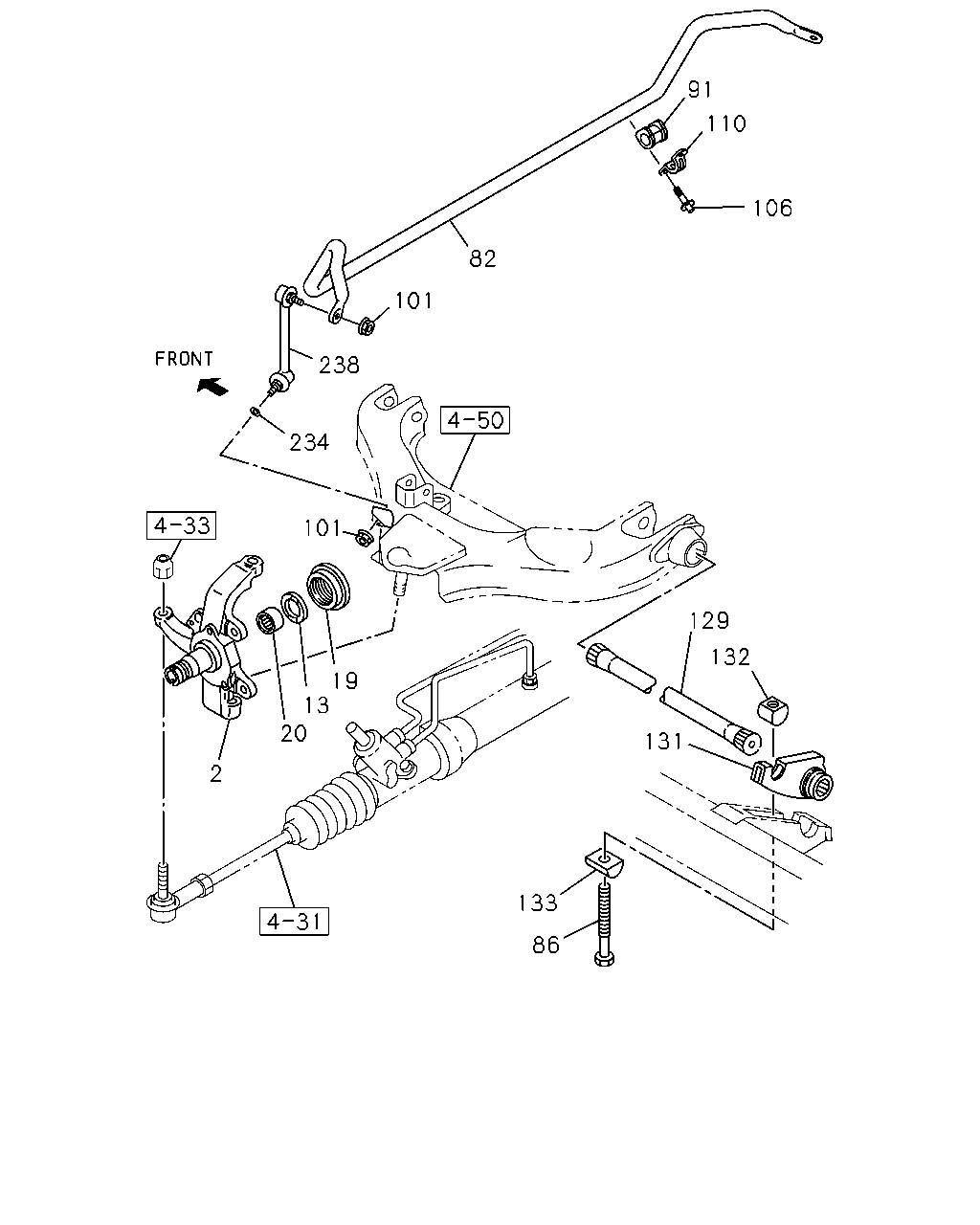

4-10 — FRONT AXLE
(#42174) — 28 parça
91
110
106
82
101
238
234
101
129
132
19
13
20
131
2
133
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
KNUCKLE; FRT AXLE
8-97104-465-0
01
1
9707-0106
2
KNUCKLE; FRT AXLE
8-97232-154-1
01
1
0107-
2
KNUCKLE; FRT AXLE
8-97104-464-0
01
1
9707-0106
2
KNUCKLE; FRT AXLE
8-97232-153-1
01
1
0107-
13
WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE
8-94407-718-0
02
1
9707-0106
19
SEAL; OIL,KNUCKLE
8-97044-741-0
02
1
9707-0010
19
SEAL; OIL,KNUCKLE
8-97123-691-0
02
1
0011-
20
BEARING; KNUCKLE
8-97120-850-0
02
1
9707-0106
82
BAR; STAB,FRT SUSP
8-97125-012-1
01
1
9707-
86
BOLT; TORSION BAR,HEIGHT CONT
M18X153
8-97136-935-0
02
1
9707-
91
BUSHING; RUBBER,STAB BAR
8-97125-464-0
02
1
9707-
101
NUT; STAB BAR
8-97035-383-0
04
1
9707-
106
BOLT; CAP FIX
M8X20 FLANGE
0-28480-820-0
04
1
9707-
110
CLAMP; STAB TO ROD
ID=36
8-97032-869-0
02
1
9707-
129
BAR; TORSION,FRT SUSP
8-97162-522-0
01
1
9707-
129
BAR; TORSION,FRT SUSP
8-97162-523-0
01
1
9707-
131
ARM; HEIGHT CONT
8-97125-093-2
01
1
9707-
131
ARM; HEIGHT CONT
8-97125-097-2
01
1
9707-9807
131
ARM; HEIGHT CONT
8-97211-053-0
01
1
9808-
132
COLLAR; TORSION BAR
8-94367-757-0
02
1
9707-
133
SEAT; TORSION BAR,HEIGHT CONT
8-97032-976-1
02
1
9707-
234
WASHER; STAB
8-97049-475-0
02
1
0011-
238
ROD LINK ASM; STABILIZER,FRT
8-97125-014-0
01
1
9707-0010
238
ROD LINK ASM; STABILIZER,FRT
8-97018-228-2
01
1
0011-0102
238
ROD LINK ASM; STABILIZER,FRT
8-97289-820-0
01
1
0103-
238
ROD LINK ASM; STABILIZER,FRT
8-97125-013-0
01
1
9707-0010
238
ROD LINK ASM; STABILIZER,FRT
8-97018-227-2
01
1
0011-0102
238
ROD LINK ASM; STABILIZER,FRT
8-97289-819-0
01
1
0103-
