4-01 — PROPELLER SHAFT (#42173) — 184 parça

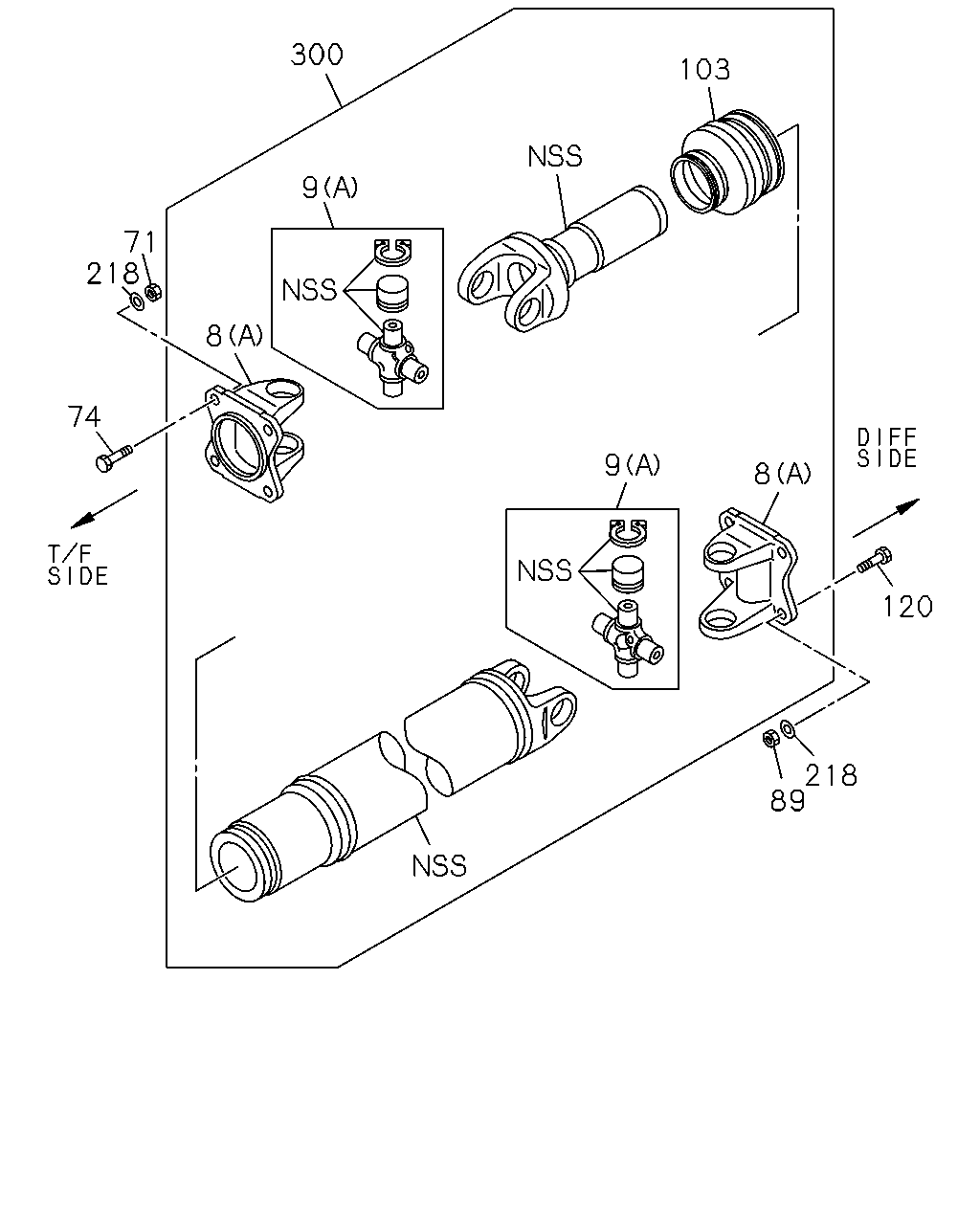

300 103 9 71 218 8 74 9 8 120 218 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	9707-0206	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0207-0210			●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	9707-9908	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	9909-0201	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	0202-0206		●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0207-0210			●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0211-0307			●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0211-0307			●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0308-			●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0308-			●
9	JOURNAL ASM; PROP SHAFT (B)	8-97020-279-0	02	1	9707-0206	●	●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0207-0210			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0207-0210			●
9	JOURNAL ASM; PROP SHAFT (A)	8-97182-165-0	02	1	9707-9807	●	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97182-165-0	02	1	9808-0201	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97185-603-0	02	1	9808-9908		●
9	JOURNAL ASM; PROP SHAFT (A)	8-97185-603-0	02	1	9909-0206		●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0207-0210				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0207-0210				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0211-0307				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0211-0307				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0211-0307			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0211-0307			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0308-			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0308-			●
71	NUT; YOKE M10	8-94159-009-1	04	1	9707-0206	●	●
74	BOLT; YOKE,TRANS M10X27	8-94146-552-2	04	1	9707-9710	●	●
74	BOLT; YOKE,TRANS M10X29	8-97168-458-1	04	1	9711-0206	●	●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	9707-0206	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0207-0307			●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0308-0402			●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0403-			●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	04	1	9707-0206	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0207-0307			●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0308-0402			●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0403-			●
103	BOOT; PROP SHAFT REAR	8-97182-163-0	01	1	9707-9807	●	●
103	BOOT; PROP SHAFT REAR	8-97182-163-0	01	1	9808-0206	●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	9707-9807	●	●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9808-9908	●	●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9808-9908		●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9909-0206	●	●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9909-0206		●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	0207-0210			●	●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	0211-0307			●	●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	0308-			●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	04	1	9707-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9711-0206	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0207-0307			●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0308-			●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	08	1	9707-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	08	1	9711-0206	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	0207-0307			●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	0308-			●
218	WASHER; PL,PROP SHAFT	1-09503-222-0	08	1	9707-0206	●	●
218	WASHER; PL,PROP SHAFT	1-09503-222-0	04	1	9707-0206	●	●
218	WASHER; PL,PROP SHAFT	1-09503-222-0	04	1	9707-0206	●	●
300	SHAFT ASM; PROP,RR	8-97125-298-3	01	1	9707-0201	●
300	SHAFT ASM; PROP,RR	8-97332-353-0	01	1	0202-0206	●
300	SHAFT ASM; PROP,RR	8-97289-593-2	01	1	0207-0210			●
300	SHAFT ASM; PROP,RR	8-97357-843-0	01	1	0211-			●
300	SHAFT ASM; PROP,RR	8-97125-299-3	01	1	9707-9807		●
300	SHAFT ASM; PROP,RR	8-97176-109-1	01	1	9808-9908		●
300	SHAFT ASM; PROP,RR	8-97232-169-3	01	1	9909-0206		●
300	SHAFT ASM; PROP,RR	8-97289-591-1	01	1	0207-0210				●
300	SHAFT ASM; PROP,RR	8-97357-902-0	01	1	0211-0307				●

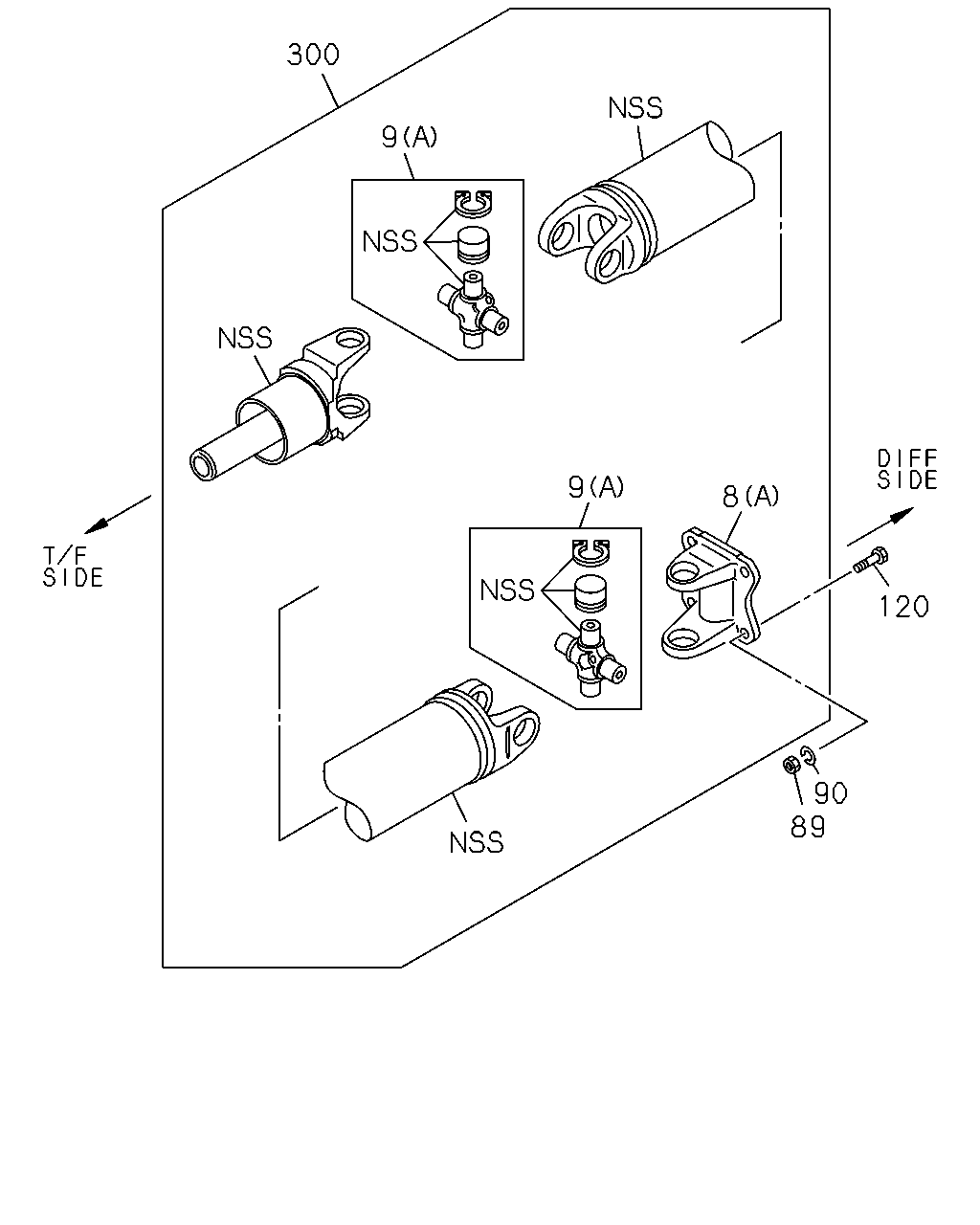

300 9 9 8 120 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	9707-0206	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0207-0210			●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	9707-9908	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	9909-0201	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	0202-0206		●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0207-0210			●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0211-0307			●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0211-0307			●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0308-			●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0308-			●
9	JOURNAL ASM; PROP SHAFT (B)	8-97020-279-0	02	1	9707-0206	●	●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0207-0210			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0207-0210			●
9	JOURNAL ASM; PROP SHAFT (A)	8-97182-165-0	02	1	9707-9807	●	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97182-165-0	02	1	9808-0201	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97185-603-0	02	1	9808-9908		●
9	JOURNAL ASM; PROP SHAFT (A)	8-97185-603-0	02	1	9909-0206		●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0207-0210				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0207-0210				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0211-0307				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0211-0307				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0211-0307			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0211-0307			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0308-			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0308-			●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	9707-0206	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0207-0307			●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0308-0402			●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0403-			●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	04	1	9707-0206	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0207-0307			●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0308-0402			●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0403-			●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	0207-0307			●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	0308-			●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	0207-0307			●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	0308-			●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	04	1	9707-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9711-0206	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0207-0307			●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0308-			●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	08	1	9707-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	08	1	9711-0206	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	0207-0307			●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	0308-			●
300	SHAFT ASM; PROP,RR	8-97125-298-3	01	1	9707-0201	●
300	SHAFT ASM; PROP,RR	8-97332-353-0	01	1	0202-0206	●
300	SHAFT ASM; PROP,RR	8-97289-593-2	01	1	0207-0210			●
300	SHAFT ASM; PROP,RR	8-97357-843-0	01	1	0211-			●
300	SHAFT ASM; PROP,RR	8-97125-299-3	01	1	9707-9807		●
300	SHAFT ASM; PROP,RR	8-97176-109-1	01	1	9808-9908		●
300	SHAFT ASM; PROP,RR	8-97232-169-3	01	1	9909-0206		●
300	SHAFT ASM; PROP,RR	8-97289-591-1	01	1	0207-0210				●
300	SHAFT ASM; PROP,RR	8-97357-902-0	01	1	0211-0307				●

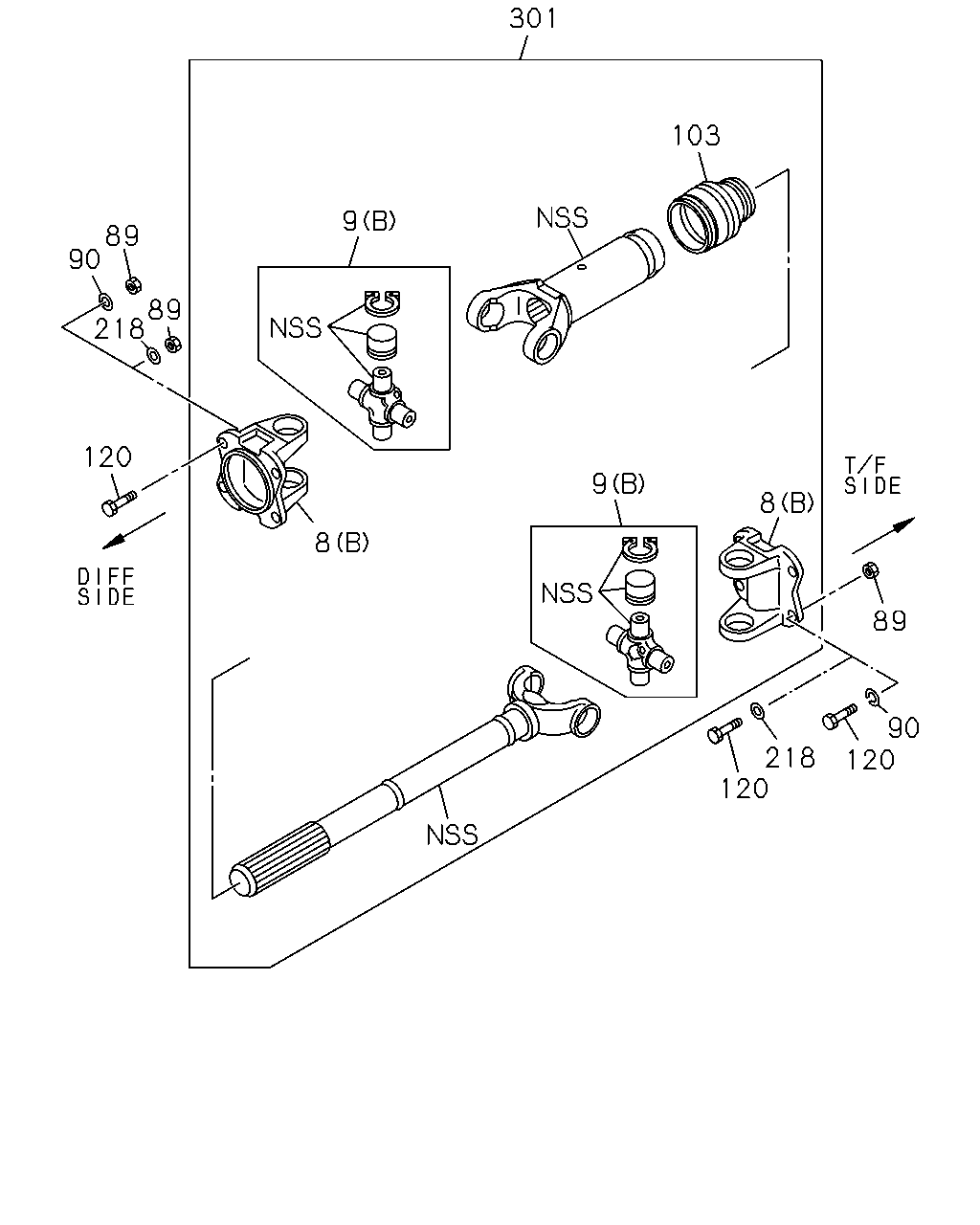

301 103 9 89 90 89 218 120 9 8 8 89 90 120 218 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	9707-0206	●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0207-0210			●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	9707-9908	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	9909-0201	●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	02	1	0202-0206		●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0207-0210			●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0211-0307			●	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0211-0307			●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97020-281-0	02	1	0308-			●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97182-188-0	01	1	0308-			●
9	JOURNAL ASM; PROP SHAFT (B)	8-97020-279-0	02	1	9707-0206	●	●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0207-0210			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0207-0210			●
9	JOURNAL ASM; PROP SHAFT (A)	8-97182-165-0	02	1	9707-9807	●	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97182-165-0	02	1	9808-0201	●
9	JOURNAL ASM; PROP SHAFT (A)	8-97185-603-0	02	1	9808-9908		●
9	JOURNAL ASM; PROP SHAFT (A)	8-97185-603-0	02	1	9909-0206		●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0207-0210				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0207-0210				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0211-0307				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-169-0	02	1	0211-0307				●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0211-0307			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0211-0307			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0308-			●
9	JOURNAL ASM; PROP SHAFT (A),(B)	8-97353-170-0	02	1	0308-			●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	9707-0206	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0207-0307			●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0308-0402			●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0403-			●
89	NUT; YOKE TO RR AXLE M10	8-94159-009-1	04	1	9707-0206	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0207-0307			●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0308-0402			●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	0403-			●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	0207-0307			●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	0308-			●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	0207-0307			●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	0308-			●
103	BOOT; PROP SHAFT REAR	8-97182-163-0	01	1	9707-9807	●	●
103	BOOT; PROP SHAFT REAR	8-97182-163-0	01	1	9808-0206	●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	9707-9807	●	●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9808-9908	●	●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9808-9908		●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9909-0206	●	●
103	BOOT; PROP SHAFT M/T FRONT,A/T FRONT AND REAR	8-97182-164-0	01	1	9909-0206		●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	0207-0210			●	●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	0211-0307			●	●
103	BOOT; PROP SHAFT FRONT	8-97182-164-0	01	1	0308-			●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	04	1	9707-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9711-0206	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0207-0307			●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	0308-			●
120	BOLT; YOKE TO RR AXLE M10X27	8-94146-552-2	08	1	9707-9710	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	08	1	9711-0206	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	0207-0307			●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	0308-			●
218	WASHER; PL,PROP SHAFT	1-09503-222-0	08	1	9707-0206	●	●
218	WASHER; PL,PROP SHAFT	1-09503-222-0	04	1	9707-0206	●	●
218	WASHER; PL,PROP SHAFT	1-09503-222-0	04	1	9707-0206	●	●
301	SHAFT ASM; PROP,FRT	8-97125-301-3	01	1	9707-0206	●
301	SHAFT ASM; PROP,FRT	8-97289-597-2	01	1	0207-0210			●
301	SHAFT ASM; PROP,FRT	8-97357-844-0	01	1	0211-			●
301	SHAFT ASM; PROP,FRT	8-97125-302-3	01	1	9707-0206		●
301	SHAFT ASM; PROP,FRT	8-97289-596-1	01	1	0207-0210				●
301	SHAFT ASM; PROP,FRT	8-97357-903-0	01	1	0211-0307				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
