Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

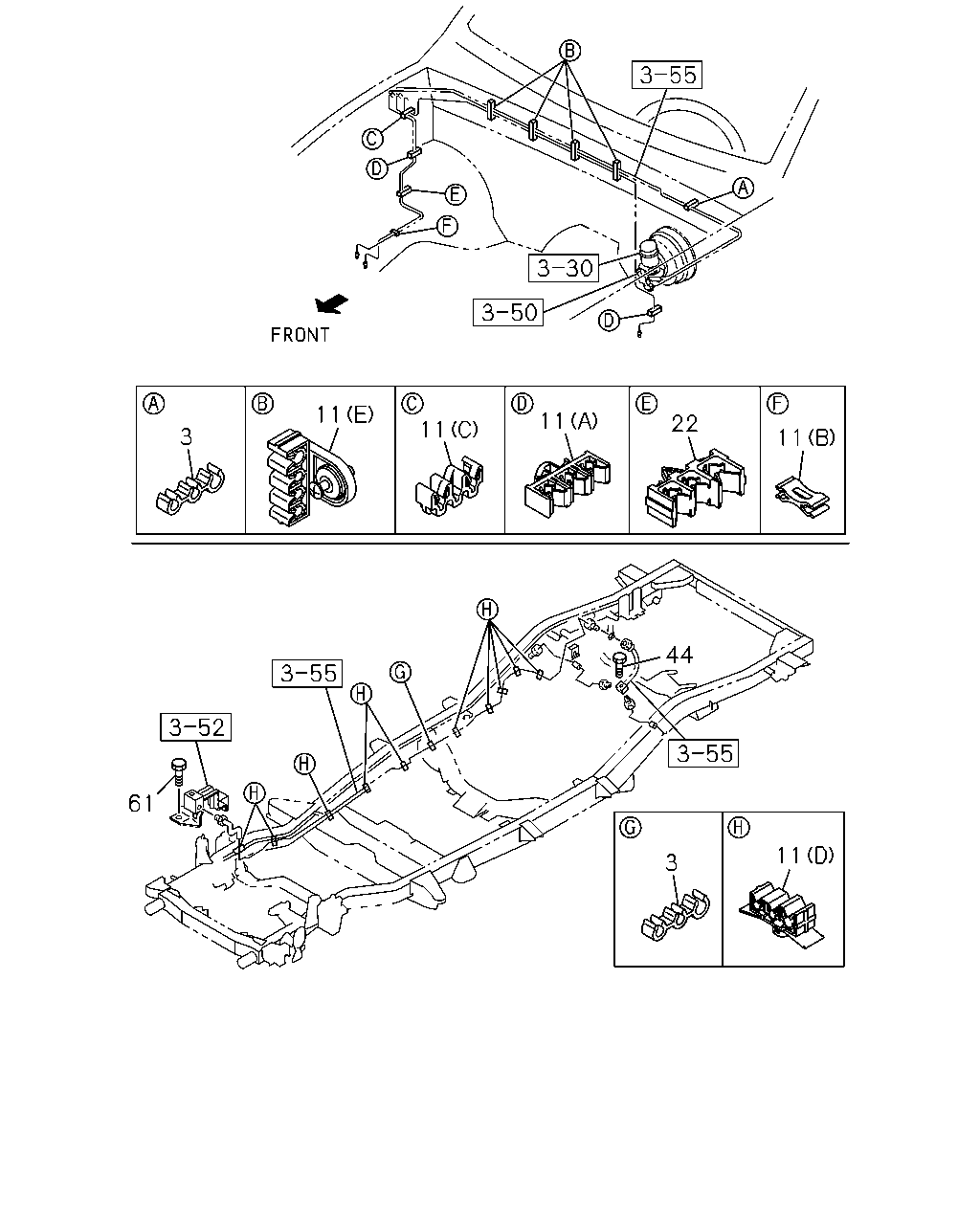

3-58 — FIXING PARTS; OIL PIPING
(#42171) — 14 parça
11
11
11
22
3
11
44
61
11
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
CLIP; BRK PIPE
ID=6.4 & 4.8X2
8-94146-043-0
02
1
9707-
11
CLIP; OIL PIPE
(A)
8-94107-743-0
02
1
9707-0109
11
CLIP; OIL PIPE
(A)
8-94107-743-0
03
1
0110-
11
CLIP; OIL PIPE
(B) ID=4.6X2
8-94241-454-0
01
1
9707-
11
CLIP; OIL PIPE
(C) ID=4.8X3
8-94487-369-0
01
1
9707-0109
11
CLIP; OIL PIPE
(D)
8-97125-111-1
14
1
9707-0007
11
CLIP; OIL PIPE
(D)
8-97236-077-0
14
1
0008-0106
11
CLIP; OIL PIPE
(D)
8-97236-077-0
03
1
0107-
11
CLIP; OIL PIPE
(E)
8-97140-340-0
04
1
9707-0007
11
CLIP; OIL PIPE
(E)
8-97231-406-1
04
1
0008-
11
CLIP; OIL PIPE
(D)
8-97236-077-0
11
1
0107-
22
CLIP; PIPE TO FRAME
8-94442-883-1
01
1
9707-
44
BOLT; CLIP TO FRAME
M8X30 FLANGE
0-28480-830-0
01
1
9707-
61
BOLT; BRK PIPE
M6X16 FLANGE
0-28480-616-0
02
1
9707-
