Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#42170) — 23 parça
◀

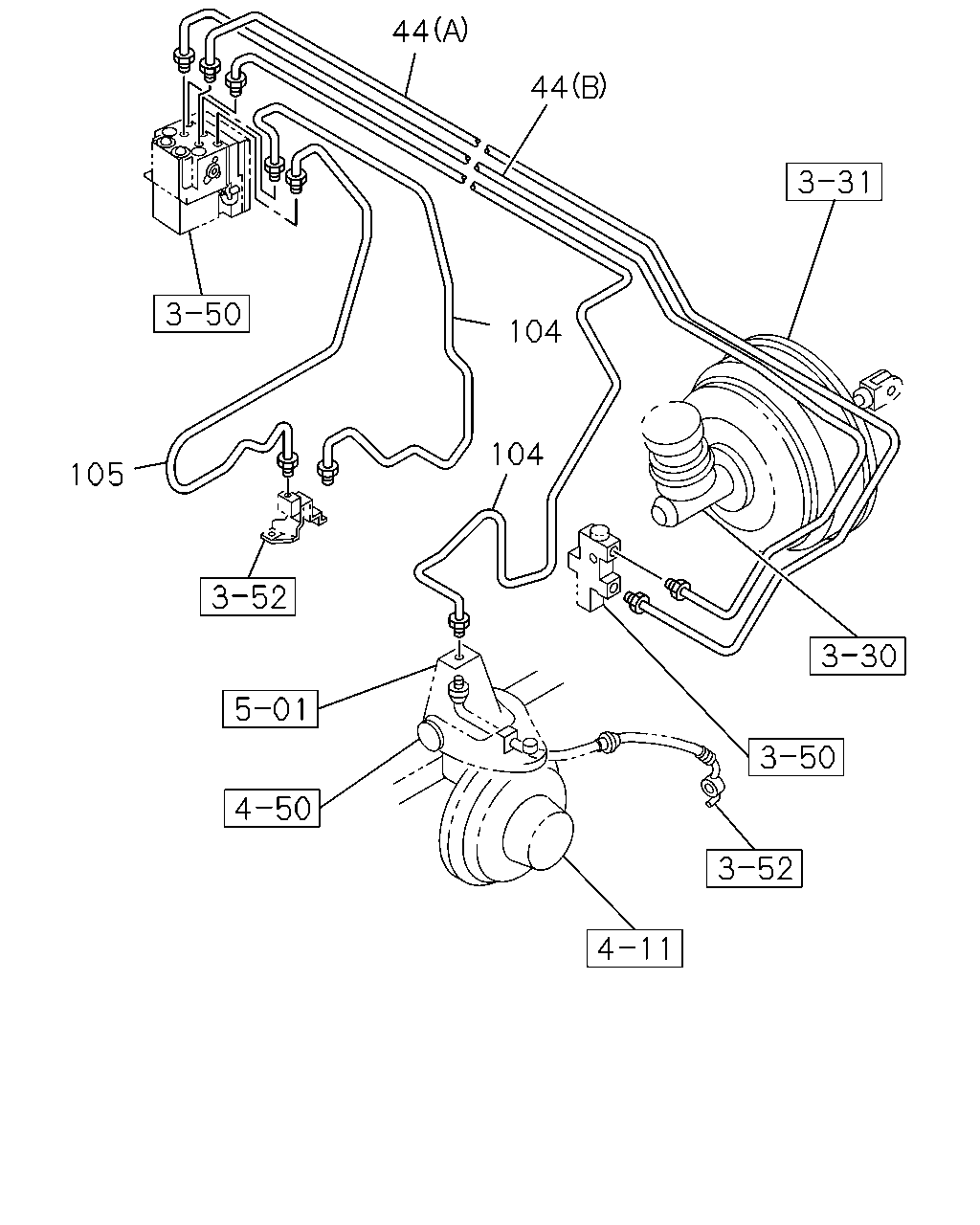

[355A] ENG ROOM (12 parça)

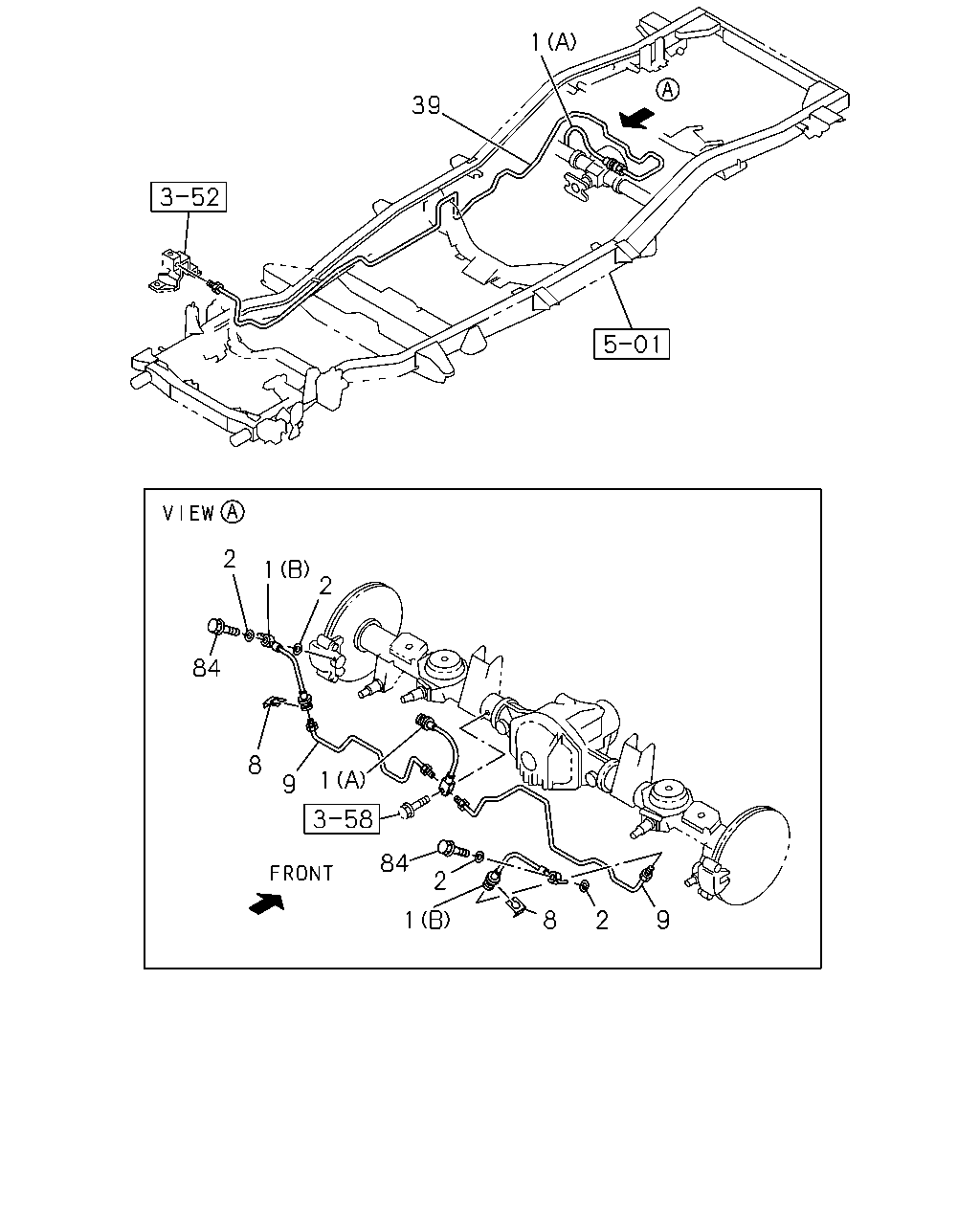

[355A] REAR (11 parça)
▶
44
44
104
104
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
PIPE; BRK,HYDRAULIC UNIT TO VALVE
(B)
8-97124-770-2
01
1
9707-9908
44
PIPE; BRK,HYDRAULIC UNIT TO VALVE
(B)
8-97219-976-1
01
1
9909-
44
PIPE; BRK,HYDRAULIC UNIT TO VALVE
(A)
8-97124-771-2
01
1
9707-9908
44
PIPE; BRK,HYDRAULIC UNIT TO VALVE
(A)
8-97219-977-2
01
1
9909-
104
PIPE; BRK,H/U TO FRONT
8-97124-772-4
01
1
9707-0204
104
PIPE; BRK,H/U TO FRONT
8-97326-232-0
01
1
0205-0305
104
PIPE; BRK,H/U TO FRONT
8-97358-354-0
01
1
0306-
104
PIPE; BRK,H/U TO FRONT
8-97124-773-4
01
1
9707-0110
104
PIPE; BRK,H/U TO FRONT
8-97326-233-0
01
1
0111-0307
104
PIPE; BRK,H/U TO FRONT
8-97353-894-0
01
1
0308-
105
PIPE; BRK,H/U TO 2WAY
8-97124-774-3
01
1
9707-0307
105
PIPE; BRK,H/U TO 2WAY
8-97353-895-0
01
1
0308-
1
39
2
1
2
84
8
1
9
84
2
8
2
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
(B)
8-97124-878-0
02
1
9707-
1
HOSE; FLEX,RR BRK
(A)
8-97124-880-1
01
1
9707-
2
GASKET; FLEX HOSE,RR BRK
ID=10.2 OD=16.0
9-09571-410-0
04
1
9707-
8
CLIP; RR BRK
8-97162-347-0
02
1
9707-
9
PIPE; BRK,RR AXLE
8-97124-768-0
01
1
9707-9908
9
PIPE; BRK,RR AXLE
8-97219-974-1
01
1
9909-
9
PIPE; BRK,RR AXLE
8-97124-769-1
01
1
9707-9908
9
PIPE; BRK,RR AXLE
8-97219-975-1
01
1
9909-
39
PIPE; OIL,UNION TO RR FLEX HOSE
8-97124-775-4
01
1
9707-0307
39
PIPE; OIL,UNION TO RR FLEX HOSE
8-97326-989-0
01
1
0308-
84
BOLT; FLEX HOSE EYE
M10X22
5-09675-017-0
02
1
9707-
