Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶

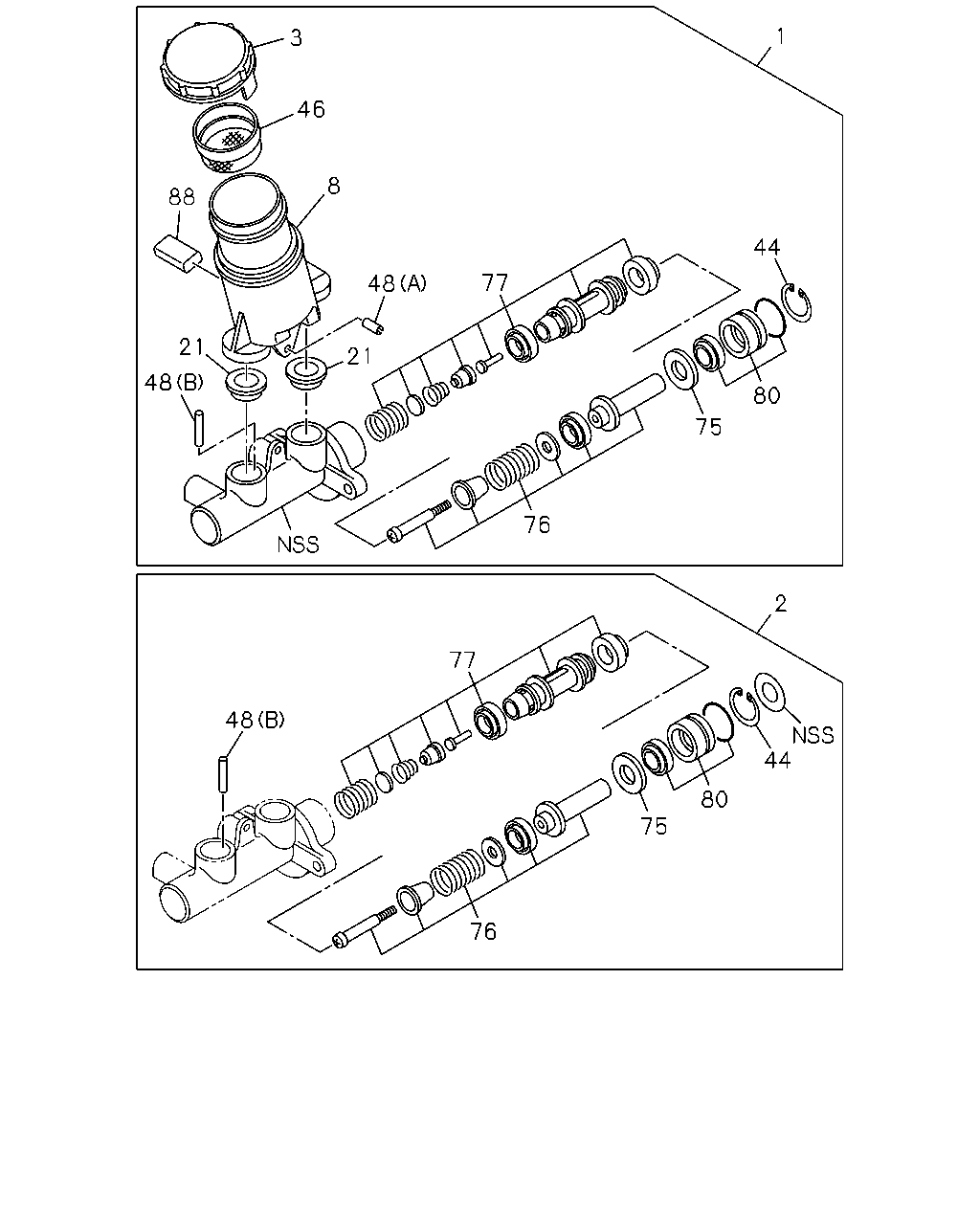

3-30 — BRAKE MASTER CYLINDER
(#42166) — 37 parça
◀
[330A] '01/7- (22 parça)
[330A] -'01/6 (15 parça)
▶
1
3
46
8
88
44
77
48
21
21
48
80
75
76
2
77
48
44
80
75
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; BRK MASTER
8-97178-010-1
01
1
9707-0102
1
CYLINDER ASM; BRK MASTER
8-97309-954-0
01
1
0103-0106
1
CYLINDER ASM; BRK MASTER
8-97288-161-0
01
1
0107-0109
1
CYLINDER ASM; BRK MASTER
8-97322-299-0
01
1
0110-
2
REPAIR KIT; BRK,M/CYL
8-97178-913-0
01
1
9707-0102
2
REPAIR KIT; BRK,M/CYL
8-97311-076-0
01
1
0103-0106
2
REPAIR KIT; BRK,M/CYL
8-97308-563-0
01
1
0107-
3
CAP; OIL TANK
8-94124-872-0
01
1
9707-0102
3
CAP; OIL TANK
8-97289-099-0
01
1
0103-
8
TANK; OIL,M/CYL
8-97061-565-0
01
1
9707-0106
8
TANK; OIL,M/CYL
8-97289-093-0
01
1
0107-
21
GROMMET; BRK M/CYL
8-97061-567-0
02
1
9707-0106
21
GROMMET; BRK M/CYL
8-97289-096-0
02
1
0107-
44
RING; SNAP,M/CYL
8-97289-091-0
01
1
0107-
46
FILTER; OIL TANK,M/CYL
8-97289-094-0
01
1
0107-
48
PIN; M/CYL
(A)
8-97289-098-0
01
1
0107-
48
PIN; M/CYL
(B)
8-97289-114-0
01
1
0107-
75
STOPPER; PISTON
8-97289-088-0
01
1
0107-
76
PISTON ASM; PRIMARY
8-97289-086-0
01
1
0107-
77
PISTON ASM; SECONDARY
8-97289-087-0
01
1
0107-
80
COVER; MASTER CYL
8-97289-089-0
01
1
0107-
88
SWITCH; LEVEL,OIL TANK,M/CYL
8-97289-102-0
01
1
0107-
3
6
1
8
5
21
21
2
6
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER ASM; BRK MASTER
8-97178-010-1
01
1
9707-0102
1
CYLINDER ASM; BRK MASTER
8-97309-954-0
01
1
0103-0106
1
CYLINDER ASM; BRK MASTER
8-97288-161-0
01
1
0107-0109
1
CYLINDER ASM; BRK MASTER
8-97322-299-0
01
1
0110-
2
REPAIR KIT; BRK,M/CYL
8-97178-913-0
01
1
9707-0102
2
REPAIR KIT; BRK,M/CYL
8-97311-076-0
01
1
0103-0106
2
REPAIR KIT; BRK,M/CYL
8-97308-563-0
01
1
0107-
3
CAP; OIL TANK
8-94124-872-0
01
1
9707-0102
3
CAP; OIL TANK
8-97289-099-0
01
1
0103-
5
RETAINER; DIAPH,M/CYL
8-97061-568-0
01
1
9707-0106
6
DIAPHRAGM; BRK M/CYL
8-94124-873-0
01
1
9707-0106
8
TANK; OIL,M/CYL
8-97061-565-0
01
1
9707-0106
8
TANK; OIL,M/CYL
8-97289-093-0
01
1
0107-
21
GROMMET; BRK M/CYL
8-97061-567-0
02
1
9707-0106
21
GROMMET; BRK M/CYL
8-97289-096-0
02
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
