Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶

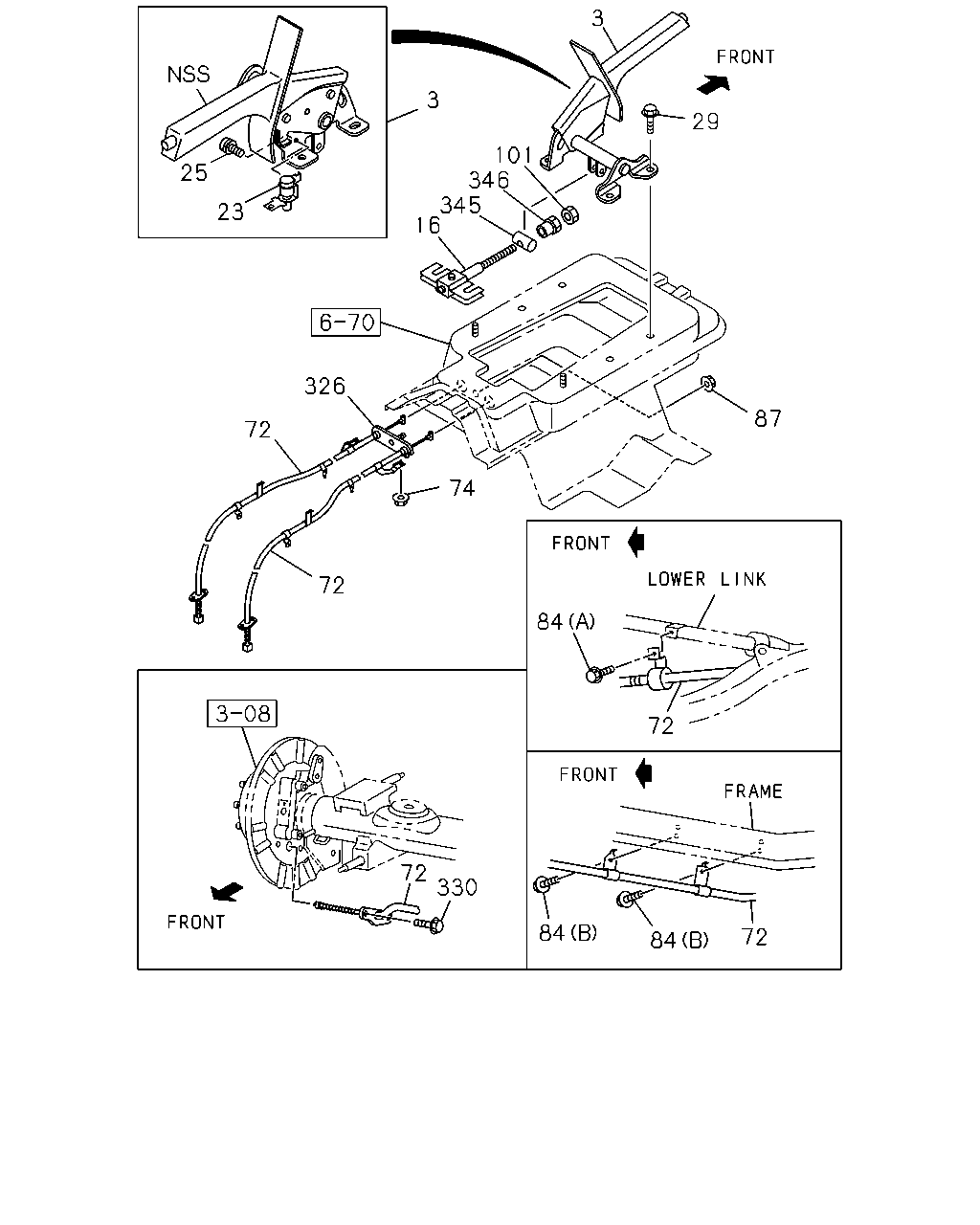

3-11 — PARKING BRAKE CONTROL
(#42165) — 20 parça
Tümü
A - A/T AISIN
B - M/T MUA 5 SPEED
C - A/T THM
D - M/T MUA 5 SPEED 5C
3
3
29
101
346
345
16
25
23
326
87
72
74
72
84
72
72
330
84
72
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
3
LEVER; PARKING BRK
8-97180-568-1
01
1
9707-9807
●
●
●
●
3
LEVER; PARKING BRK
8-97207-471-0
01
1
9808-
●
●
●
●
16
BRACKET; PARKING BRK
8-97180-569-1
01
1
9707-
●
●
●
●
23
SWITCH; PARKING BRK
8-97179-726-0
01
1
9707-
●
●
●
●
25
SCREW; SW,PARKING BRK
8-97179-727-0
01
1
9707-
●
●
●
●
29
BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE
0-28480-820-0
04
1
9707-
●
●
●
●
72
CABLE; PARKING BRK
8-97124-834-3
01
1
9707-9908
●
●
●
●
72
CABLE; PARKING BRK
8-97208-846-2
01
1
9909-
●
●
●
●
72
CABLE; PARKING BRK
8-97124-833-3
01
1
9707-9908
●
●
●
●
72
CABLE; PARKING BRK
8-97208-845-1
01
1
9909-0206
●
●
●
●
72
CABLE; PARKING BRK
8-97324-410-2
01
1
0207-
●
●
●
●
74
NUT; CONT WIRE
8-97136-404-0
02
1
9707-
●
●
●
●
84
BOLT; CABLE
(A) M6X16 FLANGE
0-28480-616-0
02
1
9707-
●
●
●
●
84
BOLT; CABLE
(B) M6X16 FLANGE
0-28480-616-0
04
1
9707-
●
●
●
●
87
NUT
M10 FLANGE
0-91150-110-0
01
1
9707-
●
●
●
●
101
NUT; CABLE TO LEVER
M8
9-09110-408-0
01
1
9707-
●
●
●
●
326
RETAINER; PARK CABLE
8-97125-148-0
01
1
9707-
●
●
●
●
330
BOLT; CABLE TO BRK
M6X12 FLANGE
0-28480-612-0
04
1
9707-
●
●
●
●
345
TRUNNION; PARKING BRK
8-97180-570-0
01
1
9707-
●
●
●
●
346
NUT; ADJUST
8-97180-608-0
01
1
9707-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
