3-10 — BRAKE PEDAL AND CONTROL (#42164) — 82 parça

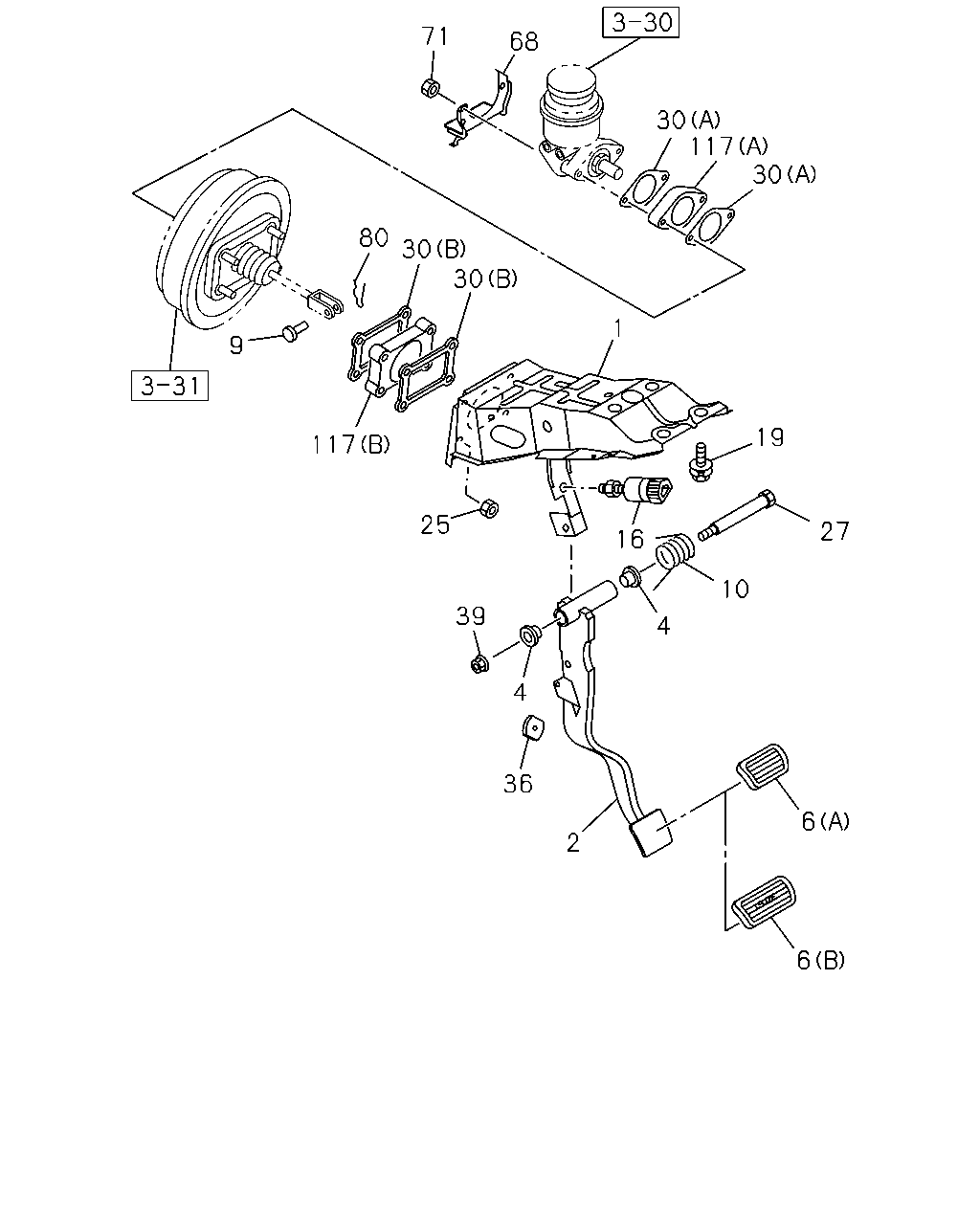

çizim 71153
71 68 30 117 30 80 30 30 1 9 19 117 25 27 16 10 39 4 4 36 6 2 6
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL 8-97132-529-2 01 1 9707-9908
1 BRACKET ASM; PEDAL 8-97230-051-0 01 1 9909-0106
1 BRACKET ASM; PEDAL 8-97264-942-1 01 1 0107-
2 PEDAL; BRK
A/T THM(RMQ) 		8-97100-344-2 01 1 9707-9908
2 PEDAL; BRK
A/T THM(RMQ) 		8-97208-822-0 01 1 9909-0106
2 PEDAL; BRK
A/T THM(RMQ) 		8-97264-940-0 01 1 0107-0206
2 PEDAL; BRK
A/T AISIN(RMD) 		8-97264-940-0 01 1 0207-0307
2 PEDAL; BRK 8-97264-940-0 01 1 0308-
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97100-343-2 01 1 9707-9908
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97208-821-0 01 1 9909-0106
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97264-941-0 01 1 0107-0206
2 PEDAL; BRK
M/T MUA 5 SPEED 5C(RSN) 		8-97264-941-0 01 1 0207-0307
4 BUSHING; BRK PEDAL 8-94244-439-0 02 1 9707-9908
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 9909-
6 COVER; BRK PEDAL
A/T THM(RMQ) (B) 		5-31413-004-0 01 1 9707-0008
6 COVER; BRK PEDAL
A/T THM(RMQ) (B) 		8-97263-035-0 01 1 0009-0206
6 COVER; BRK PEDAL
A/T AISIN(RMD) (B) 		8-97263-035-0 01 1 0207-0307
6 COVER; BRK PEDAL
(B) 		8-97263-035-0 01 1 0308-
6 COVER; BRK PEDAL
M/T MUA 5 SPEED(RMN) (A) 		8-94222-524-1 01 1 9707-0206
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5C(RSN) (A) 		8-94222-524-1 01 1 0207-0307
9 PIN; JAW JOINT 8-94250-182-0 01 1 9707-
10 SPRING; RETURN,BRK PEDAL 8-97109-668-0 01 1 9707-9908
10 SPRING; RETURN,BRK PEDAL 8-97212-877-0 01 1 9909-0106
10 SPRING; RETURN,BRK PEDAL 8-97264-943-0 01 1 0107-
16 SWITCH; STOP LAMP 8-94109-863-0 01 1 9707-
19 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 9707-
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		0-91150-108-0 04 1 9707-
27 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9707-9908
27 SHAFT; BRK PEDAL 8-94384-221-0 01 1 9909-
30 GASKET; M/VAC TO BODY
(B) 		8-94111-590-0 02 1 9707-
30 GASKET; M/VAC TO BODY
(A) 		8-97178-015-0 02 1 9707-0106
36 STOPPER; BRK PEDAL 8-97857-401-1 01 1 9909-0307
36 STOPPER; BRK PEDAL 8-97302-305-0 01 1 0308-
39 NUT; STOPPER LK
M10 		9-09110-410-0 01 1 9707-9908
39 NUT; STOPPER LK
M10 FLANGE 		1-09440-022-0 01 1 9909-
68 BRACKET; SERVO TO DASH PANEL 8-97178-906-0 01 1 9707-0106
68 BRACKET; SERVO TO DASH PANEL 8-97288-377-0 01 1 0107-
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9707-
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9707-
117 SPACER; M/VAC TO BODY
(B) 		8-97094-455-0 01 1 9707-
117 SPACER; M/VAC TO BODY
(A) 		8-97178-908-0 01 1 9707-0106

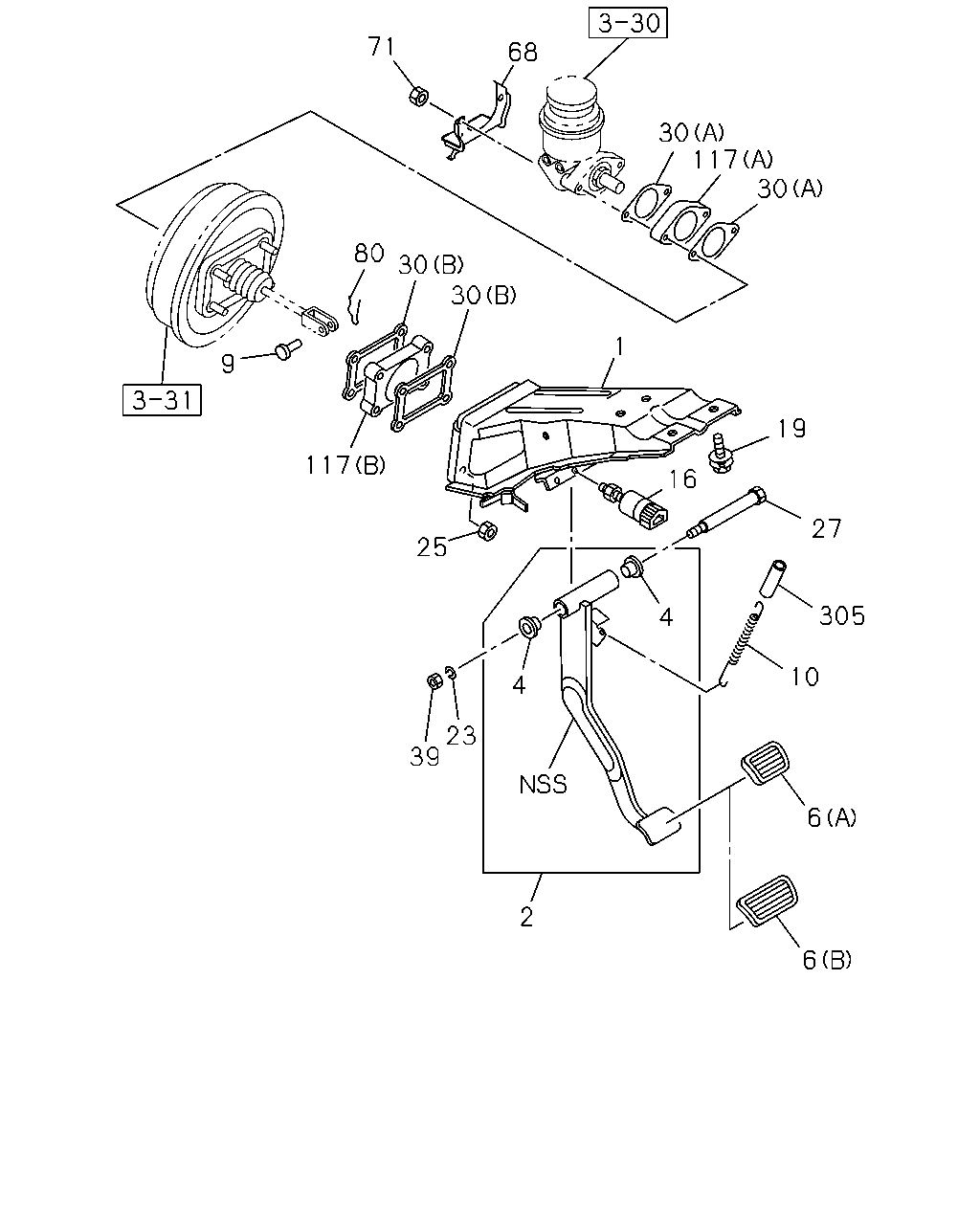

çizim 71154
71 68 30 117 30 80 30 30 1 9 19 117 16 27 25 305 4 10 4 23 39 6 2 6
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL 8-97132-529-2 01 1 9707-9908
1 BRACKET ASM; PEDAL 8-97230-051-0 01 1 9909-0106
1 BRACKET ASM; PEDAL 8-97264-942-1 01 1 0107-
2 PEDAL; BRK
A/T THM(RMQ) 		8-97100-344-2 01 1 9707-9908
2 PEDAL; BRK
A/T THM(RMQ) 		8-97208-822-0 01 1 9909-0106
2 PEDAL; BRK
A/T THM(RMQ) 		8-97264-940-0 01 1 0107-0206
2 PEDAL; BRK
A/T AISIN(RMD) 		8-97264-940-0 01 1 0207-0307
2 PEDAL; BRK 8-97264-940-0 01 1 0308-
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97100-343-2 01 1 9707-9908
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97208-821-0 01 1 9909-0106
2 PEDAL; BRK
M/T MUA 5 SPEED(RMN) 		8-97264-941-0 01 1 0107-0206
2 PEDAL; BRK
M/T MUA 5 SPEED 5C(RSN) 		8-97264-941-0 01 1 0207-0307
4 BUSHING; BRK PEDAL 8-94244-439-0 02 1 9707-9908
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 9909-
6 COVER; BRK PEDAL
A/T THM(RMQ) (B) 		5-31413-004-0 01 1 9707-0008
6 COVER; BRK PEDAL
A/T THM(RMQ) (B) 		8-97263-035-0 01 1 0009-0206
6 COVER; BRK PEDAL
A/T AISIN(RMD) (B) 		8-97263-035-0 01 1 0207-0307
6 COVER; BRK PEDAL
(B) 		8-97263-035-0 01 1 0308-
6 COVER; BRK PEDAL
M/T MUA 5 SPEED(RMN) (A) 		8-94222-524-1 01 1 9707-0206
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5C(RSN) (A) 		8-94222-524-1 01 1 0207-0307
9 PIN; JAW JOINT 8-94250-182-0 01 1 9707-
10 SPRING; RETURN,BRK PEDAL 8-97109-668-0 01 1 9707-9908
10 SPRING; RETURN,BRK PEDAL 8-97212-877-0 01 1 9909-0106
10 SPRING; RETURN,BRK PEDAL 8-97264-943-0 01 1 0107-
16 SWITCH; STOP LAMP 8-94109-863-0 01 1 9707-
19 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 05 1 9707-
23 WASHER; LK,SHAFT
ID=10.2 		9-09150-510-0 01 1 9707-9908
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		0-91150-108-0 04 1 9707-
27 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9707-9908
27 SHAFT; BRK PEDAL 8-94384-221-0 01 1 9909-
30 GASKET; M/VAC TO BODY
(B) 		8-94111-590-0 02 1 9707-
30 GASKET; M/VAC TO BODY
(A) 		8-97178-015-0 02 1 9707-0106
39 NUT; STOPPER LK
M10 		9-09110-410-0 01 1 9707-9908
39 NUT; STOPPER LK
M10 FLANGE 		1-09440-022-0 01 1 9909-
68 BRACKET; SERVO TO DASH PANEL 8-97178-906-0 01 1 9707-0106
68 BRACKET; SERVO TO DASH PANEL 8-97288-377-0 01 1 0107-
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9707-
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9707-
117 SPACER; M/VAC TO BODY
(B) 		8-97094-455-0 01 1 9707-
117 SPACER; M/VAC TO BODY
(A) 		8-97178-908-0 01 1 9707-0106
305 COVER; SPRING 8-97170-779-0 01 1 9707-9908
