◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#42163) — 40 parça

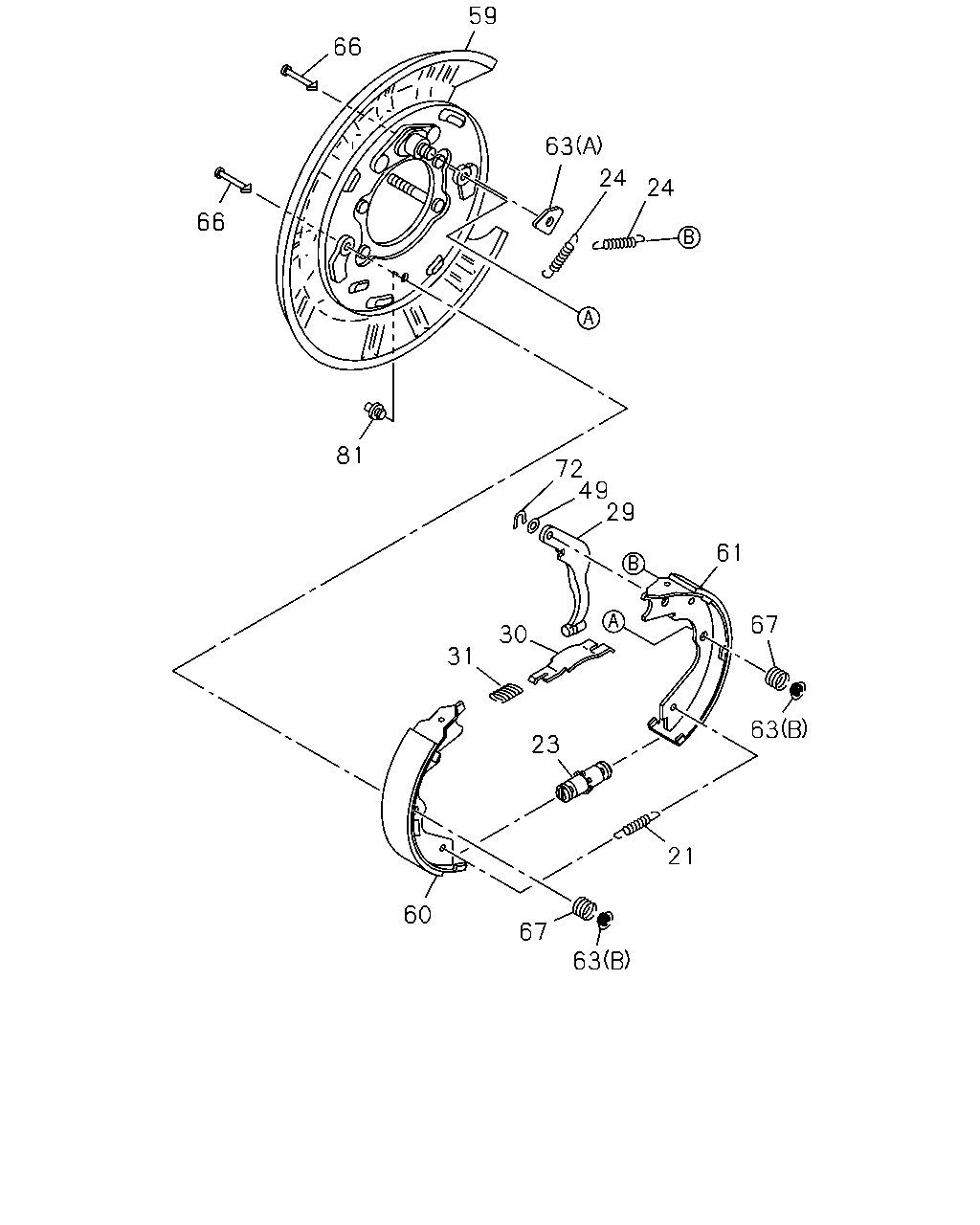

çizim 71218
59 66 63 24 24 66 81 72 49 29 61 67 30 31 63 23 21 60 67 63
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 SPRING; RETURN,PARKING BRK SHOE 8-97120-773-0 02 1 9707-0206 ● ●
21 SPRING; RETURN,PARKING BRK SHOE 8-97120-773-0 02 1 0207- ● ●
23 SCREW; ADJ,PARKING BRK SHOE 8-97120-775-0 02 1 9707-0206 ● ●
23 SCREW; ADJ,PARKING BRK SHOE 8-97120-775-0 02 1 0207- ● ●
24 SPRING; BRK SHOE 8-97120-772-0 04 1 9707-0206 ● ●
24 SPRING; BRK SHOE 8-97120-772-0 04 1 0207- ● ●
29 LEVER; PARKING BRK 8-97120-762-0 01 1 9707-0206 ● ●
29 LEVER; PARKING BRK 8-97120-762-0 01 1 0207- ● ●
29 LEVER; PARKING BRK 8-97120-761-0 01 1 9707-0206 ● ●
29 LEVER; PARKING BRK 8-97120-761-0 01 1 0207- ● ●
30 STRUT; PARKING BRK 8-97120-764-0 01 1 9707-0206 ● ●
30 STRUT; PARKING BRK 8-97120-764-0 01 1 0207- ● ●
30 STRUT; PARKING BRK 8-97120-763-0 01 1 9707-0206 ● ●
30 STRUT; PARKING BRK 8-97120-763-0 01 1 0207- ● ●
31 SPRING; SHOE TO STRUT 8-97120-771-0 02 1 9707-0206 ● ●
31 SPRING; SHOE TO STRUT 8-97120-771-0 02 1 0207- ● ●
49 WASHER; PARKING BRK LEVER 8-97120-769-0 02 1 9707-0206 ● ●
49 WASHER; PARKING BRK LEVER 8-97120-769-0 02 1 0207- ● ●
59 COVER; DUST,PARKING BRK 8-97141-947-0 01 1 9707-0206 ● ●
59 COVER; DUST,PARKING BRK 8-97141-947-0 01 1 0207- ● ●
59 COVER; DUST,PARKING BRK 8-97141-946-0 01 1 9707-0206 ● ●
59 COVER; DUST,PARKING BRK 8-97141-946-0 01 1 0207- ● ●
60 SHOE; PARKING BRK,PRIMARY
LEADING 		8-97120-760-0 02 1 9707-0206 ● ●
60 SHOE; PARKING BRK,PRIMARY
LEADING 		8-97120-760-0 02 1 0207- ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97120-759-0 01 1 9707-0206 ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97120-759-0 01 1 0207- ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97120-758-0 01 1 9707-0206 ● ●
61 SHOE; PARKING BRK,SECONDARY
TRAILING 		8-97120-758-0 01 1 0207- ● ●
63 RETAINER; PARKING BRK LEVER
(B) 		8-97120-767-0 04 1 9707-0206 ● ●
63 RETAINER; PARKING BRK LEVER
(B) 		8-97120-767-0 04 1 0207- ● ●
63 RETAINER; PARKING BRK LEVER
(A) 		8-97120-774-0 02 1 9707-0206 ● ●
63 RETAINER; PARKING BRK LEVER
(A) 		8-97120-774-0 02 1 0207- ● ●
66 PIN; SHOE HOLD,PARKING BRK 8-97120-768-0 04 1 9707-0206 ● ●
66 PIN; SHOE HOLD,PARKING BRK 8-97120-768-0 04 1 0207- ● ●
67 SPRING; SHOE HOLD,PARKING BRK 8-97120-766-0 04 1 9707-0206 ● ●
67 SPRING; SHOE HOLD,PARKING BRK 8-97120-766-0 04 1 0207- ● ●
72 RING; SNAP 8-97120-770-0 02 1 9707-0206 ● ●
72 RING; SNAP 8-97120-770-0 02 1 0207- ● ●
81 COVER; CHECK HOLE,PARKING BRK 8-97120-765-0 02 1 9707-0206 ● ●
81 COVER; CHECK HOLE,PARKING BRK 8-97120-765-0 02 1 0207- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
