Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
3 - Brakes, Brake System
▶

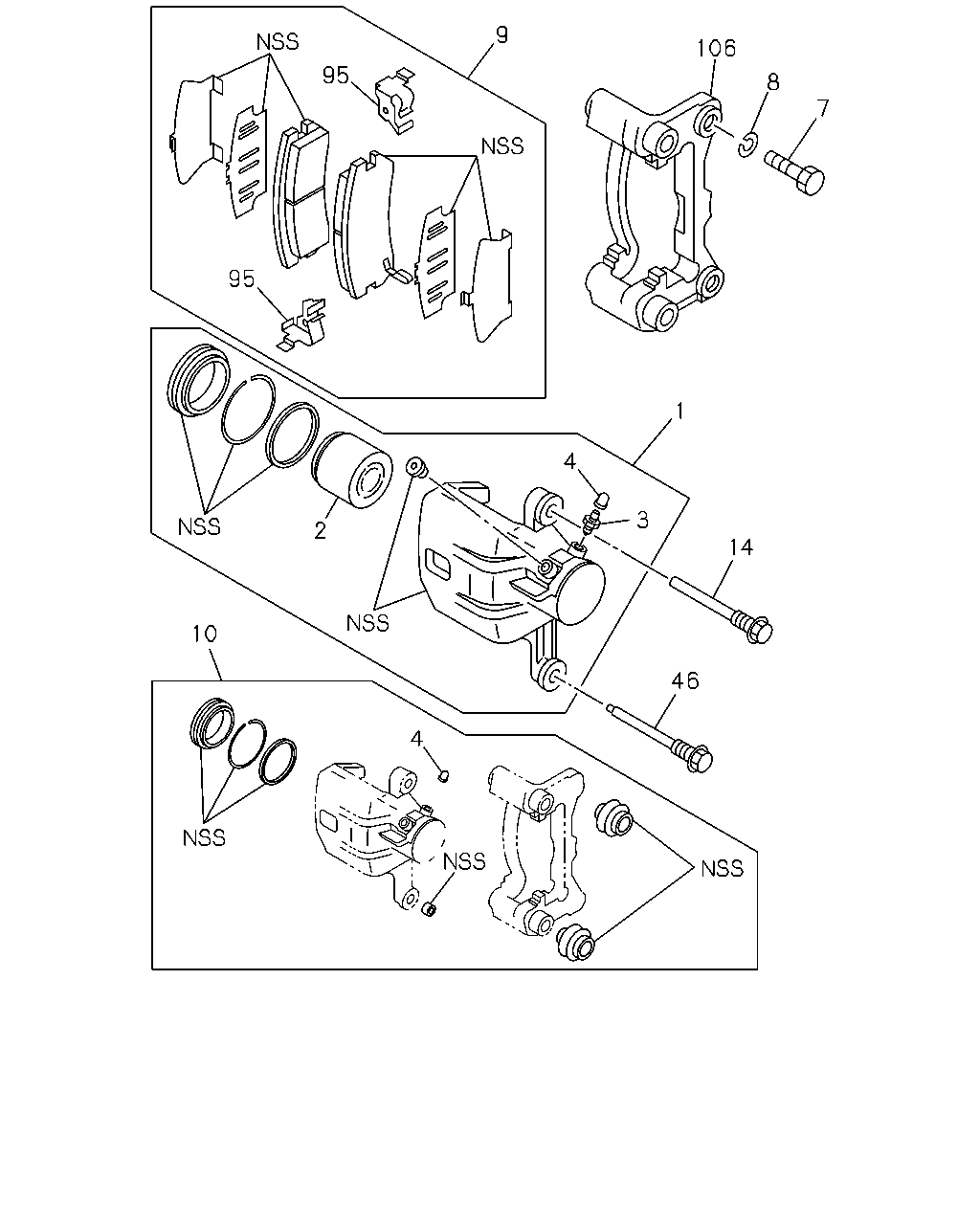

3-06 - REAR DISC BRAKE CALIPER
▶
3-06 — REAR DISC BRAKE CALIPER
(#42162) — 23 parça
9
106
95
8
7
95
1
4
3
2
14
10
46
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; RR DISC BRK
OR
8-97127-630-0
01
1
9707-
1
CALIPER; RR DISC BRK
OR
8-97127-629-0
01
1
9707-
1
CALIPER; RR DISC BRK
OR
8-97144-479-0
01
1
0403-
1
CALIPER; RR DISC BRK
OR
8-97144-478-0
01
1
0403-
2
PISTON; CALIPER,RR
OR
8-97065-364-1
02
1
9707-
2
PISTON; CALIPER,RR
OR
8-97035-261-0
02
1
0403-
3
SCREW; BLEEDER,CALIPER,RR
OR
8-94380-137-0
02
1
9707-
3
SCREW; BLEEDER,CALIPER,RR
OR
8-97113-867-0
02
1
0403-
4
CAP; BLEEDER SCREW,CALIPER,RR
1-47619-009-0
02
1
9707-
6
BRACKET; SUPPORT,RR DISC BRK
8-97035-260-0
02
1
0403-
7
BOLT; DISC BRK
M12X27
8-97126-215-1
04
1
9707-0203
7
BOLT; DISC BRK
M12X27
8-97351-108-0
04
1
0204-
8
WASHER; LK,DISC BRK
ID=12.2
9-09150-812-0
04
1
9707-
9
PAD KIT; CALIPER,RR
8-97131-749-0
01
1
9707-9908
9
PAD KIT; CALIPER,RR
8-97035-266-0
01
1
9909-
10
REPAIR KIT; DISC BRK,RR
OR
8-97127-613-0
01
1
9707-
10
REPAIR KIT; DISC BRK,RR
OR
8-97134-718-0
01
1
0403-
12
PIN; RET,CALIPER,RR DISC BRK
8-94362-821-0
02
1
0403-
14
PIN; GUIDE,CALIPER
OR
8-97160-821-0
02
1
9707-
14
PIN; GUIDE,CALIPER
OR
8-94362-820-0
02
1
0403-
46
PIN; ADJ
8-97160-823-0
02
1
9707-
95
CLIP; PAD
8-97160-819-0
04
1
9707-
106
SUPPORT
8-97065-363-0
02
1
9707-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
