Isuzu WW
▶
SUV
▶
UES
▶
50754 - UES(4DOOR)-LHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

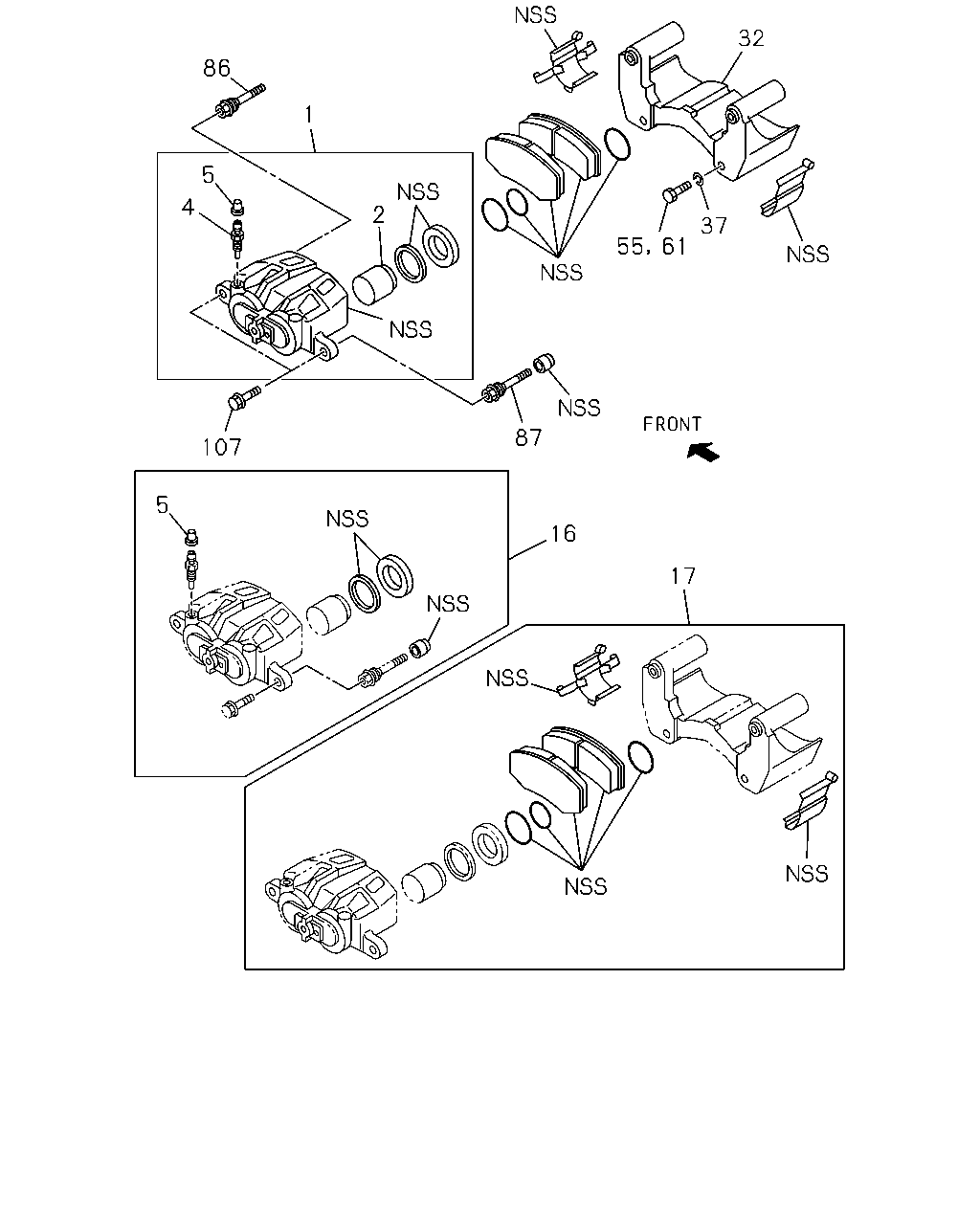

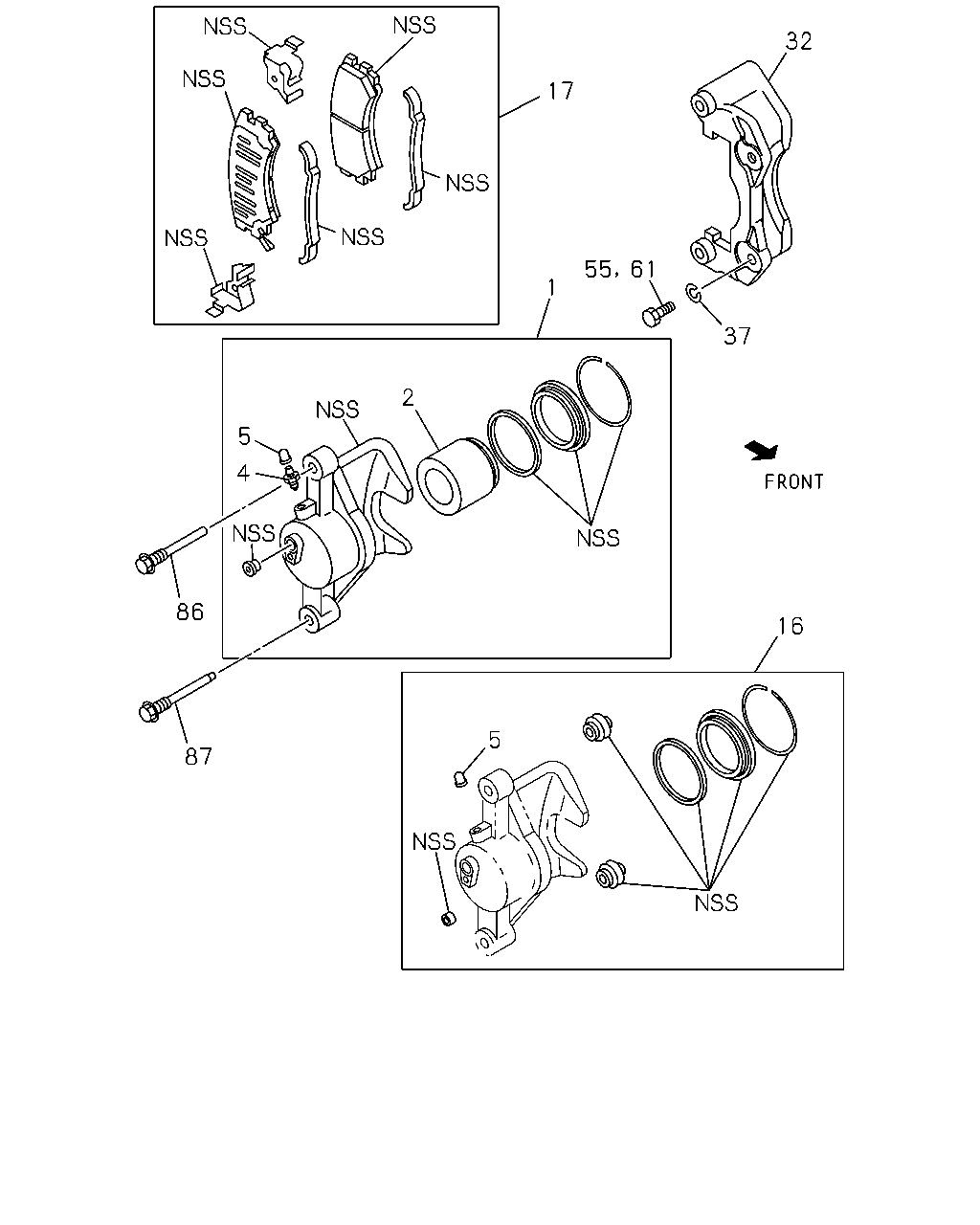

3-02 — FRONT DISC BRAKE CALIPER
(#42161) — 55 parça
◀
[302A] -'01/6 (27 parça)
[302A] '01/7- (28 parça)
▶
32
17
55
61
1
37
2
5
4
86
16
5
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
8-97125-973-0
01
1
9707-0106
1
CALIPER; FRT DISC BRK
8-97287-239-0
01
1
0107-
1
CALIPER; FRT DISC BRK
8-97125-972-0
01
1
9707-0106
1
CALIPER; FRT DISC BRK
8-97287-238-0
01
1
0107-
2
PISTON; CALIPER,DISC BRK,FRT
8-94380-136-1
02
1
9707-0106
2
PISTON; CALIPER,DISC BRK,FRT
8-97287-245-0
04
1
0107-
4
SCREW; BLEEDER,DISC BRK,FRT
8-94380-137-0
02
1
9707-0106
4
SCREW; BLEEDER,DISC BRK,FRT
8-97287-247-0
02
1
0107-
5
CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
02
1
9707-0106
5
CAP; BLEEDER,DISC BRK,FRT
8-97287-248-0
02
1
0107-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97127-612-0
01
1
9707-0106
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97287-264-0
01
1
0107-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97131-748-0
01
1
9707-9908
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97035-257-1
01
1
9909-0106
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97287-263-0
01
1
0107-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97287-263-0
01
1
0403-
32
SUPPORT; FRT DISC BRK
8-97065-356-0
02
1
9707-0106
32
SUPPORT; FRT DISC BRK
8-97287-249-1
02
1
0107-
37
WASHER; LK
ID=14.2
9-09150-814-0
04
1
9707-
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97126-347-0
02
1
9707-0204
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97327-422-0
02
1
0205-
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97126-347-0
02
1
9707-0204
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97327-422-0
02
1
0205-
86
PIN; GUIDE
8-97160-820-0
02
1
9707-0106
86
PIN; GUIDE
8-97287-251-0
02
1
0107-
87
PIN; LOCK
8-97160-822-0
02
1
9707-0106
87
PIN; LOCK
8-97287-252-0
02
1
0107-
32
86
1
5
4
2
37
55
61
87
107
5
16
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
8-97125-973-0
01
1
9707-0106
1
CALIPER; FRT DISC BRK
8-97287-239-0
01
1
0107-
1
CALIPER; FRT DISC BRK
8-97125-972-0
01
1
9707-0106
1
CALIPER; FRT DISC BRK
8-97287-238-0
01
1
0107-
2
PISTON; CALIPER,DISC BRK,FRT
8-94380-136-1
02
1
9707-0106
2
PISTON; CALIPER,DISC BRK,FRT
8-97287-245-0
04
1
0107-
4
SCREW; BLEEDER,DISC BRK,FRT
8-94380-137-0
02
1
9707-0106
4
SCREW; BLEEDER,DISC BRK,FRT
8-97287-247-0
02
1
0107-
5
CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
02
1
9707-0106
5
CAP; BLEEDER,DISC BRK,FRT
8-97287-248-0
02
1
0107-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97127-612-0
01
1
9707-0106
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97287-264-0
01
1
0107-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97131-748-0
01
1
9707-9908
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97035-257-1
01
1
9909-0106
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97287-263-0
01
1
0107-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-97287-263-0
01
1
0403-
32
SUPPORT; FRT DISC BRK
8-97065-356-0
02
1
9707-0106
32
SUPPORT; FRT DISC BRK
8-97287-249-1
02
1
0107-
37
WASHER; LK
ID=14.2
9-09150-814-0
04
1
9707-
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97126-347-0
02
1
9707-0204
55
BOLT; SUPPORT BRKT TO DISC BRK
M14X29
8-97327-422-0
02
1
0205-
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97126-347-0
02
1
9707-0204
61
BOLT; SUPPORT BRKT TO KNUCKLE
M14X29
8-97327-422-0
02
1
0205-
86
PIN; GUIDE
8-97160-820-0
02
1
9707-0106
86
PIN; GUIDE
8-97287-251-0
02
1
0107-
87
PIN; LOCK
8-97160-822-0
02
1
9707-0106
87
PIN; LOCK
8-97287-252-0
02
1
0107-
107
BOLT; PIN
8-97287-410-0
04
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
