2-66 — MANUAL TRANSFER GEAR; OUTPUT (#42160) — 33 parça

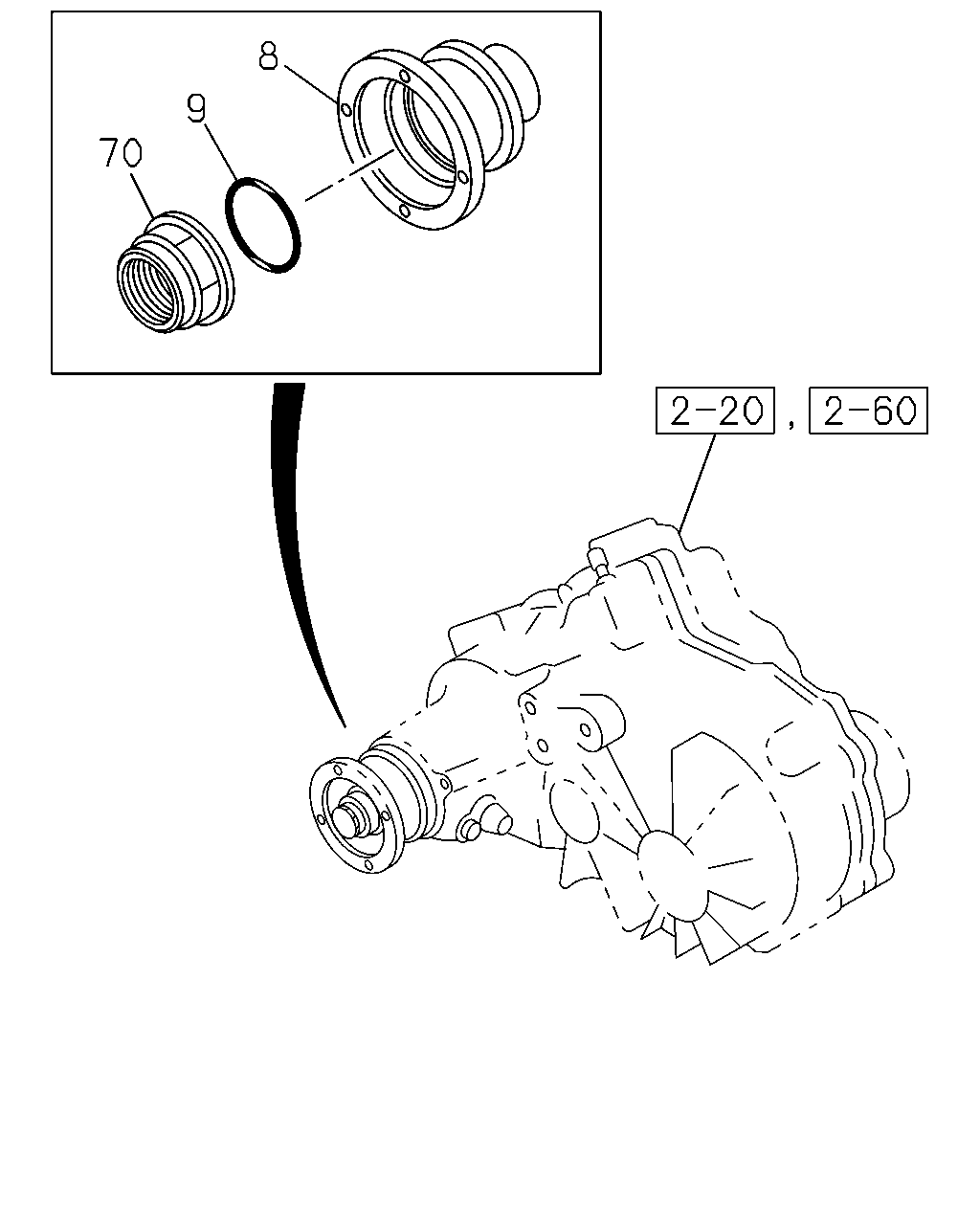

çizim 16998
8 9 70
BalonParca AdiParca NoAdetTipApplied Date
8 FLANGE; OUTPUT 8-97127-043-1 01 1 9707-0004
8 FLANGE; OUTPUT 8-97251-138-1 01 1 0005-0206
8 FLANGE; OUTPUT 8-97319-825-2 01 1 0207-
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		9-09561-326-0 01 1 9707-0206
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=29.7 OD=36.1 		8-94483-035-0 01 1 0207-
70 NUT; RR OUTPUT SHAFT,TRANSFER
M24 		8-94385-985-1 01 1 9707-0206
70 NUT; RR OUTPUT SHAFT,TRANSFER 8-97305-605-0 01 1 0207-

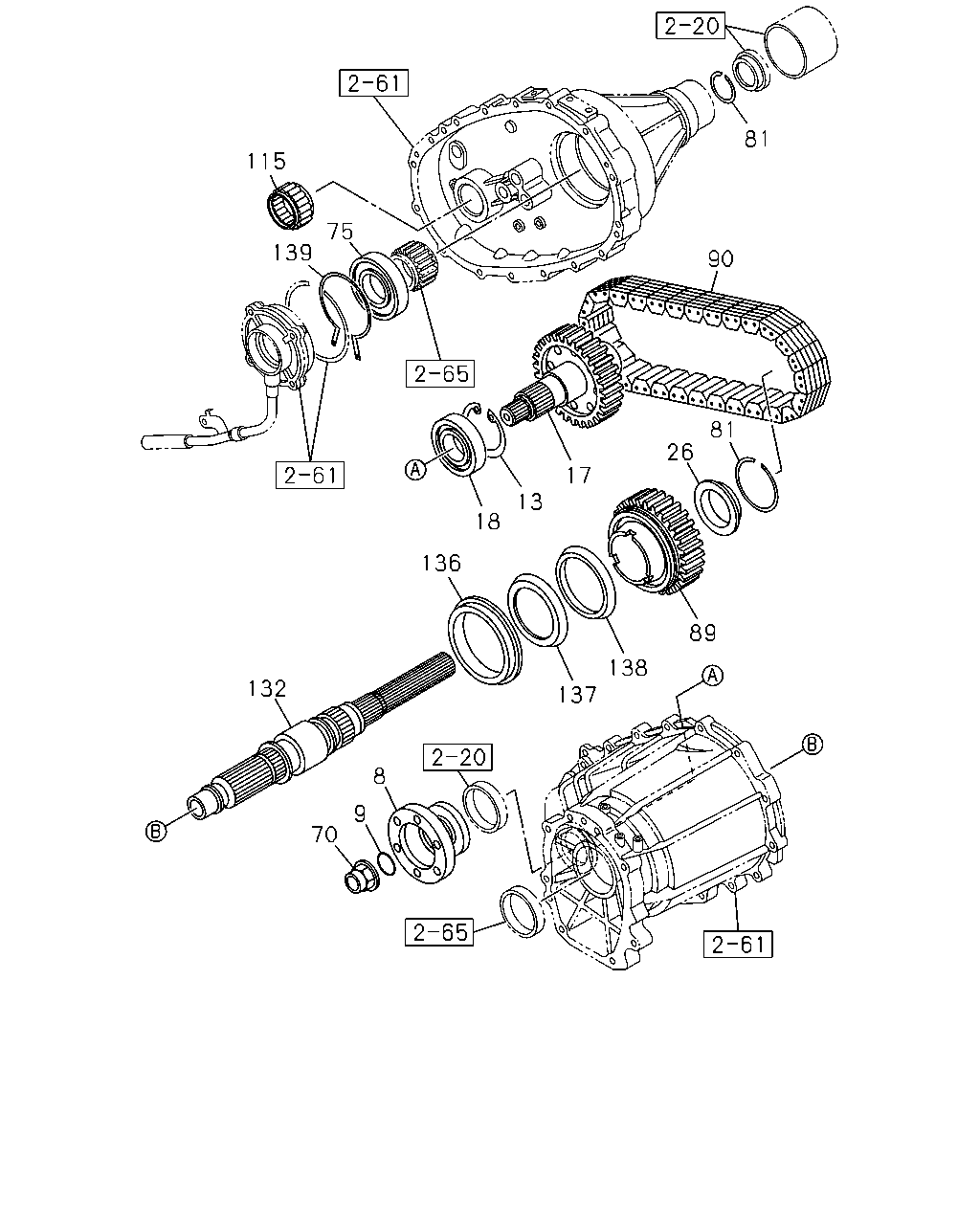

çizim 71197
81 115 75 139 90 81 26 17 13 18 136 89 138 132 137 8 9 70
BalonParca AdiParca NoAdetTipApplied Date
8 FLANGE; OUTPUT 8-97127-043-1 01 1 9707-0004
8 FLANGE; OUTPUT 8-97251-138-1 01 1 0005-0206
8 FLANGE; OUTPUT 8-97319-825-2 01 1 0207-
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		9-09561-326-0 01 1 9707-0206
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=29.7 OD=36.1 		8-94483-035-0 01 1 0207-
13 RING; SNAP,OUTPUT,FRT
ID=67 		8-97305-402-0 01 1 0207-
17 SHAFT; OUTPUT 8-97231-853-0 01 1 0207-
18 BEARING; BALL,OUTPUT,FRT
NSK 		8-94422-172-1 01 1 0207-
26 WASHER; THRUST 8-97239-774-0 01 1 0207-
70 NUT; RR OUTPUT SHAFT,TRANSFER
M24 		8-94385-985-1 01 1 9707-0206
70 NUT; RR OUTPUT SHAFT,TRANSFER 8-97305-605-0 01 1 0207-
75 BEARING; BALL,RR OUTPUT 8-97234-737-0 01 1 0207-
81 RING; SNAP
T=1.9 		8-97305-404-1 01 1 0207-
81 RING; SNAP
T=1.4 		8-97305-405-0 01 1 0207-
81 RING; SNAP
T=2.15 RED 		8-97305-407-0 01 1 0207-
81 RING; SNAP
T=2.10 		8-97305-408-0 01 1 0207-
81 RING; SNAP
T=2.05 BLUE 		8-97305-409-0 01 1 0207-
81 RING; SNAP
T=2.00 WHITE 		8-97305-410-0 01 1 0207-
89 SPROCKET; DRIVE 8-97231-852-0 01 1 0207-
90 CHAIN; DRIVE 8-97323-177-0 01 1 0207-
115 BEARING; NEEDLE 8-97234-747-0 01 1 0207-
132 SHAFT; MAIN,TRANSFER 8-97231-833-3 01 1 0207-
136 BLOCK RING; 2-4
Z=48 		8-94363-054-1 01 1 0207-
137 RING; OUTSIDE,2-4
OD=90.0 		8-94363-055-1 01 1 0207-
138 RING; INSIDE,2-4
OD=95.8 		8-94363-056-0 01 1 0207-
139 RING; RETAINING,RR OUTPUT
ID=76 		8-97305-012-0 01 1 0207-
