0-11B — CYLINDER HEAD (#4216) — 162 parça

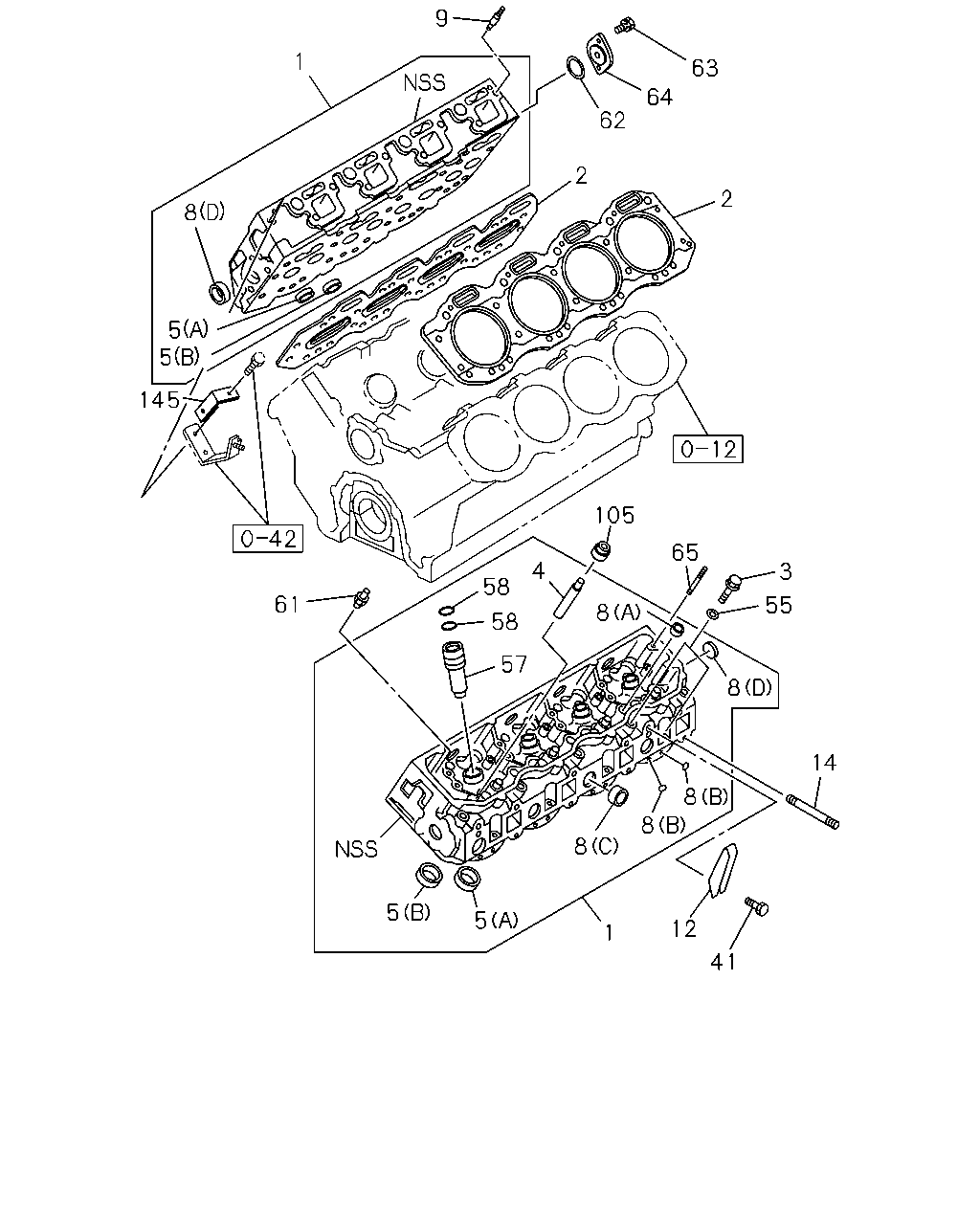

3 55 105 12 63 41 64 62 1 1 61 65 14 9 2 57 58 58 9 3 145 61 55 105 8 8 8 4 8 12 41 8 5 14 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HEAD ASM; CYL RH BANK	1-11110-796-1	01	1	9603-9705	●
1	HEAD ASM; CYL RH BANK	1-11110-852-2	01	1	9706-	●
1	HEAD ASM; CYL LH BANK	1-11110-797-1	01	1	9603-9705	●
1	HEAD ASM; CYL LH BANK	1-11110-853-2	01	1	9706-	●
1	HEAD ASM; CYL RH BANK	1-11110-793-1	01	1	9603-9705		●
1	HEAD ASM; CYL RH BANK	1-11110-850-0	01	1	9706-9904		●
1	HEAD ASM; CYL RH BANK	1-11110-850-2	01	1	9905-		●	●	●
1	HEAD ASM; CYL LH BANK	1-11110-794-1	01	1	9603-9705		●
1	HEAD ASM; CYL LH BANK	1-11110-851-0	01	1	9706-9904		●
1	HEAD ASM; CYL LH BANK	1-11110-851-2	01	1	9905-		●	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-251-0	02	1	9603-9705	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-262-1	02	1	9706-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-250-0	02	1	9603-9705		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-261-0	02	1	9706-9904		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-261-1	02	1	9905-		●	●	●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-033-1	20	1	9603-9902	●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-139-0	20	1	9903-	●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-034-1	16	1	9603-9902	●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-138-0	16	1	9903-	●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-033-1	24	1	9603-9902		●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-139-0	24	1	9903-9904		●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-139-0	24	1	9905-		●	●	●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-034-1	20	1	9603-9902		●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-138-0	20	1	9903-9904		●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-138-0	20	1	9905-		●	●	●
4	GUIDE; VLV	1-11721-004-0	16	1	9603-	●
4	GUIDE; VLV	1-11721-004-0	20	1	9603-9904		●
4	GUIDE; VLV	1-11721-004-0	20	1	9905-		●	●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	08	1	9603-9705	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-071-0	08	1	9706-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	08	1	9603-	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	10	1	9603-9705		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-071-0	10	1	9706-9904		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-071-0	10	1	9905-		●	●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9603-9904		●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	16	1	9603-	●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	22	1	9603-	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	08	1	9603-	●
8	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	01	1	9603-9904	●	●
8	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	01	1	9905-	●	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	20	1	9603-9904		●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	20	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	28	1	9603-9904		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	28	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	10	1	9603-9904		●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	10	1	9905-		●	●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	16	1	9603-	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	20	1	9603-9904		●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	20	1	9905-		●	●	●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9603-9904	●	●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9905-	●	●	●	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	16	1	9603-	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9603-9904		●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9905-		●	●	●
41	BOLT; ENG HANGER M12X26	1-09000-535-1	04	1	9603-9904	●	●
41	BOLT; ENG HANGER M12X26	1-09000-535-1	04	1	9905-	●	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	36	1	9603-	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9603-9904		●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9905-		●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	08	1	9603-	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9603-9904		●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9905-		●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-592-0	16	1	9603-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-592-0	20	1	9603-9904		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-592-0	20	1	9905-		●	●	●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9603-9904	●	●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9905-	●	●	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9603-9904	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9905-	●	●	●	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9603-9904	●	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●	●	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9603-9904	●	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9905-	●	●	●	●
65	STUD; ROCKER OIL FEED M10X88 L=103	1-09300-025-0	02	1	9603-9904	●	●
65	STUD; ROCKER OIL FEED M10X88 L=103	1-09300-025-0	02	1	9905-	●	●	●	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	16	1	9603-	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9603-9904		●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9905-		●	●	●
145	BRACKET	1-09709-072-0	01	1	9603-9904	●	●
145	BRACKET	1-09709-072-0	01	1	9905-	●	●	●	●

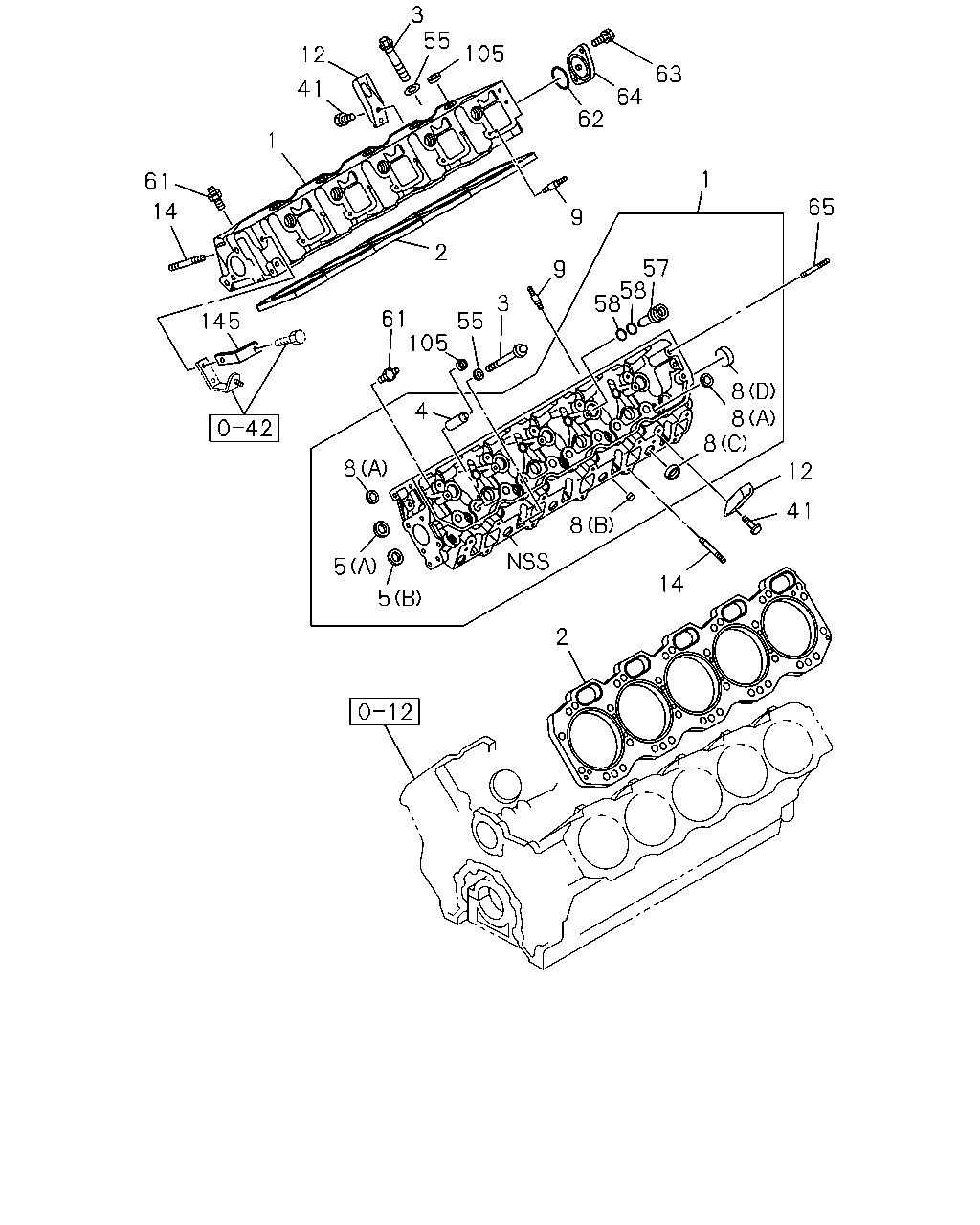

9 1 63 64 62 2 2 8 5 5 145 105 65 4 3 58 61 55 8 58 57 8 14 8 8 8 5 5 12 1 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HEAD ASM; CYL RH BANK	1-11110-796-1	01	1	9603-9705	●
1	HEAD ASM; CYL RH BANK	1-11110-852-2	01	1	9706-	●
1	HEAD ASM; CYL LH BANK	1-11110-797-1	01	1	9603-9705	●
1	HEAD ASM; CYL LH BANK	1-11110-853-2	01	1	9706-	●
1	HEAD ASM; CYL RH BANK	1-11110-793-1	01	1	9603-9705		●
1	HEAD ASM; CYL RH BANK	1-11110-850-0	01	1	9706-9904		●
1	HEAD ASM; CYL RH BANK	1-11110-850-2	01	1	9905-		●	●	●
1	HEAD ASM; CYL LH BANK	1-11110-794-1	01	1	9603-9705		●
1	HEAD ASM; CYL LH BANK	1-11110-851-0	01	1	9706-9904		●
1	HEAD ASM; CYL LH BANK	1-11110-851-2	01	1	9905-		●	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-251-0	02	1	9603-9705	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-262-1	02	1	9706-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-250-0	02	1	9603-9705		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-261-0	02	1	9706-9904		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-261-1	02	1	9905-		●	●	●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-033-1	20	1	9603-9902	●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-139-0	20	1	9903-	●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-034-1	16	1	9603-9902	●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-138-0	16	1	9903-	●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-033-1	24	1	9603-9902		●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-139-0	24	1	9903-9904		●
3	BOLT; CYL HD TO BLOCK M14X140	1-09070-139-0	24	1	9905-		●	●	●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-034-1	20	1	9603-9902		●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-138-0	20	1	9903-9904		●
3	BOLT; CYL HD TO BLOCK M14X80 FLANGE	1-09070-138-0	20	1	9905-		●	●	●
4	GUIDE; VLV	1-11721-004-0	16	1	9603-	●
4	GUIDE; VLV	1-11721-004-0	20	1	9603-9904		●
4	GUIDE; VLV	1-11721-004-0	20	1	9905-		●	●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	08	1	9603-9705	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-071-0	08	1	9706-	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	08	1	9603-	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-054-0	10	1	9603-9705		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-071-0	10	1	9706-9904		●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-071-0	10	1	9905-		●	●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9603-9904		●
5	SEAT; VLV INSERT (B) INLET	1-11715-078-0	10	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	16	1	9603-	●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	22	1	9603-	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	08	1	9603-	●
8	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	01	1	9603-9904	●	●
8	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	01	1	9905-	●	●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	20	1	9603-9904		●
8	CUP; SEALING,WATER JACKET (B) OD=12	1-09600-010-1	20	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	28	1	9603-9904		●
8	CUP; SEALING,WATER JACKET (A) OD=22	1-09600-011-2	28	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	10	1	9603-9904		●
8	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-012-1	10	1	9905-		●	●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	16	1	9603-	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	20	1	9603-9904		●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	20	1	9905-		●	●	●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9603-9904	●	●
12	HANGER; ENG,RR	1-11777-164-0	02	1	9905-	●	●	●	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	16	1	9603-	●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9603-9904		●
14	STUD; EXH MANIF M10X95 L=110	1-09302-063-0	20	1	9905-		●	●	●
41	BOLT; ENG HANGER M12X26	1-09000-535-1	04	1	9603-9904	●	●
41	BOLT; ENG HANGER M12X26	1-09000-535-1	04	1	9905-	●	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	36	1	9603-	●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9603-9904		●
55	WASHER; PL,CYL HD TO BLOCK ID=14.2	1-09503-050-0	44	1	9905-		●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	08	1	9603-	●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9603-9904		●
57	SLEEVE; NOZZLE HOLDER	1-11129-017-0	10	1	9905-		●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-592-0	16	1	9603-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-592-0	20	1	9603-9904		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-592-0	20	1	9905-		●	●	●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9603-9904	●	●
61	CONNECTOR; LEAK OFF PIPE	1-09669-015-0	02	1	9905-	●	●	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9603-9904	●	●
62	GASKET; COVER,WATER JACKET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-425-0	01	1	9905-	●	●	●	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9603-9904	●	●
63	BOLT; CVR,WATER JACKET M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●	●	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9603-9904	●	●
64	COVER; WATER JACKET	1-11119-013-1	01	1	9905-	●	●	●	●
65	STUD; ROCKER OIL FEED M10X88 L=103	1-09300-025-0	02	1	9603-9904	●	●
65	STUD; ROCKER OIL FEED M10X88 L=103	1-09300-025-0	02	1	9905-	●	●	●	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	16	1	9603-	●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9603-9904		●
105	SEAL; OIL VLV STEM ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-017-0	20	1	9905-		●	●	●
145	BRACKET	1-09709-072-0	01	1	9603-9904	●	●
145	BRACKET	1-09709-072-0	01	1	9905-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
