2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#42158) — 137 parça

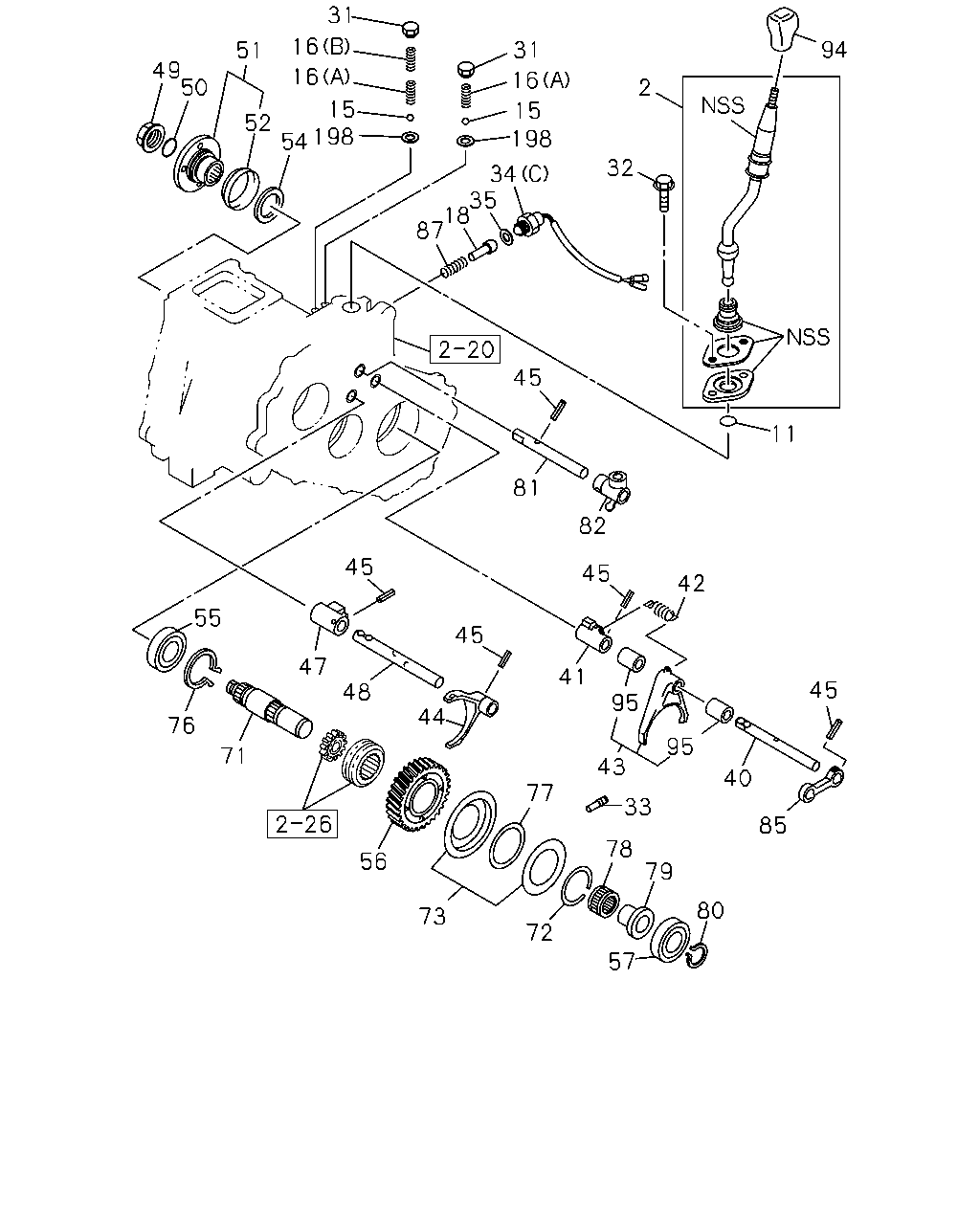

çizim 19206
31 16 94 31 51 49 50 16 16 2 15 198 54 15 198 52 32 34 35 18 87 45 11 81 82 45 45 42 55 45 47 41 45 48 95 44 76 95 71 43 40 77 33 85 78 56 79 80 73 72 57
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER ASM; CHANGE,TRANSFER
A/T THM(RMQ) 		8-97178-623-2 01 1 9707-0206
2 LEVER ASM; CHANGE,TRANSFER
M/T MUA 5 SPEED(RMN) 		8-97178-620-2 01 1 9707-0206
11 GASKET; CHANGE LEVER
M/T MUA 5 SPEED(RMN) ID=35.2 		9-09561-235-0 01 1 9707-9803
11 GASKET; CHANGE LEVER
M/T MUA 5 SPEED(RMN) ID=33.2 		1-09623-378-0 01 1 9804-0206
15 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 9707-
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(A) L=23.4 		8-97145-374-0 02 1 9707-0005
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(A) L=26.8 		8-94320-193-0 02 1 0006-0206
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(C) L=23.4 		8-97145-374-0 02 1 0207-
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(B) L=23.2 		8-97241-351-0 01 1 0006-0206
18 PIN; INTER LOCK,SHIFT ROD,TRANSFER 8-94461-898-0 01 1 9707-0206
31 PLUG; DETENT BALL,TRANSFER
M12X9 		9-99202-312-0 02 1 9707-
32 BOLT; CHANGE LEVER TO SIDE CASE
M8X20 FLANGE 		0-28680-820-0 02 1 9707-0206
33 SCREW; STOPPER,TRANSFER
M6X18 		8-94448-812-1 01 1 9707-9903
33 SCREW; STOPPER,TRANSFER
A/T THM(RMQ) M6X18 		8-94448-812-2 01 1 9904-0206
34 SWITCH; TRANSFER INDICATOR
(C) 		8-97138-632-1 01 1 9707-0206
34 SWITCH; TRANSFER INDICATOR
(A) 		8-97314-204-0 01 1 0207-
34 SWITCH; TRANSFER INDICATOR
(B) 		8-97314-205-0 01 1 0207-
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 01 1 9707-0206
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 02 1 0207-
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97127-547-0 01 1 9707-0206
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 0207-
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97068-781-0 01 1 9707-9809
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97210-555-0 01 1 9810-0206
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 0207-
42 SPRING; GEAR LOCK RELEASE,TRANSFER
L=30 		8-94422-188-0 01 1 9707-0206
42 SPRING; GEAR LOCK RELEASE,TRANSFER 8-97239-010-1 01 1 0207-
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97100-915-2 01 1 9707-0206
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 0207-
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-94421-922-3 01 1 9707-0206
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 0207-
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 05 1 9707-0206
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 0207-
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97141-883-1 01 1 9707-0206
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97234-234-1 01 1 0207-
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97148-999-0 01 1 9707-9708
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97182-406-1 01 1 9709-0206
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 0207-
49 NUT; COUPLING DRIVER,FRT OUTPUT
M27 FLANGE 		8-94422-073-0 01 1 9707-0206
50 GASKET; COUPLING DRIVER,FRT OUTPUT
ID=29.7 OD=36.1 		8-94483-035-0 01 1 9707-0206
51 FLANGE ASM; COUPLING DRIVER,TRANSFER 8-94453-699-7 01 1 9707-0206
52 COVER; DUST,TRANSFER FLANGE 8-94320-867-2 01 1 9707-0206
54 SEAL; OIL,TRANSFER FLANGE
TKK 		8-97046-702-0 01 1 9707-0010
54 SEAL; OIL,TRANSFER FLANGE
NOK 		8-97046-703-2 01 1 9707-0206
55 BEARING; BALL,TRANSFER FLANGE,FRT SIDE
NSK 		8-94422-172-1 01 1 9707-0206
56 GEAR; OUTPUT,FRT WHEEL,TRANSFER
Z=49 		8-97126-101-1 01 1 9707-0206
57 BEARING; BALL,TRANSFER FLANGE,RR SIDE
NSK 		8-94422-052-0 01 1 9707-0206
71 SHAFT; TRANSFER OUTPUT 8-94377-437-5 01 1 9707-0206
72 RING; SNAP,ANTI LASH PLATE,FRT OUTPUT
M/T MUA 5 SPEED(RMN) 		8-94482-501-0 01 1 9707-0206
73 PLATE ASM; ANTI LASH,TRANSFER GEAR
M/T MUA 5 SPEED(RMN) 		8-97164-346-0 01 1 9707-0206
76 RING; SNAP,BRG OUTER,TRANSFER
OD=77.0 		8-94422-092-0 01 1 9707-0206
77 SPRING; BELLEVILLE,ANTI LASH PLATE
M/T MUA 5 SPEED(RMN) 		8-94482-499-0 01 1 9707-0206
78 BEARING; FRT OUTPUT GEAR,TRANSFER
NSK 		8-94422-064-0 01 1 9707-0206
78 BEARING; FRT OUTPUT GEAR,TRANSFER
KOYO 		8-94422-065-1 01 1 9809-0206
79 COLLAR; FRT OUTPUT GEAR,TRANSFER 8-94422-076-1 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.55 WHITE 		8-94422-180-0 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.60 YELLOW 		8-94422-181-0 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.65 BLUE 		8-94422-182-0 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.70 PINK 		8-94422-183-0 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.75 GREEN 		8-94422-184-0 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.80 BROWN 		8-94422-185-0 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.85 RED 		8-94422-186-0 01 1 9707-0206
80 RING; FRT OUTPUT SHAFT,TRANSFER
T=1.90 ORANGE 		8-94422-187-0 01 1 9707-0206
81 ROD; TRANSFER SELECT 8-94370-499-2 01 1 9707-0206
82 BLOCK; TRANSFER 8-97033-092-1 01 1 9707-0206
85 BRIDGE; CONT ROD,TRANSFER 8-97128-522-0 01 1 9707-0206
87 SPRING; INTER LOCK,TRANSFER 8-94461-897-0 01 1 9707-0206
94 KNOB; TRANSFER LEVER 8-97143-755-0 01 1 9707-0206
95 BUSHING 8-97103-115-0 02 1 9707-0206
198 GASKET; PLUG,DETENT
ID=12.2 		1-09630-084-0 02 1 0006-0206

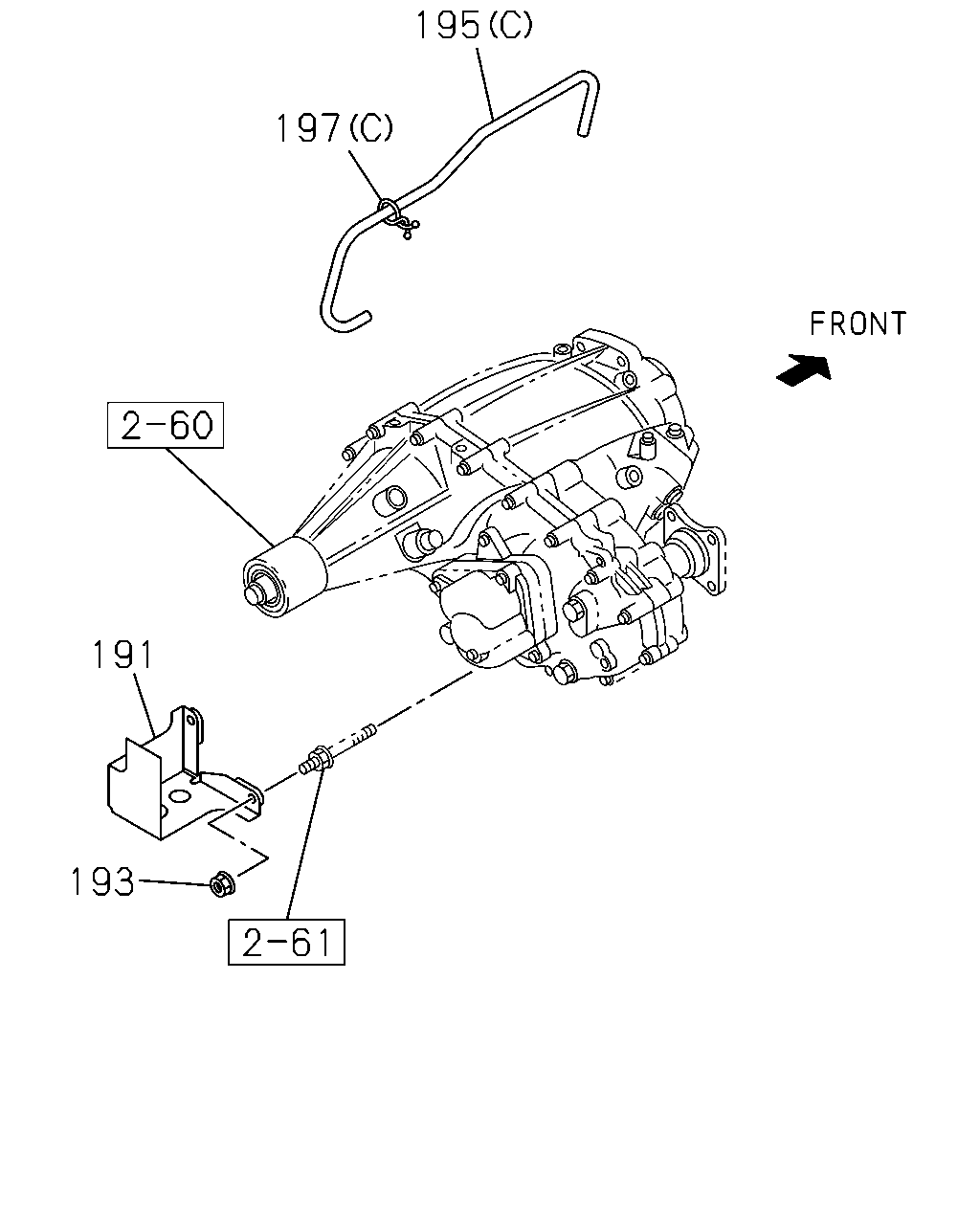

çizim 69759
195 197 191 193
BalonParca AdiParca NoAdetTipApplied Date
191 PROTECTOR; HEAT
A/T THM(RMQ) 		8-97161-461-0 01 1 9707-0206
191 PROTECTOR; HEAT 8-97324-296-1 01 1 0207-
193 NUT; PROTECTOR
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 01 1 9707-0206
193 NUT; PROTECTOR
M8 FLANGE 		0-91150-108-0 02 1 0207-
195 HOSE; AIR
A/T THM(RMQ) (A) 		8-97172-682-0 01 1 9707-0206
195 HOSE; AIR
A/T THM(RMQ) (B) 		8-97173-553-0 01 1 9707-0206
195 HOSE; AIR
M/T MUA 5 SPEED(RMN) (A) 		8-97165-010-0 01 1 9707-0206
195 HOSE; AIR
(C) 		8-97326-218-0 01 1 0207-
195 HOSE; AIR
M/T MUA 5 SPEED(RMN) (B) 		8-97172-683-0 01 1 9707-0206
197 CLAMP; HOSE
(B) 		8-97031-674-0 01 1 9707-9901
197 CLAMP; HOSE
A/T THM(RMQ) (A) ID=7 		5-09707-053-0 01 1 9707-0206
197 CLAMP; HOSE
(C) ID=23 		8-97010-411-0 01 1 0207-

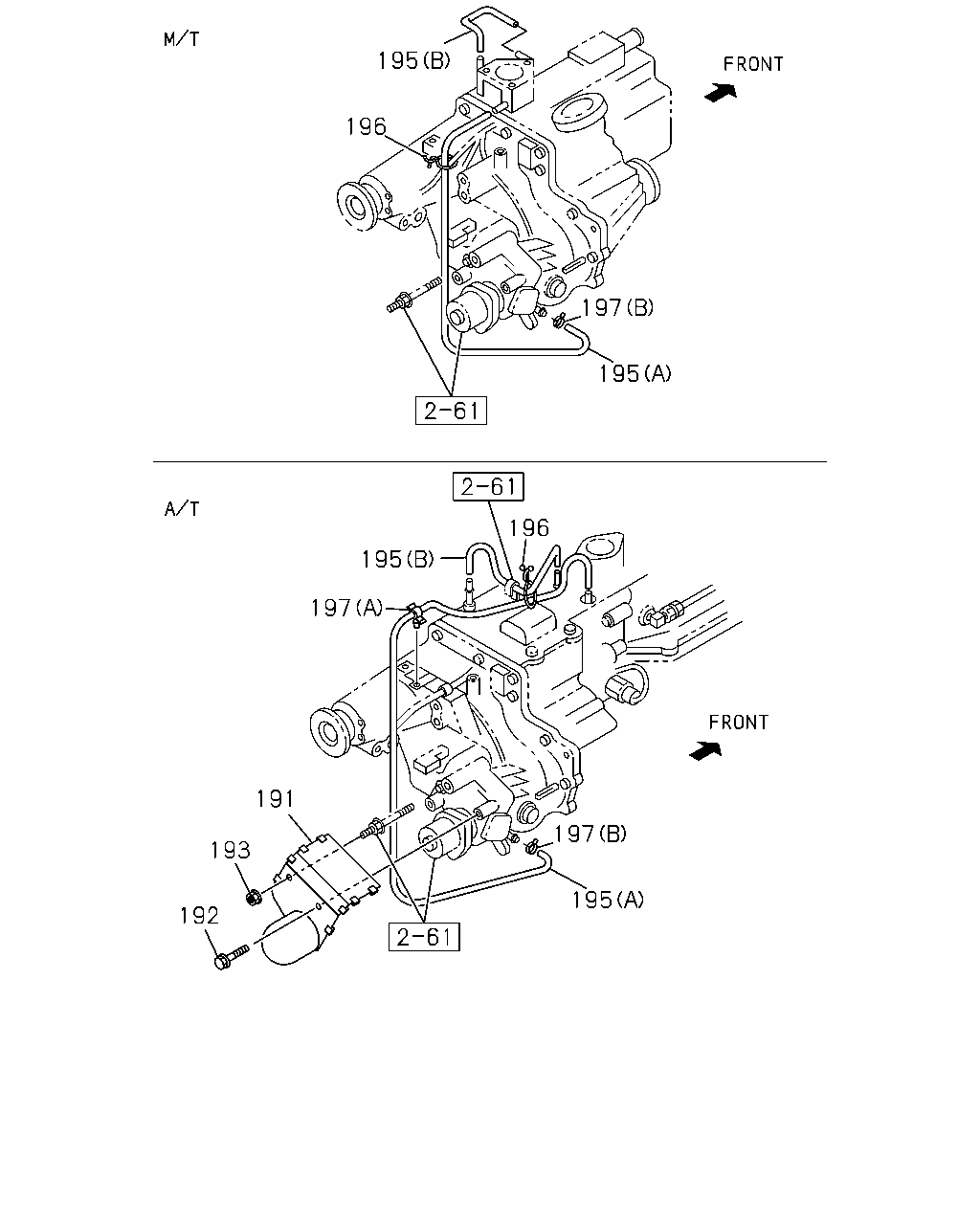

çizim 70733
195 196 197 195 196 195 197 191 197 193 195 192
BalonParca AdiParca NoAdetTipApplied Date
191 PROTECTOR; HEAT
A/T THM(RMQ) 		8-97161-461-0 01 1 9707-0206
191 PROTECTOR; HEAT 8-97324-296-1 01 1 0207-
192 BOLT; PROTECTOR
A/T THM(RMQ) M8X16 FLANGE 		0-28080-816-0 01 1 9707-0206
193 NUT; PROTECTOR
A/T THM(RMQ) M8 FLANGE 		0-91150-108-0 01 1 9707-0206
193 NUT; PROTECTOR
M8 FLANGE 		0-91150-108-0 02 1 0207-
195 HOSE; AIR
A/T THM(RMQ) (A) 		8-97172-682-0 01 1 9707-0206
195 HOSE; AIR
A/T THM(RMQ) (B) 		8-97173-553-0 01 1 9707-0206
195 HOSE; AIR
M/T MUA 5 SPEED(RMN) (A) 		8-97165-010-0 01 1 9707-0206
195 HOSE; AIR
(C) 		8-97326-218-0 01 1 0207-
195 HOSE; AIR
M/T MUA 5 SPEED(RMN) (B) 		8-97172-683-0 01 1 9707-0206
196 CLIP; HOSE
ID=16 		8-94336-291-0 01 1 9707-0206
197 CLAMP; HOSE
(B) 		8-97031-674-0 01 1 9707-9901
197 CLAMP; HOSE
A/T THM(RMQ) (A) ID=7 		5-09707-053-0 01 1 9707-0206
197 CLAMP; HOSE
(C) ID=23 		8-97010-411-0 01 1 0207-

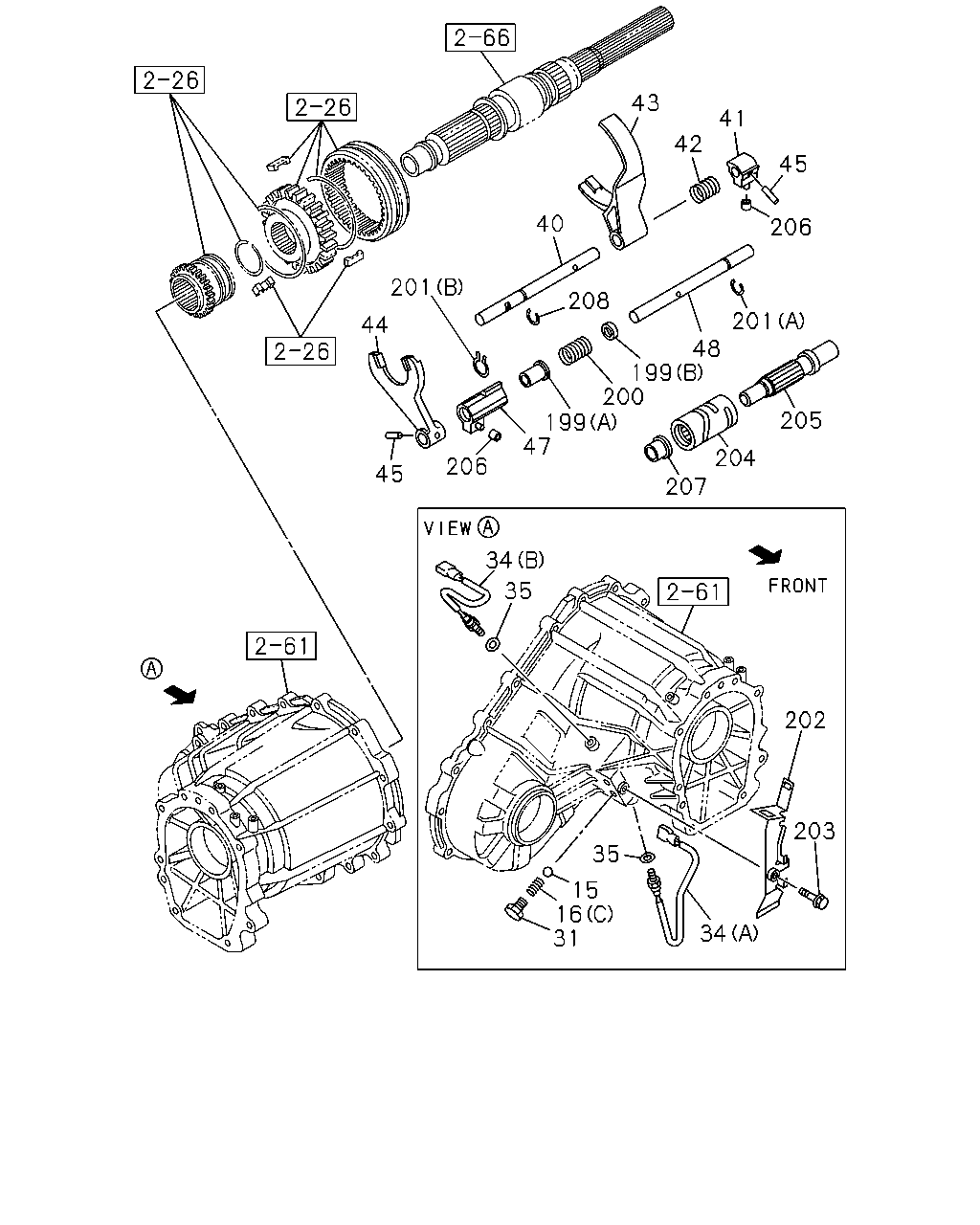

çizim 72059
43 41 42 45 40 206 201 208 201 44 48 199 200 199 47 205 204 206 45 207 34 35 202 203 35 15 16 31 34
BalonParca AdiParca NoAdetTipApplied Date
15 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 9707-
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(A) L=23.4 		8-97145-374-0 02 1 9707-0005
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(A) L=26.8 		8-94320-193-0 02 1 0006-0206
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(C) L=23.4 		8-97145-374-0 02 1 0207-
16 SPRING; DETENT,SHIFT ROD,TRANSFER
(B) L=23.2 		8-97241-351-0 01 1 0006-0206
31 PLUG; DETENT BALL,TRANSFER
M12X9 		9-99202-312-0 02 1 9707-
34 SWITCH; TRANSFER INDICATOR
(C) 		8-97138-632-1 01 1 9707-0206
34 SWITCH; TRANSFER INDICATOR
(A) 		8-97314-204-0 01 1 0207-
34 SWITCH; TRANSFER INDICATOR
(B) 		8-97314-205-0 01 1 0207-
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 01 1 9707-0206
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 02 1 0207-
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97127-547-0 01 1 9707-0206
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 0207-
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97068-781-0 01 1 9707-9809
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97210-555-0 01 1 9810-0206
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 0207-
42 SPRING; GEAR LOCK RELEASE,TRANSFER
L=30 		8-94422-188-0 01 1 9707-0206
42 SPRING; GEAR LOCK RELEASE,TRANSFER 8-97239-010-1 01 1 0207-
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97100-915-2 01 1 9707-0206
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 0207-
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-94421-922-3 01 1 9707-0206
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 0207-
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 05 1 9707-0206
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 0207-
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97141-883-1 01 1 9707-0206
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-97234-234-1 01 1 0207-
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97148-999-0 01 1 9707-9708
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97182-406-1 01 1 9709-0206
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 0207-
199 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 0207-
199 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 0207-
200 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 0207-
201 RING; SNAP,SHIFT
(A) ID=12 		8-94460-357-0 01 1 0207-
201 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 0207-
202 BRACKET; SWITCH 8-97319-580-0 01 1 0207-
203 BOLT; BRACKET,SWITCH
M8X25 FLANGE 		0-28680-825-0 01 1 0207-
204 DRUM; SHIFT 8-97231-854-0 01 1 0207-0302
204 DRUM; SHIFT 8-97358-246-0 01 1 0303-
205 SHAFT; SHIFT DRUM 8-97231-855-0 01 1 0207-
206 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 0207-
207 BUSH; CONTROL SHAFT 8-97239-687-0 01 1 0207-
208 RING; SNAP,SHIFT
ID=12 		8-94460-357-0 01 1 0207-
