2-61 — TRANSFER CASE AND GEAR SHIFTER (#42157) — 64 parça

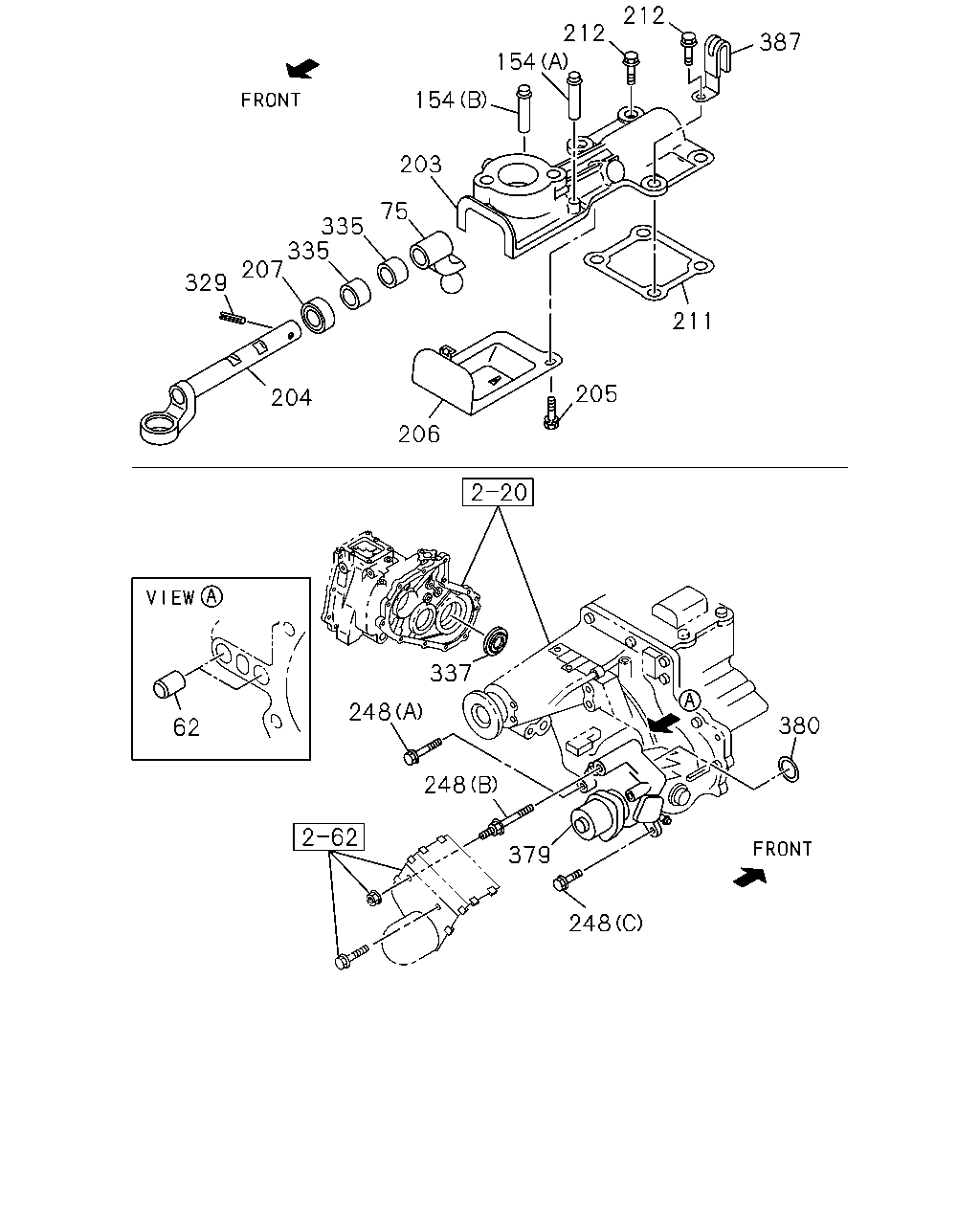

çizim 68884
212 212 387 154 154 203 75 335 335 207 329 211 205 204 206 337 248 380 62 248 379 248
BalonParca AdiParca NoAdetTipApplied Date
62 CAP; SHIFT ROD
A/T THM(RMQ) 		8-94321-479-1 02 1 9707-9906
62 CAP; SHIFT ROD
A/T THM(RMQ) 		8-97221-078-0 02 1 9907-0206
75 LEVER ASM; L-H CONT,INTERNAL
A/T THM(RMQ) 		8-94367-929-2 01 1 9707-0206
154 PIPE; BREATHER
A/T THM(RMQ) (B) 		8-97173-544-0 01 1 9707-0206
154 PIPE; BREATHER
(C) 		8-97305-517-0 02 1 0207-
154 PIPE; BREATHER
A/T THM(RMQ) (A) 		8-97173-545-0 01 1 9707-0206
154 PIPE; BREATHER
(D) 		8-97173-545-0 01 1 0207-
203 BOX; TRANSFER CONT
A/T THM(RMQ) 		8-97173-546-1 01 1 9707-0206
204 ROD; SHIFT,TRANSFER CONT
A/T THM(RMQ) 		8-97176-249-2 01 1 9707-0206
205 BOLT; DUST COVER,CONT BOX,TRANSFER
A/T THM(RMQ) M6X8 		9-03490-608-0 01 1 9707-0206
206 COVER; DUST,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-97106-784-1 01 1 9707-0206
207 SEAL; OIL,INTERNAL SHIFT ROD,TRANSFER
A/T THM(RMQ) 		8-94221-533-1 01 1 9707-0206
211 GASKET; CONT BOX,TRANSFER
A/T THM(RMQ) 		8-94368-327-0 01 1 9707-0206
212 BOLT; CONT BOX,TRANSFER
A/T THM(RMQ) M8X25 FLANGE 		0-28680-825-0 04 1 9707-0206
248 BOLT
(A) M8X70 FLANGE 		0-28080-870-0 01 1 9707-0206
248 BOLT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0207-
248 BOLT
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9707-0206
248 BOLT
(B) M8 		8-97161-466-0 01 1 9707-0206
329 PIN; SPRING,SHIFT ROD
A/T THM(RMQ) OD=5.4 		9-09678-510-0 01 1 9707-0206
335 BUSHING
A/T THM(RMQ) 		8-94388-205-1 02 1 9707-0206
337 PLATE; LOCK
M/T MUA 5 SPEED(RMN) 		8-97102-940-0 01 1 9707-0206
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97124-713-1 01 1 9707-9707
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97182-672-0 01 1 9708-0206
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97317-686-0 01 1 0207-0302
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97366-627-0 01 1 0303-0307
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97317-686-1 01 1 0308-
380 GASKET; ACTUATOR 8-97171-385-0 01 1 9707-0206
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 0207-
387 CLAMP; HOSE
A/T THM(RMQ) 		5-09700-359-0 01 1 9707-0206
387 CLAMP; HOSE
ID=14.2 		8-97087-056-1 02 1 0207-

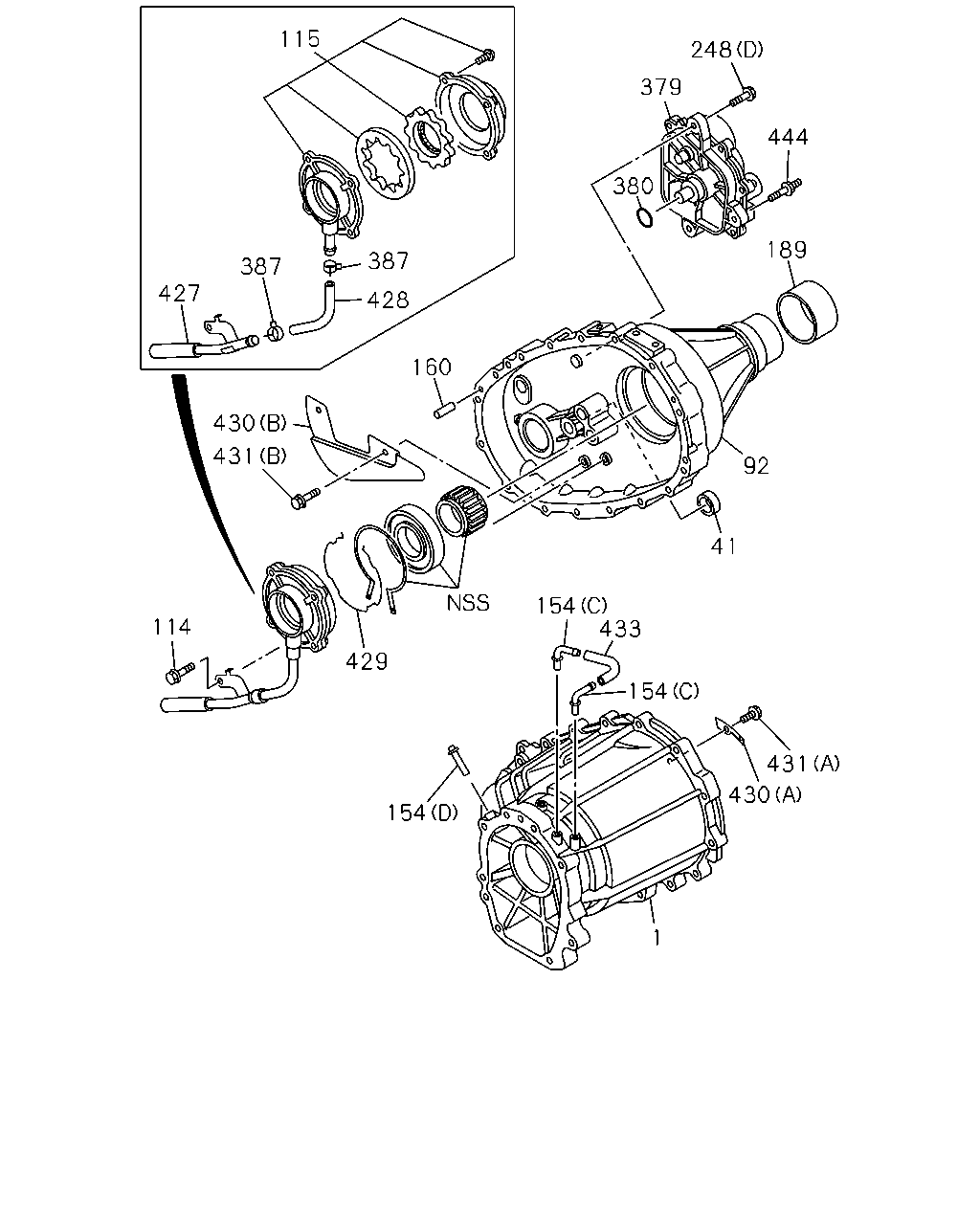

çizim 69080
115 248 379 444 380 189 387 387 427 428 160 430 431 92 41 154 433 114 429 154 431 430 154 1
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TRANSFER 8-97306-571-5 01 1 0207-
41 SEAL; OIL,SHIFT ROD 8-97238-998-0 01 1 0207-
92 COVER; RR,TRANSFER 8-97306-579-3 01 1 0207-0401
92 COVER; RR,TRANSFER 8-97376-868-0 01 1 0402-
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE 		0-28680-820-0 01 1 0207-
115 PUMP ASM; OIL,TRANSFER 8-97233-741-0 01 1 0207-
154 PIPE; BREATHER
A/T THM(RMQ) (B) 		8-97173-544-0 01 1 9707-0206
154 PIPE; BREATHER
(C) 		8-97305-517-0 02 1 0207-
154 PIPE; BREATHER
A/T THM(RMQ) (A) 		8-97173-545-0 01 1 9707-0206
154 PIPE; BREATHER
(D) 		8-97173-545-0 01 1 0207-
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 		8-97135-423-0 02 1 0207-
189 COVER; DUST,OIL SEAL 8-94310-493-0 01 1 0207-
248 BOLT
(A) M8X70 FLANGE 		0-28080-870-0 01 1 9707-0206
248 BOLT
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0207-
248 BOLT
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9707-0206
248 BOLT
(B) M8 		8-97161-466-0 01 1 9707-0206
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97124-713-1 01 1 9707-9707
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97182-672-0 01 1 9708-0206
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97317-686-0 01 1 0207-0302
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97366-627-0 01 1 0303-0307
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-97317-686-1 01 1 0308-
380 GASKET; ACTUATOR 8-97171-385-0 01 1 9707-0206
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 0207-
387 CLAMP; HOSE
A/T THM(RMQ) 		5-09700-359-0 01 1 9707-0206
387 CLAMP; HOSE
ID=14.2 		8-97087-056-1 02 1 0207-
427 SCREEN; OIL PUMP 8-97234-488-3 01 1 0207-
428 HOSE; OIL PUMP
L=80 SERVICED BY L=3000 		0-02259-300-0 01 1 0207-
429 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 0207-
430 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 0207-
430 PLATE; BAFFLE
(B) 		8-97249-300-1 01 1 0207-
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE 		0-28680-616-0 01 1 0207-
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0207-
433 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 0207-
444 STUD; ACTUATOR
M8X12,M8X30 L=50 		8-97032-290-0 02 1 0207-
