◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-55 - AUTO TRANS SHIFT CONTROL LEVER ▶
2-55 — AUTO TRANS SHIFT CONTROL LEVER (#42154) — 19 parça

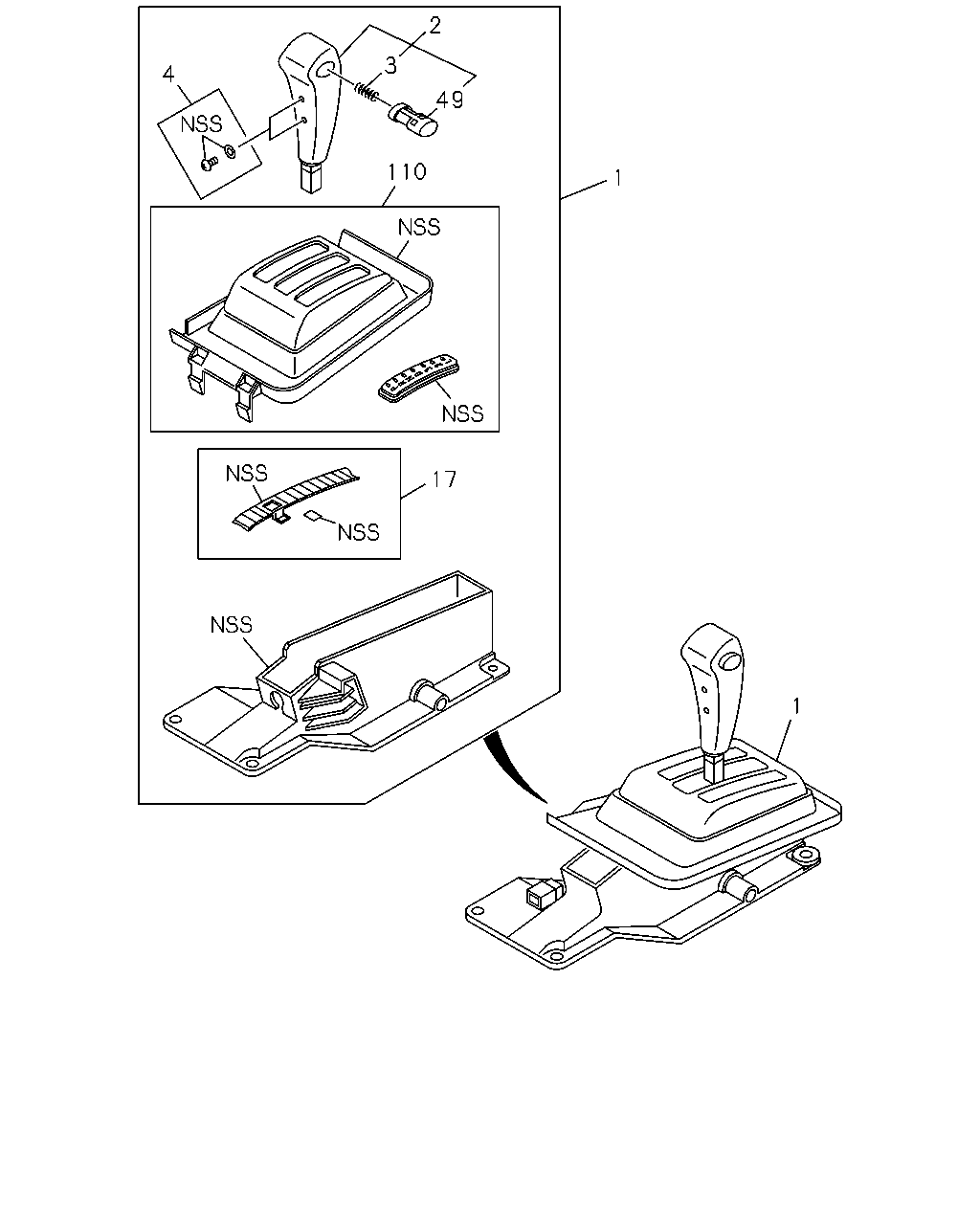

çizim 69514
2 3 4 49 110 1 17 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER; SHIFT,A/T 8-97124-851-3 01 1 9707-9807 ●
1 LEVER; SHIFT,A/T 8-97204-218-0 01 1 9808-0006 ●
1 LEVER; SHIFT,A/T 8-97249-578-0 01 1 0007-0011 ●
1 LEVER; SHIFT,A/T 8-97306-835-1 01 1 0012-0206 ●
1 LEVER; SHIFT,A/T 8-97289-704-1 01 1 0207- ●
2 KNOB ASM; AUTO CONT LEVER 8-97181-059-1 01 1 9707-0008 ●
2 KNOB ASM; AUTO CONT LEVER 8-97287-842-0 01 1 0009-0206 ●
2 KNOB ASM; AUTO CONT LEVER 8-97287-842-0 01 1 0207- ●
3 SPRING; RETURN,KNOB 8-97181-063-0 01 1 9707-0206 ●
3 SPRING; RETURN,KNOB 8-97181-063-0 01 1 0207- ●
4 SCREW; KNOB TO LEVER 8-97181-064-0 02 1 9707-0206 ●
4 SCREW; KNOB TO LEVER 8-97181-064-0 02 1 0207- ●
17 PLATE; INDICATOR 8-97181-057-0 01 1 9707-0206 ●
17 PLATE; INDICATOR 8-97181-057-0 01 1 0207- ●
49 BUTTON; PUSH,KNOB 8-97181-061-0 01 1 9707-0206 ●
49 BUTTON; PUSH,KNOB 8-97181-061-0 01 1 0207- ● ●
110 COVER; INDICATOR,A/T CONT 8-97181-052-0 01 1 9707-9807 ●
110 COVER; INDICATOR,A/T CONT 8-97211-318-1 01 1 9808-0206 ●
110 COVER; INDICATOR,A/T CONT 8-97305-422-0 01 1 0207- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
