◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-52 - AUTO TRANS OVERDRIVE GEAR ▶
2-52 — AUTO TRANS OVERDRIVE GEAR (#42152) — 125 parça

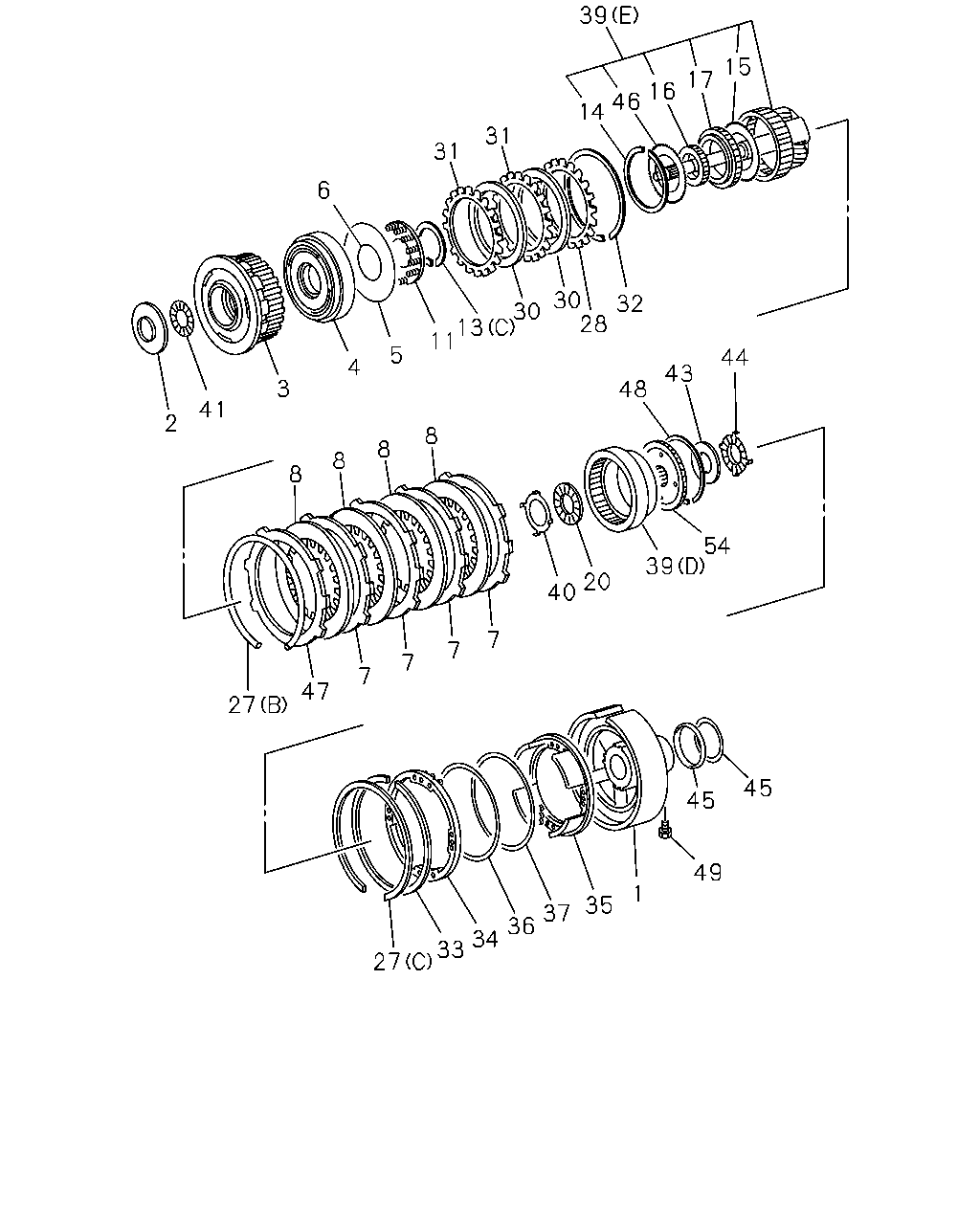

çizim 18592
39 15 17 16 46 14 31 31 6 30 32 28 30 13 11 5 44 4 43 3 48 41 2 8 8 8 8 54 39 20 40 7 7 7 7 47 27 45 45 49 1 35 37 36 34 33 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE ASM; OVERDRIVE,A/T 8-97184-516-0 01 1 0207- ●
2 RACE; THRUST BRG,OVERDRIVE,A/T 8-97249-736-0 01 1 0207- ●
3 DRUM; CLU,OVERDRIVE,A/T 8-96041-100-0 01 1 9707-0206 ●
3 DRUM; CLU,OVERDRIVE,A/T 8-97232-042-0 01 1 0207- ●
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-96017-401-0 01 1 9707-0206 ●
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-94479-889-0 01 1 0207- ●
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-96017-561-0 01 1 9707-0206 ●
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-97184-528-0 01 1 0207- ●
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 8-96014-321-0 01 1 9707-0206 ●
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 8-97184-321-0 01 1 0207- ●
7 PLATE; CLU CUSHION 8-96014-983-0 01 1 9707-0206 ●
7 PLATE; CLU CUSHION 8-97143-124-0 04 1 0207- ●
8 DISC; CLU,OVERDRIVE,A/T 8-96014-459-0 02 1 9707-0206 ●
8 DISC; CLU,OVERDRIVE,A/T 8-97143-126-0 04 1 0207- ●
11 SPRING; CLU RETURN,OVERDRIVE,A/T 8-08635-244-0 01 1 9707-0206 ●
11 SPRING; CLU RETURN,OVERDRIVE,A/T 8-94479-890-0 01 1 0207- ●
13 RING; SNAP,OVERDRIVE,A/T
(A) 		8-08634-274-0 01 1 9707-0206 ●
13 RING; SNAP,OVERDRIVE,A/T
(C) 		8-94479-783-0 01 1 0207- ●
13 RING; SNAP,OVERDRIVE,A/T
(B) 		8-96014-389-0 01 1 9707-0206 ●
14 RING; RET,OVERDRIVE,A/T 8-94479-882-0 01 1 0207- ●
15 WASHER; THRUST,OVERDRIVE,A/T 8-94479-883-0 01 1 0207- ●
16 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T 8-97019-545-0 01 1 0207- ●
17 RACE; ONEWAY CLU,A/T 8-94479-885-0 01 1 0207- ●
20 BEARING; THRUST 8-97331-551-0 01 1 0207- ●
27 RING; RET,OVERDRIVE,A/T
(A) 		8-08634-023-0 01 1 9707-0206 ●
27 RING; RET,OVERDRIVE,A/T
(C) 		8-94479-859-0 01 1 0207- ●
27 RING; RET,OVERDRIVE,A/T
(B) 		8-94479-874-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T 8-08634-864-0 01 1 9707-0206 ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.6 		8-97288-924-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.5 		8-97288-925-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.4 		8-97288-926-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.1 		8-97311-564-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.2 		8-97311-565-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.3 		8-97311-566-0 01 1 0207- ●
30 DISC; CLU,OVERDRIVE,A/T 8-96014-194-0 02 1 9707-0206 ●
30 DISC; CLU,OVERDRIVE,A/T 8-97143-121-0 02 1 0207- ●
31 PLATE; CUSHION,OVERDRIVE,A/T 8-96014-195-0 01 1 9707-0206 ●
31 PLATE; CUSHION,OVERDRIVE,A/T 8-94479-891-0 02 1 0207- ●
32 RING; RET,OVERDRIVE,A/T 8-94250-342-0 01 1 0207- ●
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T 8-96015-601-0 01 1 9707-0206 ●
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T
ID=160 		8-97184-521-0 01 1 0207- ●
34 SPRING; BRK RETURN,OVERDRIVE,A/T 8-97184-526-0 01 1 0207- ●
35 PISTON; BRK,OVERDRIVE,A/T 8-96017-559-0 01 1 9707-0206 ●
35 PISTON; BRK,OVERDRIVE,A/T 8-97288-915-0 01 1 0207- ●
36 GASKET; PISTON,OUTER,A/T 8-97184-519-0 01 1 0207- ●
37 GASKET; PISTON,INNER,A/T 8-97184-520-0 01 1 0207- ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-96014-199-0 01 1 9707-0206 ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(D) 		8-94479-876-0 01 1 0207- ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-96014-202-0 01 1 9707-0206 ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(E) 		8-97213-033-0 01 1 0207- ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(C) 		8-96014-376-0 01 1 9707-0206 ●
40 RACE; THRUST BRG,OVERDRIVE,A/T 8-97331-550-0 01 1 0207- ●
41 BEARING; THRUST,OVERDRIVE,A/T 8-97249-734-0 01 1 0207- ●
43 RACE; THRUST BRG,OVERDRIVE,A/T 8-97019-548-0 01 1 0207- ●
44 BEARING; THRUST,OVERDRIVE,A/T 8-97019-547-0 01 1 0207- ●
45 RING; SEAL,OVERDRIVE,A/T 8-94479-747-0 02 1 0207- ●
46 PLATE; RET,OVERDRIVE CLU 8-94479-886-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T 8-96015-385-0 01 1 9707-0206 ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.6 		8-97288-916-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.7 		8-97288-917-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.5 		8-97289-106-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.8 		8-97311-560-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.9 		8-97311-561-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=4.0 		8-97311-562-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.3 		8-97311-563-0 01 1 0207- ●
48 RING; SNAP,PLANETARY RING GEAR,OD 8-08634-056-0 01 1 9707-0206 ●
48 RING; SNAP,PLANETARY RING GEAR,OD 8-94479-853-0 01 1 0207- ●
49 BOLT; OVERDRIVE SUPPORT,A/T 8-97143-090-0 02 1 0207- ●
54 FLANGE; PLANETARY RING GEAR,OVERDRIVE 8-97019-546-0 01 1 0207- ●

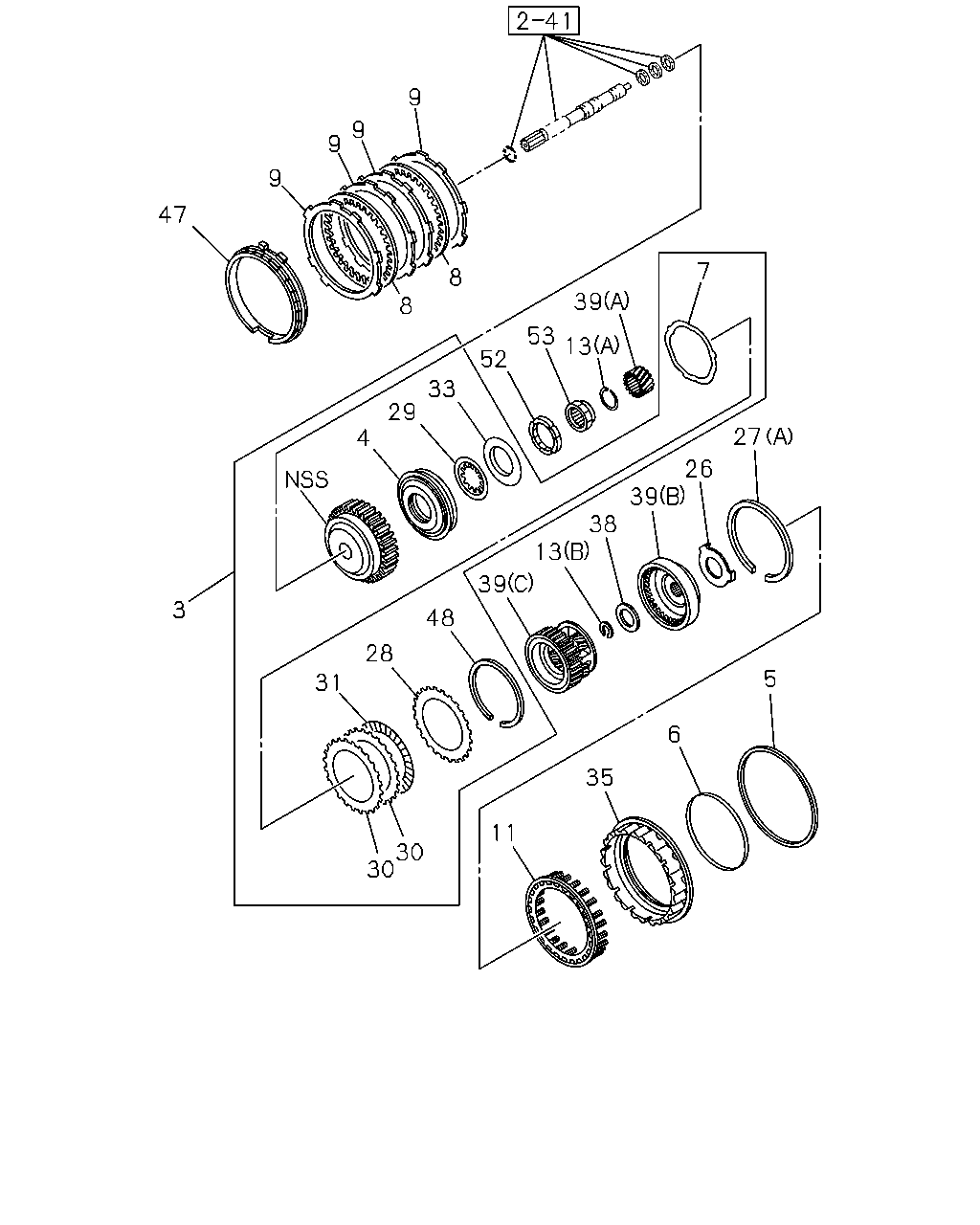

çizim 68826
9 9 9 9 47 7 8 39 8 53 13 52 33 29 27 4 26 39 38 13 39 3 48 28 5 31 6 35 11 30 30
BalonParca AdiParca NoAdetTipApplied Date A B
3 DRUM; CLU,OVERDRIVE,A/T 8-96041-100-0 01 1 9707-0206 ●
3 DRUM; CLU,OVERDRIVE,A/T 8-97232-042-0 01 1 0207- ●
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-96017-401-0 01 1 9707-0206 ●
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-94479-889-0 01 1 0207- ●
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-96017-561-0 01 1 9707-0206 ●
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-97184-528-0 01 1 0207- ●
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 8-96014-321-0 01 1 9707-0206 ●
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 8-97184-321-0 01 1 0207- ●
7 PLATE; CLU CUSHION 8-96014-983-0 01 1 9707-0206 ●
7 PLATE; CLU CUSHION 8-97143-124-0 04 1 0207- ●
8 DISC; CLU,OVERDRIVE,A/T 8-96014-459-0 02 1 9707-0206 ●
8 DISC; CLU,OVERDRIVE,A/T 8-97143-126-0 04 1 0207- ●
9 DISC ASM; CLU & FACING,OVERDRIVE,A/T 8-96014-187-0 04 1 9707-0206 ●
11 SPRING; CLU RETURN,OVERDRIVE,A/T 8-08635-244-0 01 1 9707-0206 ●
11 SPRING; CLU RETURN,OVERDRIVE,A/T 8-94479-890-0 01 1 0207- ●
13 RING; SNAP,OVERDRIVE,A/T
(A) 		8-08634-274-0 01 1 9707-0206 ●
13 RING; SNAP,OVERDRIVE,A/T
(C) 		8-94479-783-0 01 1 0207- ●
13 RING; SNAP,OVERDRIVE,A/T
(B) 		8-96014-389-0 01 1 9707-0206 ●
26 WASHER; THRUST,OVERDRIVE,A/T 8-96014-390-0 01 1 9707-0206 ●
27 RING; RET,OVERDRIVE,A/T
(A) 		8-08634-023-0 01 1 9707-0206 ●
27 RING; RET,OVERDRIVE,A/T
(C) 		8-94479-859-0 01 1 0207- ●
27 RING; RET,OVERDRIVE,A/T
(B) 		8-94479-874-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T 8-08634-864-0 01 1 9707-0206 ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.6 		8-97288-924-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.5 		8-97288-925-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.4 		8-97288-926-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.1 		8-97311-564-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.2 		8-97311-565-0 01 1 0207- ●
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.3 		8-97311-566-0 01 1 0207- ●
29 DISC ASM; CLU & FACING,OVERDRIVE,A/T 8-96014-902-0 01 1 9707-0206 ●
30 DISC; CLU,OVERDRIVE,A/T 8-96014-194-0 02 1 9707-0206 ●
30 DISC; CLU,OVERDRIVE,A/T 8-97143-121-0 02 1 0207- ●
31 PLATE; CUSHION,OVERDRIVE,A/T 8-96014-195-0 01 1 9707-0206 ●
31 PLATE; CUSHION,OVERDRIVE,A/T 8-94479-891-0 02 1 0207- ●
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T 8-96015-601-0 01 1 9707-0206 ●
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T
ID=160 		8-97184-521-0 01 1 0207- ●
35 PISTON; BRK,OVERDRIVE,A/T 8-96017-559-0 01 1 9707-0206 ●
35 PISTON; BRK,OVERDRIVE,A/T 8-97288-915-0 01 1 0207- ●
38 WASHER; THRUST,OVERDRIVE,A/T 8-08634-035-0 01 1 9707-0206 ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-96014-199-0 01 1 9707-0206 ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(D) 		8-94479-876-0 01 1 0207- ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-96014-202-0 01 1 9707-0206 ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(E) 		8-97213-033-0 01 1 0207- ●
39 GEAR ASM; PLANETARY INTERNAL,A/T
(C) 		8-96014-376-0 01 1 9707-0206 ●
47 FLANGE; OVERDRIVE BRK,A/T 8-96015-385-0 01 1 9707-0206 ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.6 		8-97288-916-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.7 		8-97288-917-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.5 		8-97289-106-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.8 		8-97311-560-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.9 		8-97311-561-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=4.0 		8-97311-562-0 01 1 0207- ●
47 FLANGE; OVERDRIVE BRK,A/T
T=3.3 		8-97311-563-0 01 1 0207- ●
48 RING; SNAP,PLANETARY RING GEAR,OD 8-08634-056-0 01 1 9707-0206 ●
48 RING; SNAP,PLANETARY RING GEAR,OD 8-94479-853-0 01 1 0207- ●
52 ROLLER; OVERDRIVE CLU 8-00930-660-0 01 1 9707-0206 ●
53 CAM; OVERDRIVE ROLLER CLU 8-08634-038-0 01 1 9707-0206 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
