2-49 — AUTO TRANS INHIBITOR SWITCH (#42151) — 58 parça

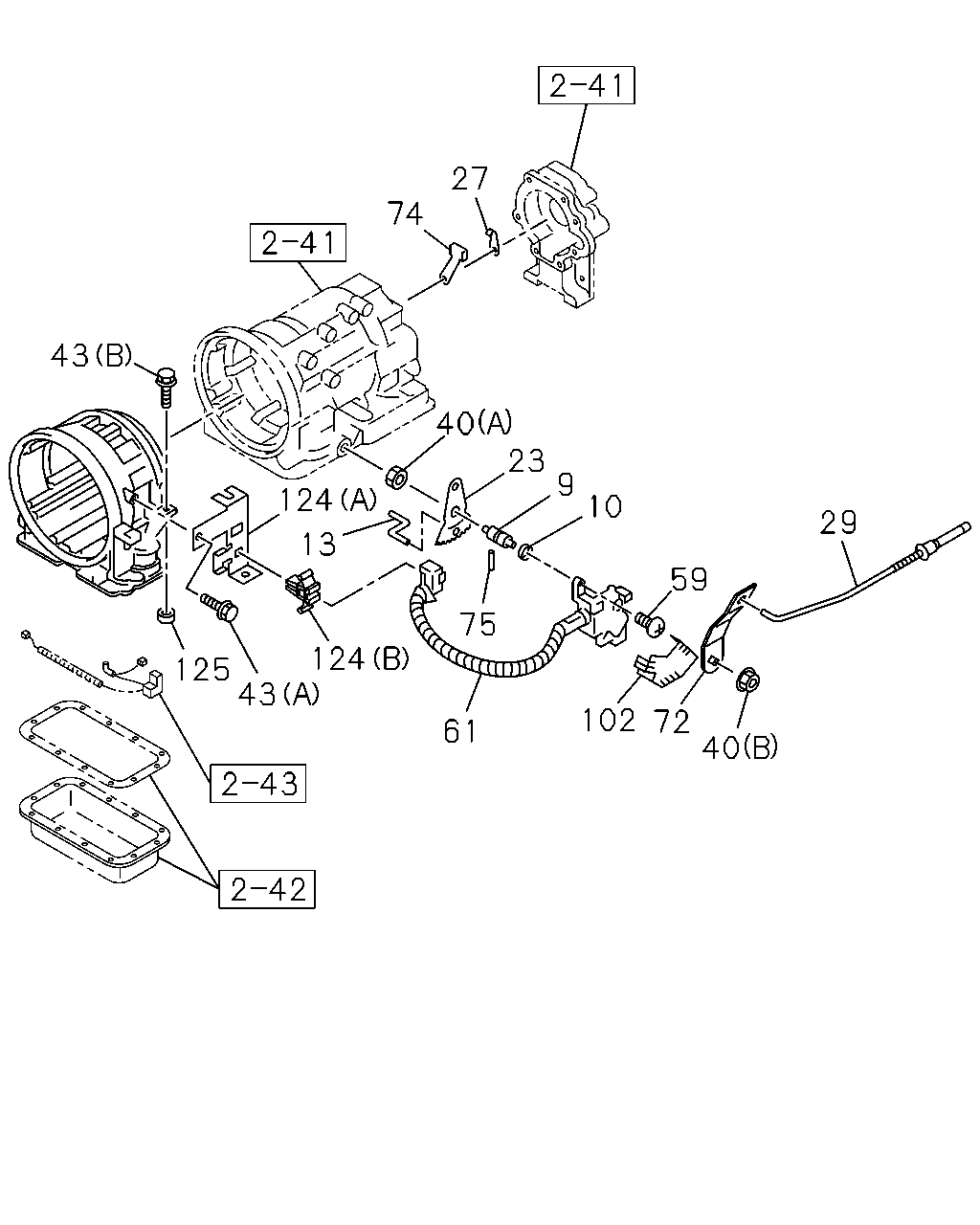

27 74 124 43 40 23 9 10 29 13 59 75 124 125 43 102 72 40 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	SHAFT; MANUAL,A/T	8-96014-268-0	01	1	9707-0206	●
10	GASKET; MANUAL SHIFT,A/T	8-08644-709-0	01	1	9707-0206	●
13	LEVER; SELECT,MANUAL SHAFT,A/T	8-05258-243-0	01	1	9707-0206	●
23	LEVER; PARKING ROD,A/T	8-96018-274-0	01	1	9707-0206	●
27	SPRING; PAWL RETURN,A/T	8-05258-076-0	01	1	9707-0206	●
29	ROD ASM; CONT,A/T	8-96017-286-0	01	1	9707-0206	●
40	NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9707-0206	●
40	NUT; LEVER TO SHAFT (C) M8 FLANGE	0-91150-108-0	01	1	0207-		●
40	NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9707-0206	●
43	BOLT; BRKT (A)	8-11041-238-0	01	1	9707-0206	●
43	BOLT; BRKT (C) M6X14	8-94479-978-0	03	1	0207-		●
43	BOLT; BRKT (B)	8-96017-499-0	01	1	9707-0206	●
59	SCREW; SW,A/T	8-96014-453-0	02	1	9707-0003	●
59	SCREW; SW,A/T	8-96024-064-0	02	1	0004-0206	●
61	SWITCH ASM; MODE	8-96017-511-0	01	1	9707-0206	●
72	LEVER; SELECT CONT	8-97125-175-1	01	1	9707-0206	●
72	LEVER; SELECT CONT	8-97301-529-0	01	1	0207-		●
74	PAWL; PARKING BRK LK,A/T	8-96016-620-0	01	1	9707-0206	●
75	PIN; PARKING BRK LK,A/T	8-05259-654-0	01	1	9707-0206	●
102	SHIELD; MODE SWITCH,A/T	8-96014-454-0	01	1	9707-0206	●
124	BRACKET; MODE SWITCH (B)	8-90414-915-0	01	1	9707-0206	●
124	BRACKET; MODE SWITCH (A)	8-96018-450-0	01	1	9707-0206	●
125	NUT; BRKT	8-96017-663-0	01	1	9707-0206	●

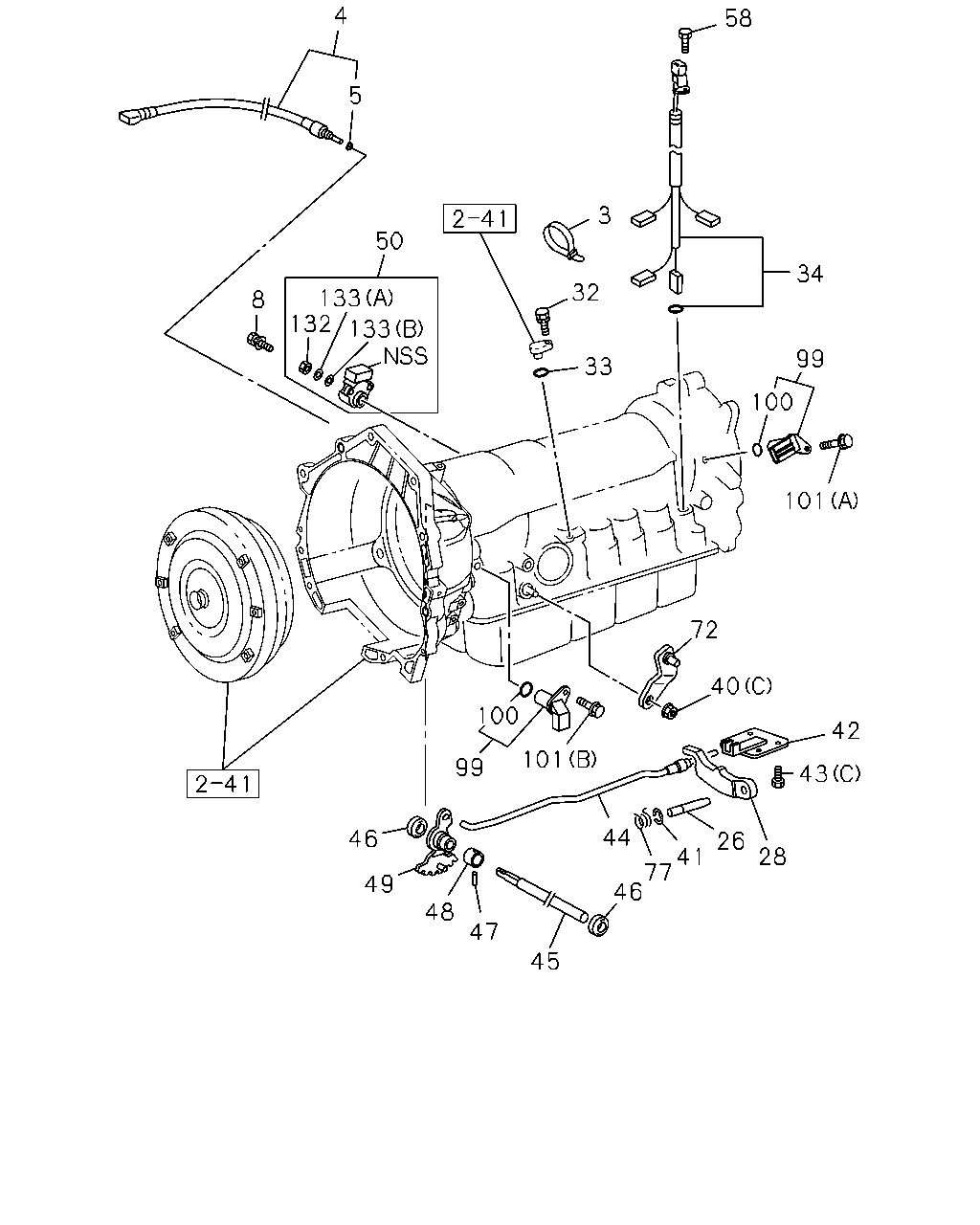

4 58 5 3 50 34 32 133 132 8 133 99 33 100 101 72 40 100 42 101 99 43 44 46 26 28 41 77 46 49 48 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; INHIBITOR SW,A/T	8-94473-565-0	01	1	0207-		●
4	SENSOR; THERMO,A/T OIL	8-97331-531-0	01	1	0207-		●
5	GASKET; OIL THERMO SENSOR,A/T	8-94479-726-0	01	1	0207-		●
8	BOLT; NEUTRAL START SW,A/T M8X30	8-97130-929-0	01	1	0207-		●
26	SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0207-		●
28	PAWL; PARKING,A/T	8-97143-087-0	01	1	0207-		●
32	BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	0207-		●
33	GASKET; THROTTLE CABLE	8-94364-922-0	01	1	0207-		●
34	SOLENOID ASM; A/T	8-97232-108-0	01	1	0207-		●
40	NUT; LEVER TO SHAFT (B) M10 FLANGE	0-91250-110-0	01	1	9707-0206	●
40	NUT; LEVER TO SHAFT (C) M8 FLANGE	0-91150-108-0	01	1	0207-		●
40	NUT; LEVER TO SHAFT (A)	8-11067-223-0	01	1	9707-0206	●
41	RETAINER; SPR,SHAFT	5-34488-002-0	01	1	0207-		●
42	BRACKET; PARKING LOCK	8-97126-815-0	01	1	0207-		●
43	BOLT; BRKT (A)	8-11041-238-0	01	1	9707-0206	●
43	BOLT; BRKT (C) M6X14	8-94479-978-0	03	1	0207-		●
43	BOLT; BRKT (B)	8-96017-499-0	01	1	9707-0206	●
44	ROD ASM; PARKING PAWL	8-97126-814-0	01	1	0207-		●
45	SHAFT; VALVE LEVER	8-97025-848-0	01	1	0207-		●
46	SEAL; OIL OD=22	8-94479-740-0	02	1	0207-		●
47	PIN; ROLL SHAFT D=4	8-94257-081-0	01	1	0207-		●
48	COVER; SLEEVE	8-94479-761-0	01	1	0207-		●
49	LEVER ASM; CAM	8-97331-535-0	01	1	0207-		●
50	SWITCH; NEUTRAL,A/T	8-97207-138-0	01	1	0207-		●
58	BOLT; SOLENOID TO A/T M6X16	8-94479-712-0	01	1	0207-		●
72	LEVER; SELECT CONT	8-97125-175-1	01	1	9707-0206	●
72	LEVER; SELECT CONT	8-97301-529-0	01	1	0207-		●
77	SPRING; TORSION,PARKING BRK LK,A/T	8-94479-976-0	01	1	0207-		●
99	SENSOR; SPD	8-97027-383-0	02	1	0207-		●
100	GASKET; SPD SENSOR	8-97027-197-0	02	1	0207-		●
101	BOLT; SPD SENSOR (A) M6X16	8-94479-712-0	01	1	0207-		●
101	BOLT; SPD SENSOR (B) M6X14	8-94479-978-0	01	1	0207-		●
132	NUT; SWITCH M16	8-97354-883-0	01	1	0207-		●
133	WASHER; SWITCH (B)	8-97354-888-0	01	1	0207-		●
133	WASHER; SWITCH (A) ID=16	8-97354-889-0	01	1	0207-		●
