◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-48 - AUTO TRANS MULTIPLE-DISC CLUTCH ▶
2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#42150) — 98 parça

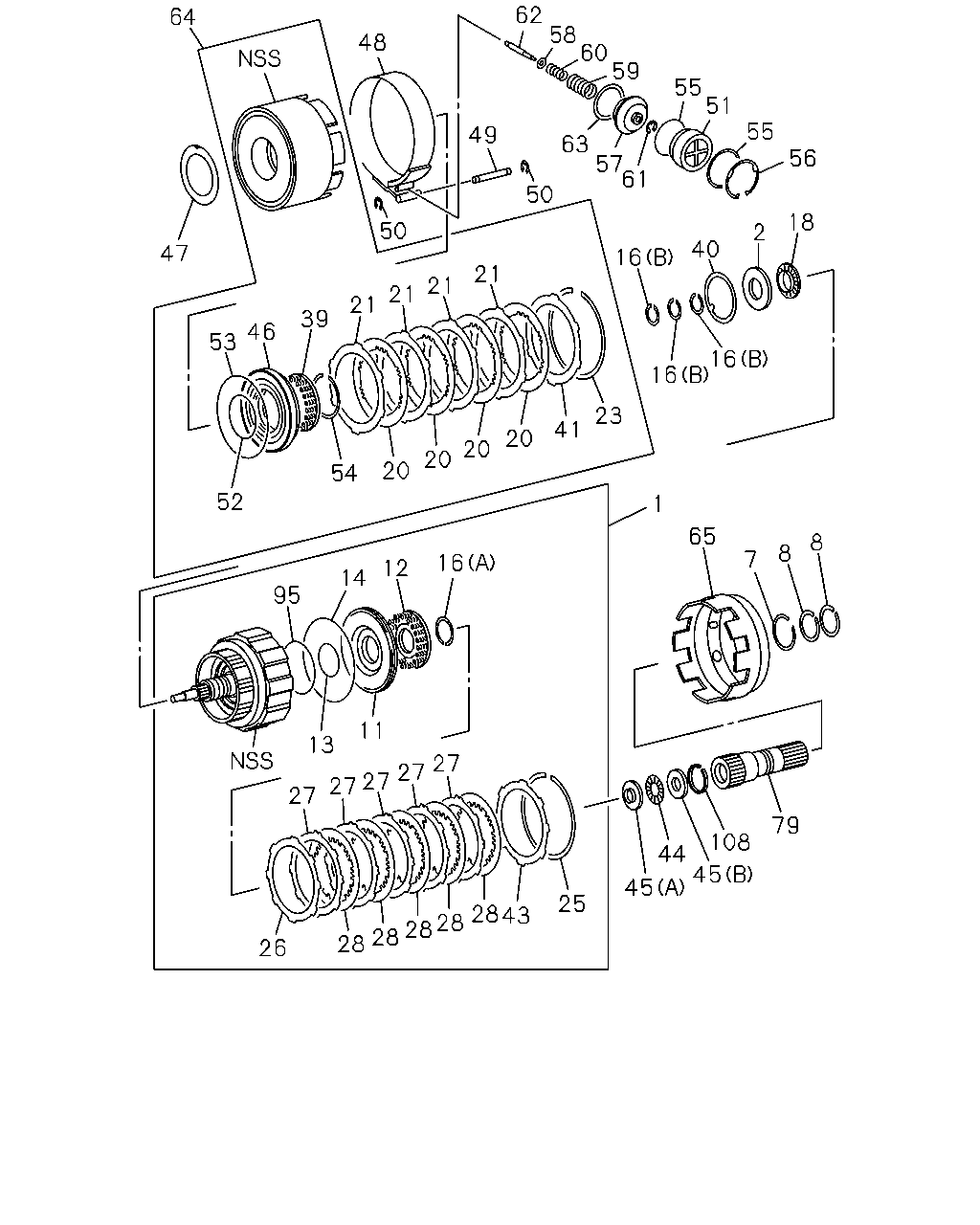

çizim 17619
62 58 60 59 64 48 55 51 55 49 63 57 61 56 50 18 50 2 40 47 16 21 21 21 21 39 46 53 16 16 23 41 20 20 20 20 54 52 1 65 8 8 7 16 12 14 95 11 13 27 27 27 27 27 79 108 44 45 45 25 28 28 28 28 26 28 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 HUB ASM; CLU,INPUT SHAFT,A/T 8-97331-536-0 01 1 0207- ●
2 RACE; THRUST BRG,A/T 8-94479-763-0 01 1 0207- ●
7 RING; RET,PLANETARY GEAR,A/T 8-94479-844-0 01 1 0207- ●
8 RING; SEAL,PLANETARY GEAR,A/T 8-94166-003-0 02 1 0207- ●
11 PISTON ASM; CLU,A/T 8-97025-836-0 01 1 0207- ●
12 SPRING; CLU RETURN,A/T 8-94479-770-0 01 1 0207- ●
13 GASKET; INNER,CLU,A/T 8-94364-919-0 01 1 0207- ●
14 GASKET; OUTER,CLU,A/T 8-94364-920-0 01 1 0207- ●
16 RING; SNAP,CLU,A/T
(A) 		8-94479-769-0 01 1 0207- ●
16 RING; SNAP,CLU,A/T
(B) 		8-94479-775-0 03 1 0207- ●
18 BEARING; THRUST,CLU,A/T 8-94479-764-0 01 1 0207- ●
20 DISC; CLU,A/T 8-97214-544-0 04 1 0207- ●
21 DISC ASM; CLU & FACING,A/T 8-97214-543-0 04 1 0207- ●
23 RING; RET,CLU,A/T 8-97214-553-0 01 1 0207- ●
25 RING; RET,BACKING PLATE,A/T 8-94250-342-0 01 1 0207- ●
26 PLATE; CLU,BACKING,A/T 8-94479-772-0 01 1 0207- ●
27 DISC ASM; CLU & FACING,A/T
STD 		8-97025-838-0 05 1 0207- ●
27 DISC ASM; CLU & FACING,A/T
OPT 		8-97184-342-0 05 1 0207- ●
28 DISC; CLU,A/T 8-97143-083-0 05 1 0207- ●
39 SPRING; DIRECT CLU RETURN 8-97019-543-0 01 1 0207- ●
40 WASHER; THRUST,CLU DRUM,INPUT SHAFT 8-94479-796-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=3.9 		8-97214-551-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=4.1 		8-97288-906-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=3.3 		8-97288-908-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=3.4 		8-97288-909-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=3.5 		8-97288-910-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=3.6 		8-97288-911-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=3.7 		8-97288-912-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=3.8 		8-97288-913-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=4.0 		8-97331-540-0 01 1 0207- ●
41 FLANGE; DIRECT CLU
T=4.2 		8-97331-541-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=3.6 		8-97232-043-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=3.8 		8-97232-044-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=4.0 		8-97232-045-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=3.2 		8-97232-046-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=3.4 		8-97232-047-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=3.0 		8-97331-537-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=4.2 		8-97331-538-0 01 1 0207- ●
43 FLANGE; FWD CLU
T=4.4 		8-97331-539-0 01 1 0207- ●
44 BEARING; THRUST,INPUT SHAFT RR 8-94479-778-0 01 1 0207- ●
45 RACE; THRUST BRG,INPUT SHAFT
(A) 		8-94479-776-0 01 1 0207- ●
45 RACE; THRUST BRG,INPUT SHAFT
(B) 		8-94479-777-0 01 1 0207- ●
46 PISTON; DIRECT CLU,A/T 8-94364-921-0 01 1 0207- ●
47 WASHER; THRUST,DIRECT CLU DRUM 8-94479-779-0 01 1 0207- ●
48 BAND; 2ND COAST BRK 8-97143-086-0 01 1 0207- ●
49 PIN; 2ND COAST BRK BAND 8-94479-825-0 01 1 0207- ●
50 RING; SNAP,2ND COAST BRK BAND,A/T 8-94479-818-0 02 1 0207- ●
51 COVER; 2ND COAST BRK,A/T 8-97331-546-0 01 1 0207- ●
52 GASKET; PISTON INNER,DIRECT CLU,A/T 8-97184-321-0 01 1 0207- ●
53 GASKET; PISTON OUTER,DIRECT CLU,A/T 8-94364-920-0 01 1 0207- ●
54 RING; SNAP,PISTON RETURN SPRING 8-94479-783-0 01 1 0207- ●
55 GASKET; COVER,2ND COAST BRK,A/T 8-94479-824-0 02 1 0207- ●
56 RING; SNAP,2ND COAST BRK COVER,A/T 8-97069-458-0 01 1 0207- ●
57 PISTON; 2ND COAST BRK,A/T 8-97331-542-0 01 1 0207- ●
58 WASHER; 2ND COAST BRK PISTON,A/T 8-94479-817-0 01 1 0207- ●
59 SPRING; OUTER,2ND COAST BRK PISTON 8-94479-812-0 01 1 0207- ●
60 SPRING; INNER,2ND COAST BRK PISTON 8-97331-545-0 01 1 0207- ●
61 RING; SNAP,2ND COAST BRK 8-94479-818-0 01 1 0207- ●
62 ROD; 2ND COAST BRK PISTON
L=78.4 		8-97331-543-0 01 1 0207- ●
62 ROD; 2ND COAST BRK PISTON
L=79.9 		8-97331-544-0 01 1 0207- ●
63 RING; SEAL,2ND COAST BRK PISTON 8-94479-813-0 01 1 0207- ●
64 DRUM ASM; DIRECT CLU,A/T 8-97288-905-0 01 1 0207- ●
65 DRUM; SUN GEAR INPUT 8-97024-255-0 01 1 0207- ●
79 GEAR ASM; INPUT SUN 8-96016-253-0 01 1 9707-0206 ●
79 GEAR ASM; INPUT SUN 8-94479-846-0 01 1 0207- ●
95 GASKET; CLU HUB 8-97122-978-0 01 1 0207- ●
108 RING; SNAP,SUN GEAR 8-94479-845-0 01 1 0207- ●

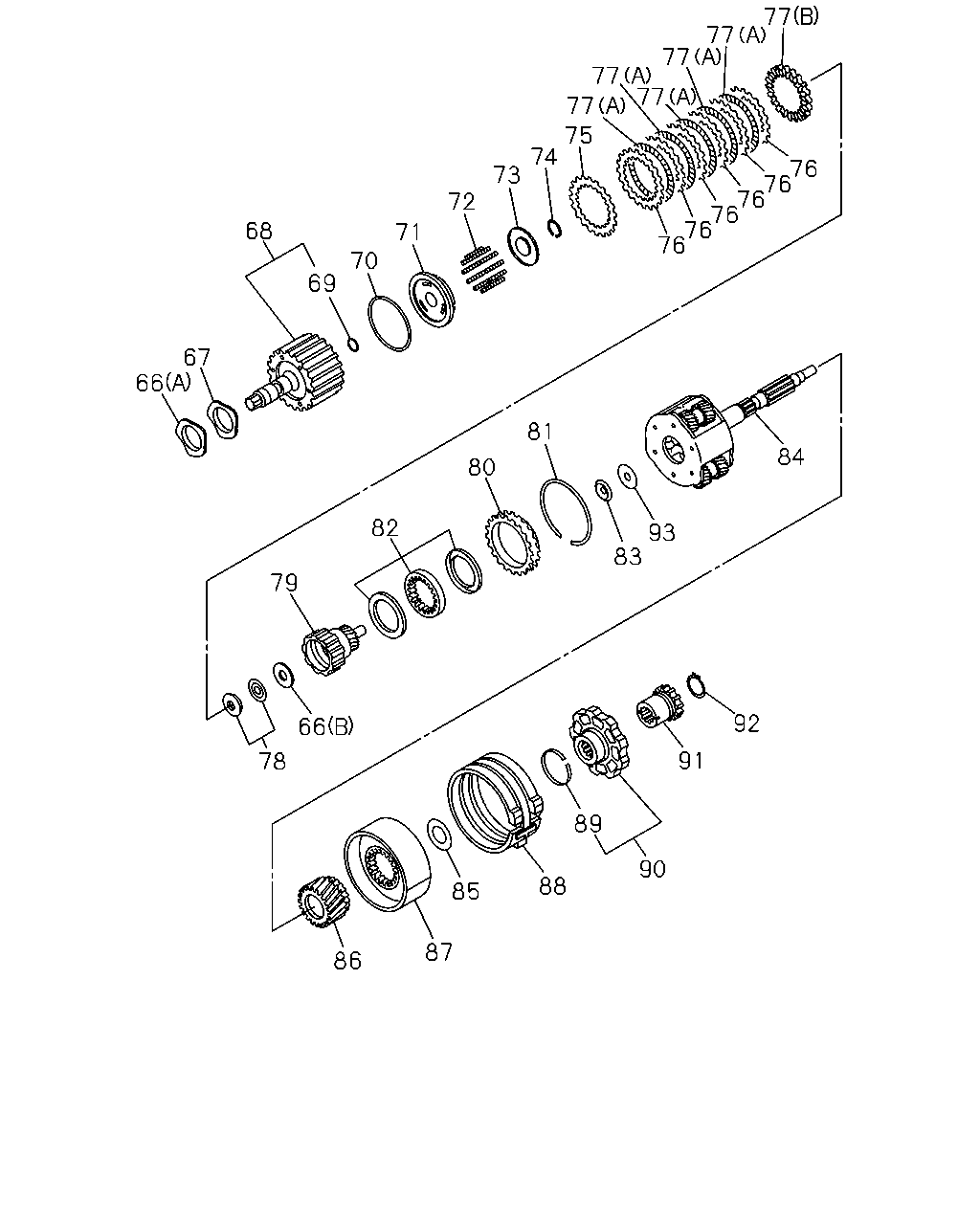

çizim 18752
77 77 77 77 77 77 75 74 76 76 76 76 76 76 73 72 68 71 70 69 67 66 81 84 80 82 93 83 79 92 66 91 78 89 90 88 85 87 86
BalonParca AdiParca NoAdetTipApplied Date A B
66 WASHER; THRUST,3RD CLU
(A) 		8-96013-403-0 01 1 9707-0206 ●
66 WASHER; THRUST,3RD CLU
(B) 		8-96015-459-0 01 1 9707-0206 ●
67 WASHER; THRUST,CLU HUB 8-05258-945-0 01 1 9707-0206 ●
68 DRUM; 3RD CLU 8-96041-095-0 01 1 9707-0206 ●
69 SEAL; 3RD CLU PISTON INNER 8-96018-543-0 01 1 9707-0206 ●
70 SEAL; 3RD CLU PISTON OUTER 8-96014-296-0 01 1 9707-0206 ●
71 PISTON; 3RD CLU 8-96016-223-0 01 1 9707-0206 ●
72 SPRING; PISTON CLU 8-08958-719-0 12 1 9707-0206 ●
73 SEAT; SPR,3RD CLU 8-05258-039-0 01 1 9707-0206 ●
74 RING; RET 8-05258-094-0 01 1 9707-0206 ●
75 PLATE; SPR,CLU 8-96017-603-0 01 1 9707-0206 ●
76 PLATE; 3RD CLU 8-05258-955-0 06 1 9707-0206 ●
77 PLATE ASM; 3RD CLU
(B) 		8-96017-370-0 01 1 9707-0206 ●
77 PLATE ASM; 3RD CLU
(A) 		8-96017-371-0 05 1 9707-0206 ●
78 WASHER & THRUST BEARING KIT 8-96040-078-0 01 1 9707-0206 ●
79 GEAR ASM; INPUT SUN 8-96016-253-0 01 1 9707-0206 ●
79 GEAR ASM; INPUT SUN 8-94479-846-0 01 1 0207- ●
80 RACE; SPRAG 8-96017-373-0 01 1 9707-0206 ●
81 RING; RET,SPRAG 8-08958-684-0 01 1 9707-0206 ●
82 SPRAG KIT 8-96017-149-0 01 1 9707-0206 ●
83 BEARING; OUTPUT SHAFT 8-96014-602-0 01 1 9707-0206 ●
84 CARRIER ASM; PLANETARY 8-96017-348-0 01 1 9707-0206 ●
85 THRUST BEARING & WASHER KIT 8-96016-084-0 01 1 9707-0206 ●
86 GEAR; REACTION SUN 8-96015-037-0 01 1 9707-0206 ●
87 DRUM; REACTION SUN 8-96018-009-0 01 1 9707-0206 ●
88 BAND; BRAKE 8-96014-805-0 01 1 9707-0206 ●
89 SEAL; RING,PARKING LOCK 8-05258-837-0 01 1 9707-0206 ●
90 WHEEL; PARKING LOCK 8-96016-669-0 01 1 9707-0206 ●
91 WHEEL; SPD 8-96015-053-0 01 1 9707-0206 ●
92 RING; RET 8-96015-123-0 01 1 9707-0206 ●
93 WASHER; OUTPUT SHAFT 8-96014-607-0 01 1 9707-0206 ●
