◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#42149) — 45 parça

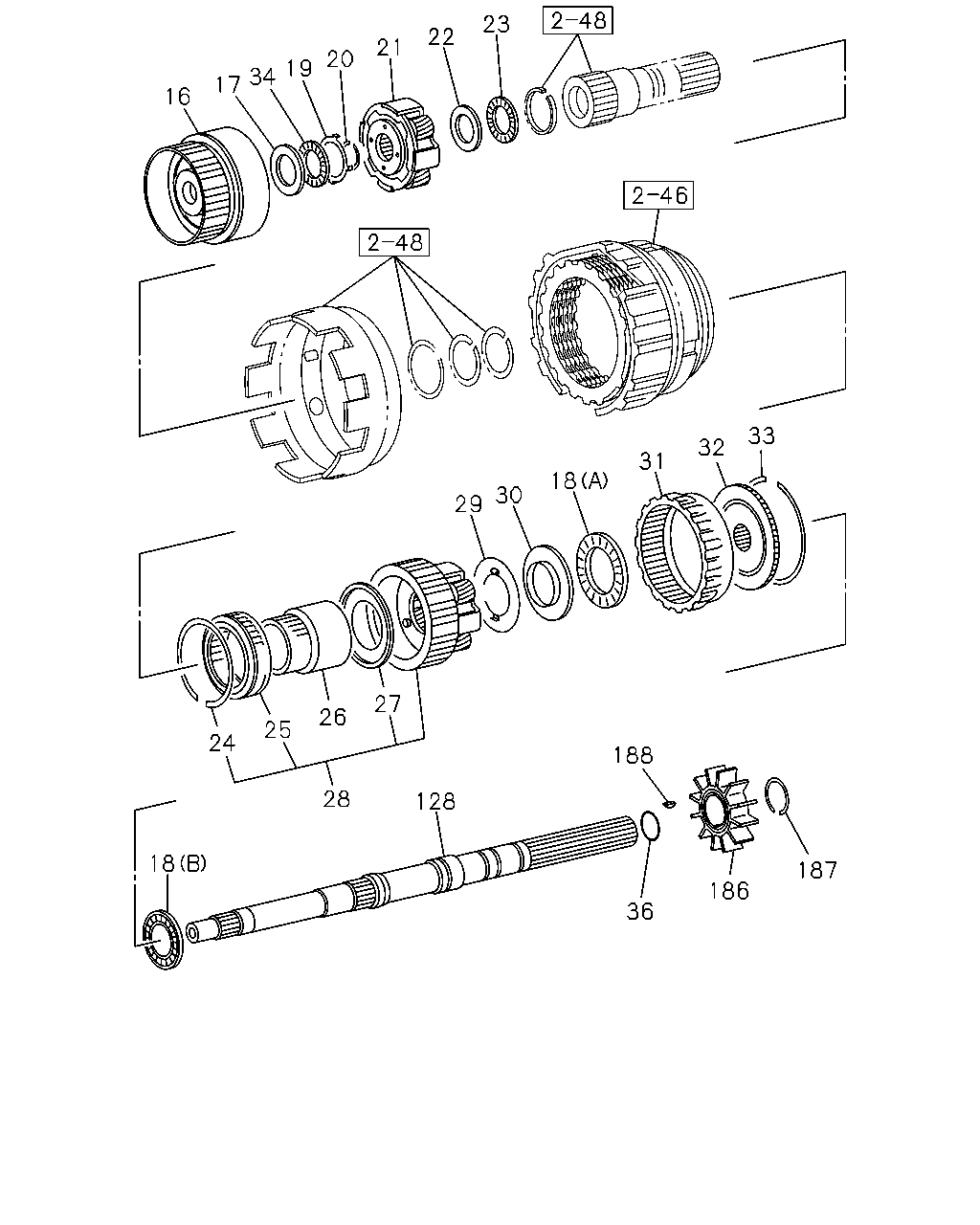

çizim 70120
23 22 21 20 19 34 17 16 33 32 31 18 30 29 27 26 25 24 188 28 128 18 187 186 36
BalonParca AdiParca NoAdetTipApplied Date A B
16 GEAR ASM; FRT PLANETARY,A/T 8-97143-082-0 01 1 0207- ●
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-94479-836-0 01 1 0207- ●
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) 		8-97249-735-0 01 1 0207- ●
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) 		8-97331-548-0 01 1 0207- ●
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-94479-837-0 01 1 0207- ●
20 RING; RET,PLANETARY GEAR,A/T 8-94479-842-0 01 1 0207- ●
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94479-839-0 01 1 0207- ●
22 RACE; THRUST BRG,FRT PLANETARY SHAFT,A 8-94479-840-0 01 1 0207- ●
23 BEARING; THRUST,PLANETARY SHAFT,A/T 8-94479-841-0 01 1 0207- ●
24 RING; RET,FRT PLANETARY,A/T 8-97143-129-0 01 1 0207- ●
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T 8-94364-924-0 01 1 0207- ●
26 RACE; ONEWAY CLU,A/T 8-97019-542-0 01 1 0207- ●
27 WASHER; THRUST,FRT PLANETARY,A/T 8-94313-577-0 01 1 0207- ●
28 GEAR ASM; RR PLANETARY,A/T 8-97232-050-0 01 1 0207- ●
29 WASHER; THRUST,FRT PLANETARY,A/T 8-94479-851-0 01 1 0207- ●
30 RACE; THRUST BRG,RR PLANETARY FLANGE 8-97331-549-0 01 1 0207- ●
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 0207- ●
32 FLANGE; RING GEAR,RR PLANETARY,A/T 8-94479-852-0 01 1 0207- ●
33 RING; RET,PLANETARY GEAR,A/T 8-94479-853-0 01 1 0207- ●
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/ 8-94479-838-0 01 1 0207- ●
36 RING; SEALING,FRT PLANETARY SHAFT,A/T 8-94479-902-0 01 1 0207- ●
128 SHAFT; OUTPUT,A/T 8-97069-456-0 01 1 0207- ●
186 ROTOR; SPEED SENSOR 8-97331-553-0 01 1 0207- ●
187 RING; SNAP,ROTOR,SPEED SENSOR 8-94479-905-0 01 1 0207- ●
188 KEY; SPEED SENSOR ROTOR 8-94479-904-0 01 1 0207- ●

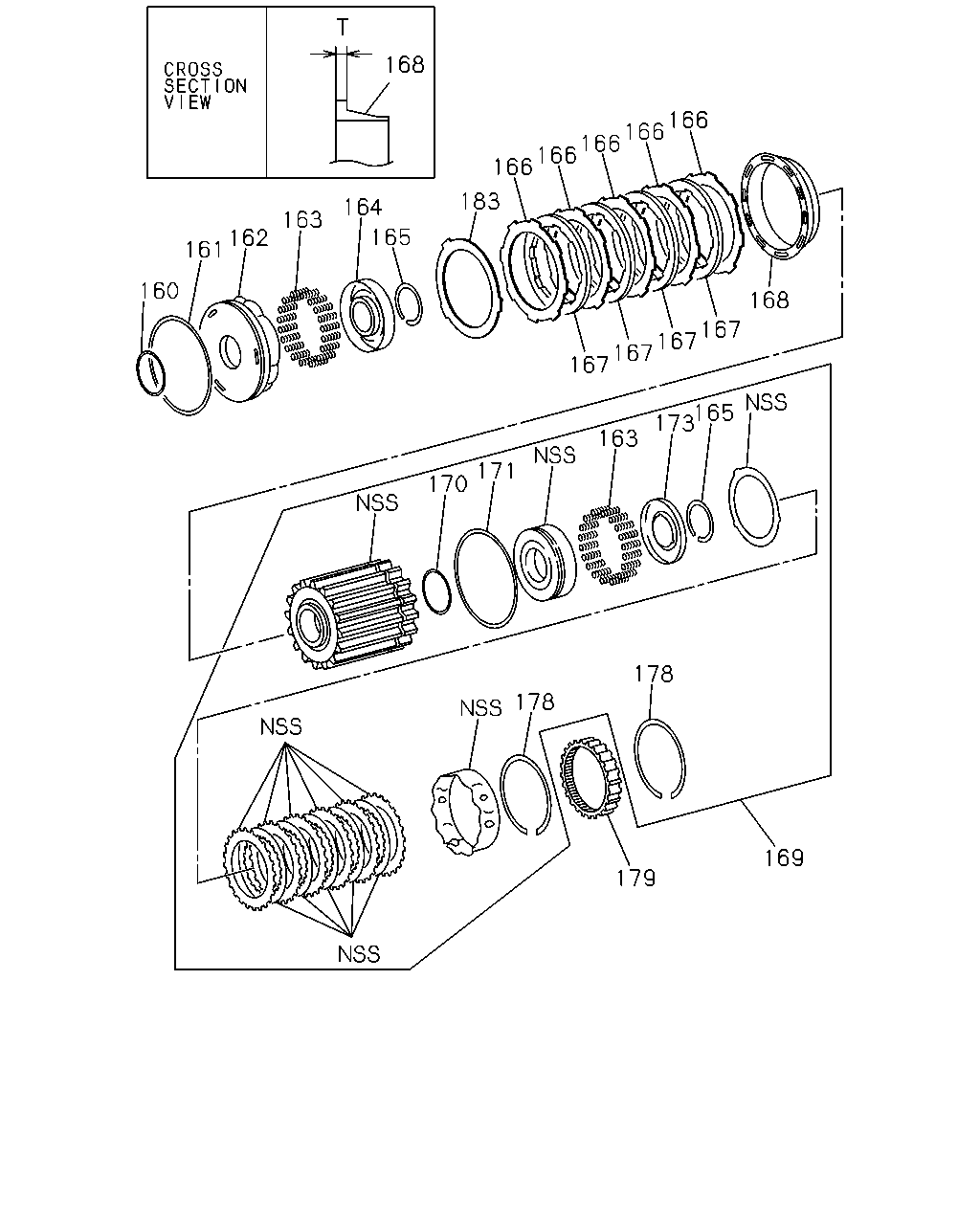

çizim 70167
168 166 166 166 166 166 183 164 163 165 162 161 160 168 167 167 167 167 165 173 163 171 170 178 178 169 179
BalonParca AdiParca NoAdetTipApplied Date A B
160 SEAL; REV CLU PISTON INNER 8-96014-331-0 01 1 9707-0206 ●
161 SEAL; REV CLU PISTON OUTER 8-96014-332-0 01 1 9707-0206 ●
162 PISTON; REV CLU 8-96014-964-0 01 1 9707-0206 ●
163 SPRING; PISTON CLU 8-08958-719-0 46 1 9707-0206 ●
164 SEAT; SPR,REV CLU 8-05258-021-0 01 1 9707-0206 ●
165 RING; RET 8-05258-093-0 02 1 9707-0206 ●
166 PLATE; REV CLU 8-96017-283-0 05 1 9707-0206 ●
167 PLATE ASM; REV CLU 8-96014-269-0 04 1 9707-0206 ●
168 PLATE; REV CLU PRESS
T=6.35 		8-96014-622-0 01 1 9707-0206 ●
168 PLATE; REV CLU PRESS
T=6.64 		8-96014-623-0 01 1 9707-0206 ●
168 PLATE; REV CLU PRESS
T=6.93 		8-96014-624-0 01 1 9707-0206 ●
168 PLATE; REV CLU PRESS
T=7.22 		8-96014-625-0 01 1 9707-0206 ●
168 PLATE; REV CLU PRESS
T=7.51 		8-96014-626-0 01 1 9707-0206 ●
169 DRUM; 2ND CLU 8-96041-054-0 01 1 9707-0206 ●
170 SEAL; 2ND CLU INNER 8-96014-305-0 01 1 9707-0206 ●
171 SEAL; 2ND CLU OUTER 8-96014-306-0 01 1 9707-0206 ●
173 SEAT; SPR,2ND CLU 8-05258-038-0 01 1 9707-0206 ●
178 RING; RET 8-08958-619-0 02 1 9707-0206 ●
179 GEAR; RING 8-96014-576-0 01 1 9707-0206 ●
183 PLATE; REV CLU 8-96017-451-0 01 1 9707-0206 ●
