◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-44 - AUTO TRANS CONTROL VALVE; LOWER BODY ▶
2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#42147) — 80 parça

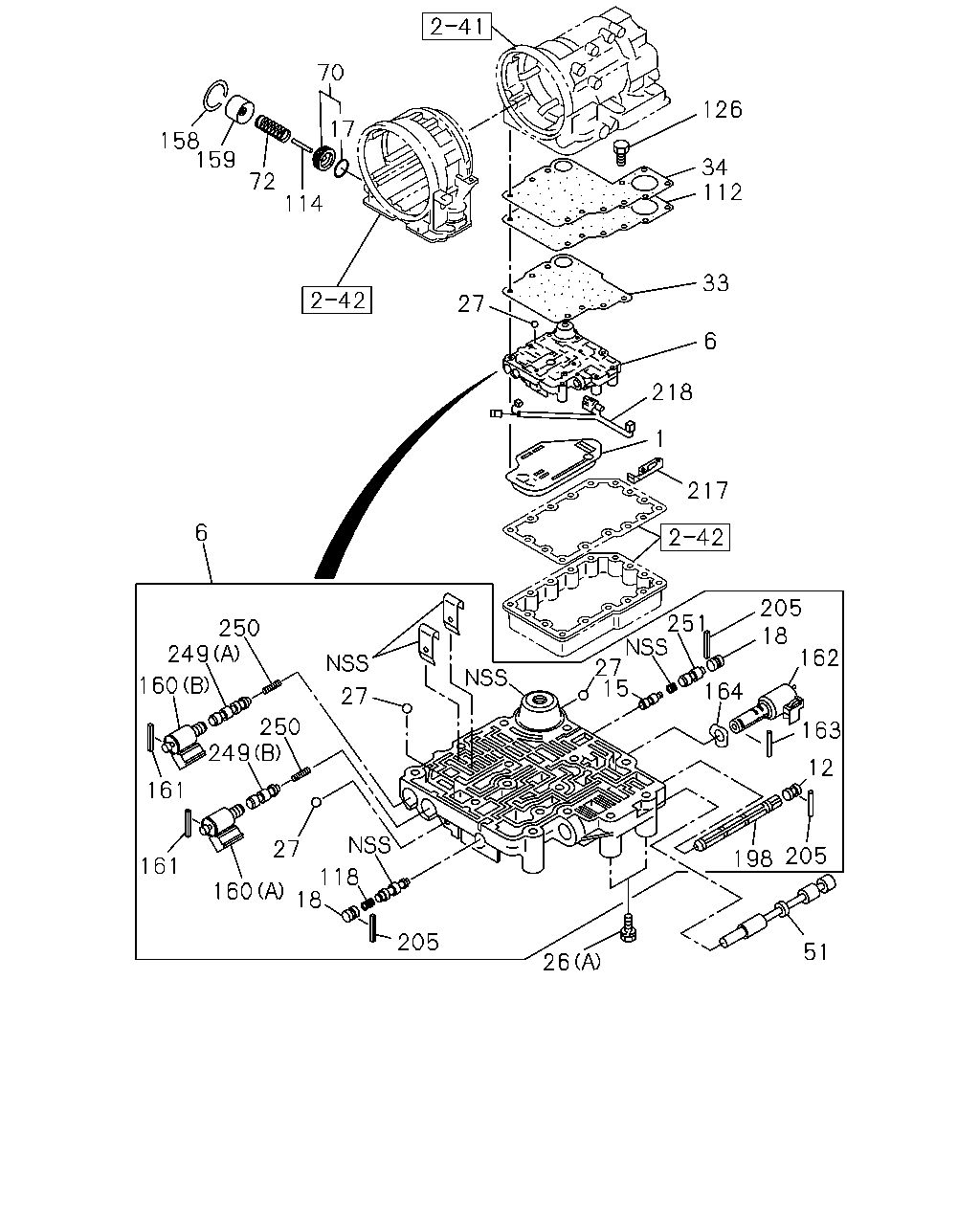

çizim 69491
70 126 17 158 159 34 112 72 114 33 27 6 218 1 217 6 205 18 251 27 15 250 249 162 160 164 27 250 249 163 12 161 27 205 198 161 118 18 160 205 51 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 STRAINER ASM; OIL,A/T 8-96015-062-0 01 1 9707-0206 ●
1 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 0207- ●
6 BODY ASM; VLV LWR,A/T 8-96018-289-0 01 1 9707-9908 ●
6 BODY ASM; VLV LWR,A/T 8-96018-557-0 01 1 9909-0206 ●
6 BODY ASM; VLV LWR,A/T 8-97331-534-0 01 1 0207- ●
12 PLUG; LWR BODY 8-96014-439-0 01 1 9707-0206 ●
15 VALVE; ACCUMLATOR CONT 8-96014-434-0 01 1 9707-0206 ●
17 RETAINER; ACCUMLATOR CONT VALVE 8-96014-566-0 01 1 9707-0206 ●
18 PLUG; PRESSURE 8-05258-333-0 02 1 9707-0206 ●
26 BOLT; BODY FIX,VLV LWR,A/T
(A) 		8-00179-826-0 12 1 9707-0206 ●
26 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X28 		8-94473-611-0 10 1 0207- ●
26 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X36 		8-94473-630-0 06 1 0207- ●
26 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X23 		8-94479-925-0 04 1 0207- ●
27 BALL; STEEL,VLV,A/T 8-11066-201-0 05 1 9707-0206 ●
33 GASKET; LWR,VLV BODY,A/T 8-96015-417-0 01 1 9707-0206 ●
34 GASKET; UPR,VLV BODY,A/T 8-96018-338-0 01 1 9707-0206 ●
51 VALVE; MANUAL,A/T 8-96014-445-0 01 1 9707-0206 ●
70 PISTON; ACCUMLATOR 8-96016-916-0 01 1 9707-0206 ●
70 PISTON; ACCUMLATOR 8-97027-205-0 01 1 0207- ●
72 SPRING; ACCUMLATOR PISTON 8-96016-972-0 01 1 9707-0206 ●
72 SPRING; ACCUMLATOR PISTON 8-97027-206-0 01 1 0207- ●
112 PLATE; VLV BODY CVR,VLV LWR,A/T 8-96018-290-0 01 1 9707-0206 ●
114 PIN; ACCUMLATOR PISTON (B-2) 8-96017-098-0 01 1 9707-0206 ●
118 SPRING; PRESSURE RELIEF VALVE 8-08958-690-0 01 1 9707-0206 ●
126 BOLT; CVR,VLV LWR,A/T 8-00117-461-0 02 1 9707-0206 ●
158 RING; SNAP,ADAPTER 8-96015-714-0 01 1 9707-0206 ●
159 COVER; PISTON 8-96017-093-0 01 1 9707-0206 ●
160 SOLENOID; ON-OFF
(A) 		8-96014-224-0 01 1 9707-0206 ●
160 SOLENOID; ON-OFF
(B) 		8-96014-593-0 01 1 9707-0206 ●
161 PIN; SPRING,SOLENOID 8-96014-443-0 02 1 9707-0206 ●
162 SOLENOID; BAND CONT 8-96042-006-0 01 1 9707-0206 ●
163 PIN; SOLENOID 8-96014-440-0 01 1 9707-0206 ●
164 WASHER; SOLENOID 8-96014-555-0 01 1 9707-0206 ●
198 STRAINER 8-96041-012-0 01 1 9707-0206 ●
205 PIN; SPRING 8-05258-849-0 03 1 9707-0206 ●
217 ROLLER ASM; SPR,DETENT 8-96015-354-0 01 1 9707-0206 ●
218 HARNESS; SOLENOID WIRE 8-96014-855-0 01 1 9707-9908 ●
218 HARNESS; SOLENOID WIRE 8-96018-581-0 01 1 9909-0206 ●
249 VALVE; SHIFT
(A) 		8-96014-427-0 01 1 9707-0206 ●
249 VALVE; SHIFT
(B) 		8-96014-429-0 01 1 9707-0206 ●
250 SPRING; SHIFT VALVE 8-96014-428-0 02 1 9707-0206 ●
251 VALVE; ACCUMULATOR 8-05258-806-0 01 1 9707-0206 ●

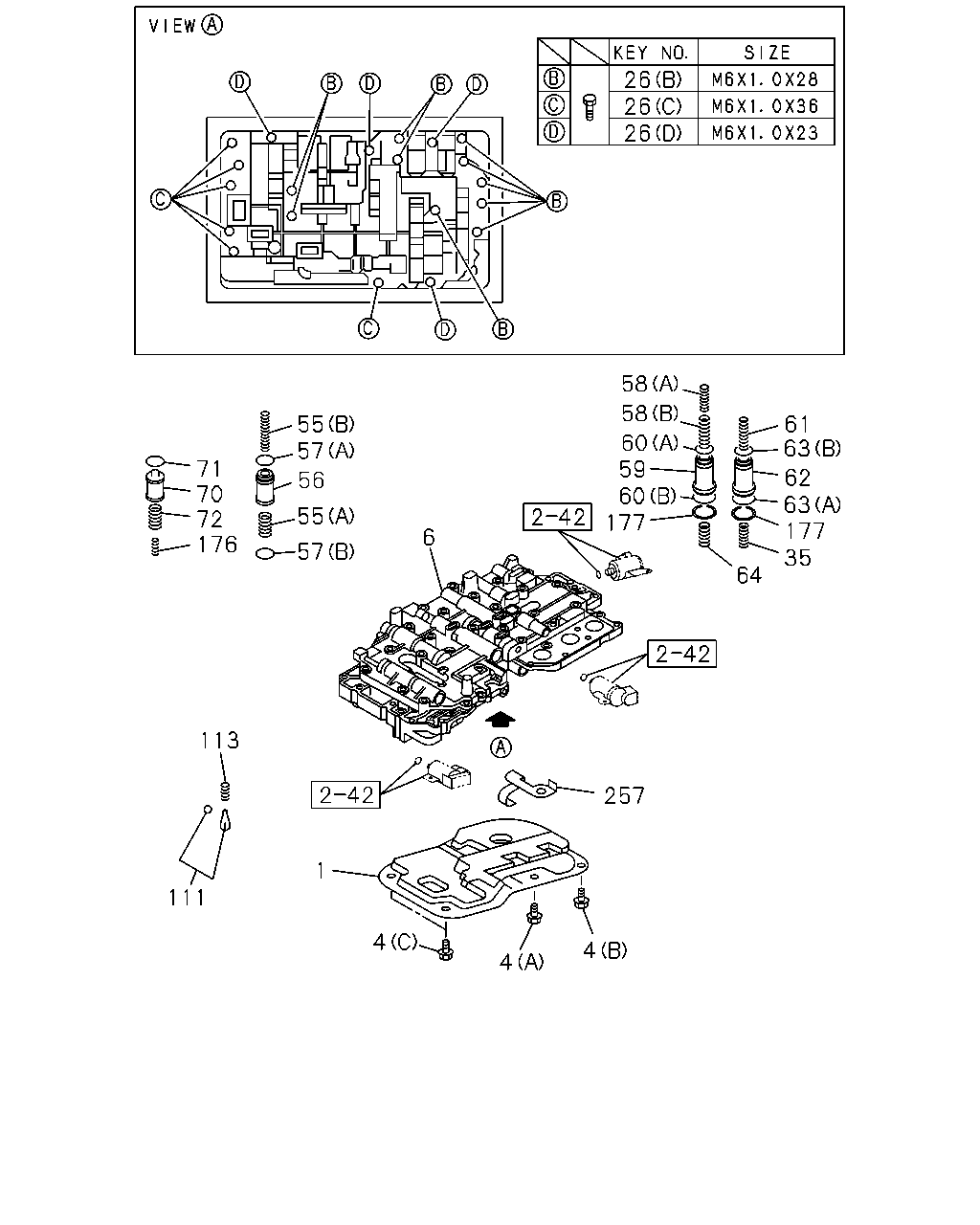

çizim 72434
26 26 26 58 58 55 57 61 63 60 59 60 177 71 70 72 176 62 63 177 35 56 55 6 57 64 113 257 1 111 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 STRAINER ASM; OIL,A/T 8-96015-062-0 01 1 9707-0206 ●
1 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 0207- ●
4 BOLT; OIL STRAINER,A/T
(A) M6X20 		8-94479-922-0 01 1 0207- ●
4 BOLT; OIL STRAINER,A/T
(B) M6X23 		8-94479-925-0 01 1 0207- ●
4 BOLT; OIL STRAINER,A/T
(C) 		8-97207-142-0 02 1 0207- ●
6 BODY ASM; VLV LWR,A/T 8-96018-289-0 01 1 9707-9908 ●
6 BODY ASM; VLV LWR,A/T 8-96018-557-0 01 1 9909-0206 ●
6 BODY ASM; VLV LWR,A/T 8-97331-534-0 01 1 0207- ●
26 BOLT; BODY FIX,VLV LWR,A/T
(A) 		8-00179-826-0 12 1 9707-0206 ●
26 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X28 		8-94473-611-0 10 1 0207- ●
26 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X36 		8-94473-630-0 06 1 0207- ●
26 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X23 		8-94479-925-0 04 1 0207- ●
35 SPRING; LWR VLV BODY 8-97025-856-0 01 1 0207- ●
55 SPRING; ACCUMLATOR PISTON
(A) 		8-97027-209-0 01 1 0207- ●
55 SPRING; ACCUMLATOR PISTON
(B) 		8-97232-087-0 01 1 0207- ●
56 PISTON; ACCUMLATOR 8-97027-207-0 01 1 0207- ●
57 GASKET; 2ND SPD PISTON,A/T
(A) ID=20 		8-97184-885-0 01 1 0207- ●
57 GASKET; 2ND SPD PISTON,A/T
(B) ID=27 		8-97184-886-0 01 1 0207- ●
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(A) 		8-97025-822-0 01 1 0207- ●
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(B) 		8-97027-204-0 01 1 0207- ●
59 PISTON; DIRECT CLU,A/T 8-97025-819-0 01 1 0207- ●
60 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97184-887-0 01 1 0207- ●
60 GASKET; DIRECT CLU PISTON,A/T
(B) 		8-97184-888-0 01 1 0207- ●
61 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97331-532-0 01 1 0207- ●
62 PISTON; FWD CLU,A/T 8-97025-817-0 01 1 0207- ●
63 GASKET; FWD CLU,A/T
(B) 		8-97184-888-0 01 1 0207- ●
63 GASKET; FWD CLU,A/T
(A) ID=24 		8-97184-889-0 01 1 0207- ●
64 SPRING; DIRECT CLU 8-97184-335-0 01 1 0207- ●
70 PISTON; ACCUMLATOR 8-96016-916-0 01 1 9707-0206 ●
70 PISTON; ACCUMLATOR 8-97027-205-0 01 1 0207- ●
71 GASKET; ACCUMLATOR PISTON 8-97184-884-0 01 1 0207- ●
72 SPRING; ACCUMLATOR PISTON 8-96016-972-0 01 1 9707-0206 ●
72 SPRING; ACCUMLATOR PISTON 8-97027-206-0 01 1 0207- ●
111 BODY; CHECK BALL 8-94479-931-0 01 1 0207- ●
113 SPRING; CHECK BALL 8-94479-930-0 01 1 0207- ●
176 SPRING; ACCUM INNER 8-97025-825-0 01 1 0207- ●
177 RING; SNAP
ID=19 		8-97025-821-0 03 1 0207- ●
257 CLAMP; HARNESS 8-97232-037-0 01 1 0207- ●
