◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-43 - AUTO TRANS CONTROL VALVE; UPPER BODY ▶
2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#42146) — 19 parça

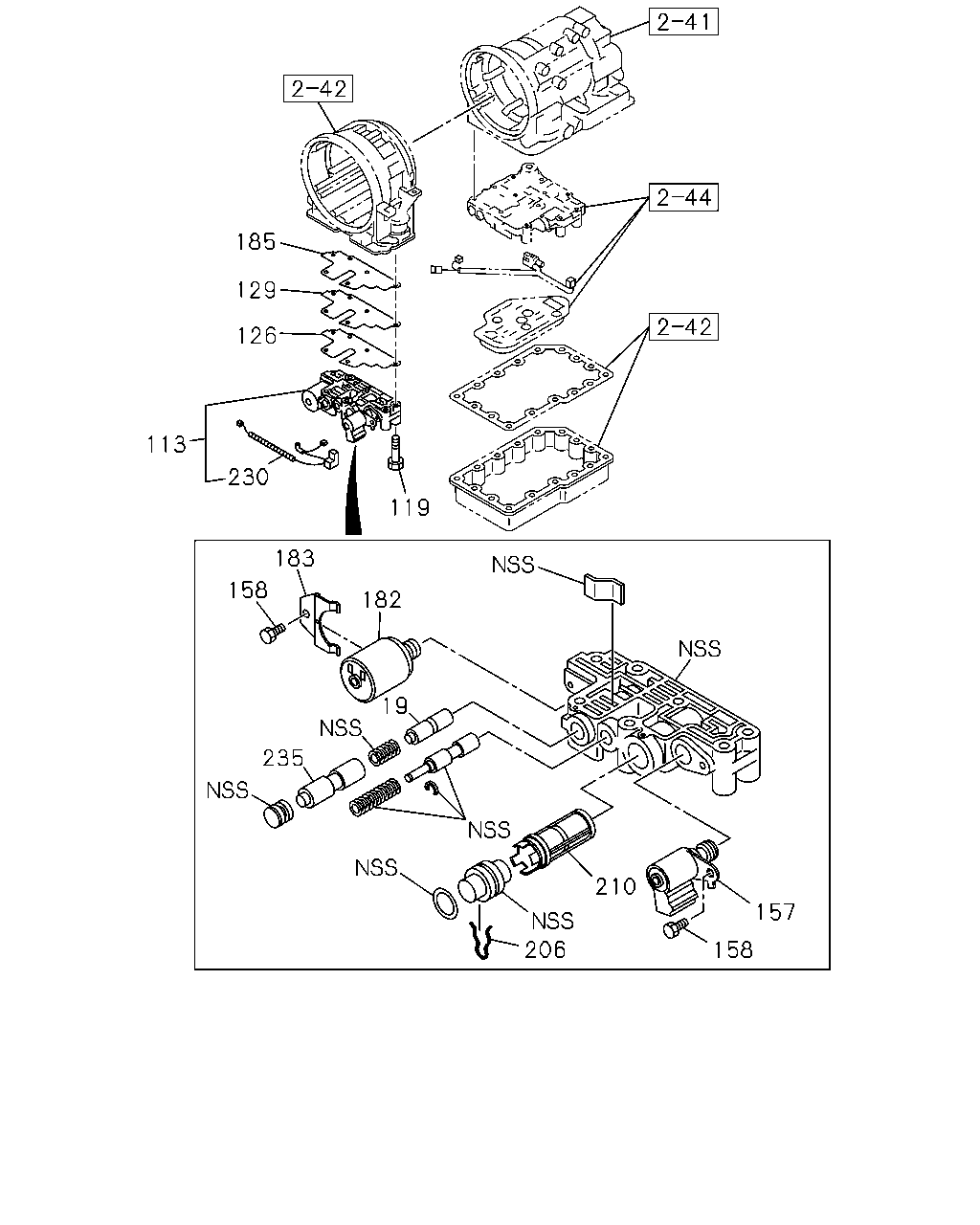

çizim 69532
185 129 126 113 230 119 183 158 182 19 235 210 157 206 158
BalonParca AdiParca NoAdetTipApplied Date
19 VALVE; ACCUMLATOR CONT,UPR VLV 8-96014-338-0 01 1 9707-0206
113 VALVE ASM; CONT,A/T 8-96017-357-0 01 1 9707-9908
113 VALVE ASM; CONT,A/T 8-96023-390-0 01 1 9909-0206
119 BOLT; VLV BODY,A/T 8-96017-270-0 07 1 9707-0206
126 GASKET; VALVE BODY 8-96017-399-0 01 1 9707-0206
129 PLATE; SEPARATOR,SIDE 8-96018-292-0 01 1 9707-9908
129 PLATE; SEPARATOR,SIDE 8-96018-412-0 01 1 9909-0206
157 SOLENOID; CONV CLU 8-96014-183-0 01 1 9707-0206
158 BOLT; SOLENOID 8-00117-461-0 02 1 9707-0206
182 SOLENOID; FORCE MOTOR 8-08677-314-0 01 1 9707-9908
182 SOLENOID; FORCE MOTOR 8-96018-043-0 01 1 9909-0206
183 RETAINER; FORCE MOTOR 8-96016-954-0 01 1 9707-9908
183 RETAINER; FORCE MOTOR 8-96018-476-0 01 1 9909-0206
185 GASKET; ADAPTER TO TRANSFER PLATE 8-96017-400-0 01 1 9707-0206
206 RING; SNAP 8-05258-185-0 01 1 9707-0206
210 STRAINER 8-96041-009-0 01 1 9707-0206
230 HARNESS ASM; CABLE,A/T CONT 8-96018-278-0 01 1 9707-9908
230 HARNESS ASM; CABLE,A/T CONT 8-96018-478-0 01 1 9909-0206
235 VALVE; ACCUMULATOR 8-05258-806-0 01 1 9707-0206
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
