◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-42 - AUTO TRANS OIL PAN AND OIL CONTROL ▶
2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#42145) — 65 parça

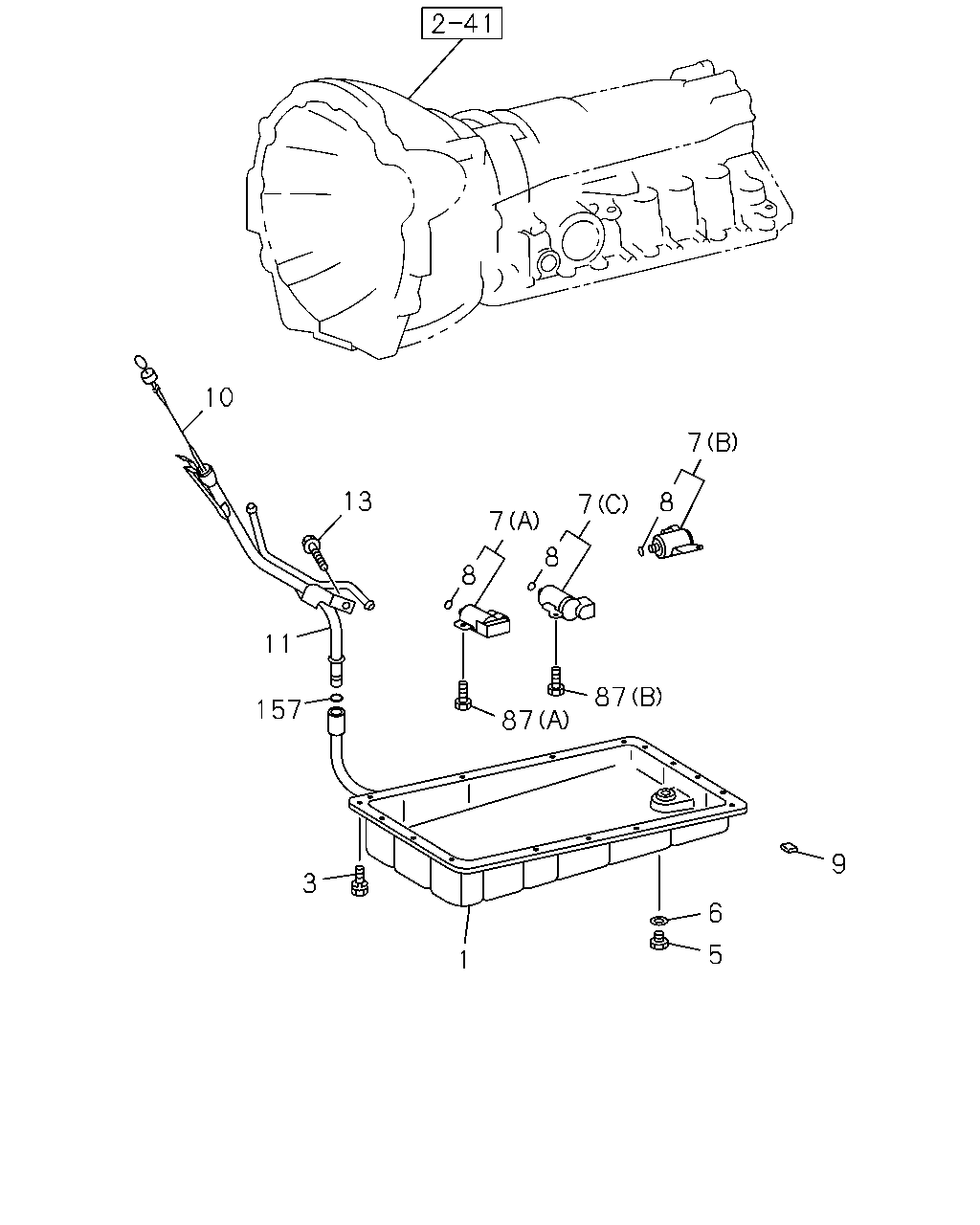

çizim 70119
10 7 13 8 7 7 8 8 11 87 157 87 9 3 6 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL,A/T 8-96017-876-0 01 1 9707-9912 ●
1 PAN ASM; OIL,A/T 8-96023-707-0 01 1 0001-0206 ●
1 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0207- ●
3 BOLT; OIL PAN TO CASE 8-96017-023-0 28 1 9707-0206 ●
3 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0207- ●
5 PLUG; OIL PAN 8-96015-481-0 02 1 9707-0206 ●
5 PLUG; OIL PAN 5-34132-003-0 01 1 0207- ●
6 GASKET; OIL PAN TO PLUG 8-01638-257-0 02 1 9707-9807 ●
6 GASKET; OIL PAN TO PLUG 8-11023-580-0 02 1 9808-9912 ●
6 GASKET; OIL PAN TO PLUG 8-11023-582-0 02 1 0001-0206 ●
6 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0207- ●
7 SOLENOID; DOWN SHIFT,A/T
(A) 		8-97214-539-0 01 1 0207- ●
7 SOLENOID; DOWN SHIFT,A/T
(B) 		8-97218-986-0 01 1 0207- ●
7 SOLENOID; DOWN SHIFT,A/T
(C) 		8-97218-987-0 01 1 0207- ●
8 GASKET; DOWN SHIFT SOLENOID,A/T
ID=6.1 		8-94480-101-0 03 1 0207- ●
9 MAGNET; OIL PAN 8-96013-938-0 01 1 9707-0206 ●
9 MAGNET; OIL PAN 5-34138-004-0 04 1 0207- ●
10 GAUGE; OIL LEVEL 8-97194-827-2 01 1 0207- ●
11 TUBE; OIL FILLER 8-97326-283-4 01 1 0207- ●
13 BOLT; OIL FILLER
M8X20 FLANGE 		0-28680-820-0 01 1 0207- ●
87 BOLT; SOLENOID
(B) M5X12 		8-94405-335-0 01 1 0207- ●
87 BOLT; SOLENOID
(A) M6X12 		8-94479-927-0 01 1 0207- ●
157 RING; FILLER TUBE
ID=9.8 		9-09561-110-0 01 1 0207- ●

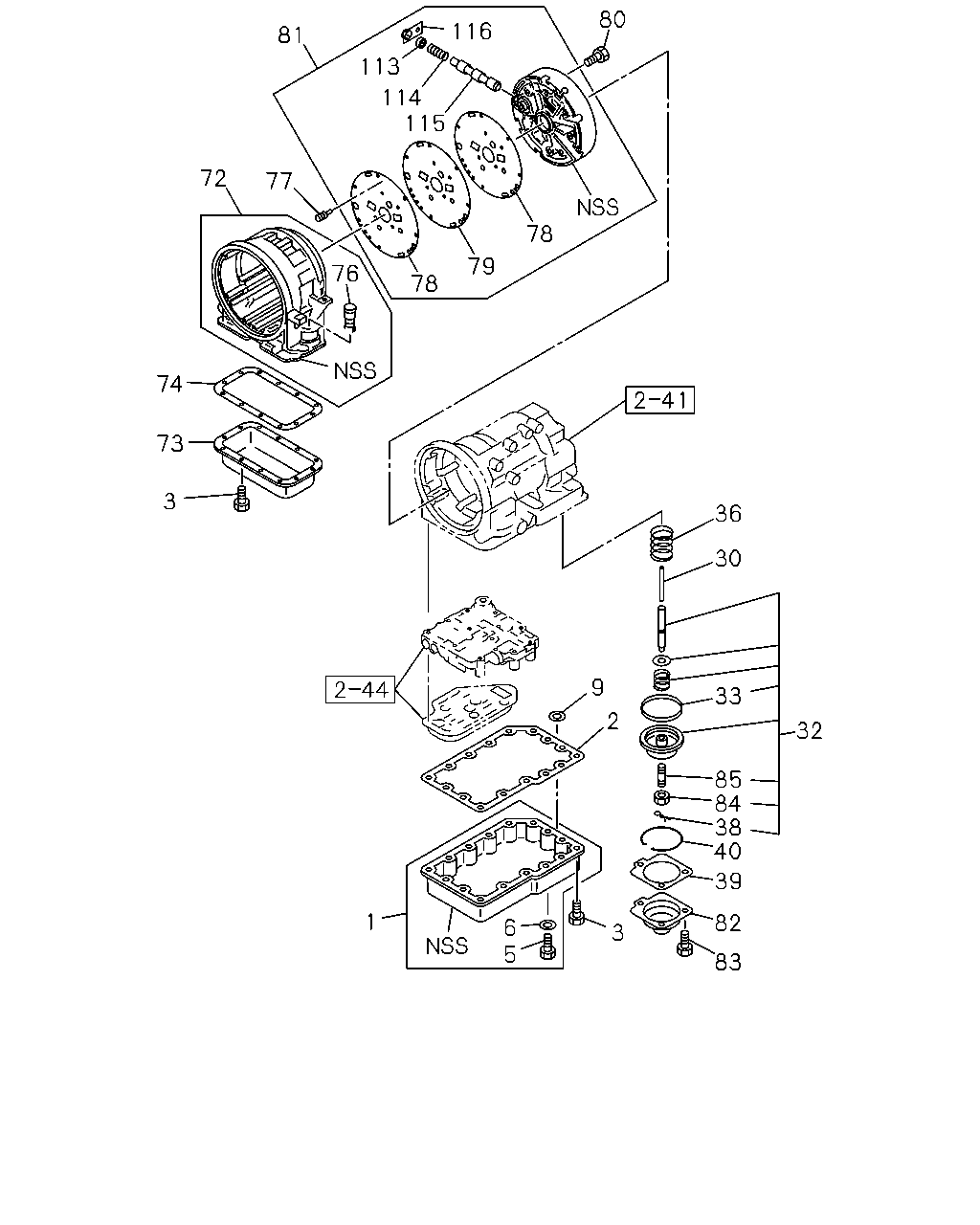

çizim 72198
80 116 81 113 114 115 72 77 78 79 76 78 74 73 3 36 30 9 33 2 32 85 84 38 40 39 1 82 6 5 3 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL,A/T 8-96017-876-0 01 1 9707-9912 ●
1 PAN ASM; OIL,A/T 8-96023-707-0 01 1 0001-0206 ●
1 PAN ASM; OIL,A/T 8-97331-554-0 01 1 0207- ●
2 GASKET; OIL PAN,A/T 8-96014-234-0 01 1 9707-0206 ●
3 BOLT; OIL PAN TO CASE 8-96017-023-0 28 1 9707-0206 ●
3 BOLT; OIL PAN TO CASE 8-97130-928-0 19 1 0207- ●
5 PLUG; OIL PAN 8-96015-481-0 02 1 9707-0206 ●
5 PLUG; OIL PAN 5-34132-003-0 01 1 0207- ●
6 GASKET; OIL PAN TO PLUG 8-01638-257-0 02 1 9707-9807 ●
6 GASKET; OIL PAN TO PLUG 8-11023-580-0 02 1 9808-9912 ●
6 GASKET; OIL PAN TO PLUG 8-11023-582-0 02 1 0001-0206 ●
6 GASKET; OIL PAN TO PLUG
ID=12 		5-34132-002-0 01 1 0207- ●
9 MAGNET; OIL PAN 8-96013-938-0 01 1 9707-0206 ●
9 MAGNET; OIL PAN 5-34138-004-0 04 1 0207- ●
30 ROD; VAC DIAPH,A/T 8-05258-182-0 01 1 9707-0206 ●
32 PISTON ASM; SERVO,A/T 8-96017-601-0 01 1 9707-0206 ●
33 SEAL; RING,SERVO PISTON,A/T 8-05258-159-0 01 1 9707-0206 ●
36 SPRING; RETURN,SERVO PISTON,A/T 8-08958-931-0 01 1 9707-0206 ●
38 RING; SNAP,SERVO PISTON,A/T 8-05258-185-0 01 1 9707-0206 ●
39 GASKET; SERVO COVER 8-96014-414-0 01 1 9707-0206 ●
40 RETAINER; SERVO PISTON,A/T 8-05258-121-0 01 1 9707-0206 ●
72 CASE ASM; ADAPTER 8-96017-512-0 01 1 9707-9908 ●
72 CASE ASM; ADAPTER 8-96017-508-0 01 1 9909-0206 ●
73 PAN ASM; ADAPTER 8-96014-186-0 01 1 9707-0206 ●
74 GASKET; ADAPTER PAN 8-96014-235-0 01 1 9707-0206 ●
76 CONNECTOR; ADAPTER CASE 8-96015-408-0 01 1 9707-9908 ●
76 CONNECTOR; ADAPTER CASE 8-96018-330-0 01 1 9909-0206 ●
77 RESTRICTOR; OIL 8-96014-353-0 01 1 9707-0206 ●
78 GASKET; ADAPTER PLATE 8-96016-514-0 02 1 9707-0206 ●
79 PLATE; ADAPTER,CTR SUPPORT 8-96016-833-0 01 1 9707-9908 ●
79 PLATE; ADAPTER,CTR SUPPORT 8-96018-405-0 01 1 9909-0206 ●
80 SCREW; CTR SUPPORT 8-96013-316-0 08 1 9707-0206 ●
81 SUPPORT ASM; CENTER 8-96041-282-0 01 1 9707-9908 ●
81 SUPPORT ASM; CENTER 8-96041-645-0 01 1 9909-0206 ●
82 COVER; SERVO PISTON 8-96014-413-0 01 1 9707-0206 ●
83 SCREW; SERVO COVER 8-96013-316-0 04 1 9707-0206 ●
84 NUT; SERVO SCREW 8-96017-231-0 01 1 9707-0206 ●
85 SCREW; SERVO PISTON 8-96018-235-0 01 1 9707-0206 ●
113 PLUG; LOCKOUT 8-96017-027-0 01 1 9707-0206 ●
114 SPRING; LOCKOUT 8-96014-961-0 01 1 9707-0206 ●
115 VALVE; LOCKOUT 8-96014-967-0 01 1 9707-0206 ●
116 PLATE; RETAINER 8-96017-026-0 01 1 9707-0206 ●
