◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#42144) — 132 parça

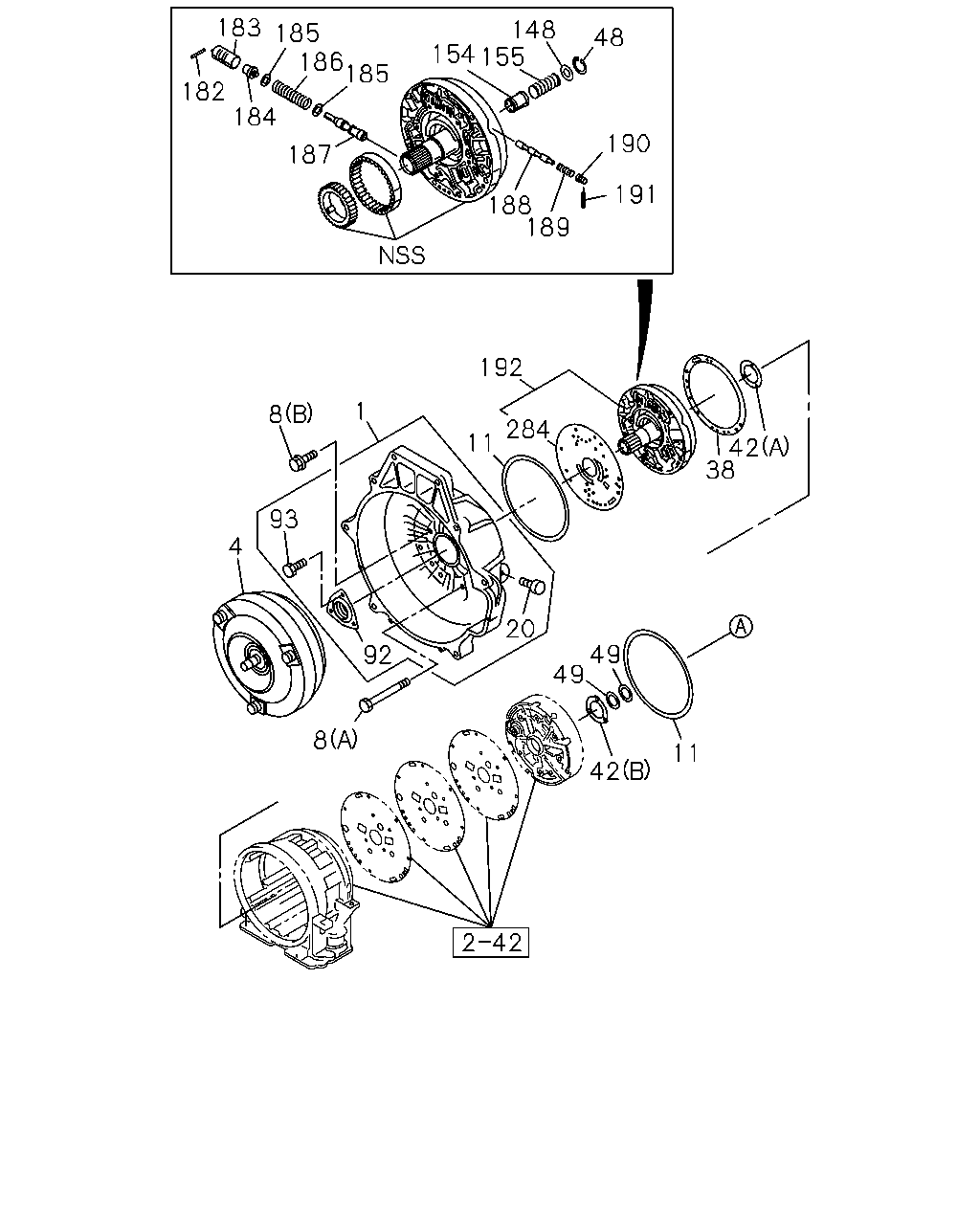

çizim 69384
183 148 154 155 185 186 185 48 182 184 190 187 188 189 191 192 1 8 284 42 38 11 93 4 20 49 49 92 8 11 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOUSING; CONV,A/T 8-96042-233-0 01 1 9707-9908 ●
1 HOUSING; CONV,A/T 8-96041-653-0 01 1 9909-0206 ●
1 HOUSING; CONV,A/T 8-97354-377-0 01 1 0207- ●
4 CONVERTER ASM; TORQUE,A/T 8-24210-868-0 01 1 9707-9908 ●
4 CONVERTER ASM; TORQUE,A/T 8-24211-228-0 01 1 9909-0206 ●
4 CONVERTER ASM; TORQUE,A/T 8-97331-568-0 01 1 0207- ●
8 BOLT; HSG TO CASE
(B) 		8-96013-210-0 05 1 9707-0206 ●
8 BOLT; HSG TO CASE
(C) M10X35 		8-90257-082-0 04 1 0207- ●
8 BOLT; HSG TO CASE
(A) 		8-96016-795-0 07 1 9707-9802 ●
8 BOLT; HSG TO CASE
(A) 		8-96018-559-0 07 1 9803-0206 ●
8 BOLT; HSG TO CASE
(D) M12X45 		8-94257-083-0 01 1 0207- ●
8 BOLT; HSG TO CASE
(E) M12X45 		8-97331-533-0 01 1 0207- ●
11 RING; SEALING,TRANS CASE 8-96017-189-0 02 1 9707-0206 ●
20 PLUG; TAPER,A/T CASE 8-08662-173-0 01 1 9707-0206 ●
20 PLUG; TAPER,A/T CASE 8-97232-067-0 01 1 0207- ●
38 GASKET; OIL PUMP,A/T 8-96014-973-0 01 1 9707-0206 ●
38 GASKET; OIL PUMP,A/T 8-94479-748-0 01 1 0207- ●
42 WASHER; OIL PUMP HSG,A/T
(A) YELLOW 		8-96013-761-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(A) RED 		8-96013-762-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(A) BLACK 		8-96013-763-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(A) NATURAL 		8-96013-764-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(A) GREEN 		8-96013-765-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(A) BLUE 		8-96013-766-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(B) YELLOW 		8-96017-289-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(B) RED 		8-96017-290-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(B) BLACK 		8-96017-291-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(B) WHITE 		8-96017-292-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(B) GREEN 		8-96017-293-0 01 1 9707-0206 ●
42 WASHER; OIL PUMP HSG,A/T
(B) BLUE 		8-96017-294-0 01 1 9707-0206 ●
48 RING; SNAP,OIL PUMP,A/T 8-96014-406-0 01 1 9707-0206 ●
49 RING; OIL SEAL 8-96017-553-0 02 1 9707-0206 ●
92 COVER ASM; A/T 8-96015-187-0 01 1 9707-0206 ●
93 BOLT; COVER & BUSHING,A/T 8-96015-215-0 03 1 9707-0206 ●
148 RETAINER; SPRING,CAM RING,OIL PUMP 8-96014-405-0 01 1 9707-0206 ●
154 PISTON; ACCUMLATOR,OIL PUMP 8-96014-403-0 01 1 9707-0206 ●
155 SPRING; SERVO,ACCUMLATOR PISTON,OIL PU 8-96014-404-0 01 1 9707-0206 ●
182 PIN; BOOST VALVE SLEEVE 8-08958-824-0 01 1 9707-0206 ●
183 SLEEVE; BOOST VALVE 8-96014-996-0 01 1 9707-0206 ●
184 VALVE; BOOST 8-96014-997-0 01 1 9707-0206 ●
185 SEAT; SPR,REG VALVE 8-05258-219-0 02 1 9707-0206 ●
186 SPRING; REG VALVE 8-96017-526-0 01 1 9707-0206 ●
187 VALVE; PRESSURE REG 8-96016-072-0 01 1 9707-0206 ●
188 VALVE; CONV CLU CONT 8-96014-396-0 01 1 9707-0206 ●
189 SPRING; CONV CLU CONT VALVE 8-96014-397-0 01 1 9707-0206 ●
190 PLUG; CONV CLU CONT VALVE 8-96013-218-0 01 1 9707-0206 ●
191 PIN; SPR,PLUG 8-96013-658-0 01 1 9707-0206 ●
192 PUMP KIT; OIL 8-96042-234-0 01 1 9707-9908 ●
192 PUMP KIT; OIL 8-96041-664-0 01 1 9909-0206 ●
284 PLATE; WEAR,OIL PUMP 8-96017-926-0 01 1 9707-9908 ●
284 PLATE; WEAR,OIL PUMP 8-96023-507-0 01 1 9909-0206 ●

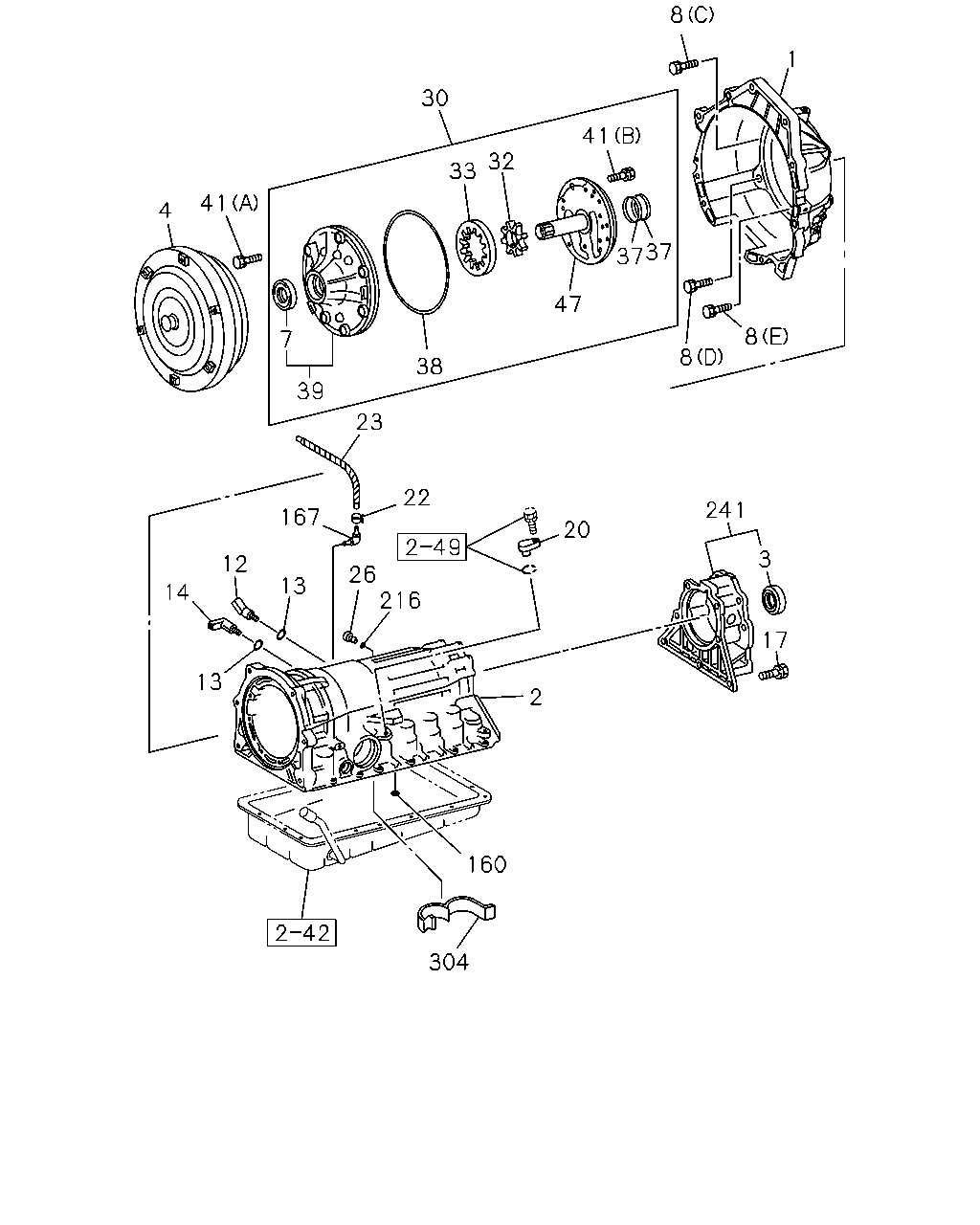

çizim 69645
8 1 30 41 32 33 37 37 41 4 47 8 7 8 38 39 23 22 241 167 20 3 12 26 216 13 14 17 13 2 160 304
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOUSING; CONV,A/T 8-96042-233-0 01 1 9707-9908 ●
1 HOUSING; CONV,A/T 8-96041-653-0 01 1 9909-0206 ●
1 HOUSING; CONV,A/T 8-97354-377-0 01 1 0207- ●
2 CASE ASM; A/T 8-96041-374-0 01 1 9707-9908 ●
2 CASE ASM; A/T 8-96041-537-0 01 1 9909-0206 ●
2 CASE ASM; A/T 8-97232-111-0 01 1 0207- ●
3 SEAL; OIL,RR COVER,A/T 8-96014-416-0 01 1 9707-0206 ●
3 SEAL; OIL,RR COVER,A/T 8-97069-465-0 01 1 0207- ●
4 CONVERTER ASM; TORQUE,A/T 8-24210-868-0 01 1 9707-9908 ●
4 CONVERTER ASM; TORQUE,A/T 8-24211-228-0 01 1 9909-0206 ●
4 CONVERTER ASM; TORQUE,A/T 8-97331-568-0 01 1 0207- ●
7 SEAL; OIL,LIP,A/T 8-94479-742-0 01 1 0207- ●
8 BOLT; HSG TO CASE
(B) 		8-96013-210-0 05 1 9707-0206 ●
8 BOLT; HSG TO CASE
(C) M10X35 		8-90257-082-0 04 1 0207- ●
8 BOLT; HSG TO CASE
(A) 		8-96016-795-0 07 1 9707-9802 ●
8 BOLT; HSG TO CASE
(A) 		8-96018-559-0 07 1 9803-0206 ●
8 BOLT; HSG TO CASE
(D) M12X45 		8-94257-083-0 01 1 0207- ●
8 BOLT; HSG TO CASE
(E) M12X45 		8-97331-533-0 01 1 0207- ●
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-96015-476-0 01 1 9707-0206 ●
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-94450-761-0 01 1 0207- ●
13 GASKET; OIL COOLER PIPE
ID=11.7 		8-94479-724-0 02 1 0207- ●
14 UNION; OIL COOLER RETURN PIPE 8-94450-762-0 01 1 0207- ●
17 BOLT; REAR COVER TO CASE 8-96015-271-0 07 1 9707-0206 ●
17 BOLT; REAR COVER TO CASE 8-94479-936-0 07 1 0207- ●
20 PLUG; TAPER,A/T CASE 8-08662-173-0 01 1 9707-0206 ●
20 PLUG; TAPER,A/T CASE 8-97232-067-0 01 1 0207- ●
22 CLIP; BREATHER HOSE,A/T 8-94479-730-0 01 1 0207- ●
23 HOSE; BREATHER,A/T 8-97331-530-0 01 1 0207- ●
26 PLUG; TRANS CASE 5-34119-002-0 02 1 0207- ●
30 PUMP ASM; OIL,A/T 8-97143-135-0 01 1 0207- ●
32 GEAR; OUTER,OIL PUMP,A/T
W=10.715 H MARK 		8-97184-337-0 01 1 0207- ●
32 GEAR; OUTER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-029-0 01 1 0207- ●
32 GEAR; OUTER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-030-0 01 1 0207- ●
32 GEAR; OUTER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-031-0 01 1 0207- ●
32 GEAR; OUTER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-032-0 01 1 0207- ●
33 GEAR; INNER,OIL PUMP,A/T
W=10.715 H MARK 		8-97147-426-0 01 1 0207- ●
33 GEAR; INNER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-025-0 01 1 0207- ●
33 GEAR; INNER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-026-0 01 1 0207- ●
33 GEAR; INNER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-027-0 01 1 0207- ●
33 GEAR; INNER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-028-0 01 1 0207- ●
37 RING; SEAL,OIL PUMP,A/T 8-94479-747-0 02 1 0207- ●
38 GASKET; OIL PUMP,A/T 8-96014-973-0 01 1 9707-0206 ●
38 GASKET; OIL PUMP,A/T 8-94479-748-0 01 1 0207- ●
39 BODY SUB ASM; FRT,OIL PUMP,A/T 8-94479-741-0 01 1 0207- ●
41 BOLT; OIL PUMP HSG,A/T
(A) M8X35 		8-94479-749-0 07 1 0207- ●
41 BOLT; OIL PUMP HSG,A/T
(B) M6X15.5 		8-97019-532-0 13 1 0207- ●
47 SHAFT; OIL PUMP,A/T 8-97019-531-0 01 1 0207- ●
160 GASKET; BRK DRUM,A/T 8-94313-576-0 01 1 0207- ●
167 CONNECTOR; CASE,A/T 8-96015-477-0 01 1 9707-9908 ●
167 CONNECTOR; CASE,A/T 8-96023-299-0 01 1 9909-0206 ●
167 CONNECTOR; CASE,A/T 8-97126-812-0 01 1 0207- ●
216 GASKET; SOLENOID OUTER
ID=6 		5-34119-001-0 02 1 0207- ●
241 ADAPTER; A/T 8-97331-556-0 01 1 0207- ●
304 SPRING; LEAF,A/T 8-97184-331-0 01 1 0207- ●

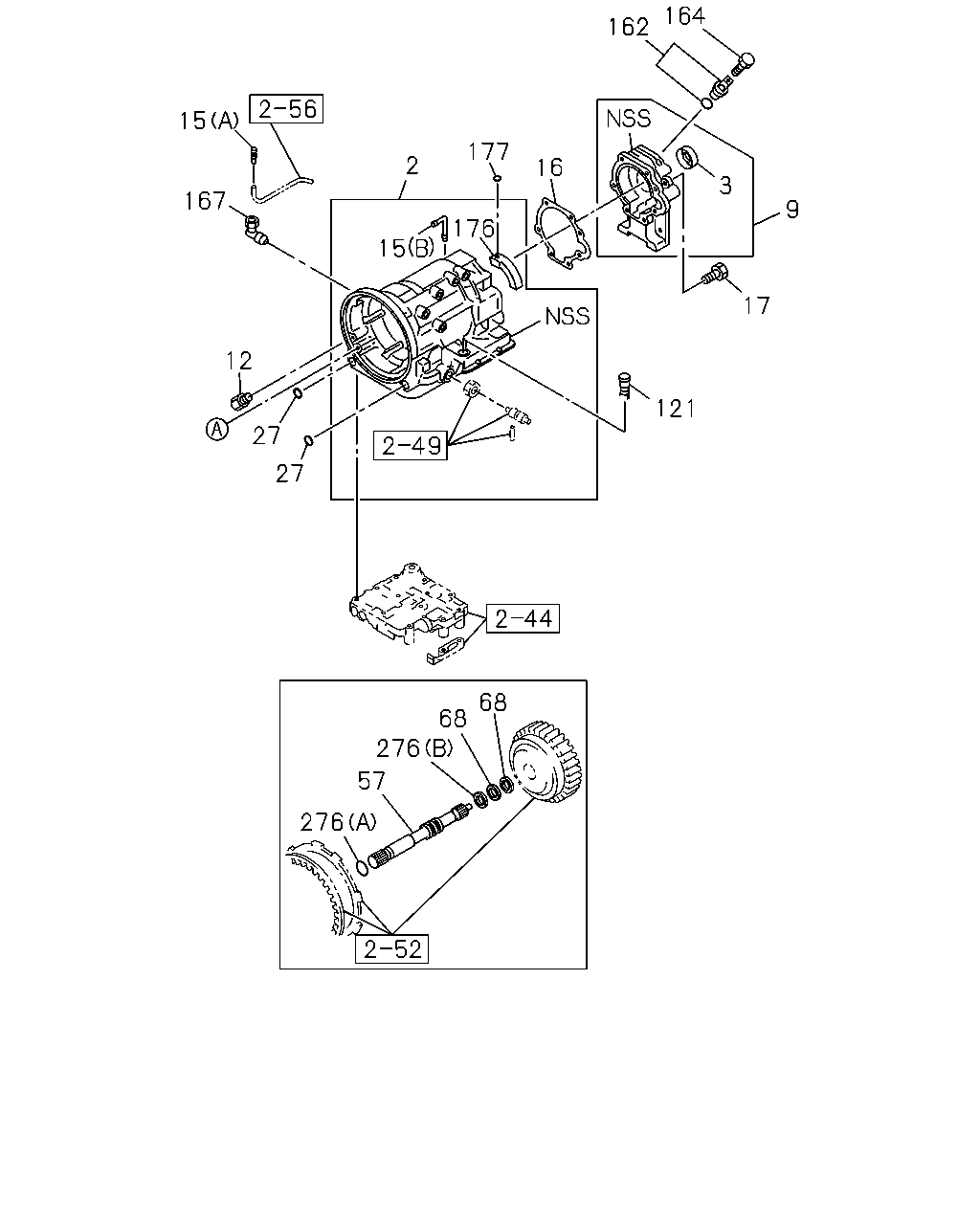

çizim 71014
164 162 15 177 2 16 3 167 9 176 15 17 12 121 27 27 68 68 276 57 276
BalonParca AdiParca NoAdetTipApplied Date A B
2 CASE ASM; A/T 8-96041-374-0 01 1 9707-9908 ●
2 CASE ASM; A/T 8-96041-537-0 01 1 9909-0206 ●
2 CASE ASM; A/T 8-97232-111-0 01 1 0207- ●
3 SEAL; OIL,RR COVER,A/T 8-96014-416-0 01 1 9707-0206 ●
3 SEAL; OIL,RR COVER,A/T 8-97069-465-0 01 1 0207- ●
9 COVER ASM; RR,A/T 8-96042-194-0 01 1 9707-0206 ●
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-96015-476-0 01 1 9707-0206 ●
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-94450-761-0 01 1 0207- ●
15 BREATHER; A/T CASE
(B) 		8-96015-793-0 01 1 9707-0206 ●
15 BREATHER; A/T CASE
(A) 		8-97164-362-0 01 1 9707-0206 ●
16 GASKET; EXT HSG 8-96014-417-0 01 1 9707-0206 ●
17 BOLT; REAR COVER TO CASE 8-96015-271-0 07 1 9707-0206 ●
17 BOLT; REAR COVER TO CASE 8-94479-936-0 07 1 0207- ●
27 GASKET; HSG TO CASE 8-96014-270-0 02 1 9707-0206 ●
57 SHAFT; TURBINE,A/T 8-96018-034-0 01 1 9707-9810 ●
57 SHAFT; TURBINE,A/T 8-96023-043-0 01 1 9811-0206 ●
68 RING; OIL SEAL,TURBINE SHAFT 8-96017-484-0 02 1 9707-0206 ●
121 CONNECTOR; ELEC 8-96015-409-0 01 1 9707-9908 ●
121 CONNECTOR; ELEC 8-96018-330-0 01 1 9909-0206 ●
162 SENSOR; REVOLUTION,A/T CONT 8-96014-422-0 01 1 9707-0206 ●
164 BOLT; REV SENSOR,A/T 8-96014-809-0 01 1 9707-0206 ●
167 CONNECTOR; CASE,A/T 8-96015-477-0 01 1 9707-9908 ●
167 CONNECTOR; CASE,A/T 8-96023-299-0 01 1 9909-0206 ●
167 CONNECTOR; CASE,A/T 8-97126-812-0 01 1 0207- ●
176 RESERVOIR; MAIN CASE 8-96014-865-0 01 1 9707-0206 ●
177 SEAL; MAIN CASE 8-96017-547-0 01 1 9707-0206 ●
276 GASKET; SHAFT
(A) 		8-96013-953-0 01 1 9707-0206 ●
276 GASKET; SHAFT
(B) 		8-96041-327-0 01 1 9707-0206 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
