◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-40 - AUTO TRANS ASM AND REPAIR KIT ▶
2-40 — AUTO TRANS ASM AND REPAIR KIT (#42143) — 18 parça

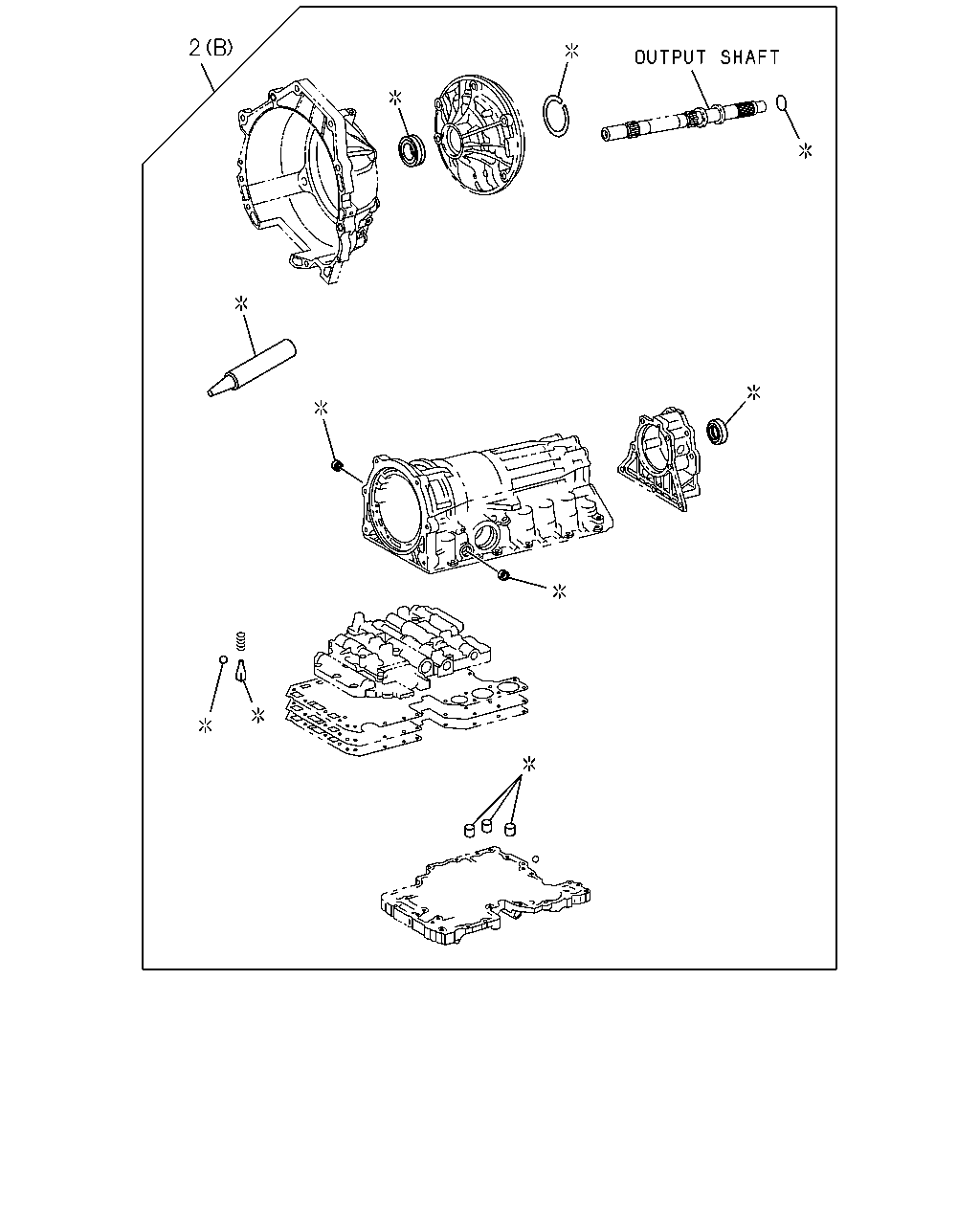

çizim 17615
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; A/T
(A) 		8-96041-118-0 01 1 9707-0206 ●
2 REPAIR KIT; A/T
(B) 		8-97354-015-0 01 1 0207- ●

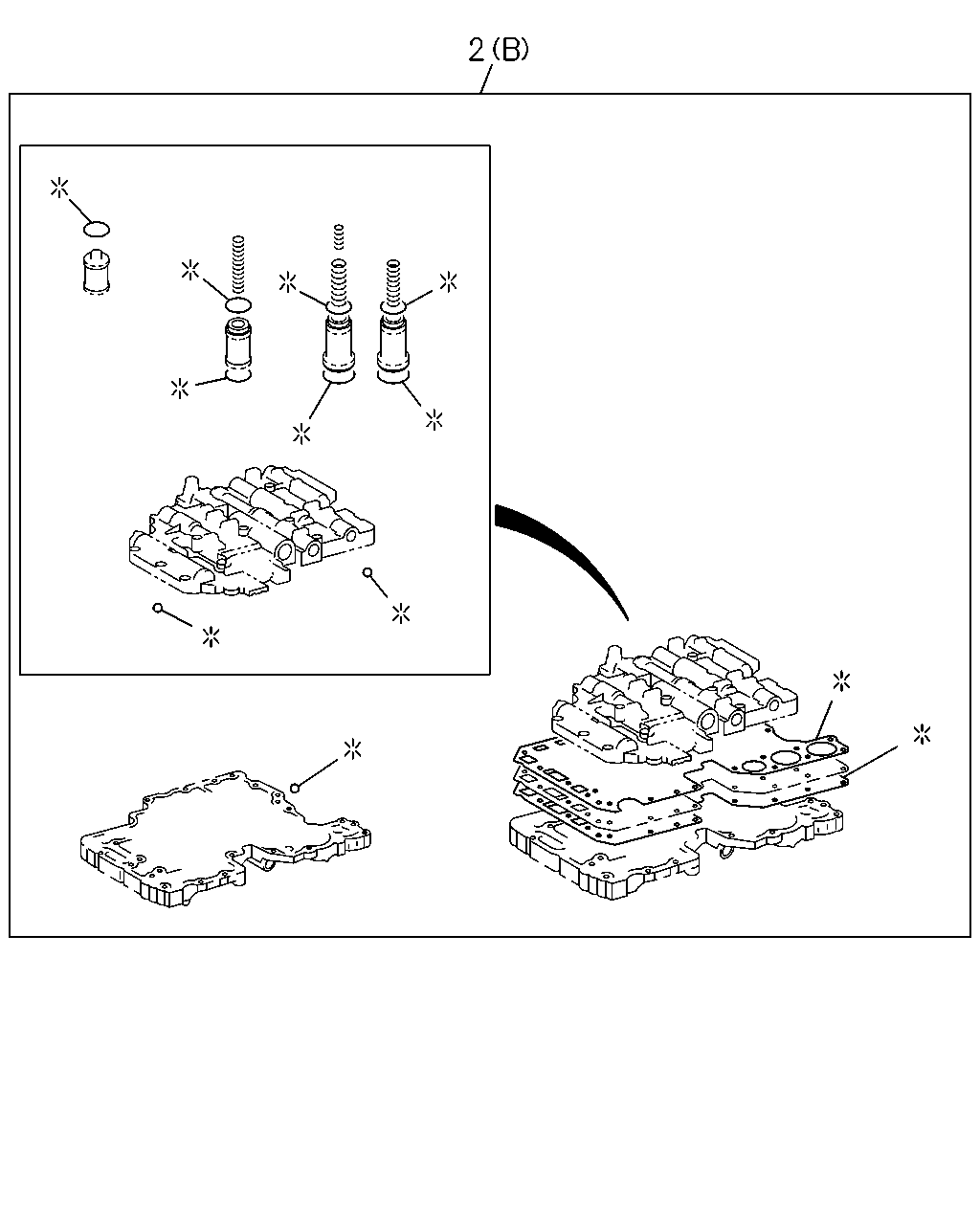

çizim 17616
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; A/T
(A) 		8-96041-118-0 01 1 9707-0206 ●
2 REPAIR KIT; A/T
(B) 		8-97354-015-0 01 1 0207- ●

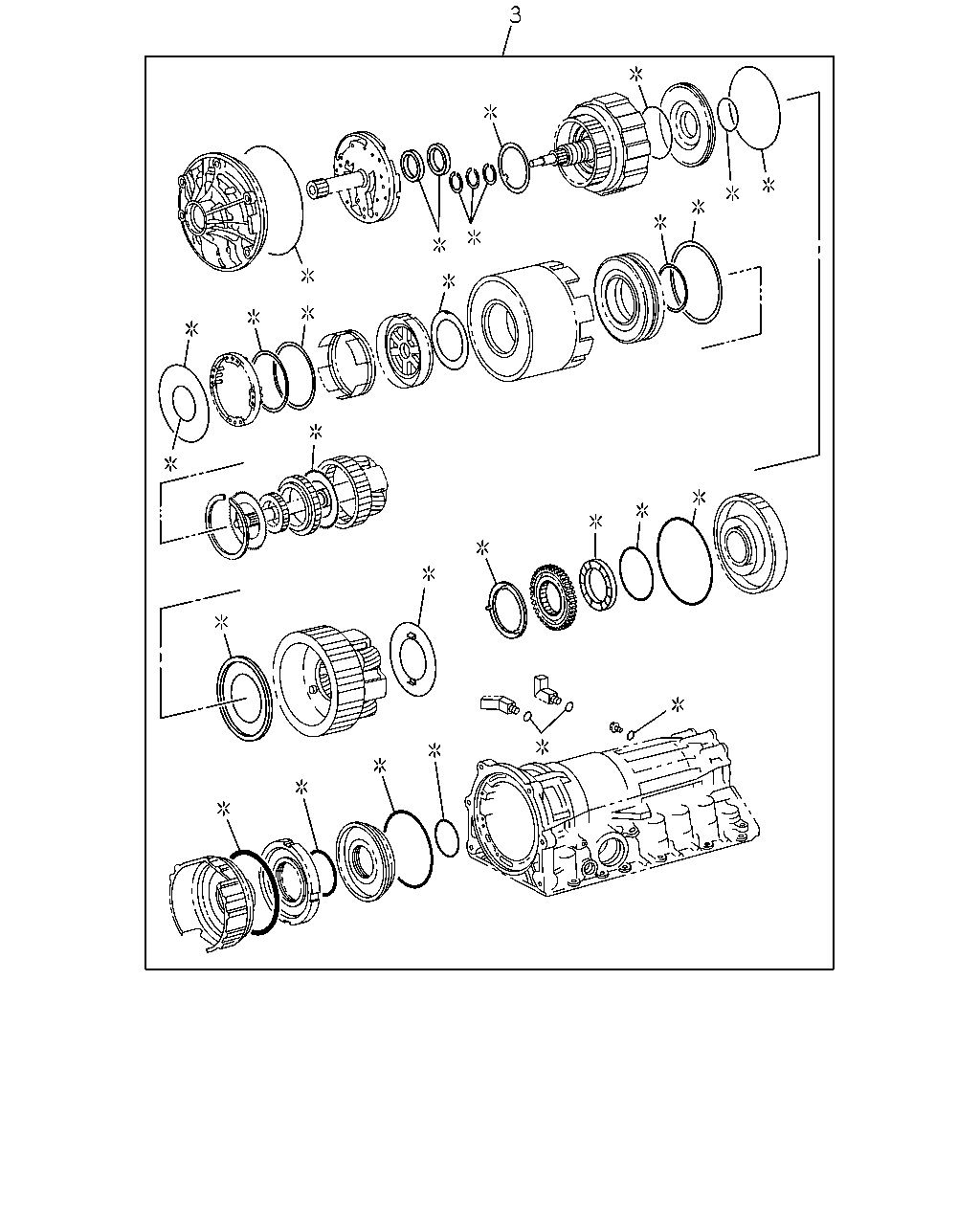

çizim 17617
3
BalonParca AdiParca NoAdetTipApplied Date A B
3 REPAIR KIT; SEAL & GASKET,A/T 8-97354-014-0 01 1 0207- ●

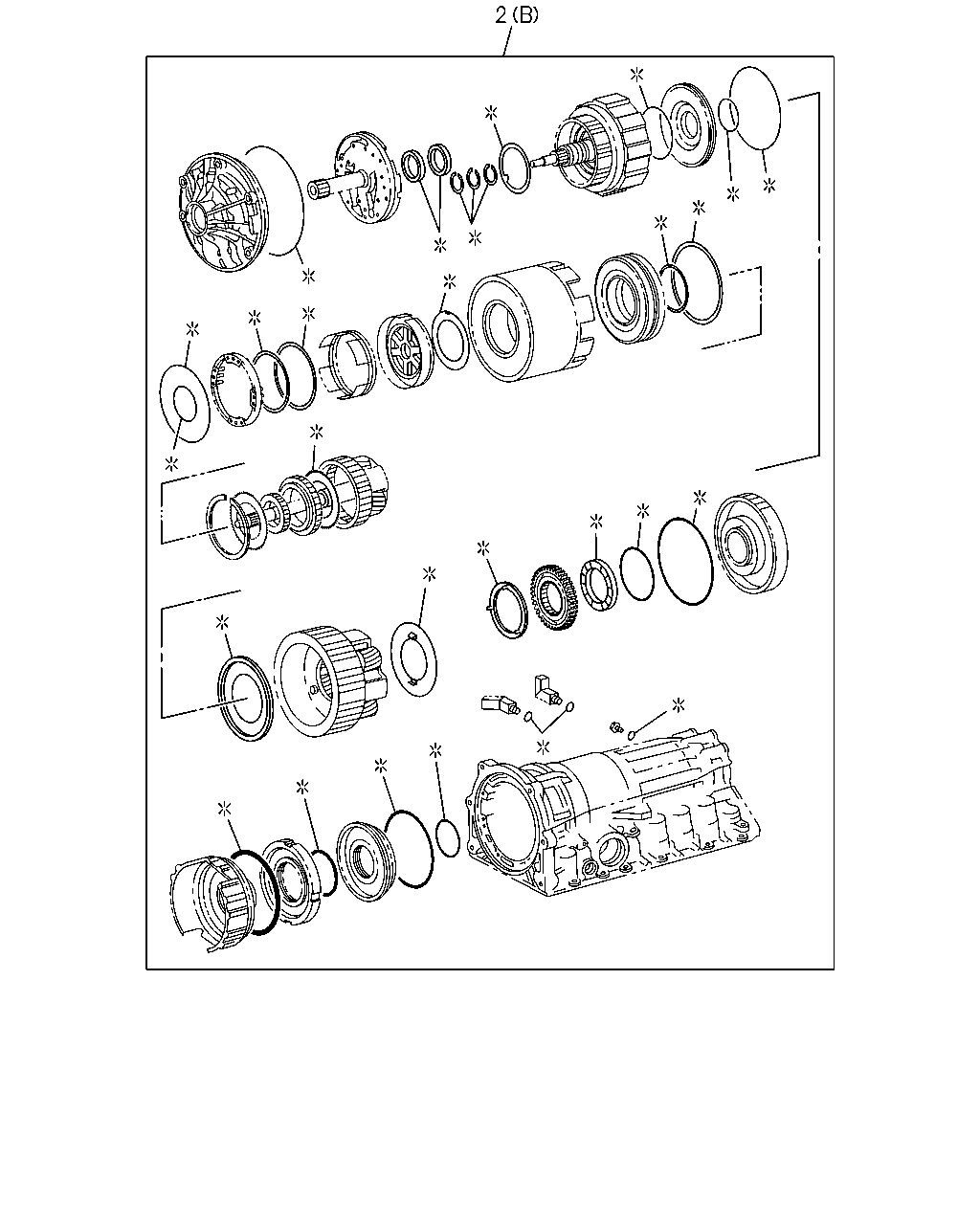

çizim 17620
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; A/T
(A) 		8-96041-118-0 01 1 9707-0206 ●
2 REPAIR KIT; A/T
(B) 		8-97354-015-0 01 1 0207- ●

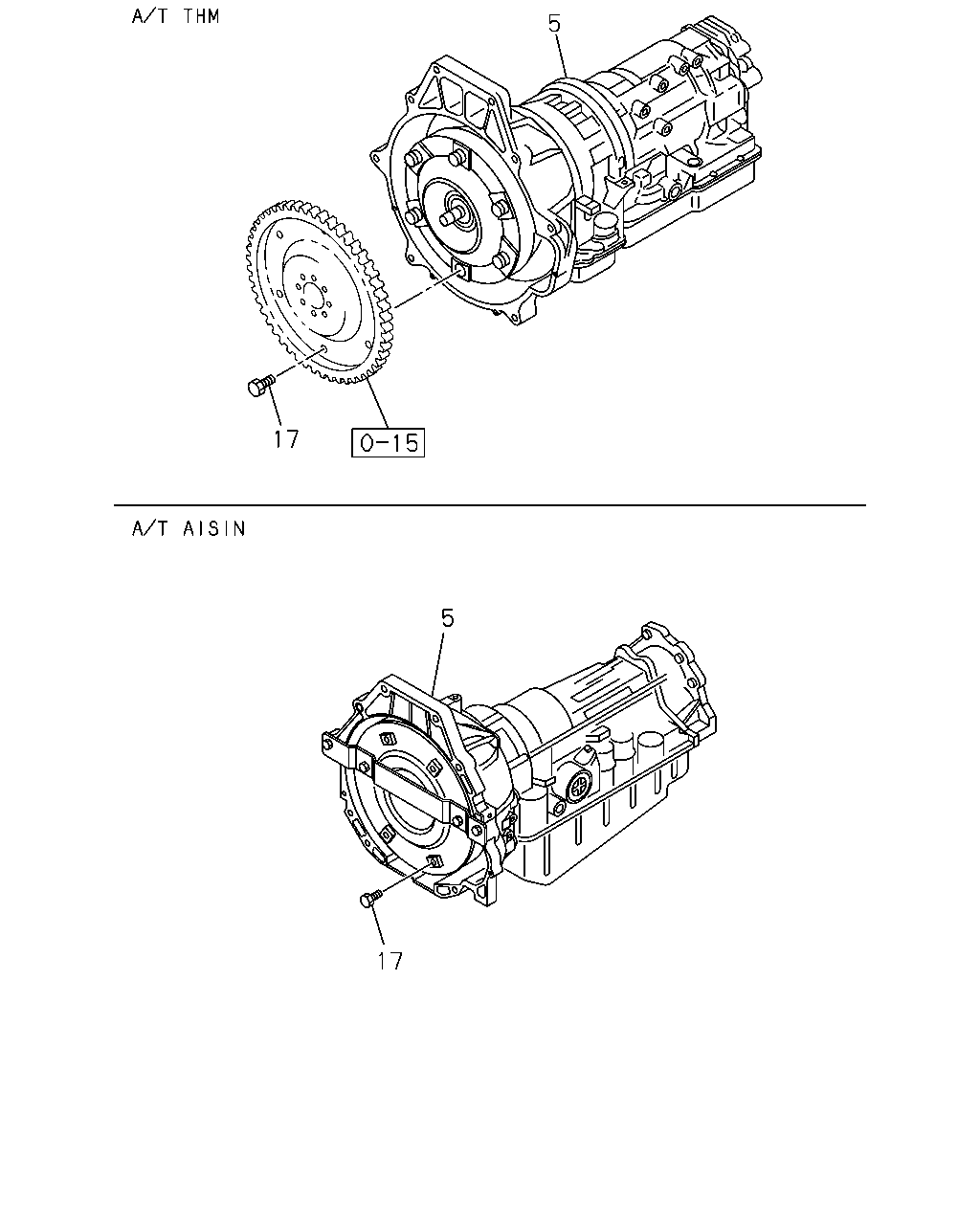

çizim 18535
5 17 5 17
BalonParca AdiParca NoAdetTipApplied Date A B
5 TRANSMISSION ASM; AUTO 8-96018-004-3 01 1 9707-9908 ●
5 TRANSMISSION ASM; AUTO 8-96018-555-0 01 1 9909-0206 ●
5 TRANSMISSION ASM; AUTO 8-97354-018-0 01 1 0207- ●
17 BOLT; PLATE TO CONV
M10X14.7 		8-94157-666-2 06 1 9707-0206 ●
17 BOLT; PLATE TO CONV
M10X14.7 		8-94157-666-2 06 1 0207- ●

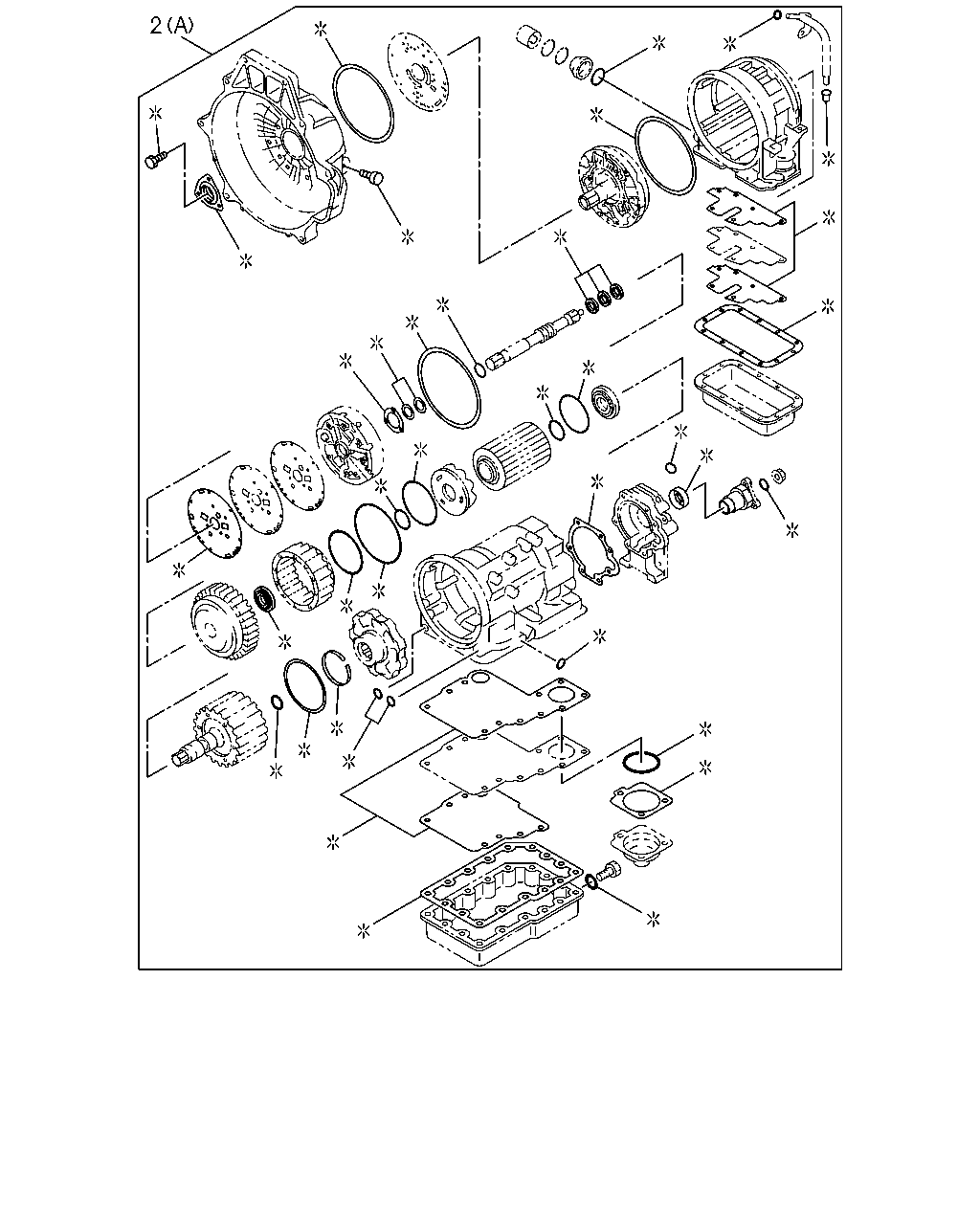

çizim 18536
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; A/T
(A) 		8-96041-118-0 01 1 9707-0206 ●
2 REPAIR KIT; A/T
(B) 		8-97354-015-0 01 1 0207- ●
çizim 18591
3
BalonParca AdiParca NoAdetTipApplied Date A B
3 REPAIR KIT; SEAL & GASKET,A/T 8-97354-014-0 01 1 0207- ●
çizim 68827
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; A/T
(A) 		8-96041-118-0 01 1 9707-0206 ●
2 REPAIR KIT; A/T
(B) 		8-97354-015-0 01 1 0207- ●
çizim 72435
3
BalonParca AdiParca NoAdetTipApplied Date A B
3 REPAIR KIT; SEAL & GASKET,A/T 8-97354-014-0 01 1 0207- ●
