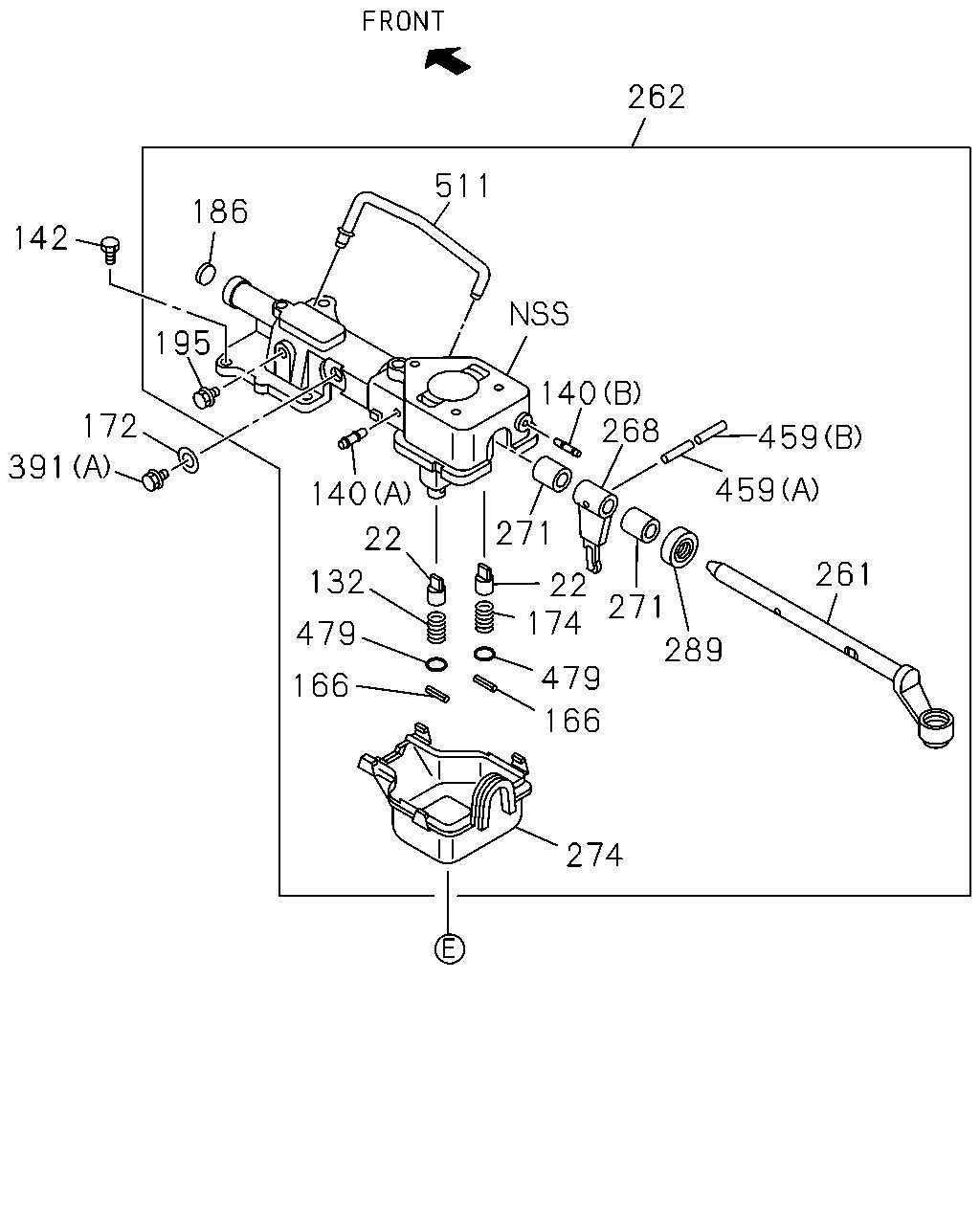

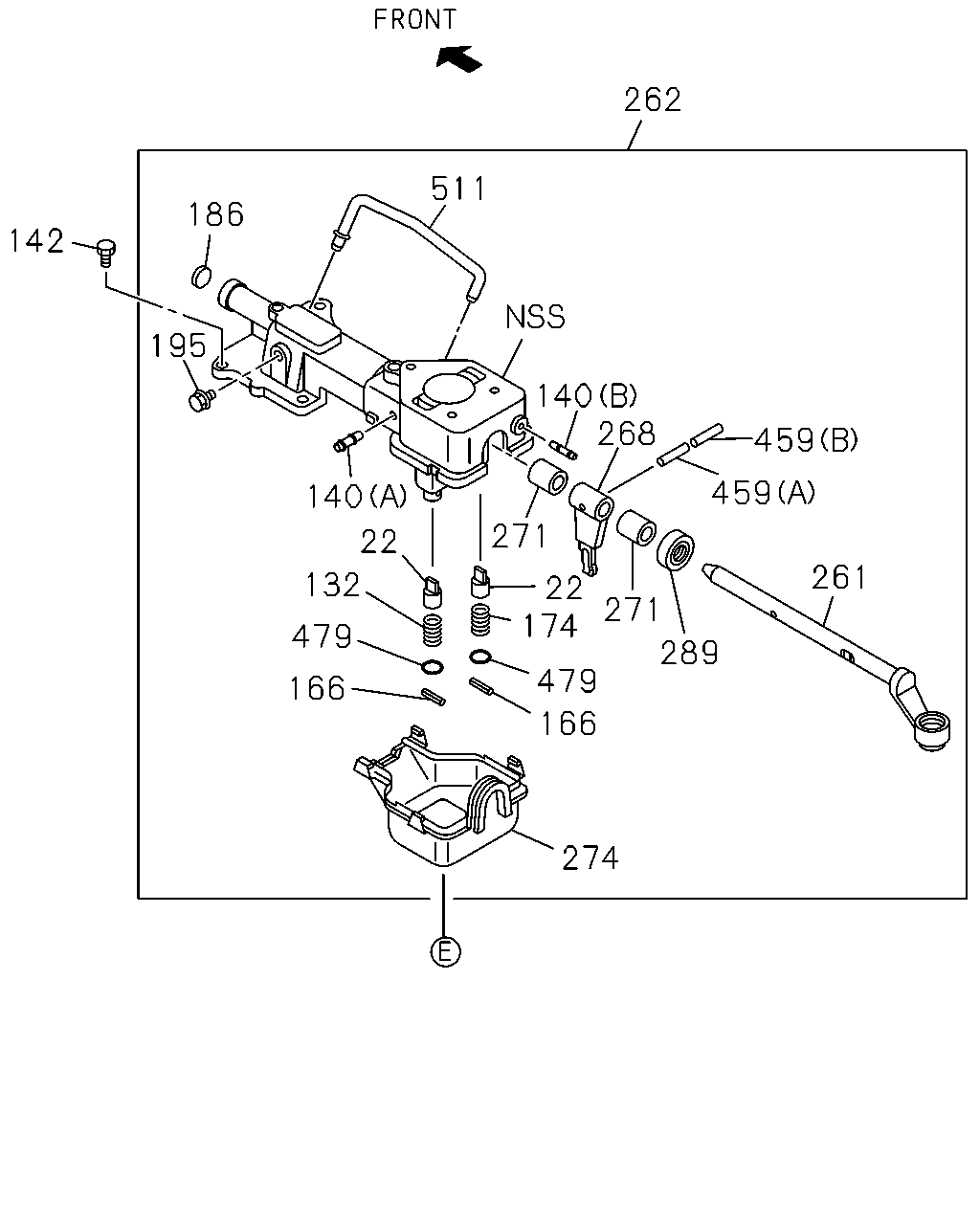

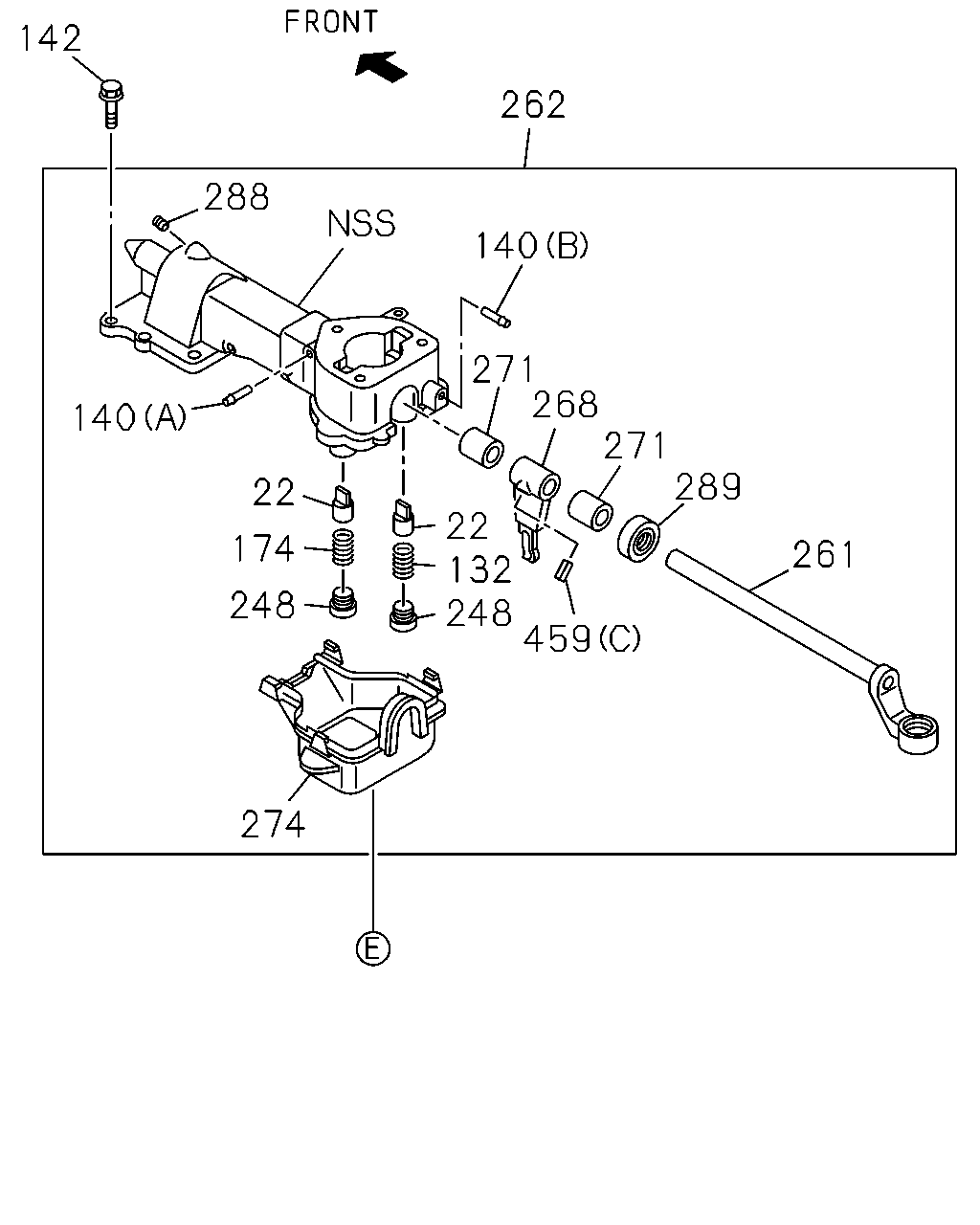

2-30 — GEAR SHIFTER AND QUADRANT BOX (#42141) — 229 parça

158

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	158	CLIP; HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9707-0206	●

142 262 288 140 271 268 271 289 140 22 22 132 248 459 174 261 248 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
22	CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9707-0003	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-0206	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0207-0307		●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9707-0003	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0004-0206	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0207-0307		●
140	BREATHER; AIR,TRANS (A)	8-97172-655-0	01	1	9707-0003	●
140	BREATHER; AIR,TRANS (A)	8-97173-544-0	01	1	0004-0206	●
140	BREATHER; AIR,TRANS (B)	8-97172-656-0	01	1	9707-0003	●
140	BREATHER; AIR,TRANS (B)	8-97173-545-0	01	1	0004-0206	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9707-0206	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	0207-0307		●
174	SPRING; REV	8-97103-105-0	01	1	9707-0003	●
174	SPRING; REV	8-97181-394-0	01	1	0004-0206	●
174	SPRING; REV	8-97181-394-0	01	1	0207-0307		●
248	RETAINER; CONT BOX	8-97181-325-0	02	1	0004-0206	●
248	RETAINER; CONT BOX	8-97181-325-0	02	1	0207-0307		●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9707-9811	●
261	ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003	●
261	ROD; GEAR CONT	8-97257-825-0	01	1	0004-0206	●
261	ROD; GEAR CONT	8-97257-909-0	01	1	0207-0307		●
262	BOX ASM; SHIFT CONT	8-97172-637-1	01	1	9707-9811	●
262	BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003	●
262	BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0206	●
262	BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0207-0307		●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9707-0003	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-0206	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0207-0307		●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9707-0003	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-0206	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0207-0307		●
274	COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9707-0003	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-0206	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0207-0307		●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	0004-0206	●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	0207-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-94478-118-0	01	1	9707-0003	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0004-0206	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (A) OD=5.4	9-09678-510-0	01	1	9707-0003	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0004-0206	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (B) OD=3.3	9-09678-519-0	01	1	9707-0003	●

262 511 186 142 195 140 268 459 459 140 271 22 261 132 22 174 271 479 289 479 166 166 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
22	CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9707-0003	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-0206	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0207-0307		●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9707-0003	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0004-0206	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0207-0307		●
140	BREATHER; AIR,TRANS (A)	8-97172-655-0	01	1	9707-0003	●
140	BREATHER; AIR,TRANS (A)	8-97173-544-0	01	1	0004-0206	●
140	BREATHER; AIR,TRANS (B)	8-97172-656-0	01	1	9707-0003	●
140	BREATHER; AIR,TRANS (B)	8-97173-545-0	01	1	0004-0206	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9707-0206	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	0207-0307		●
166	PIN; SPR,SELECT LEVER D=4.2 L=25	8-97103-142-0	02	1	9707-0003	●
174	SPRING; REV	8-97103-105-0	01	1	9707-0003	●
174	SPRING; REV	8-97181-394-0	01	1	0004-0206	●
174	SPRING; REV	8-97181-394-0	01	1	0207-0307		●
186	PLUG; SHIFTER ROD OD=16	9-11129-081-0	01	1	9707-0003	●
195	BOLT M8X12 FLANGE	8-94479-696-1	01	1	9707-0003	●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9707-9811	●
261	ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003	●
261	ROD; GEAR CONT	8-97257-825-0	01	1	0004-0206	●
261	ROD; GEAR CONT	8-97257-909-0	01	1	0207-0307		●
262	BOX ASM; SHIFT CONT	8-97172-637-1	01	1	9707-9811	●
262	BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003	●
262	BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0206	●
262	BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0207-0307		●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9707-0003	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-0206	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0207-0307		●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9707-0003	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-0206	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0207-0307		●
274	COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9707-0003	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-0206	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0207-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-94478-118-0	01	1	9707-0003	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0004-0206	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (A) OD=5.4	9-09678-510-0	01	1	9707-0003	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0004-0206	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (B) OD=3.3	9-09678-519-0	01	1	9707-0003	●
479	PLATE; SELECT D=13	8-97103-110-0	02	1	9707-0003	●
511	PIPE; AIR	8-97172-589-0	01	1	9707-0003	●

262 511 186 142 195 140 268 172 459 391 459 140 271 22 261 132 22 174 271 479 289 479 166 166 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
22	CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9707-0003	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-0206	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0207-0307		●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9707-0003	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0004-0206	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0207-0307		●
140	BREATHER; AIR,TRANS (A)	8-97172-655-0	01	1	9707-0003	●
140	BREATHER; AIR,TRANS (A)	8-97173-544-0	01	1	0004-0206	●
140	BREATHER; AIR,TRANS (B)	8-97172-656-0	01	1	9707-0003	●
140	BREATHER; AIR,TRANS (B)	8-97173-545-0	01	1	0004-0206	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9707-0206	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	0207-0307		●
166	PIN; SPR,SELECT LEVER D=4.2 L=25	8-97103-142-0	02	1	9707-0003	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9707-9811	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0207-0307		●
174	SPRING; REV	8-97103-105-0	01	1	9707-0003	●
174	SPRING; REV	8-97181-394-0	01	1	0004-0206	●
174	SPRING; REV	8-97181-394-0	01	1	0207-0307		●
186	PLUG; SHIFTER ROD OD=16	9-11129-081-0	01	1	9707-0003	●
195	BOLT M8X12 FLANGE	8-94479-696-1	01	1	9707-0003	●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9707-9811	●
261	ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003	●
261	ROD; GEAR CONT	8-97257-825-0	01	1	0004-0206	●
261	ROD; GEAR CONT	8-97257-909-0	01	1	0207-0307		●
262	BOX ASM; SHIFT CONT	8-97172-637-1	01	1	9707-9811	●
262	BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003	●
262	BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0206	●
262	BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0207-0307		●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9707-0003	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-0206	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0207-0307		●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9707-0003	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-0206	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0207-0307		●
274	COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9707-0003	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-0206	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0207-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-94478-118-0	01	1	9707-0003	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0004-0206	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0207-0307		●
391	PLUG; SW HOLE (A) M14X11	8-94252-142-0	01	1	9707-9811	●
391	PLUG; SW HOLE (B) M14X11	8-94252-142-0	02	1	9909-0206	●
391	PLUG; SW HOLE (B) M14X11	8-94252-142-0	02	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (A) OD=5.4	9-09678-510-0	01	1	9707-0003	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0004-0206	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (B) OD=3.3	9-09678-519-0	01	1	9707-0003	●
479	PLATE; SELECT D=13	8-97103-110-0	02	1	9707-0003	●
511	PIPE; AIR	8-97172-589-0	01	1	9707-0003	●

142 262 288 172 271 268 271 289 171 22 22 132 248 459 174 261 248 147 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
22	CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9707-0003	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-0206	●
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0207-0307		●
132	SPRING; SELECT STOP	8-97103-106-0	01	1	9707-0003	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0004-0206	●
132	SPRING; SELECT STOP	8-97181-395-0	01	1	0207-0307		●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	9707-0206	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-94448-815-3	04	1	0207-0307		●
147	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0207-0307		●
171	SWITCH; NEUTRAL	8-97138-631-0	01	1	0207-0307		●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9707-9811	●
172	GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0207-0307		●
174	SPRING; REV	8-97103-105-0	01	1	9707-0003	●
174	SPRING; REV	8-97181-394-0	01	1	0004-0206	●
174	SPRING; REV	8-97181-394-0	01	1	0207-0307		●
248	RETAINER; CONT BOX	8-97181-325-0	02	1	0004-0206	●
248	RETAINER; CONT BOX	8-97181-325-0	02	1	0207-0307		●
261	ROD; GEAR CONT	8-97103-090-1	01	1	9707-9811	●
261	ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003	●
261	ROD; GEAR CONT	8-97257-825-0	01	1	0004-0206	●
261	ROD; GEAR CONT	8-97257-909-0	01	1	0207-0307		●
262	BOX ASM; SHIFT CONT	8-97172-637-1	01	1	9707-9811	●
262	BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003	●
262	BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0206	●
262	BOX ASM; SHIFT CONT	8-97257-824-0	01	1	0207-0307		●
268	LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9707-0003	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-0206	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0207-0307		●
271	BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9707-0003	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-0206	●
271	BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0207-0307		●
274	COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9707-0003	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-0206	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0207-0307		●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	0004-0206	●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	0207-0307		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-94478-118-0	01	1	9707-0003	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0004-0206	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (A) OD=5.4	9-09678-510-0	01	1	9707-0003	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0004-0206	●
459	PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0207-0307		●
459	PIN; SPR,ROD TO ARM (B) OD=3.3	9-09678-519-0	01	1	9707-0003	●

391 464 498 396 498 30 30 497 161 148 497 396 401 496 204 410 398 401 391 91 31 33 91 91 98 99 96 200 197 146 198 101 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
30	PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9707-0206	●
30	PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0207-0307		●
31	ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9707-0206	●
31	ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	0207-0307		●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	9707-0206	●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0207-0307		●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	9707-0206	●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	0207-0307		●
96	ROD; SHIFT,5TH	8-94440-079-1	01	1	9707-0206	●
96	ROD; SHIFT,5TH	8-94440-079-1	01	1	0207-0307		●
98	ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	9707-0206	●
98	ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0207-0307		●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9707-0206	●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0207-0307		●
101	ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9707-0206	●
101	ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0207-0307		●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28680-820-0	01	1	9707-0011	●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28080-820-0	01	1	0012-0206	●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28080-820-0	01	1	0207-0307		●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9707-0206	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0207-0307		●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	9707-0206	●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	0207-0307		●
197	INHIBITOR; REV SHIFT	8-94448-753-0	01	1	9707-0206	●
197	INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0207-0307		●
198	BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9707-0206	●
198	BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0207-0307		●
200	SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9707-0206	●
200	SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0207-0307		●
202	SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9707-0206	●
202	SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0207-0307		●
204	STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9707-0206	●
204	STOPPER; REV INHIBITOR	8-94479-434-2	01	1	0207-0307		●
391	PLUG; SW HOLE (A) M14X11	8-94252-142-0	01	1	9707-9811	●
391	PLUG; SW HOLE (B) M14X11	8-94252-142-0	02	1	9909-0206	●
391	PLUG; SW HOLE (B) M14X11	8-94252-142-0	02	1	0207-0307		●
396	PLUNGER; SHIFT ROD (B) OD=5.5 L=43.7	8-94225-227-0	01	1	9707-9908	●
396	PLUNGER; SHIFT ROD (A) D=5.5 L=20.7	8-94225-228-0	01	1	9707-9908	●
398	SWITCH; REV LAMP	8-97138-635-0	01	1	9707-0206	●
398	SWITCH; REV LAMP	8-97138-635-0	01	1	0207-0307		●
401	GASKET; SWITCH,TOP & 3RD ID=14.2 OD=20.0	9-09571-414-0	01	1	9707-0206	●
401	GASKET; SWITCH,TOP & 3RD ID=14.2 OD=20.0	9-09571-414-0	01	1	0207-0307		●
410	GASKET; REV SW ID=14.2 OD=20.0	9-09571-414-0	01	1	9707-0206	●
410	GASKET; REV SW ID=14.2 OD=20.0	9-09571-414-0	01	1	0207-0307		●
464	SWITCH; 1ST & 2ND	8-94411-366-1	01	1	9707-9908	●
496	SWITCH; TOP & 3RD	8-94411-366-1	01	1	9707-9908	●
497	BALL; SWITCH	9-00097-517-0	02	1	9707-9908	●
498	GASKET; SWITCH,1ST & 2ND ID=14.2 OD=20.0	9-09571-414-0	01	1	9707-0206	●
498	GASKET; SWITCH,1ST & 2ND ID=14.2 OD=20.0	9-09571-414-0	01	1	0207-0307		●

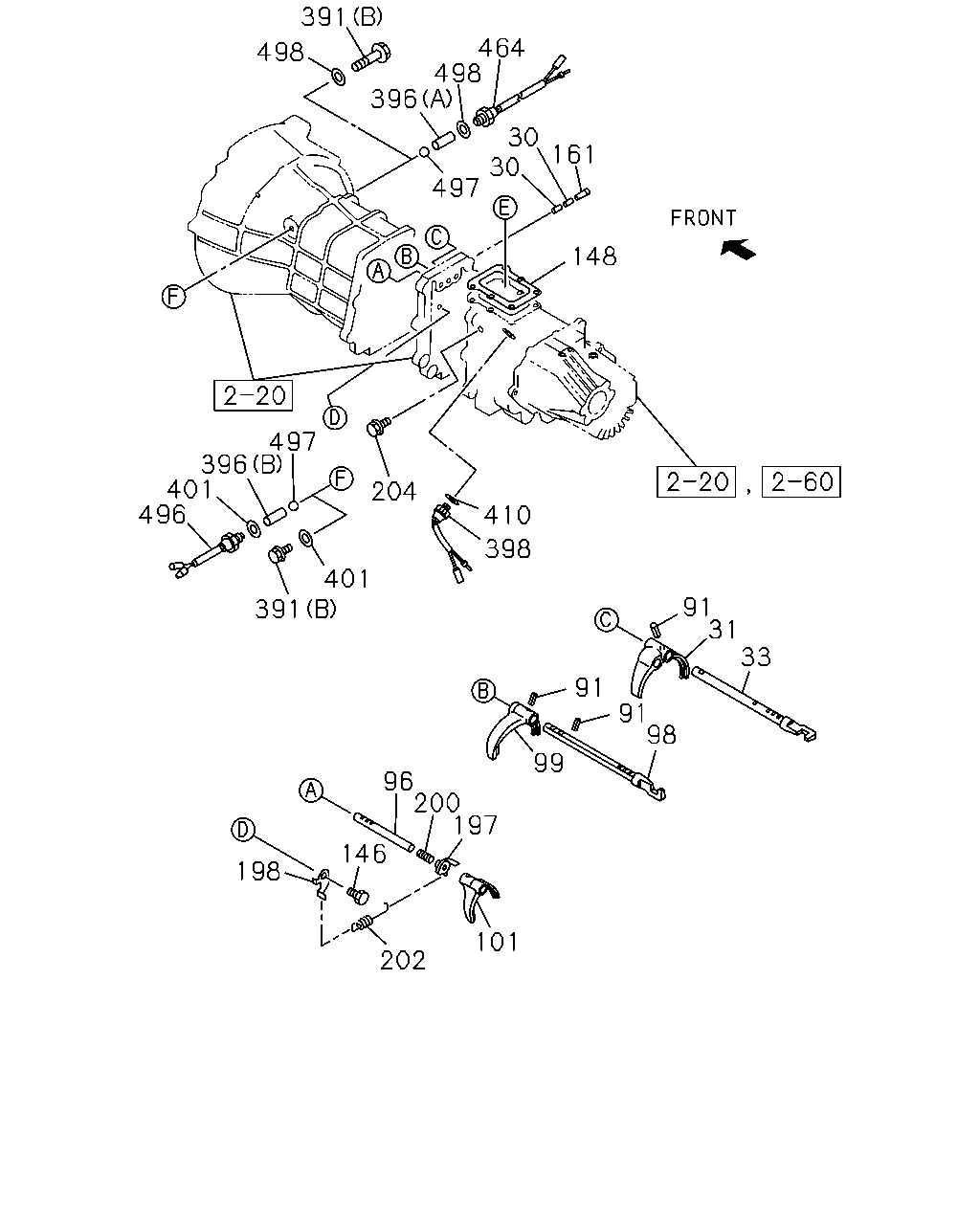

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
