Sayfa 2-26 - Isuzu EPC

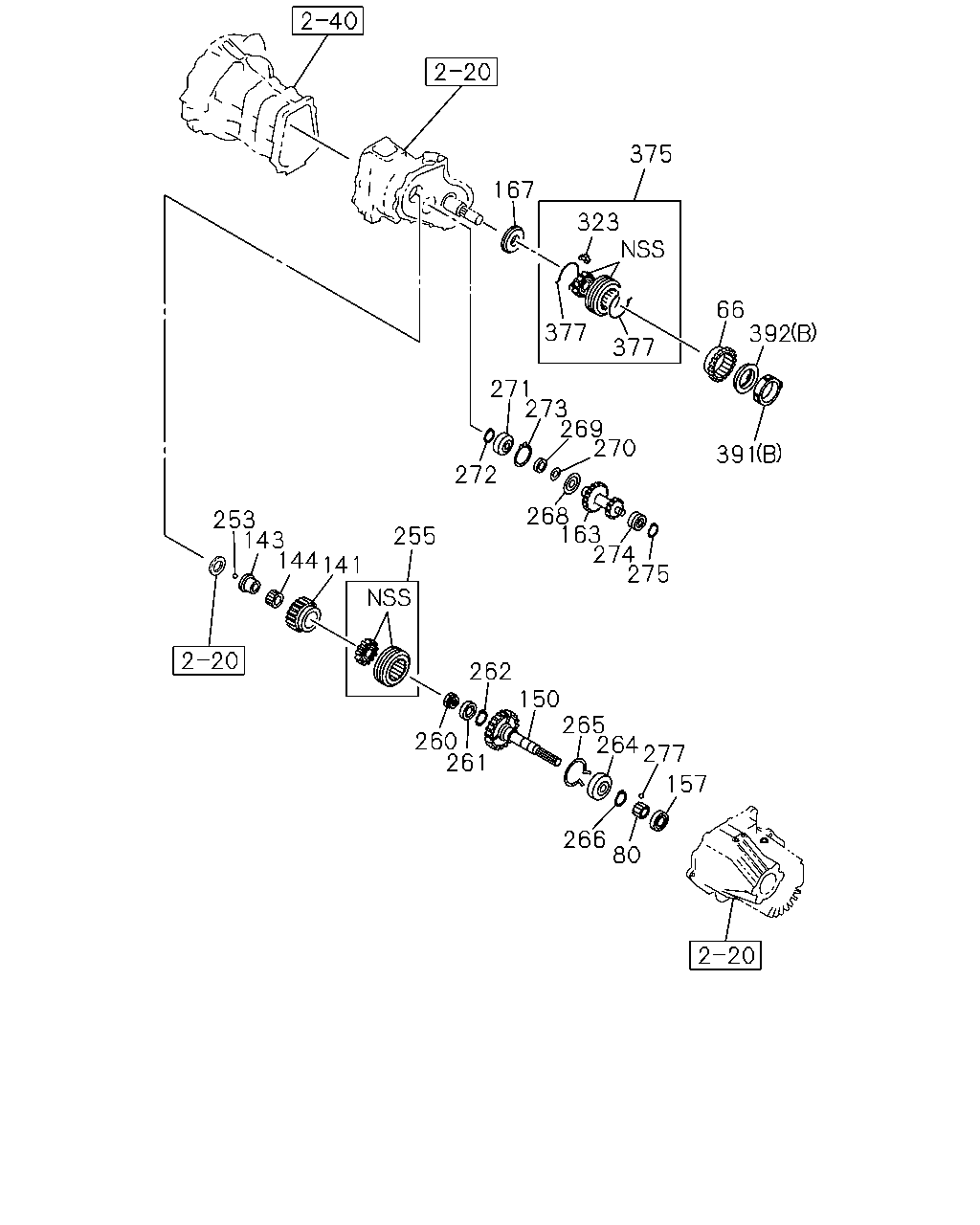

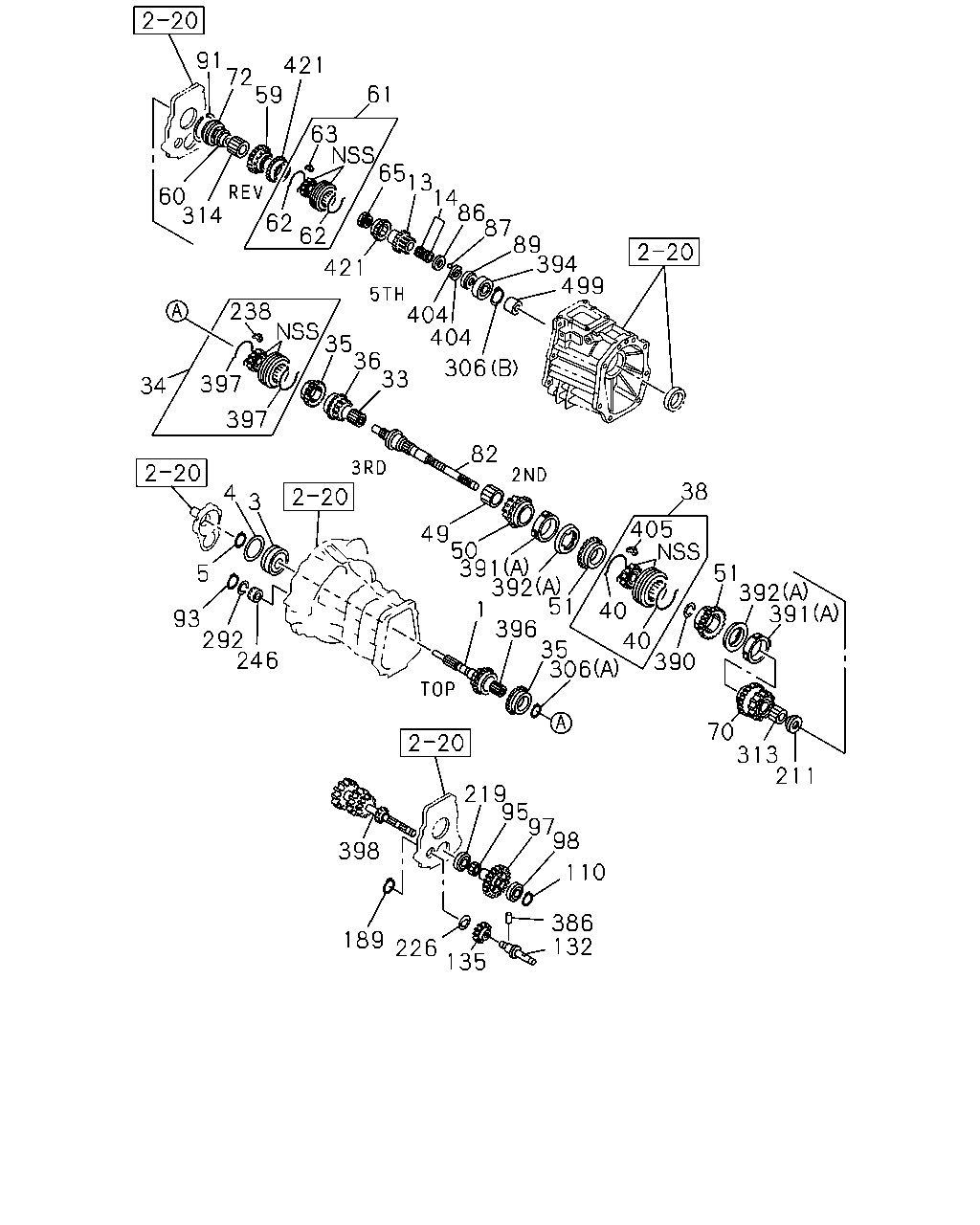

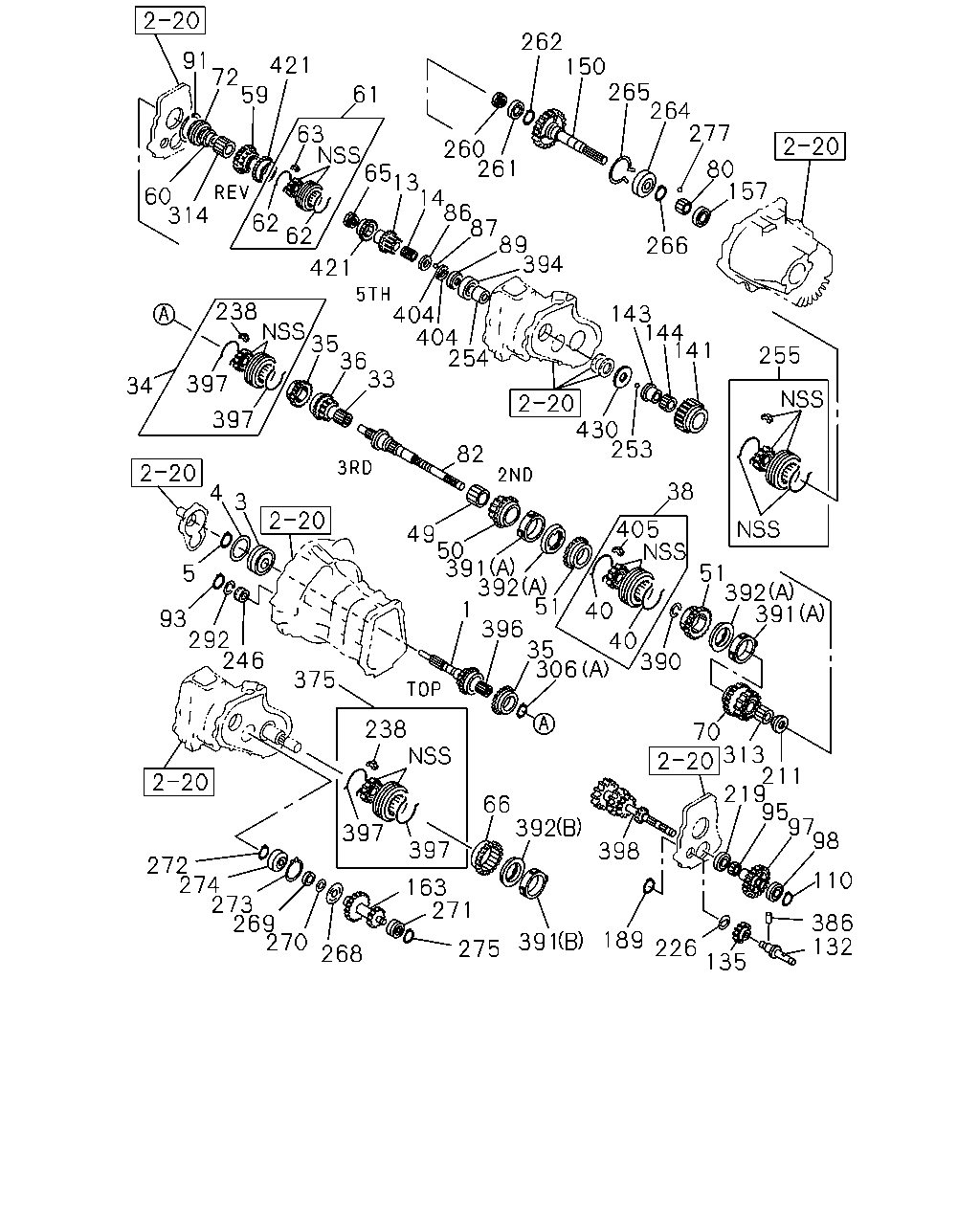

2-26 — MANUAL TRANSMISSION GEAR (#42140) — 388 parça

262 150 265 264 277 91 72 59 421 61 63 65 13 14 86 87 89 394 260 261 80 157 60 314 62 62 266 421 404 404 254 238 35 36 33 143 144 141 255 397 34 430 253 397 82 38 4 3 405 49 50 391 392 1 51 392 391 5 51 40 93 292 246 396 35 306 40 390 375 238 70 313 211 219 95 97 98 66 392 397 397 398 272 274 273 269 270 110 163 271 386 132 189 391 226 275 268 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9707-9709	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-0206	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	0207-0307		●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9707-0206	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0207-0307		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9707-0206	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0207-0307		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0 OD=53.0	8-94422-093-0	01	1	9707-0004	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	0005-0206	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	0207-0307		●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9707-0206	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0207-0307		●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9707-0206	●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0207-0307		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	9707-0206	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	0207-0307		●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9707-0206	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0207-0307		●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9707-0206	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0207-0307		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9707-0206	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	0207-0307		●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9707-0206	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0207-0307		●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9707-0206	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0207-0307		●
49	BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9707-0206	●
49	BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	0207-0307		●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9707-0206	●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	0207-0307		●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9707-0206	●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0207-0307		●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9707-0206	●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	0207-0307		●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	9707-0206	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	0207-0307		●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9707-0206	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0207-0307		●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9707-0206	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0207-0307		●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9707-0206	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0207-0307		●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	9707-0206	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	0207-0307		●
66	RING; BLOCK,SYN	8-97169-516-1	01	1	9707-0206	●		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9707-0206	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	0207-0307		●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9707-0206	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0207-0307		●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9707-0206	●		●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9707-0206	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-980-0	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0207-0307		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	9707-0206	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0207-0307		●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	9707-0206	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0207-0307		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9707-0206	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0207-0307		●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	9707-0206	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	0207-0307		●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9707-0206	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0207-0307		●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9707-0206	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0207-0307		●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9707-0206	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0207-0307		●
132	SHAFT; REV	8-97019-155-1	01	1	9707-0206	●
132	SHAFT; REV	8-97019-155-1	01	1	0207-0307		●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9707-0206	●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	0207-0307		●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9707-0206	●		●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9707-0206	●		●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9707-0206	●		●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9707-0206	●		●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9707-0206	●		●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9707-0206	●		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9707-0206	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0207-0307		●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9707-0206	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0207-0307		●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9707-0206	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0207-0307		●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9707-0206	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0207-0307		●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9707-0206	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0207-0307		●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	9707-0206	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0207-0307		●
238	INSERT	8-94448-202-2	06	1	9707-0206	●
238	INSERT	8-94448-202-2	03	1	0207-0307		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-3	01	1	9707-0206	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	0207-0307		●
253	BALL; INPUT	8-94201-356-0	01	1	9707-0206	●		●
254	COLLAR; TRANSFER	8-94483-030-2	01	1	9707-0206	●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	9707-0206	●		●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9707-0206	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9707-0206			●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9707-0206	●		●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9707-0206	●		●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9707-0206	●		●
264	BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9707-0206	●		●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9707-0206	●		●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9707-0004	●		●
266	RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0005-0206	●		●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9707-0206	●		●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9707-9812	●		●
269	SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	9901-0206	●		●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9707-0206	●		●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9707-0206	●		●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9707-0206	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9707-0206	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9707-0206	●		●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9707-0206	●		●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-0206	●		●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-0206	●		●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9707-0206	●		●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9707-0206	●		●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9707-0206	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	9707-0206	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	9707-0206	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	9707-0206	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	01	1	0207-0307		●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9707-0206	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0207-0307		●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9707-0206	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0207-0307		●
314	BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	9809-0206	●
314	BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	0207-0307		●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9707-0206	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9707-0206			●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9707-0206	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0207-0307		●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9707-0206	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0207-0307		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9707-0206	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0207-0307		●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9707-0206	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0207-0307		●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9707-0206	●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	0207-0307		●
391	RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9707-0206	●		●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9707-0206	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	0207-0307		●
392	RING; OUTSIDE,SYN (B)	8-97169-514-1	01	1	9707-0206	●		●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	9707-0206	●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	0207-0307		●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9707-0206	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0207-0307		●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	04	1	9707-0206	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0207-0307		●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-0	01	1	9707-0206	●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	0207-0307		●
404	PLATE; THRUST	8-94421-892-0	02	1	9707-0206	●
404	PLATE; THRUST	8-94421-892-0	02	1	0207-0307		●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9707-0206	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0207-0307		●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	9707-0206	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0207-0307		●
430	PLATE; OIL SEAL,TRANSFER	8-94482-379-2	01	1	9707-0206	●

91 72 59 421 61 63 65 13 14 86 87 89 394 499 60 314 62 62 421 404 404 238 35 36 33 306 397 34 397 82 38 4 3 405 49 50 391 392 1 51 392 391 5 51 40 93 292 246 396 35 306 40 390 70 313 211 219 95 97 98 398 110 386 132 189 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; TOP GEAR,TRANS Z=25	8-97100-908-3	01	1	9707-9709	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9710-0206	●
1	SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	0207-0307		●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9707-0206	●
3	BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0207-0307		●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9707-0206	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0207-0307		●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0 OD=53.0	8-94422-093-0	01	1	9707-0004	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	0005-0206	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	0207-0307		●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9707-0206	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	0207-0307		●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9707-0206	●
14	BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0207-0307		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	9707-0206	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	0207-0307		●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9707-0206	●
34	SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0207-0307		●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	9707-0206	●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0207-0307		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9707-0206	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	0207-0307		●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9707-0206	●
38	SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0207-0307		●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9707-0206	●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0207-0307		●
49	BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9707-0206	●
49	BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	0207-0307		●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9707-0206	●
50	GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	0207-0307		●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9707-0206	●
51	RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0207-0307		●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9707-0206	●
59	GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	0207-0307		●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	9707-0206	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	0207-0307		●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9707-0206	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0207-0307		●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9707-0206	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0207-0307		●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9707-0206	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0207-0307		●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	9707-0206	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	0207-0307		●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9707-0206	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	0207-0307		●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9707-0206	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0207-0307		●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9707-0206	●
82	SHAFT; MAIN,TRANS Z=28-34-26-27	8-97300-980-0	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0207-0307		●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9707-0206	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0207-0307		●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	9707-0206	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	0207-0307		●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	9707-0206	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0207-0307		●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9707-0206	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0207-0307		●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	9707-0206	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	0207-0307		●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9707-0206	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0207-0307		●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	9707-0206	●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0207-0307		●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9707-0206	●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0207-0307		●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9707-0206	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0207-0307		●
132	SHAFT; REV	8-97019-155-1	01	1	9707-0206	●
132	SHAFT; REV	8-97019-155-1	01	1	0207-0307		●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	9707-0206	●
135	GEAR; REV IDLER Z=33	8-94377-435-0	01	1	0207-0307		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9707-0206	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0207-0307		●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9707-0206	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0207-0307		●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9707-0206	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0207-0307		●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9707-0206	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0207-0307		●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9707-0206	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0207-0307		●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	9707-0206	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0207-0307		●
238	INSERT	8-94448-202-2	06	1	9707-0206	●
238	INSERT	8-94448-202-2	03	1	0207-0307		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-3	01	1	9707-0206	●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	0207-0307		●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9707-0206	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	9707-0206	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	9707-0206	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	9707-0206	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0207-0307		●
306	RING; SNAP,MAINSHAFT (B) ID=27.9	9-09180-030-0	01	1	0207-0307		●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9707-0206	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0207-0307		●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9707-0206	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0207-0307		●
314	BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	9809-0206	●
314	BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	0207-0307		●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9707-0206	●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0207-0307		●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9707-0206	●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0207-0307		●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9707-0206	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0207-0307		●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9707-0206	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0207-0307		●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9707-0206	●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	0207-0307		●
391	RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9707-0206	●		●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9707-0206	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	0207-0307		●
392	RING; OUTSIDE,SYN (B)	8-97169-514-1	01	1	9707-0206	●		●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	9707-0206	●
394	BEARING; BALL,MAINSHAFT RR NSK	8-97018-921-1	01	1	0207-0307		●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9707-0206	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0207-0307		●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	04	1	9707-0206	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0207-0307		●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-0	01	1	9707-0206	●
398	GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	0207-0307		●
404	PLATE; THRUST	8-94421-892-0	02	1	9707-0206	●
404	PLATE; THRUST	8-94421-892-0	02	1	0207-0307		●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9707-0206	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0207-0307		●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	9707-0206	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0207-0307		●
499	COLLAR; OIL SEAL	8-97300-954-0	01	1	0207-0307		●

375 167 323 66 392 377 377 271 273 269 270 391 272 268 163 274 275 253 143 144 141 255 262 150 265 264 277 260 261 157 266 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
66	RING; BLOCK,SYN	8-97169-516-1	01	1	9707-0206	●		●
80	GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9707-0206	●		●
141	GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9707-0206	●		●
143	COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9707-0206	●		●
144	BEARING; NEEDLE,INPUT GEAR NSK	1-09811-028-1	01	1	9707-0206	●		●
150	SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9707-0206	●		●
157	BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9707-0206	●		●
163	GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9707-0206	●		●
167	PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	9707-0206			●
253	BALL; INPUT	8-94201-356-0	01	1	9707-0206	●		●
255	SYNCHRONIZER ASM; LOW-HIGH,TRANSFER	8-97141-885-1	01	1	9707-0206	●		●
260	NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9707-0206	●
260	NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9707-0206			●
261	BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9707-0206	●		●
262	RING; SNAP,PILOT BRG ID=23.2	9-09180-025-0	01	1	9707-0206	●		●
264	BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9707-0206	●		●
264	BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9707-0206	●		●
265	RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9707-0206	●		●
266	RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9707-0004	●		●
266	RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0005-0206	●		●
268	PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9707-0206	●		●
269	SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9707-9812	●		●
269	SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	9901-0206	●		●
270	SPRING; BELLEVILLE,ANTI LASH,TRANSFER	8-94482-498-0	01	1	9707-0206	●		●
271	BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9707-0206	●		●
272	RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9707-0206	●
272	RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9707-0206	●
272	RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9707-0206	●		●
273	RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9707-0206	●		●
274	BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9707-0206	●		●
274	BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9707-0206	●		●
275	RING; SNAP,COUNTER GEAR BRG ID=23.2	9-09180-025-0	01	1	9707-0206	●		●
277	BALL; SPD DRIVE GEAR	8-94201-356-0	01	1	9707-0206	●		●
323	INSERT	8-94448-202-2	03	1	9707-0206			●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9707-0206	●
375	SYNCHRONIZER ASM; 2ND & 4TH	8-97104-027-0	01	1	9707-0206			●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9707-0206			●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94448-045-0	02	1	0207-0307		●		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94448-045-0	02	1	0308-				●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9707-0206	●
391	RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	0207-0307		●
391	RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9707-0206	●		●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9707-0206	●
392	RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	0207-0307		●
392	RING; OUTSIDE,SYN (B)	8-97169-514-1	01	1	9707-0206	●		●

259 152 376 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER	8-97232-692-0	01	1	0207-0301	●		●
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER	8-97358-245-0	01	1	0302-0307	●		●
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER	8-97358-245-0	01	1	0308-			●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER	8-94363-060-0	01	1	0207-0307	●		●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER	8-94363-060-0	01	1	0308-			●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER	8-97234-225-0	01	1	0207-0307	●		●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER	8-97234-225-0	01	1	0308-			●
376	INSERT; 4X2-4X4 SYN,TRANSFER	8-97238-590-0	03	1	0207-0307	●		●
376	INSERT; 4X2-4X4 SYN,TRANSFER	8-97238-590-0	03	1	0308-			●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94422-075-0	02	1	9707-0206		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94448-045-0	02	1	0207-0307	●		●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER	8-94448-045-0	02	1	0308-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
