Sayfa 0-10B - Isuzu EPC

0-10B — CYLINDER HEAD COVER (#4214) — 183 parça

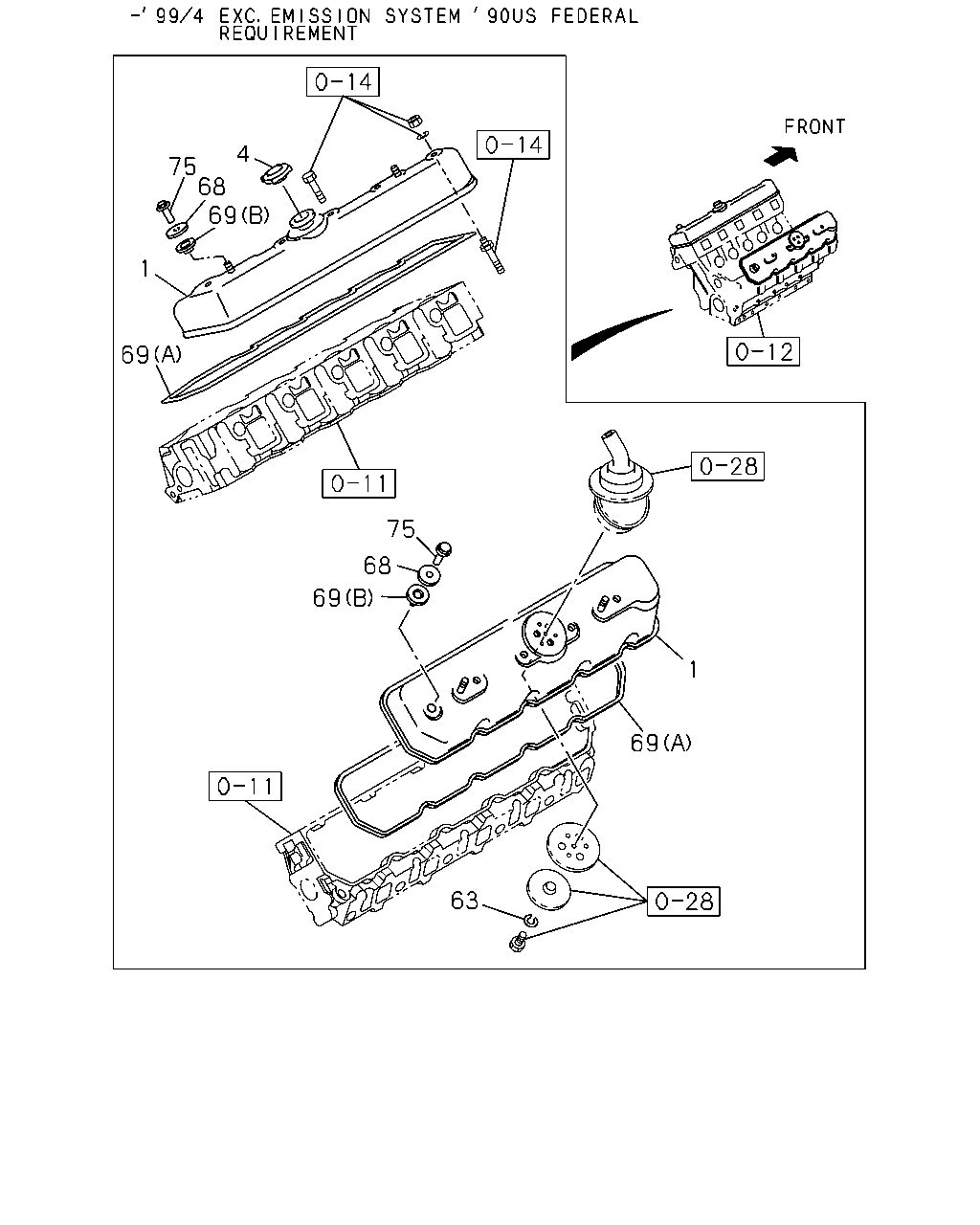

4 75 68 69 1 69 75 68 69 1 69 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD RH BANK	1-11171-366-0	01	1	9603-9904	●
1	COVER; CYL HD RH BANK	1-11171-338-2	01	1	9905-	●
1	COVER; CYL HD LH BANK	1-11171-367-1	01	1	9603-9904	●
1	COVER; CYL HD LH BANK	1-11171-405-1	01	1	9905-	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9603-9904		●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9905-		●	●	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-404-1	01	1	9603-9904		●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	9905-		●		●
1	COVER; CYL HD SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) LH BANK	1-11171-404-1	01	1	9905-			●
1	COVER; CYL HD LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-404-1	01	1	9905-			●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-345-2	01	1	9603-9904		●
1	COVER; CYL HD INJ PUMP Q SET 2000M ALTITUDE(T1C) LH BANK	1-11171-345-2	01	1	0004-			●
1	COVER; CYL HD LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-345-2	01	1	0004-			●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9603-9706		●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9707-9904		●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9905-	●			●
4	CAP; OIL FILLER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9905-		●
4	CAP; OIL FILLER SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B)	8-94399-723-0	01	1	9905-			●
4	CAP; OIL FILLER LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94399-723-0	01	1	9905-			●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	0004-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9603-9904	●
4	CAP; OIL FILLER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11750-020-0	01	1	9603-9904		●
4	CAP; OIL FILLER INJ PUMP Q SET 2000M ALTITUDE(T1C)	1-11750-020-0	01	1	0004-			●
4	CAP; OIL FILLER LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-11750-020-0	01	1	0004-			●
63	WASHER; LK,BAFFLE PLATE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=6.1	9-09150-506-0	04	1	9603-9904		●
63	WASHER; LK,BAFFLE PLATE INJ PUMP Q SET 2000M ALTITUDE(T1C) ID=6.1	9-09150-506-0	04	1	0004-			●
63	WASHER; LK,BAFFLE PLATE LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=6.1	9-09150-506-0	04	1	0004-			●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9603-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9603-9904		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-090-0	02	1	9603-9904	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-106-0	02	1	9905-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-089-0	02	1	9603-9904		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	9905-0001		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	0002-0003		●		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) (A)	1-11173-105-0	02	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (A)	1-11173-105-0	02	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-11173-105-0	02	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-09639-031-0	10	1	9603-9904		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (B)	1-09639-031-0	10	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-09639-031-0	10	1	0004-			●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9603-	●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9603-9904		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9905-		●	●	●

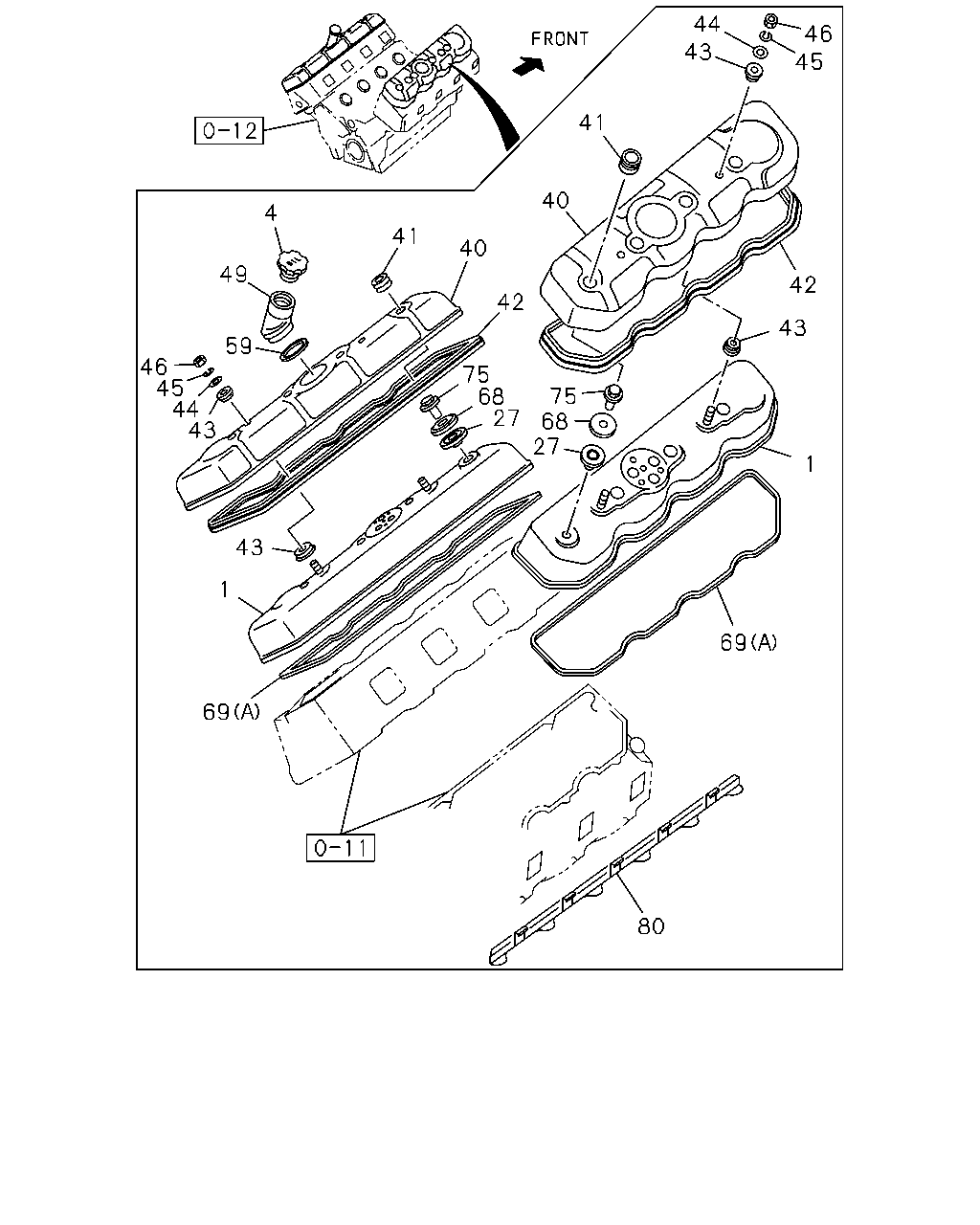

44 43 46 45 41 40 4 41 40 49 42 42 43 59 46 45 44 43 75 68 27 75 68 27 1 43 1 69 69 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD RH BANK	1-11171-366-0	01	1	9603-9904	●
1	COVER; CYL HD RH BANK	1-11171-338-2	01	1	9905-	●
1	COVER; CYL HD LH BANK	1-11171-367-1	01	1	9603-9904	●
1	COVER; CYL HD LH BANK	1-11171-405-1	01	1	9905-	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9603-9904		●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9905-		●	●	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-404-1	01	1	9603-9904		●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	9905-		●		●
1	COVER; CYL HD SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) LH BANK	1-11171-404-1	01	1	9905-			●
1	COVER; CYL HD LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-404-1	01	1	9905-			●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-345-2	01	1	9603-9904		●
1	COVER; CYL HD INJ PUMP Q SET 2000M ALTITUDE(T1C) LH BANK	1-11171-345-2	01	1	0004-			●
1	COVER; CYL HD LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-345-2	01	1	0004-			●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9603-9706		●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9707-9904		●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9905-	●			●
4	CAP; OIL FILLER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9905-		●
4	CAP; OIL FILLER SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B)	8-94399-723-0	01	1	9905-			●
4	CAP; OIL FILLER LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94399-723-0	01	1	9905-			●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	0004-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9603-9904	●
4	CAP; OIL FILLER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11750-020-0	01	1	9603-9904		●
4	CAP; OIL FILLER INJ PUMP Q SET 2000M ALTITUDE(T1C)	1-11750-020-0	01	1	0004-			●
4	CAP; OIL FILLER LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-11750-020-0	01	1	0004-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9603-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09639-031-0	10	1	9603-9904		●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9905-		●	●	●
40	COVER	1-19381-265-0	02	1	9905-	●
40	COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-341-0	02	1	9603-9904		●
40	COVER	1-19381-341-0	02	1	9905-		●	●	●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	08	1	9905-	●
41	GROMMET; HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-004-0	10	1	9603-9904		●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	10	1	9905-		●	●	●
42	SEAL; RUBBER,HD COVER,OUTER L=1520	1-19387-008-0	02	1	9905-	●
42	SEAL; RUBBER,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> L=1820	1-19387-007-0	02	1	9603-9904		●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	02	1	9905-		●	●	●
43	RUBBER; MTG,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-027-0	08	1	9603-9904		●
43	RUBBER; MTG,HD COVER,OUTER	1-09337-027-0	08	1	9905-	●	●	●	●
44	WASHER; PL,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.4 OD=18	9-09160-608-0	04	1	9603-9904		●
44	WASHER; PL,HD COVER,OUTER ID=8.4 OD=18	9-09160-608-0	04	1	9905-	●	●	●	●
45	WASHER; LK,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.2	9-09150-508-0	04	1	9603-9904		●
45	WASHER; LK,HD COVER,OUTER ID=8.2	9-09150-508-0	04	1	9905-	●	●	●	●
46	NUT; HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8	9-09110-408-0	04	1	9603-9904		●
46	NUT; HD COVER,OUTER M8	9-09110-408-0	04	1	9905-	●	●	●	●
49	FILLER; OIL,HD COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11741-177-1	01	1	9603-9904		●
49	FILLER; OIL,HD COVER	1-11741-177-1	01	1	9905-	●	●	●	●
59	GROMMET; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09333-132-0	01	1	9603-9904		●
59	GROMMET; OIL FILLER	1-09333-132-0	01	1	9905-	●	●	●	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9603-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9603-9904		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-090-0	02	1	9603-9904	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-106-0	02	1	9905-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-089-0	02	1	9603-9904		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	9905-0001		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	0002-0003		●		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) (A)	1-11173-105-0	02	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (A)	1-11173-105-0	02	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-11173-105-0	02	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-09639-031-0	10	1	9603-9904		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (B)	1-09639-031-0	10	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-09639-031-0	10	1	0004-			●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9603-	●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9603-9904		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9905-		●	●	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-184-1	02	1	9905-	●
80	PROTECTOR; HEAT,SEAL RUBBER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-14181-183-1	02	1	9603-9904		●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-183-1	02	1	9905-		●	●	●

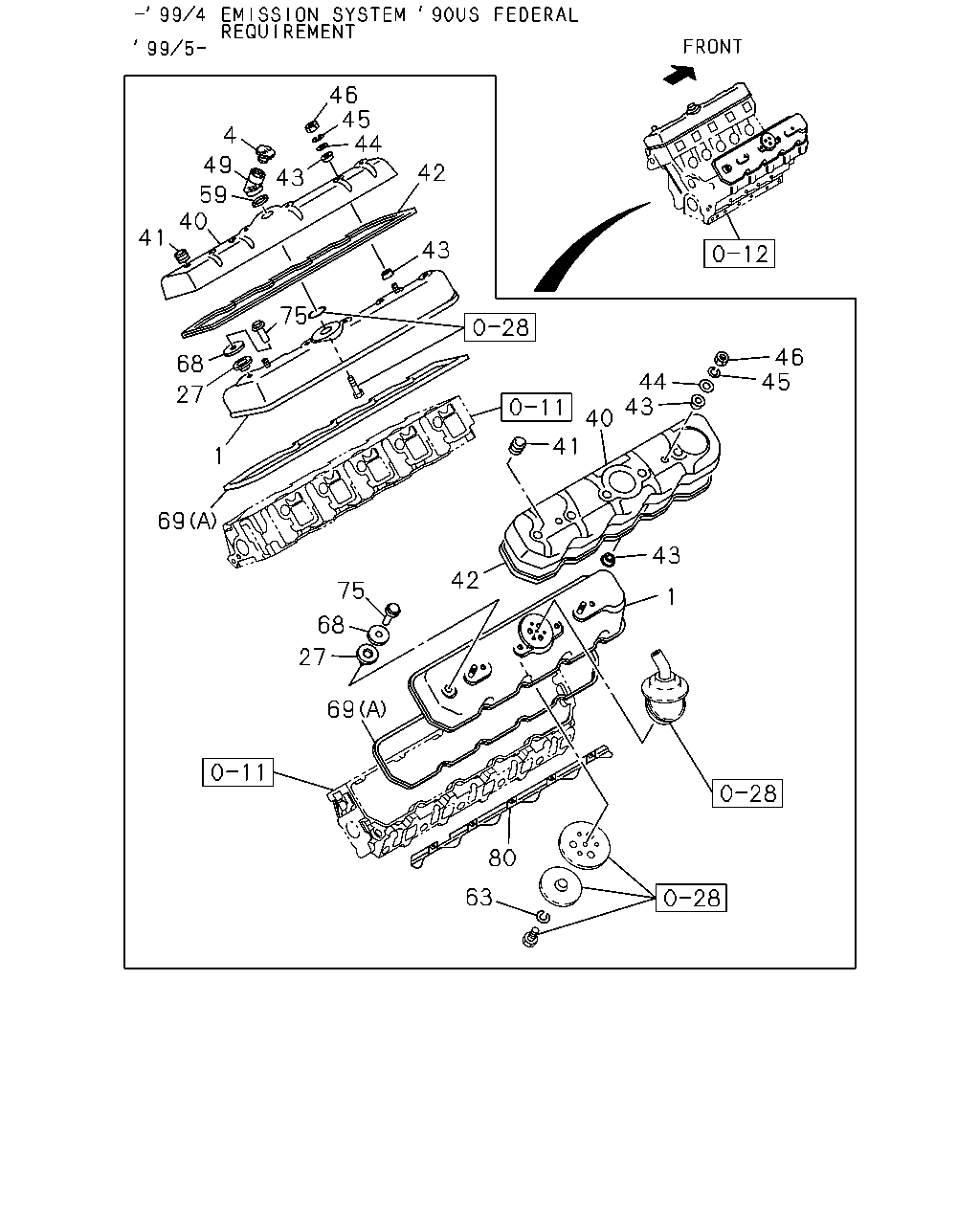

46 45 44 4 49 42 43 59 40 41 43 75 46 45 68 44 43 27 40 41 1 69 43 42 75 1 68 27 69 80 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD RH BANK	1-11171-366-0	01	1	9603-9904	●
1	COVER; CYL HD RH BANK	1-11171-338-2	01	1	9905-	●
1	COVER; CYL HD LH BANK	1-11171-367-1	01	1	9603-9904	●
1	COVER; CYL HD LH BANK	1-11171-405-1	01	1	9905-	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9603-9904		●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9905-		●	●	●
1	COVER; CYL HD EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-404-1	01	1	9603-9904		●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	9905-		●		●
1	COVER; CYL HD SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) LH BANK	1-11171-404-1	01	1	9905-			●
1	COVER; CYL HD LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-404-1	01	1	9905-			●
1	COVER; CYL HD EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> LH BANK	1-11171-345-2	01	1	9603-9904		●
1	COVER; CYL HD INJ PUMP Q SET 2000M ALTITUDE(T1C) LH BANK	1-11171-345-2	01	1	0004-			●
1	COVER; CYL HD LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-345-2	01	1	0004-			●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9603-9706		●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9707-9904		●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9905-	●			●
4	CAP; OIL FILLER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	9905-		●
4	CAP; OIL FILLER SHORT CHASSIS(CXZ5MC) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B)	8-94399-723-0	01	1	9905-			●
4	CAP; OIL FILLER LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>	8-94399-723-0	01	1	9905-			●
4	CAP; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	8-94399-723-0	01	1	0004-		●
4	CAP; OIL FILLER	1-11750-020-0	01	1	9603-9904	●
4	CAP; OIL FILLER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11750-020-0	01	1	9603-9904		●
4	CAP; OIL FILLER INJ PUMP Q SET 2000M ALTITUDE(T1C)	1-11750-020-0	01	1	0004-			●
4	CAP; OIL FILLER LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3>	1-11750-020-0	01	1	0004-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9603-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09639-031-0	10	1	9603-9904		●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9905-		●	●	●
40	COVER	1-19381-265-0	02	1	9905-	●
40	COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19381-341-0	02	1	9603-9904		●
40	COVER	1-19381-341-0	02	1	9905-		●	●	●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	08	1	9905-	●
41	GROMMET; HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-19389-004-0	10	1	9603-9904		●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	10	1	9905-		●	●	●
42	SEAL; RUBBER,HD COVER,OUTER L=1520	1-19387-008-0	02	1	9905-	●
42	SEAL; RUBBER,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> L=1820	1-19387-007-0	02	1	9603-9904		●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	02	1	9905-		●	●	●
43	RUBBER; MTG,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09337-027-0	08	1	9603-9904		●
43	RUBBER; MTG,HD COVER,OUTER	1-09337-027-0	08	1	9905-	●	●	●	●
44	WASHER; PL,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.4 OD=18	9-09160-608-0	04	1	9603-9904		●
44	WASHER; PL,HD COVER,OUTER ID=8.4 OD=18	9-09160-608-0	04	1	9905-	●	●	●	●
45	WASHER; LK,HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=8.2	9-09150-508-0	04	1	9603-9904		●
45	WASHER; LK,HD COVER,OUTER ID=8.2	9-09150-508-0	04	1	9905-	●	●	●	●
46	NUT; HD COVER,OUTER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8	9-09110-408-0	04	1	9603-9904		●
46	NUT; HD COVER,OUTER M8	9-09110-408-0	04	1	9905-	●	●	●	●
49	FILLER; OIL,HD COVER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11741-177-1	01	1	9603-9904		●
49	FILLER; OIL,HD COVER	1-11741-177-1	01	1	9905-	●	●	●	●
59	GROMMET; OIL FILLER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-09333-132-0	01	1	9603-9904		●
59	GROMMET; OIL FILLER	1-09333-132-0	01	1	9905-	●	●	●	●
63	WASHER; LK,BAFFLE PLATE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=6.1	9-09150-506-0	04	1	9603-9904		●
63	WASHER; LK,BAFFLE PLATE INJ PUMP Q SET 2000M ALTITUDE(T1C) ID=6.1	9-09150-506-0	04	1	0004-			●
63	WASHER; LK,BAFFLE PLATE LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> ID=6.1	9-09150-506-0	04	1	0004-			●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9603-	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9603-9904		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-090-0	02	1	9603-9904	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-106-0	02	1	9905-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-089-0	02	1	9603-9904		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	9905-0001		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	0002-0003		●		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET SPECIAL +5%Q(T1A),INJ PUMP Q SET STD(T1B) (A)	1-11173-105-0	02	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (A)	1-11173-105-0	02	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> (A)	1-11173-105-0	02	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B)	1-09639-031-0	10	1	9603-9904		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP Q SET 2000M ALTITUDE(T1C) (B)	1-09639-031-0	10	1	0004-			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) LONG CHASSIS(CXZ5MF) INJ PUMP Q SET SPECIAL +5%Q(T1A) ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-09639-031-0	10	1	0004-			●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9603-	●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9603-9904		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9905-		●	●	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-184-1	02	1	9905-	●
80	PROTECTOR; HEAT,SEAL RUBBER EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-14181-183-1	02	1	9603-9904		●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-183-1	02	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
