◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#42139) — 119 parça
çizim 71119
22 22 22 22 22 27 22 14 15 15 15 15 15 2 1 3 10 14 11 15 4 53 15 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-2 01 1 9707-0206 ●
1 GEAR; DRIVEN,SPD
Z=18 		8-97238-584-2 01 1 0207-0307 ● ●
1 GEAR; DRIVEN,SPD
Z=18 		8-97238-584-2 01 1 0308- ●
1 GEAR; DRIVEN,SPD
Z=17 		8-97012-085-2 01 1 9707-0206 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9707-0206 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97305-454-1 01 1 0207-0307 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97305-454-1 01 1 0308- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9707-0206 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 0207-0307 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 0308- ●
4 BOLT; RET,DRIVEN GEAR
M8X25 FLANGE 		0-28680-825-0 01 1 9707-0206 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28080-820-0 01 1 0207-0307 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28080-820-0 01 1 0308- ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 9707-0206 ● ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0207-0307 ● ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0308- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 9707-0206 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 0207-0307 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 0308- ●
14 COVER; UNDER,TRANS
(A) 		8-97164-174-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(A) 		8-97164-174-1 01 1 0207-0307 ●
14 COVER; UNDER,TRANS
(B) 		8-97164-175-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(B) 		8-97164-175-1 01 1 0207-0307 ●
14 COVER; UNDER,TRANS
(C) 		8-97164-176-3 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(C) 		8-97164-176-3 01 1 0207-0307 ●
14 COVER; UNDER,TRANS
(D) 		8-97164-518-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(D) 		8-97194-751-0 01 1 0207- ●
14 COVER; UNDER,TRANS
(F) 		8-97164-521-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(F) 		8-97164-521-1 01 1 0207- ●
14 COVER; UNDER,TRANS
(E) 		8-97164-547-3 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(E) 		8-97164-547-3 01 1 0207- ●
15 BOLT; UNDER COVER TO TRANS
(A) M6X10 FLANGE 		0-28080-610-0 04 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0207-0307 ●
15 BOLT; UNDER COVER TO TRANS
(B) M6X25 FLANGE 		0-28680-625-0 01 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(B) M6X25 FLANGE 		0-28680-625-0 01 1 0207-0307 ●
15 BOLT; UNDER COVER TO TRANS
(C) M6X40 FLANGE 		0-28680-640-0 01 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(C) M6X40 FLANGE 		0-28680-640-0 01 1 0207-0307 ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X10 FLANGE 		0-28080-610-0 08 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X10 FLANGE 		0-28080-610-0 08 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(A) M12X80 		0-28081-280-0 01 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(A) M12X80 		0-28081-280-0 01 1 0207-0307 ●
22 BOLT; TRANS CASE TO ENG
(B) M12X45 FLANGE 		0-28181-245-0 03 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(B) M12X45 FLANGE 		0-28181-245-0 03 1 0207-0307 ●
22 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9707-0206 ● ●
22 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0207-0307 ● ●
22 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0308- ●
22 BOLT; TRANS CASE TO ENG
(F) M12X70 FLANGE 		0-28081-270-0 01 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(F) M12X70 FLANGE 		0-28081-270-0 01 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(G) M12X40 FLANGE 		0-28181-240-0 01 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(G) M12X40 FLANGE 		0-28181-240-0 01 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(E) M10X40 FLANGE 		0-28781-040-0 02 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(E) M10X40 FLANGE 		0-28781-040-0 02 1 0207- ●
27 NUT; CLU HSG TO TRANS
M12 FLANGE 		0-91150-112-0 01 1 9707-0206 ●
27 NUT; CLU HSG TO TRANS
M12 FLANGE 		0-91150-112-0 01 1 0207- ●
53 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9707-0205 ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 0206-0307 ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 0308- ●

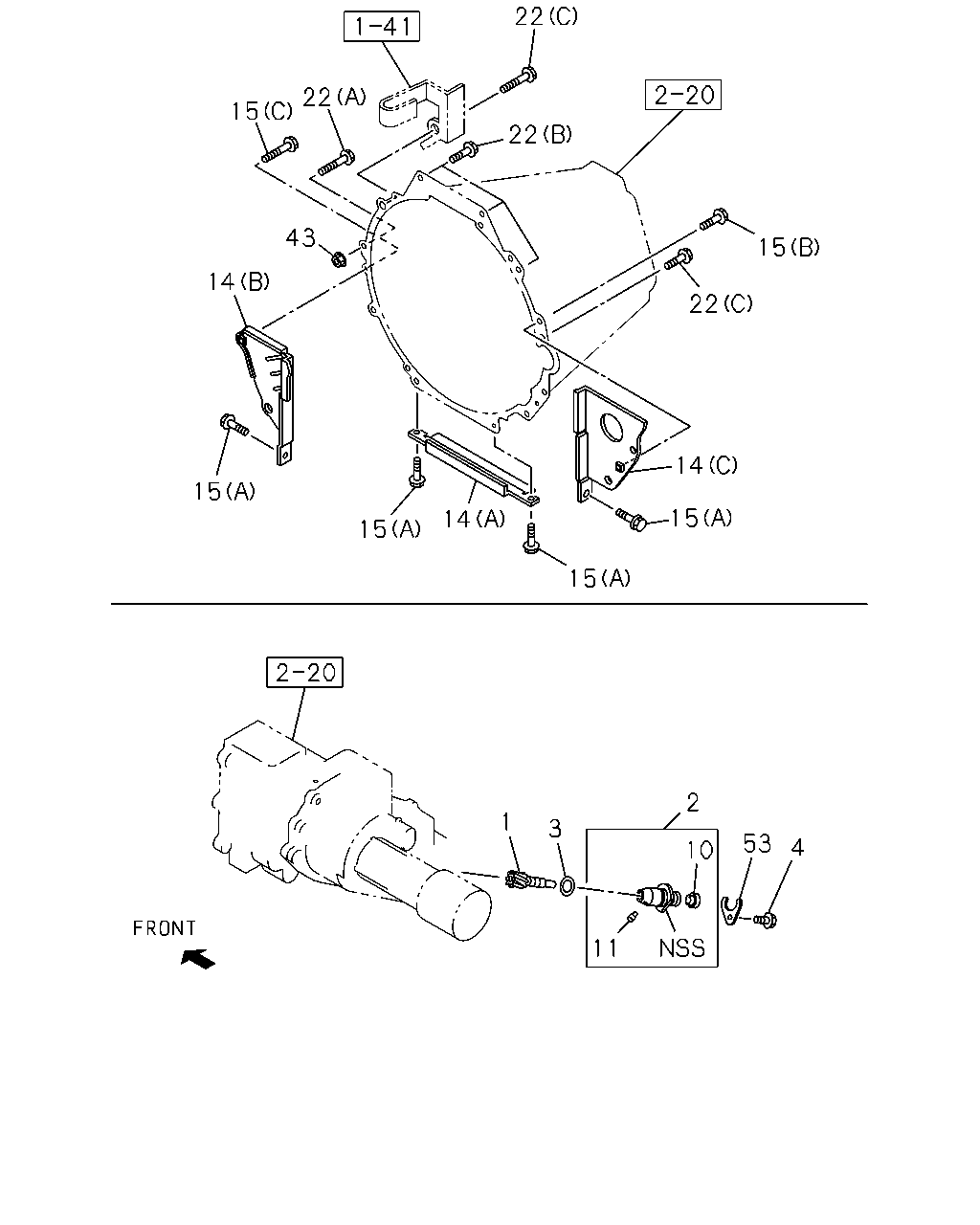

çizim 71134
22 22 15 22 43 15 14 22 14 15 15 14 15 15 2 1 3 53 4 10 11
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
Z=18 		8-97012-086-2 01 1 9707-0206 ●
1 GEAR; DRIVEN,SPD
Z=18 		8-97238-584-2 01 1 0207-0307 ● ●
1 GEAR; DRIVEN,SPD
Z=18 		8-97238-584-2 01 1 0308- ●
1 GEAR; DRIVEN,SPD
Z=17 		8-97012-085-2 01 1 9707-0206 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97021-133-4 01 1 9707-0206 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97305-454-1 01 1 0207-0307 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-97305-454-1 01 1 0308- ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 9707-0206 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 0207-0307 ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). ID=21.7 OD=28.7 		9-09921-100-0 01 1 0308- ●
4 BOLT; RET,DRIVEN GEAR
M8X25 FLANGE 		0-28680-825-0 01 1 9707-0206 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28080-820-0 01 1 0207-0307 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE 		0-28080-820-0 01 1 0308- ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 9707-0206 ● ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0207-0307 ● ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0308- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 9707-0206 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 0207-0307 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 0308- ●
14 COVER; UNDER,TRANS
(A) 		8-97164-174-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(A) 		8-97164-174-1 01 1 0207-0307 ●
14 COVER; UNDER,TRANS
(B) 		8-97164-175-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(B) 		8-97164-175-1 01 1 0207-0307 ●
14 COVER; UNDER,TRANS
(C) 		8-97164-176-3 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(C) 		8-97164-176-3 01 1 0207-0307 ●
14 COVER; UNDER,TRANS
(D) 		8-97164-518-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(D) 		8-97194-751-0 01 1 0207- ●
14 COVER; UNDER,TRANS
(F) 		8-97164-521-1 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(F) 		8-97164-521-1 01 1 0207- ●
14 COVER; UNDER,TRANS
(E) 		8-97164-547-3 01 1 9707-0206 ●
14 COVER; UNDER,TRANS
(E) 		8-97164-547-3 01 1 0207- ●
15 BOLT; UNDER COVER TO TRANS
(A) M6X10 FLANGE 		0-28080-610-0 04 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0207-0307 ●
15 BOLT; UNDER COVER TO TRANS
(B) M6X25 FLANGE 		0-28680-625-0 01 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(B) M6X25 FLANGE 		0-28680-625-0 01 1 0207-0307 ●
15 BOLT; UNDER COVER TO TRANS
(C) M6X40 FLANGE 		0-28680-640-0 01 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(C) M6X40 FLANGE 		0-28680-640-0 01 1 0207-0307 ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X10 FLANGE 		0-28080-610-0 08 1 9707-0206 ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X10 FLANGE 		0-28080-610-0 08 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(A) M12X80 		0-28081-280-0 01 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(A) M12X80 		0-28081-280-0 01 1 0207-0307 ●
22 BOLT; TRANS CASE TO ENG
(B) M12X45 FLANGE 		0-28181-245-0 03 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(B) M12X45 FLANGE 		0-28181-245-0 03 1 0207-0307 ●
22 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 9707-0206 ● ●
22 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0207-0307 ● ●
22 BOLT; TRANS CASE TO ENG
(C) M12X50 FLANGE 		0-28181-250-0 02 1 0308- ●
22 BOLT; TRANS CASE TO ENG
(F) M12X70 FLANGE 		0-28081-270-0 01 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(F) M12X70 FLANGE 		0-28081-270-0 01 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(G) M12X40 FLANGE 		0-28181-240-0 01 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(G) M12X40 FLANGE 		0-28181-240-0 01 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(D) M12X45 FLANGE 		0-28181-245-0 02 1 0207- ●
22 BOLT; TRANS CASE TO ENG
(E) M10X40 FLANGE 		0-28781-040-0 02 1 9707-0206 ●
22 BOLT; TRANS CASE TO ENG
(E) M10X40 FLANGE 		0-28781-040-0 02 1 0207- ●
43 NUT; TRANS CASE
M12 FLANGE 		0-91150-112-0 01 1 9707-0206 ●
43 NUT; TRANS CASE
M12 FLANGE 		0-91150-112-0 01 1 0207-0307 ●
43 NUT; TRANS CASE
M10 FLANGE 		0-91150-110-0 01 1 0207-0307 ●
53 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 9707-0205 ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 0206-0307 ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-97021-019-0 01 1 0308- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
