2-20 — MANUAL TRANSMISSION ASM AND CASE (#42138) — 303 parça

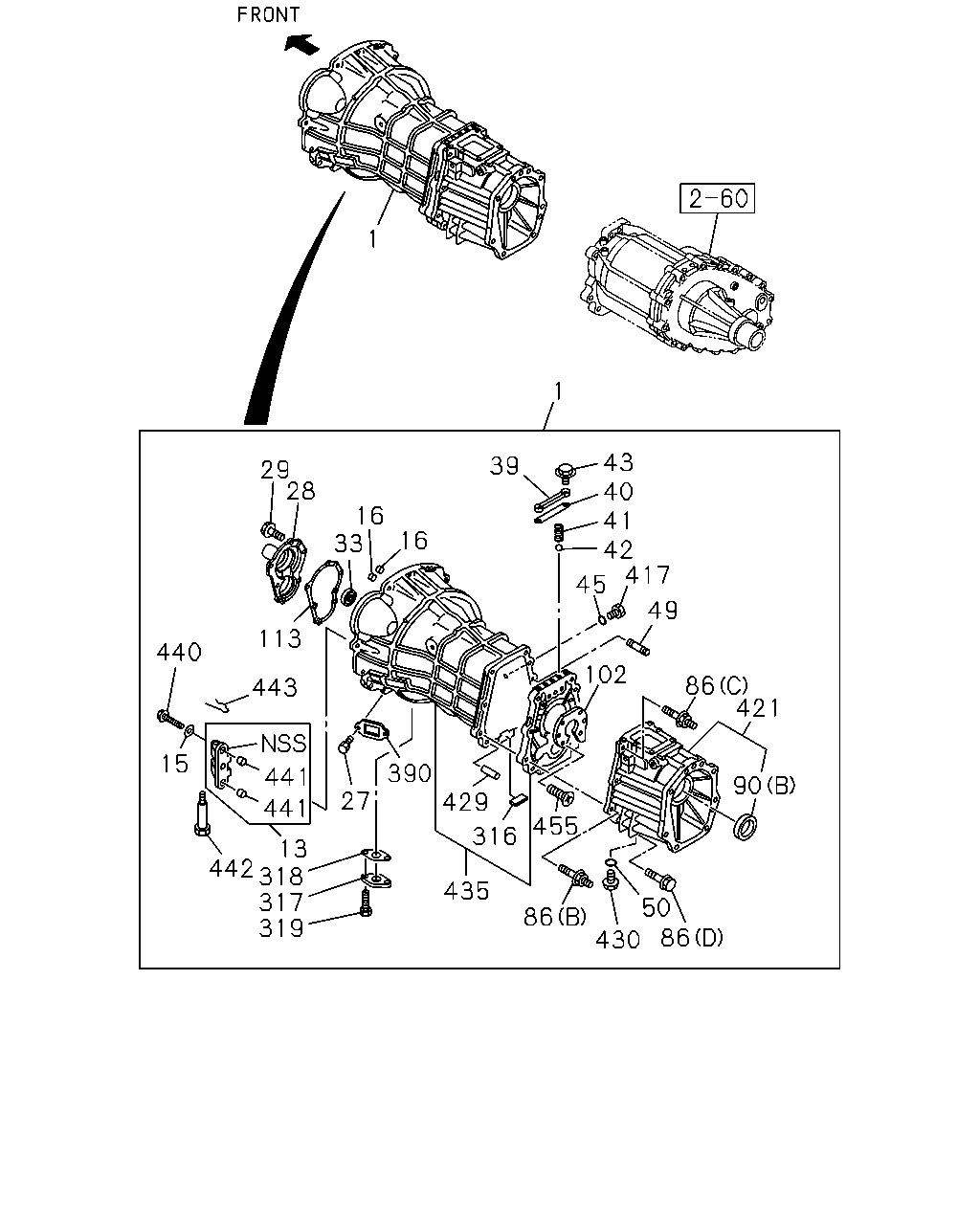

1 1 43 40 41 42 417 39 29 28 16 33 16 45 49 113 440 102 86 421 443 15 390 429 441 90 27 441 455 316 13 442 318 317 319 435 50 86 86 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL	8-97124-707-0	01	1	9707-9807	●
1	TRANSMISSION ASM; MANUAL	8-97184-470-0	01	1	9808-9908	●
1	TRANSMISSION ASM; MANUAL	8-97230-956-0	01	1	9909-0206	●
1	TRANSMISSION ASM; MANUAL	8-97320-929-0	01	1	0207-0307		●
13	SUPPORT; SHIFT FORK	8-97033-703-1	01	1	9707-9904	●
13	SUPPORT; SHIFT FORK	8-97218-275-0	01	1	9905-0206	●
13	SUPPORT; SHIFT FORK	8-97218-275-0	01	1	0207-0307		●
15	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9707-0206	●
15	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	0207-0307		●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	9707-0206	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0207-0307		●
27	BOLT; COVER TO CLU HSG M6X12 FLANGE	0-28080-612-0	02	1	9707-0206	●
27	BOLT; COVER TO CLU HSG M6X12 FLANGE	0-28080-612-0	02	1	0207-0307		●
28	COVER; FRT,TRANS CASE	8-97104-678-0	01	1	9707-0206	●
28	COVER; FRT,TRANS CASE	8-97104-678-0	01	1	0207-0307		●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9707-0206	●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0207-0307		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9707-0206	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0207-0307		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9707-0206	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0207-0307		●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	9707-0206	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0207-0307		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9707-0206	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0207-0307		●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9707-0206	●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0207-0307		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9707-0206	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0207-0307		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	9707-0206	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	0207-0307		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0307		●
49	STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9909-0206	●
49	STUD; TRANSFER CASE	8-97304-116-1	01	1	0207-0307		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9707-0206	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0209		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0210-0307		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0210-0307		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206				●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9707-0206	●			●
86	BOLT; RR COVER (D) M10X55 FLANGE	8-94473-959-1	03	1	0207-0307		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	09	1	9707-9805	●			●
86	BOLT; RR COVER (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-0206	●			●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0207-0307		●	●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0308-			●
86	BOLT; RR COVER (C) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) TKK	8-97046-706-0	01	1	9707-0010	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-707-2	01	1	9707-0206	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-2	01	1	0207-0307		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-3	01	1	0308-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) TKK	8-97046-700-0	01	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-701-2	01	1	0207-0307		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9909-0206	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0207-0307		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9707-0206	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0207-0307		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	9707-0206	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0207-0307		●
317	COVER; CASE	8-97034-422-1	01	1	9707-0206	●
317	COVER; CASE	8-97034-422-1	01	1	0207-0307		●
318	GASKET; COVER	8-97035-567-0	01	1	9707-0206	●
318	GASKET; COVER	8-97035-567-0	01	1	0207-0307		●
319	BOLT; COVER M6X12 FLANGE	0-28080-612-0	02	1	9707-0206	●
319	BOLT; COVER M6X12 FLANGE	0-28080-612-0	02	1	0207-0307		●
390	COVER; DUST,CLU SHIFT	8-94380-259-1	01	1	9707-0206	●
390	COVER; DUST,CLU SHIFT	8-94380-259-1	01	1	0207-0307		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9707-0206	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0308-			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9707-0206				●
421	COVER; RR,TRANS	8-97126-772-1	01	1	9707-9903	●			●
421	COVER; RR,TRANS	8-97220-601-0	01	1	9904-0206	●			●
421	COVER; RR,TRANS	8-97301-224-2	01	1	0207-0307		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9909-0206	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0207-0307		●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9707-0206	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0308-			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9707-0206				●
435	CASE; TRANS	8-97184-472-0	01	1	9707-0206	●
435	CASE; TRANS	8-97184-472-0	01	1	0207-0307		●
440	BOLT; SUPPORT M10X25 FLANGE	0-28181-025-0	03	1	9707-0206	●
440	BOLT; SUPPORT M10X25 FLANGE	0-28181-025-0	03	1	0207-0307		●
441	DOWEL; SUPPORT	8-97049-712-0	02	1	9707-9904	●
441	DOWEL; SUPPORT	8-97218-289-0	02	1	9905-0206	●
441	DOWEL; SUPPORT	8-97218-289-0	02	1	0207-0307		●
442	PIN; SHIFT FORK	8-94377-424-1	01	1	9707-0206	●
442	PIN; SHIFT FORK	8-94377-424-1	01	1	0207-0307		●
443	PIN; SNAP,SHIFT FORK L=27.7	1-09747-005-0	01	1	9707-0206	●
443	PIN; SNAP,SHIFT FORK L=27.7	1-09747-005-0	01	1	0207-0307		●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	9909-0206	●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	0207-0307		●

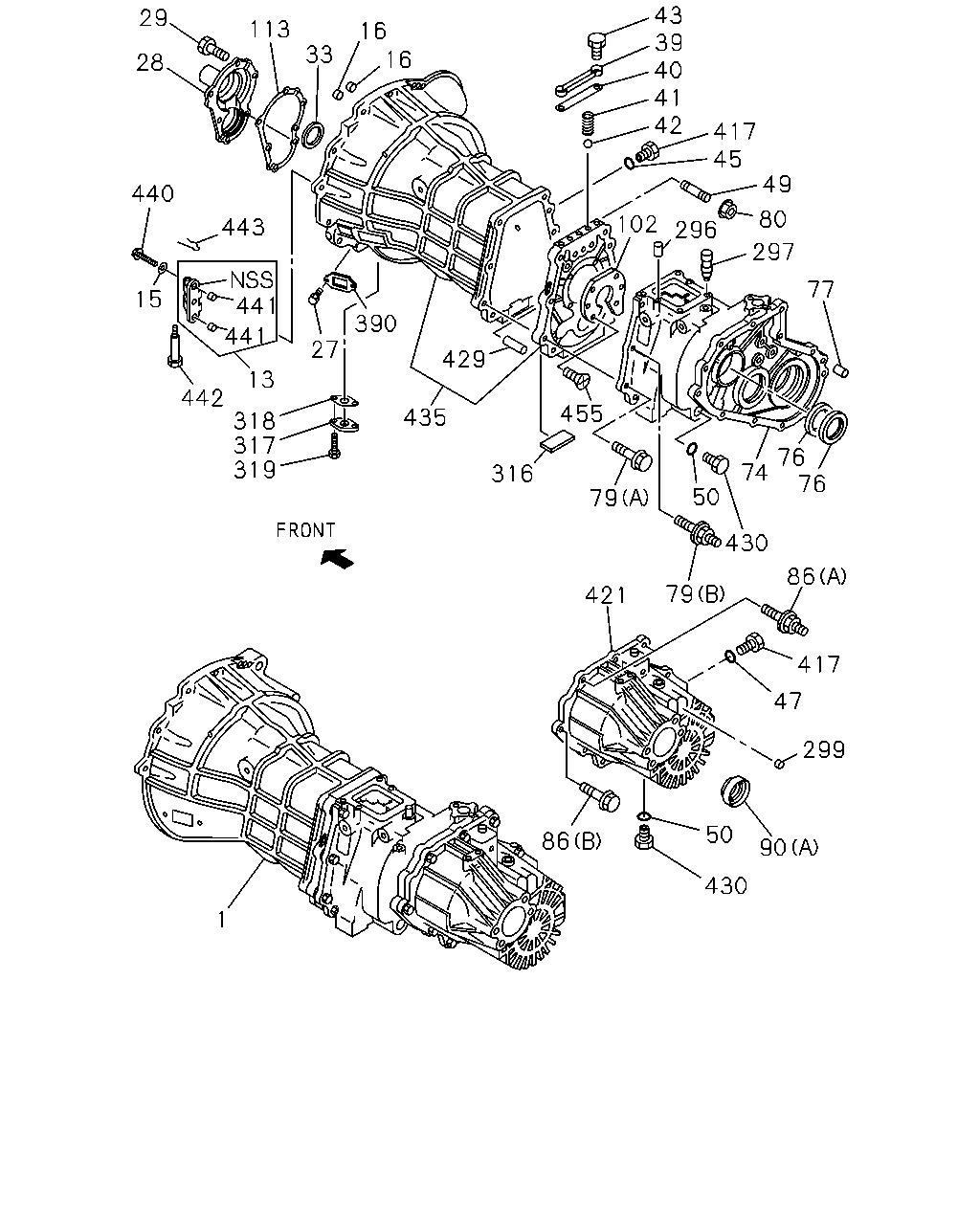

43 39 40 41 42 29 113 16 16 33 28 417 45 49 440 80 102 443 296 297 441 77 15 390 441 27 429 13 442 318 317 319 455 435 76 74 76 316 50 79 430 86 79 421 417 47 299 50 86 90 430 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL	8-97124-707-0	01	1	9707-9807	●
1	TRANSMISSION ASM; MANUAL	8-97184-470-0	01	1	9808-9908	●
1	TRANSMISSION ASM; MANUAL	8-97230-956-0	01	1	9909-0206	●
1	TRANSMISSION ASM; MANUAL	8-97320-929-0	01	1	0207-0307		●
13	SUPPORT; SHIFT FORK	8-97033-703-1	01	1	9707-9904	●
13	SUPPORT; SHIFT FORK	8-97218-275-0	01	1	9905-0206	●
13	SUPPORT; SHIFT FORK	8-97218-275-0	01	1	0207-0307		●
15	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	9707-0206	●
15	WASHER; PL ID=8.4 OD=22	9-09160-708-0	01	1	0207-0307		●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	9707-0206	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0207-0307		●
27	BOLT; COVER TO CLU HSG M6X12 FLANGE	0-28080-612-0	02	1	9707-0206	●
27	BOLT; COVER TO CLU HSG M6X12 FLANGE	0-28080-612-0	02	1	0207-0307		●
28	COVER; FRT,TRANS CASE	8-97104-678-0	01	1	9707-0206	●
28	COVER; FRT,TRANS CASE	8-97104-678-0	01	1	0207-0307		●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9707-0206	●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0207-0307		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9707-0206	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0207-0307		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	9707-0206	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-2	01	1	0207-0307		●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	9707-0206	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0207-0307		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9707-0206	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0207-0307		●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9707-0206	●
41	SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0207-0307		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9707-0206	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0207-0307		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	9707-0206	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	0207-0307		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0307		●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206	●			●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0307		●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-			●
49	STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9909-0206	●
49	STUD; TRANSFER CASE	8-97304-116-1	01	1	0207-0307		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9707-0206	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0209		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0210-0307		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0210-0307		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206				●
74	CASE ASM; TRANSFER	8-97149-125-1	01	1	9707-0206	●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	9707-0206				●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9707-0206	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97238-999-0	01	1	0207-0307		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97238-999-0	01	1	0308-			●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9707-0206	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9707-0206				●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9707-0206				●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9707-0206	●			●
79	BOLT; TRANSFER CASE (A) M10X55 FLANGE	8-94473-959-1	06	1	9707-0206	●
79	BOLT; TRANSFER CASE (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	9707-0206	●
80	NUT; TRANSFER CASE M10 FLANGE	0-91150-110-0	01	1	9707-0206	●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9707-0206	●			●
86	BOLT; RR COVER (D) M10X55 FLANGE	8-94473-959-1	03	1	0207-0307		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	09	1	9707-9805	●			●
86	BOLT; RR COVER (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-0206	●			●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0207-0307		●	●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0308-			●
86	BOLT; RR COVER (C) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) TKK	8-97046-706-0	01	1	9707-0010	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-707-2	01	1	9707-0206	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-2	01	1	0207-0307		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-3	01	1	0308-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) TKK	8-97046-700-0	01	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-701-2	01	1	0207-0307		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9909-0206	●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0207-0307		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9707-0206	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0207-0307		●
296	PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9707-0206	●
297	BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9707-0206	●
297	BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9707-0206				●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	9707-0206	●			●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	0207-0307		●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	0308-			●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	9707-0206	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0207-0307		●
317	COVER; CASE	8-97034-422-1	01	1	9707-0206	●
317	COVER; CASE	8-97034-422-1	01	1	0207-0307		●
318	GASKET; COVER	8-97035-567-0	01	1	9707-0206	●
318	GASKET; COVER	8-97035-567-0	01	1	0207-0307		●
319	BOLT; COVER M6X12 FLANGE	0-28080-612-0	02	1	9707-0206	●
319	BOLT; COVER M6X12 FLANGE	0-28080-612-0	02	1	0207-0307		●
390	COVER; DUST,CLU SHIFT	8-94380-259-1	01	1	9707-0206	●
390	COVER; DUST,CLU SHIFT	8-94380-259-1	01	1	0207-0307		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9707-0206	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0308-			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9707-0206				●
421	COVER; RR,TRANS	8-97126-772-1	01	1	9707-9903	●			●
421	COVER; RR,TRANS	8-97220-601-0	01	1	9904-0206	●			●
421	COVER; RR,TRANS	8-97301-224-2	01	1	0207-0307		●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9909-0206	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0207-0307		●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9707-0206	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0308-			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9707-0206				●
435	CASE; TRANS	8-97184-472-0	01	1	9707-0206	●
435	CASE; TRANS	8-97184-472-0	01	1	0207-0307		●
440	BOLT; SUPPORT M10X25 FLANGE	0-28181-025-0	03	1	9707-0206	●
440	BOLT; SUPPORT M10X25 FLANGE	0-28181-025-0	03	1	0207-0307		●
441	DOWEL; SUPPORT	8-97049-712-0	02	1	9707-9904	●
441	DOWEL; SUPPORT	8-97218-289-0	02	1	9905-0206	●
441	DOWEL; SUPPORT	8-97218-289-0	02	1	0207-0307		●
442	PIN; SHIFT FORK	8-94377-424-1	01	1	9707-0206	●
442	PIN; SHIFT FORK	8-94377-424-1	01	1	0207-0307		●
443	PIN; SNAP,SHIFT FORK L=27.7	1-09747-005-0	01	1	9707-0206	●
443	PIN; SNAP,SHIFT FORK L=27.7	1-09747-005-0	01	1	0207-0307		●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	9909-0206	●
455	SCREW; BRG RET M8X22	8-97062-754-0	04	1	0207-0307		●

4 4 123 123 123 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	BOLT; FLYWHEEL HSG M12X45 FLANGE	0-28181-245-0	02	1	9707-0206	●
4	BOLT; FLYWHEEL HSG M12X45 FLANGE	0-28181-245-0	02	1	0207-0307		●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	9707-0206	●			●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	0207-0307		●	●
123	DOWEL; TRANS CASE	8-94325-506-1	02	1	0308-			●

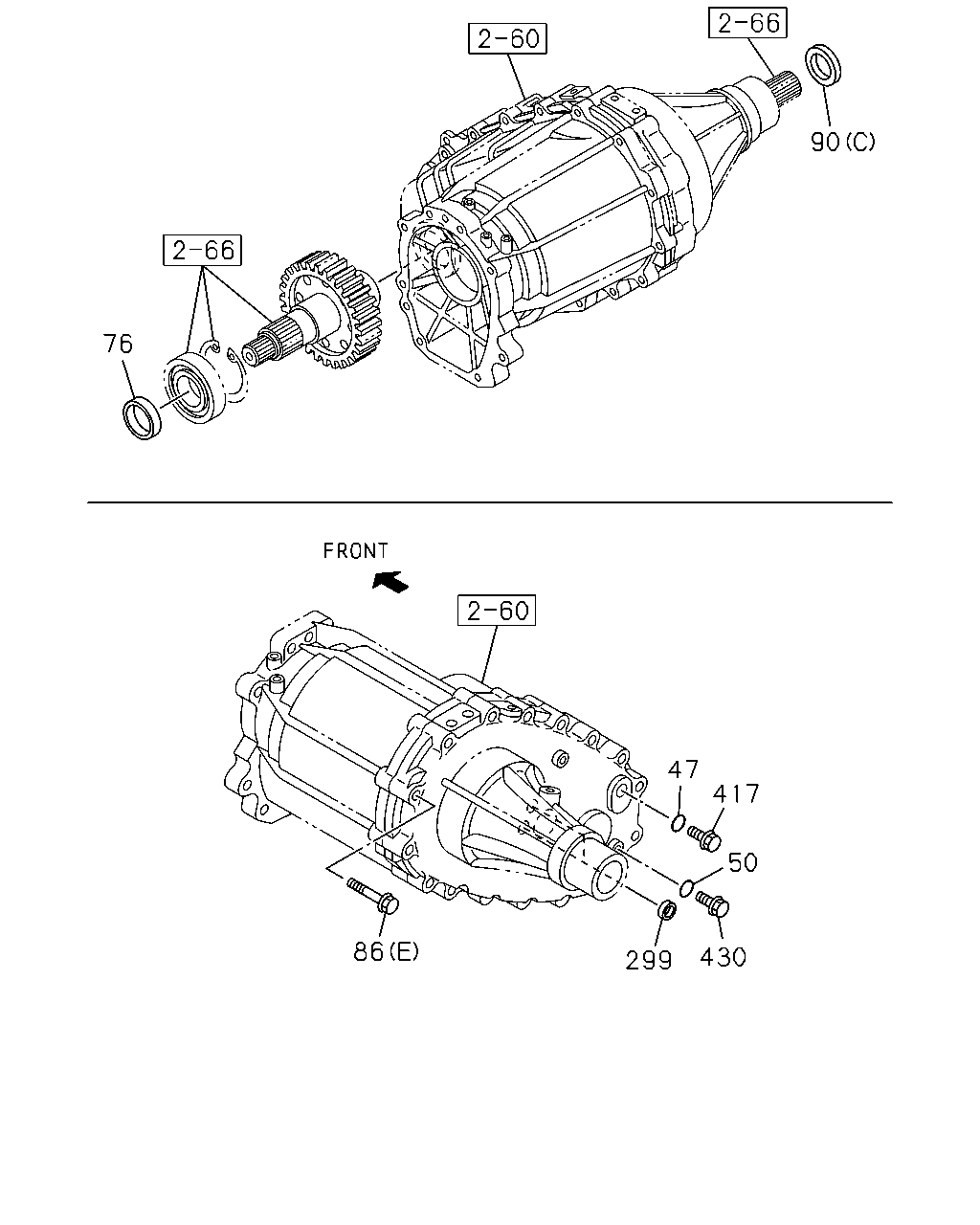

90 76 47 417 86 430 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206	●			●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0307		●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-			●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9707-0206	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97238-999-0	01	1	0207-0307		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97238-999-0	01	1	0308-			●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9707-0206	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9707-0206				●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9707-0206				●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9707-0206	●			●
86	BOLT; RR COVER (D) M10X55 FLANGE	8-94473-959-1	03	1	0207-0307		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	09	1	9707-9805	●			●
86	BOLT; RR COVER (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-0206	●			●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0207-0307		●	●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0308-			●
86	BOLT; RR COVER (C) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) TKK	8-97046-706-0	01	1	9707-0010	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-707-2	01	1	9707-0206	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-2	01	1	0207-0307		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-3	01	1	0308-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) TKK	8-97046-700-0	01	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-701-2	01	1	0207-0307		●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	9707-0206	●			●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	0207-0307		●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	0308-			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9707-0206	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0308-			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9707-0206				●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9707-0206	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0308-			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9707-0206				●

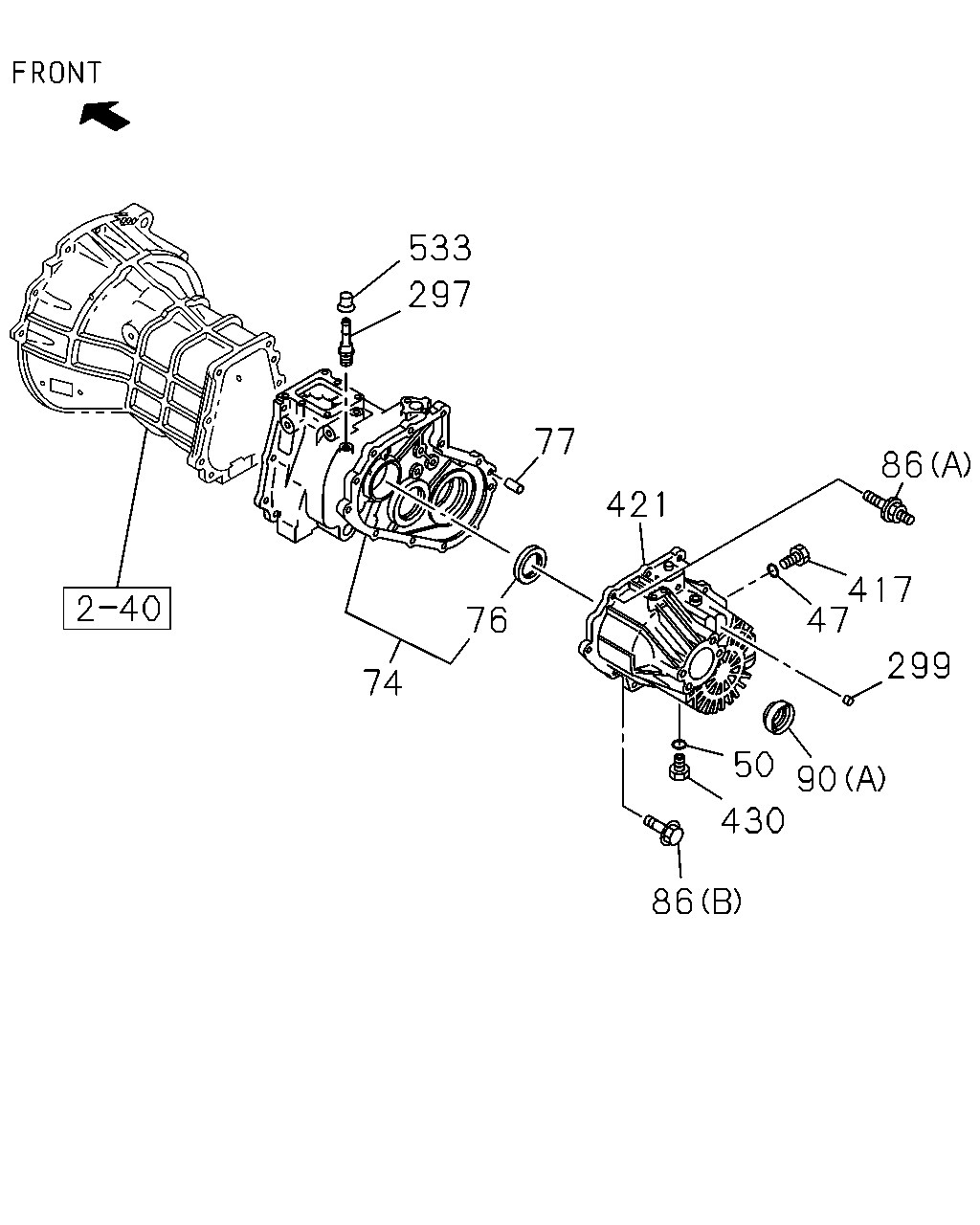

533 297 77 86 421 417 47 76 299 74 50 90 430 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206	●			●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0307		●	●
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	9707-0206	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0207-0209		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0210-0307		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0210-0307		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0308-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9707-0206				●
74	CASE ASM; TRANSFER	8-97149-125-1	01	1	9707-0206	●
74	CASE ASM; TRANSFER	8-97164-349-0	01	1	9707-0206				●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9707-0206	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97238-999-0	01	1	0207-0307		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97238-999-0	01	1	0308-			●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9707-0206	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9707-0206				●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9707-0206				●
77	PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9707-0206	●			●
86	BOLT; RR COVER (A) M10X18,M10X35 L=63	8-94367-310-1	02	1	9707-0206	●			●
86	BOLT; RR COVER (D) M10X55 FLANGE	8-94473-959-1	03	1	0207-0307		●
86	BOLT; RR COVER (B) M10X35 FLANGE	8-94448-818-1	09	1	9707-9805	●			●
86	BOLT; RR COVER (B) M10X35 FLANGE	0-28081-035-0	09	1	9806-0206	●			●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0207-0307		●	●
86	BOLT; RR COVER (E) M8X45 FLANGE	0-28080-845-0	16	1	0308-			●
86	BOLT; RR COVER (C) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) TKK	8-97046-706-0	01	1	9707-0010	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A) NOK	8-97046-707-2	01	1	9707-0206	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-2	01	1	0207-0307		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) NOK	8-97046-705-3	01	1	0308-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) TKK	8-97046-700-0	01	1	0207-0307		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-701-2	01	1	0207-0307		●
297	BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9707-0206	●
297	BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9707-0206				●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	9707-0206	●			●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	0207-0307		●	●
299	PLUG; SHIFTER ROD OD=14	5-09609-004-0	02	1	0308-			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	02	1	9707-0206	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0207-0307		●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0308-			●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	9707-0206				●
421	COVER; RR,TRANS	8-97126-772-1	01	1	9707-9903	●			●
421	COVER; RR,TRANS	8-97220-601-0	01	1	9904-0206	●			●
421	COVER; RR,TRANS	8-97301-224-2	01	1	0207-0307		●
430	PLUG; OIL DRAIN	9-09662-004-0	02	1	9707-0206	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0207-0307		●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0308-			●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	9707-0206				●
533	CAP; AIR BREATHER	8-94362-237-0	01	1	9707-0206				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
