◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#42131) — 45 parça

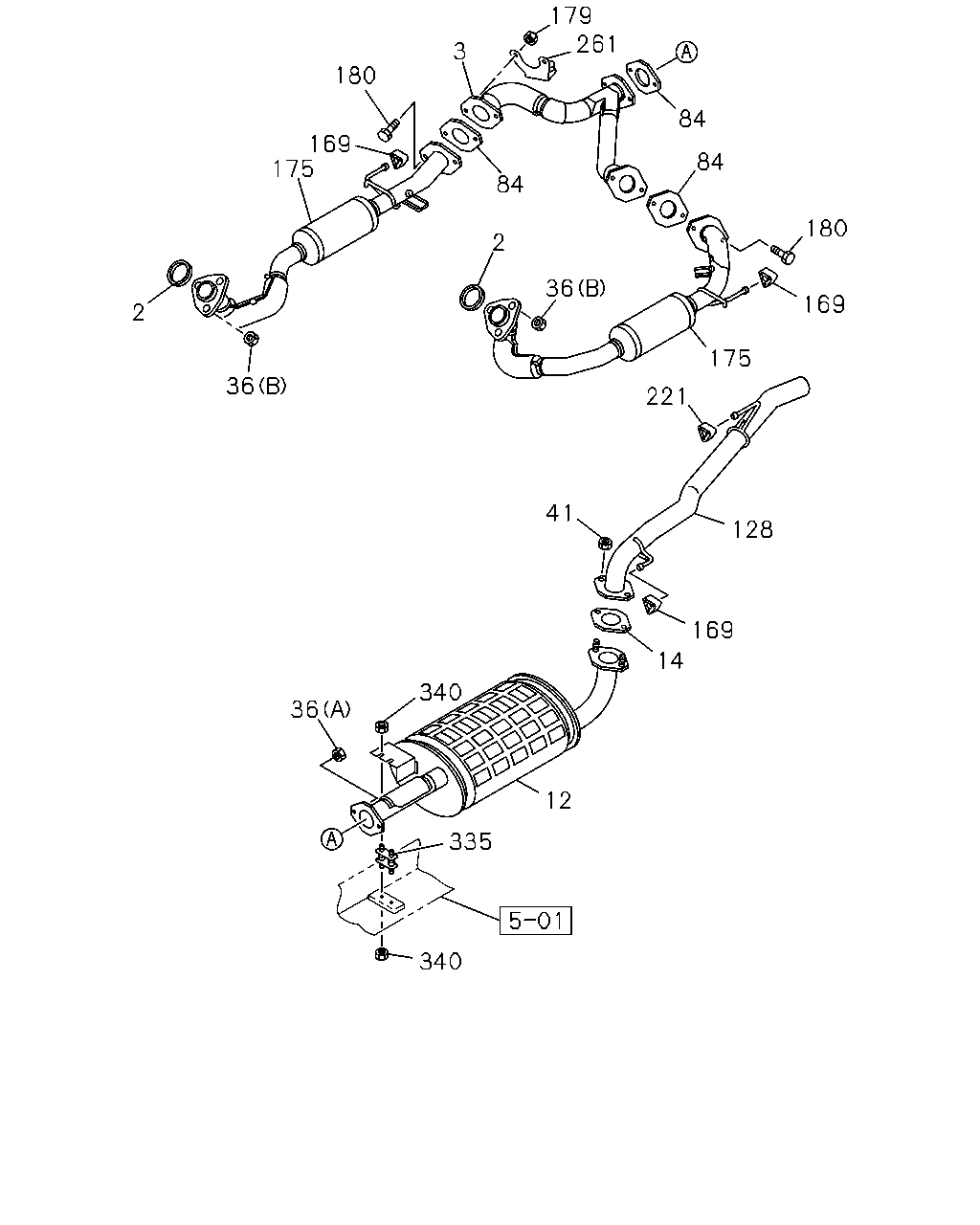

çizim 72221
179 261 3 180 84 169 175 84 84 180 2 36 169 2 175 36 221 41 128 169 14 340 36 12 335 340
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET; PIPE TO MANIF 8-97102-031-1 02 1 9707-
3 PIPE; EXH,CENTER 8-97140-711-1 01 1 9707-9806
3 PIPE; EXH,CENTER 8-97207-108-0 01 1 9807-9908
3 PIPE; EXH,CENTER 8-97207-971-0 01 1 9909-
12 SILENCER ASM; EXH 8-97140-699-2 01 1 9707-9806
12 SILENCER ASM; EXH 8-97207-110-0 01 1 9807-9908
12 SILENCER ASM; EXH 8-97207-973-1 01 1 9909-
14 GASKET; SILENCER TO EXH PIPE
ID=65 		8-97148-757-1 01 1 9707-
36 NUT; EXH PIPE
(A) M10 FLANGE 		0-91150-110-0 02 1 9707-
36 NUT; EXH PIPE
(B) M12 FLANGE 		8-97170-524-1 06 1 9707-
41 NUT; EXH PIPE TO EXH SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9707-9802
41 NUT; EXH PIPE TO EXH SILENCER
M10 		8-94201-308-1 02 1 9803-
84 GASKET; EXH PIPE
ID=65 		8-97148-757-1 03 1 9707-
128 PIPE; EXH,RR 8-97140-704-1 01 1 9707-9908
128 PIPE; EXH,RR 8-97207-975-0 01 1 9909-
169 RING; DAMPER,EXH PIPE 8-97120-442-0 03 1 9707-
175 CONVERTER; CATALYST
A/T AISIN(RMD) 		8-97315-637-0 01 1 0207-0307
175 CONVERTER; CATALYST 8-97315-637-0 01 1 0308-
175 CONVERTER; CATALYST
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-97179-912-1 01 1 9808-9908
175 CONVERTER; CATALYST
A/T THM(RMQ) 		8-97207-970-0 01 1 9909-0007
175 CONVERTER; CATALYST 8-97207-970-0 01 1 0008-0110
175 CONVERTER; CATALYST 8-97315-636-0 01 1 0111-0206
175 CONVERTER; CATALYST
M/T MUA 5 SPEED 5C(RSN) 		8-97315-636-0 01 1 0207-0307
175 CONVERTER; CATALYST
A/T THM(RMQ) CALIFORNIA EMISSION SYSTEM(NB7) 		8-97179-911-1 01 1 9808-9908
175 CONVERTER; CATALYST
A/T THM(RMQ) 		8-97207-969-0 01 1 9909-0007
175 CONVERTER; CATALYST 8-97207-969-0 01 1 0008-0110
175 CONVERTER; CATALYST 8-97315-635-0 01 1 0111-
175 CONVERTER; CATALYST
CALIFORNIA EMISSION SYSTEM(NB7) 		8-97148-832-1 01 1 9707-9807
175 CONVERTER; CATALYST
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-97148-832-2 01 1 9808-9908
175 CONVERTER; CATALYST
M/T MUA 5 SPEED(RMN) 		8-97207-968-0 01 1 9909-0007
175 CONVERTER; CATALYST
CALIFORNIA EMISSION SYSTEM(NB7) 		8-97148-831-2 01 1 9707-9807
175 CONVERTER; CATALYST
M/T MUA 5 SPEED(RMN) CALIFORNIA EMISSION SYSTEM(NB7) 		8-97148-831-3 01 1 9808-9908
175 CONVERTER; CATALYST
M/T MUA 5 SPEED(RMN) 		8-97207-967-0 01 1 9909-0007
175 CONVERTER; CATALYST
EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-97148-834-2 01 1 9707-9908
175 CONVERTER; CATALYST
EXC. CALIFORNIA EMISSION SYSTEM(NB7) 		8-97148-833-3 01 1 9707-9908
179 NUT; CONV TO PIPE
M10 FLANGE 		0-91150-110-0 02 1 9707-
180 BOLT; CONV TO PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 9707-0307
180 BOLT; CONV TO PIPE
M10X40 FLANGE 		0-28681-040-0 02 1 0308-
221 CLAMP; EXH SILENCER 8-97120-442-0 01 1 9707-
261 DAMPER; MASS,EXH 8-97180-935-2 01 1 9707-9805
261 DAMPER; MASS,EXH 8-97210-805-0 01 1 9806-9908
261 DAMPER; MASS,EXH 8-97245-171-0 01 1 9909-9910
261 DAMPER; MASS,EXH 8-97250-184-0 01 1 9911-
335 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9707-
340 NUT; RUBBER,SUPPORT
M8 FLANGE 		0-91150-108-0 04 1 9707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
