◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#42130) — 279 parça
çizim 18593
15 350 307 15
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; FUEL PIPE
(A) 		8-97125-117-0 02 1 9707-
15 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0011-0206
15 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5C(RSN) (B) 		8-97287-365-0 01 1 0207-0307
15 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0011-0206
15 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5C(RSN) (C) 		8-97287-366-0 01 1 0207-0307
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) 		8-97179-676-2 01 1 9707-9906
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) 		8-97229-943-1 01 1 9907-9908
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) 		8-97233-141-1 01 1 9909-0206
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) 		8-97135-820-3 01 1 9707-9906
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) 		8-97230-272-1 01 1 9907-9908
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) 		8-97233-142-1 01 1 9909-0206
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED 5C(RSN) 		8-97233-142-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97139-258-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97260-200-0 01 1 0008-0111
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97320-566-0 01 1 0112-0206
350 PIPE; FUEL,DEL & RET
(B) 		8-97320-566-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(B) 		8-97356-890-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9707-9810
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9811-0010
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97287-308-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (A) 		8-97349-243-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(A) 		8-97349-243-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97210-830-0 01 1 9811-9811
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97136-253-2 01 1 9707-0010
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97287-311-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97287-311-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97139-257-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97260-202-0 01 1 0008-0206

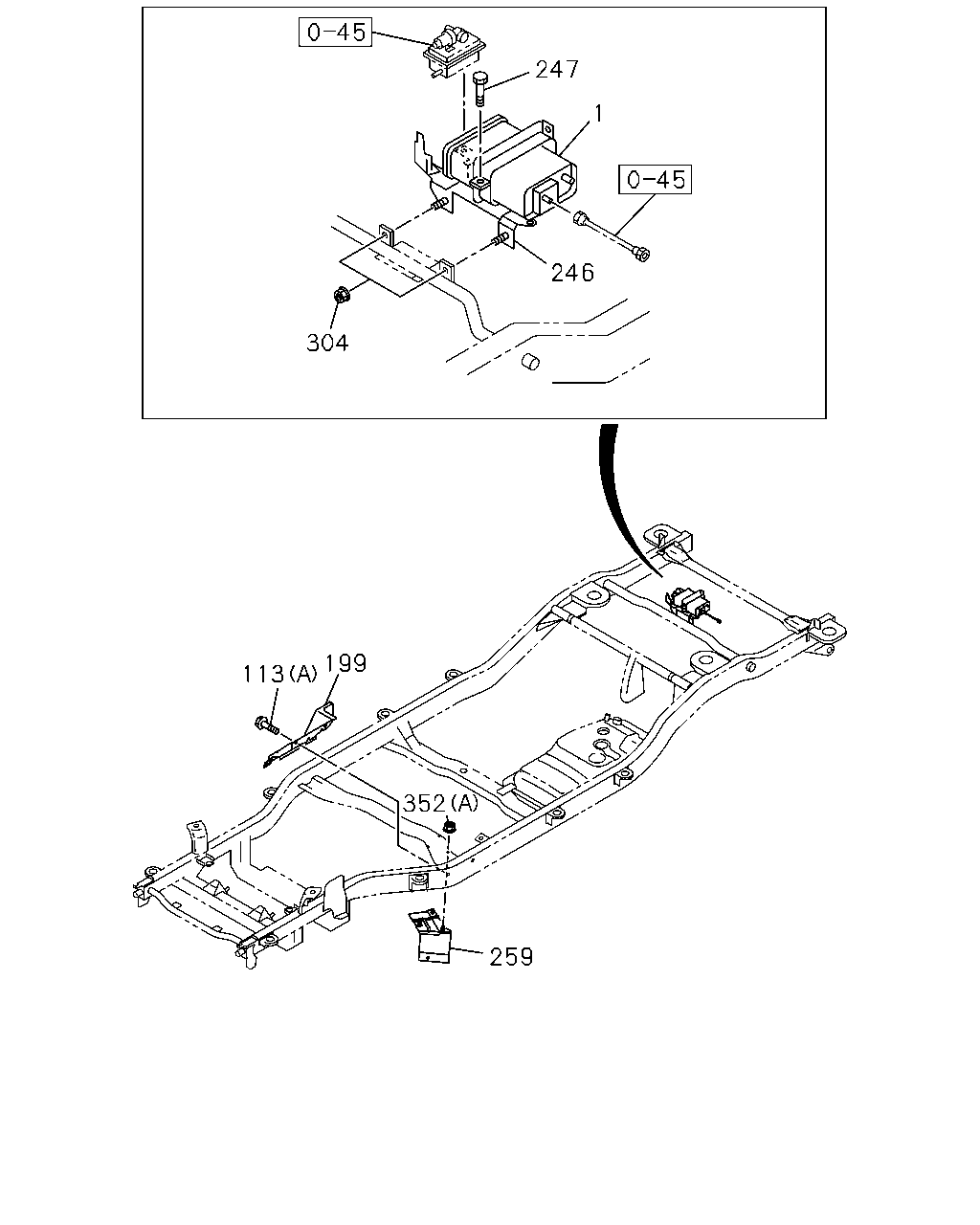

çizim 19203
247 1 246 304 199 113 352 259
BalonParca AdiParca NoAdetTipApplied Date
1 CANISTER; FUEL 8-17096-147-0 01 1 9707-9707
1 CANISTER; FUEL 8-17097-118-0 01 1 9708-0007
1 CANISTER; FUEL 8-17201-171-0 01 1 0008-
113 BOLT; PROTECTOR
(A) M8X25 		8-97091-076-0 03 1 9707-0211
113 BOLT; PROTECTOR
(A) M8X25 		8-97327-634-0 03 1 0212-
113 BOLT; PROTECTOR
A/T AISIN(RMD) (B) M6X10 FLANGE 		0-28080-610-0 01 1 0207-0307
113 BOLT; PROTECTOR
(B) M6X10 FLANGE 		0-28080-610-0 01 1 0308-
113 BOLT; PROTECTOR
A/T AISIN(RMD) (C) M6X16 FLANGE 		0-28680-616-0 01 1 0207-0307
113 BOLT; PROTECTOR
(C) M6X16 FLANGE 		0-28680-616-0 01 1 0308-
199 PROTECTOR; FUEL PIPE 8-97166-881-2 01 1 9707-
246 BRACKET; CANISTER 8-97130-941-2 01 1 9707-0007
246 BRACKET; CANISTER 8-97220-559-1 01 1 0008-
247 BOLT; CANISTER BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 9707-
259 PROTECTOR; FUEL PIPE
A/T THM(RMQ) 		8-97166-880-1 01 1 9707-0206
259 PROTECTOR; FUEL PIPE 8-97166-880-1 01 1 0207-
259 PROTECTOR; FUEL PIPE
M/T MUA 5 SPEED(RMN) 		8-97166-879-1 01 1 9707-0206
304 NUT; BRKT
M12 		8-94400-927-0 02 1 9707-
352 NUT; PROTECTOR
(A) M6 FLANGE 		8-97063-399-0 03 1 9707-
352 NUT; PROTECTOR
A/T AISIN(RMD) (B) M8 FLANGE 		0-91150-108-0 01 1 0207-0307
352 NUT; PROTECTOR
(B) M8 FLANGE 		0-91150-108-0 01 1 0308-

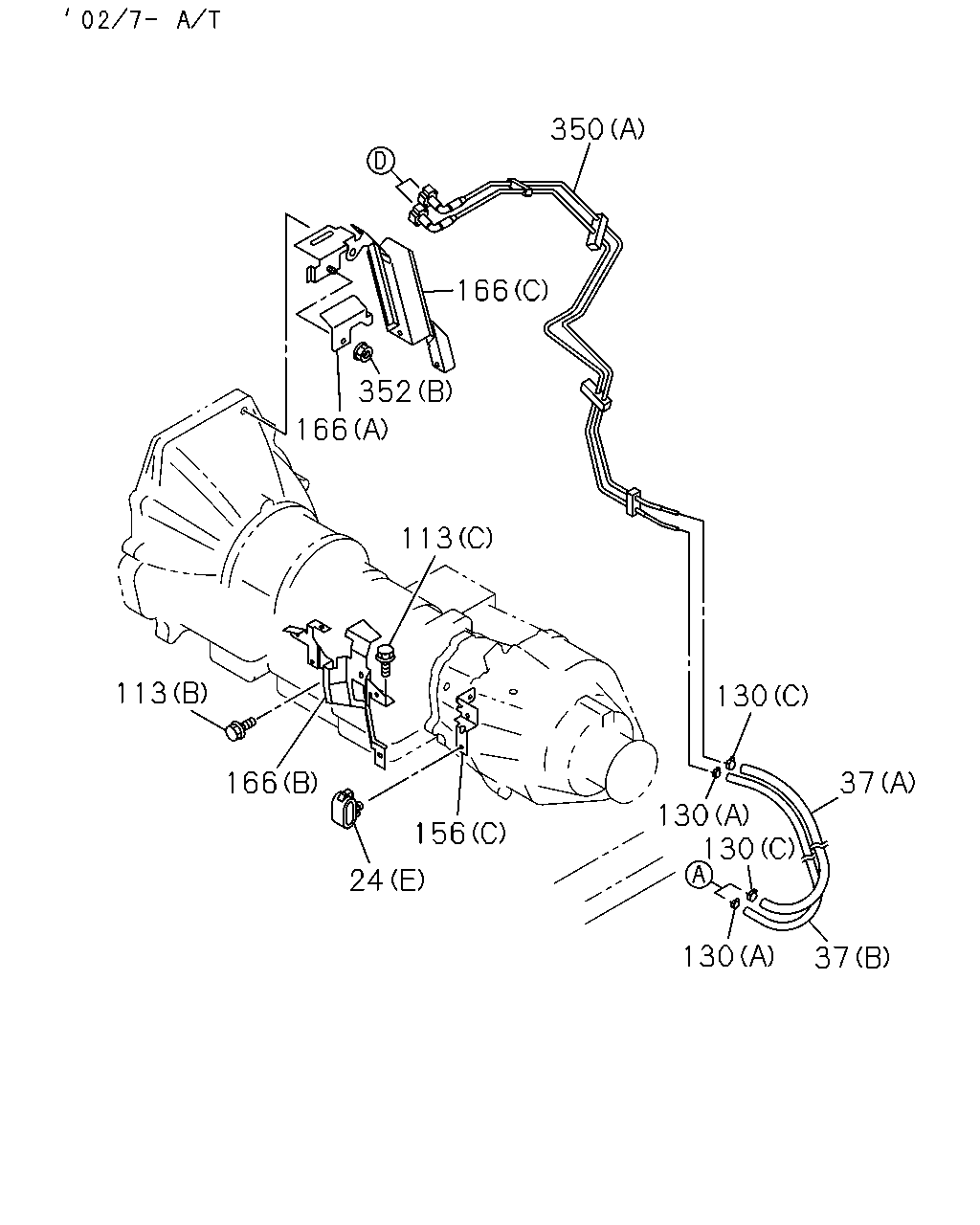

çizim 67352
350 166 352 166 113 113 130 37 166 130 130 156 24 130 37
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(A) ID=13 		8-94238-571-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(C) 		8-97019-746-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(D) ID=12 		8-97148-892-1 04 1 9707-0307
24 CLIP; FUEL HOSE
(B) 		8-97173-119-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 9909-0206
24 CLIP; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) (E) 		8-97233-274-0 01 1 0207-0307
24 CLIP; FUEL HOSE
A/T AISIN(RMD),M/T MUA 5 SPEED 5C(RSN) (E) 		8-97233-274-0 01 1 0207-0307
24 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0308-
37 HOSE; RUBBER DELIVERY
(A) 		8-97165-094-1 01 1 9707-0206
37 HOSE; RUBBER DELIVERY
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97165-095-1 01 1 0207-0307
37 HOSE; RUBBER DELIVERY
(B) 		8-97165-096-1 01 1 9707-0206
37 HOSE; RUBBER DELIVERY
A/T AISIN(RMD) (A) 		8-97289-699-0 01 1 0207-0307
37 HOSE; RUBBER DELIVERY
(A) 		8-97289-699-0 01 1 0308-
37 HOSE; RUBBER DELIVERY
(B) 		8-97165-097-1 01 1 0207-
113 BOLT; PROTECTOR
(A) M8X25 		8-97091-076-0 03 1 9707-0211
113 BOLT; PROTECTOR
(A) M8X25 		8-97327-634-0 03 1 0212-
113 BOLT; PROTECTOR
A/T AISIN(RMD) (B) M6X10 FLANGE 		0-28080-610-0 01 1 0207-0307
113 BOLT; PROTECTOR
(B) M6X10 FLANGE 		0-28080-610-0 01 1 0308-
113 BOLT; PROTECTOR
A/T AISIN(RMD) (C) M6X16 FLANGE 		0-28680-616-0 01 1 0207-0307
113 BOLT; PROTECTOR
(C) M6X16 FLANGE 		0-28680-616-0 01 1 0308-
130 CLIP; RUBBER HOSE
(B) ID=14 		8-94238-572-0 01 1 9707-0307
130 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9707-
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 03 1 9707-0206
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 02 1 0207-
130 CLIP; RUBBER HOSE
M/T MUA 5 SPEED 5C(RSN) (C) ID=12 		8-97148-892-1 01 1 0207-0307
156 BRACKET; FUEL HOSE
A/T THM(RMQ) (A) 		8-97166-671-0 01 1 9707-9908
156 BRACKET; FUEL HOSE
A/T THM(RMQ) (A) 		8-97231-352-0 01 1 9909-0206
156 BRACKET; FUEL HOSE
A/T AISIN(RMD) (C) 		8-97310-646-1 01 1 0207-0402
156 BRACKET; FUEL HOSE
(C) 		8-97310-646-1 01 1 0403-
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) (D) 		8-97315-487-0 01 1 0207-0307
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED(RMN) (B) 		8-97166-672-0 01 1 9707-9908
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED(RMN) (B) 		8-97231-353-0 01 1 9909-0206
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) (B) 		8-97231-353-0 01 1 0207-0307
166 PROTECTOR; FUEL HOSE
A/T AISIN(RMD) (A) 		8-97306-527-0 01 1 0207-0307
166 PROTECTOR; FUEL HOSE
(A) 		8-97306-527-0 01 1 0308-
166 PROTECTOR; FUEL HOSE
A/T AISIN(RMD) (B) 		8-97349-244-1 01 1 0207-0307
166 PROTECTOR; FUEL HOSE
(B) 		8-97349-244-1 01 1 0308-
166 PROTECTOR; FUEL HOSE
A/T AISIN(RMD) (C) 		8-97349-249-2 01 1 0207-0307
166 PROTECTOR; FUEL HOSE
(C) 		8-97349-249-2 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97139-258-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97260-200-0 01 1 0008-0111
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97320-566-0 01 1 0112-0206
350 PIPE; FUEL,DEL & RET
(B) 		8-97320-566-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(B) 		8-97356-890-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9707-9810
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9811-0010
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97287-308-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (A) 		8-97349-243-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(A) 		8-97349-243-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97210-830-0 01 1 9811-9811
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97136-253-2 01 1 9707-0010
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97287-311-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97287-311-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97139-257-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97260-202-0 01 1 0008-0206
352 NUT; PROTECTOR
(A) M6 FLANGE 		8-97063-399-0 03 1 9707-
352 NUT; PROTECTOR
A/T AISIN(RMD) (B) M8 FLANGE 		0-91150-108-0 01 1 0207-0307
352 NUT; PROTECTOR
(B) M8 FLANGE 		0-91150-108-0 01 1 0308-

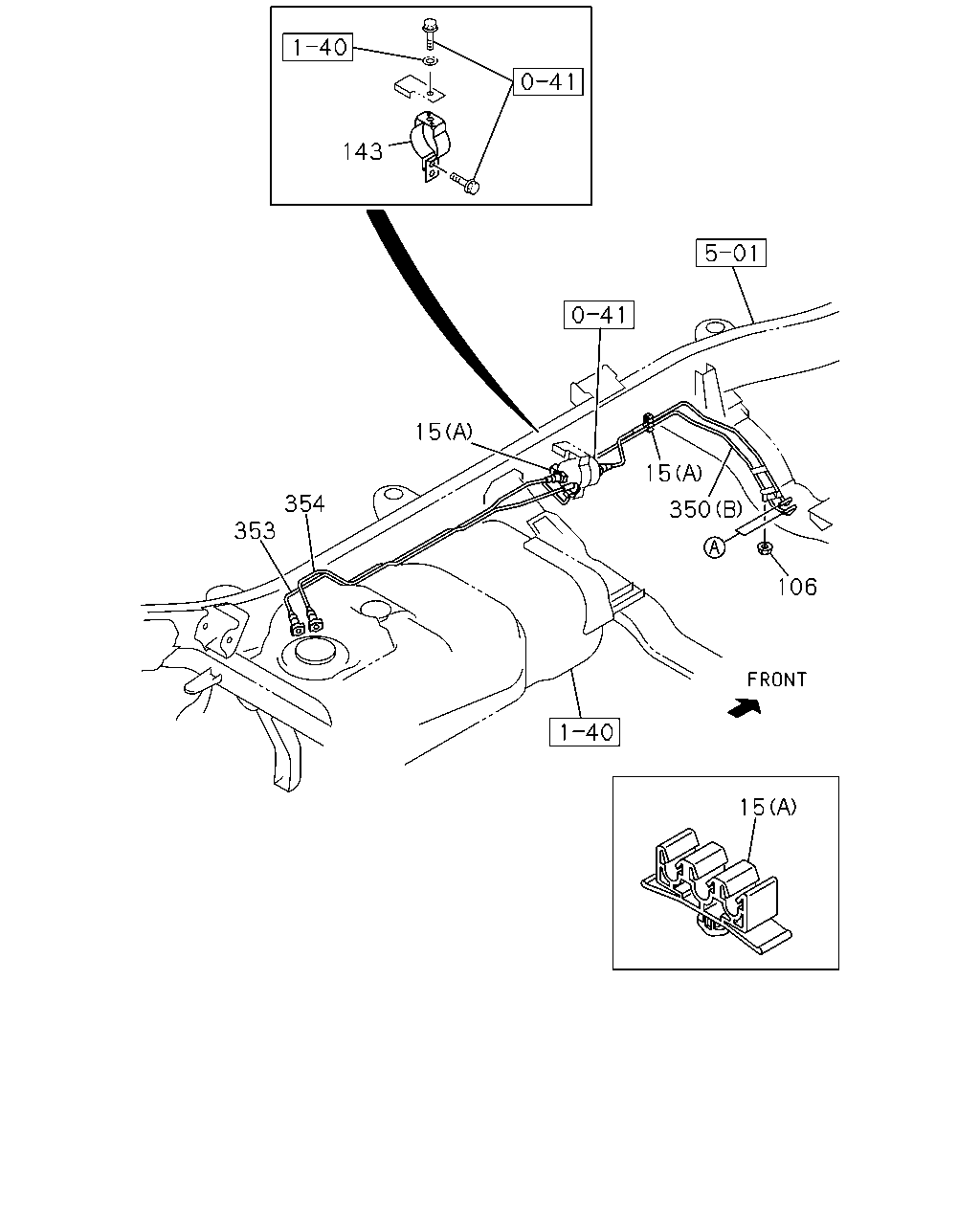

çizim 68879
143 15 15 354 353 350 106 15
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; FUEL PIPE
(A) 		8-97125-117-0 02 1 9707-
15 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0011-0206
15 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5C(RSN) (B) 		8-97287-365-0 01 1 0207-0307
15 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0011-0206
15 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5C(RSN) (C) 		8-97287-366-0 01 1 0207-0307
106 NUT; FUEL PIPE
M6 FLANGE 		0-91150-106-0 01 1 9707-9712
106 NUT; FUEL PIPE
M6 FLANGE 		8-97063-399-0 01 1 9801-
143 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9707-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97139-258-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97260-200-0 01 1 0008-0111
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97320-566-0 01 1 0112-0206
350 PIPE; FUEL,DEL & RET
(B) 		8-97320-566-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(B) 		8-97356-890-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9707-9810
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9811-0010
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97287-308-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (A) 		8-97349-243-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(A) 		8-97349-243-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97210-830-0 01 1 9811-9811
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97136-253-2 01 1 9707-0010
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97287-311-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97287-311-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97139-257-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97260-202-0 01 1 0008-0206
353 TUBE; FUEL,DELIVERY 8-97329-429-2 01 1 0308-0402
353 TUBE; FUEL,DELIVERY 8-97329-429-2 01 1 0403-
354 TUBE; FUEL,RETURN 8-97356-888-2 01 1 0308-

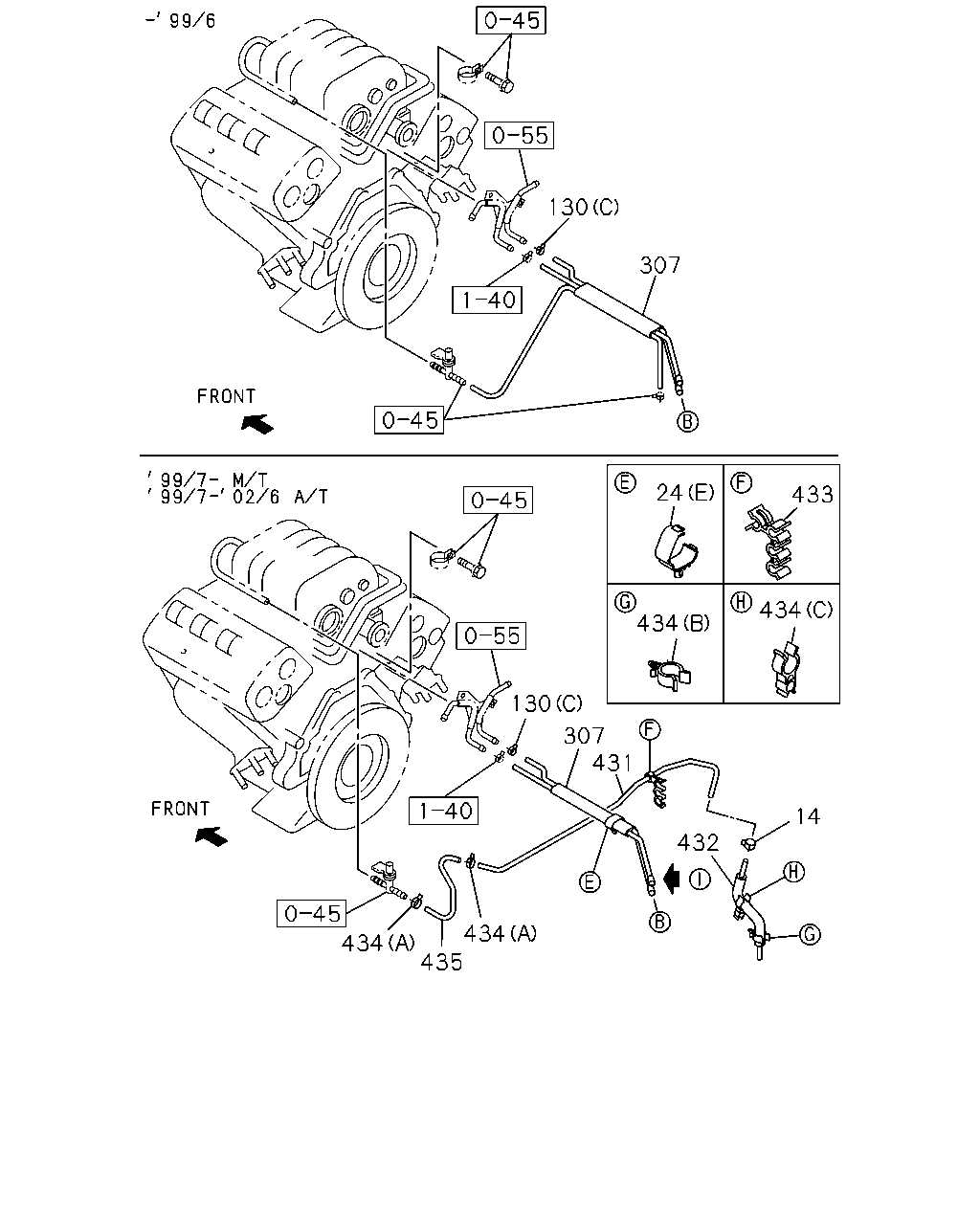

çizim 69552
130 307 24 433 434 434 130 307 431 14 432 434 435 434
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
ID=11 		8-94238-570-0 01 1 9907-0007
14 CLIP; HOSE
ID=12 		8-94238-610-0 01 1 0008-
24 CLIP; FUEL HOSE
(A) ID=13 		8-94238-571-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(C) 		8-97019-746-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(D) ID=12 		8-97148-892-1 04 1 9707-0307
24 CLIP; FUEL HOSE
(B) 		8-97173-119-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 9909-0206
24 CLIP; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) (E) 		8-97233-274-0 01 1 0207-0307
24 CLIP; FUEL HOSE
A/T AISIN(RMD),M/T MUA 5 SPEED 5C(RSN) (E) 		8-97233-274-0 01 1 0207-0307
24 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0308-
130 CLIP; RUBBER HOSE
(B) ID=14 		8-94238-572-0 01 1 9707-0307
130 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9707-
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 03 1 9707-0206
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 02 1 0207-
130 CLIP; RUBBER HOSE
M/T MUA 5 SPEED 5C(RSN) (C) ID=12 		8-97148-892-1 01 1 0207-0307
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) 		8-97179-676-2 01 1 9707-9906
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) 		8-97229-943-1 01 1 9907-9908
307 HOSE ASM; FUEL,DELIVERY & RETURN
A/T THM(RMQ) 		8-97233-141-1 01 1 9909-0206
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) 		8-97135-820-3 01 1 9707-9906
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) 		8-97230-272-1 01 1 9907-9908
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED(RMN) 		8-97233-142-1 01 1 9909-0206
307 HOSE ASM; FUEL,DELIVERY & RETURN
M/T MUA 5 SPEED 5C(RSN) 		8-97233-142-1 01 1 0207-0307
431 PIPE; PURGE,ENG ROOM 8-97229-942-1 01 1 9907-9908
431 PIPE; PURGE,ENG ROOM 8-97233-139-0 01 1 9909-0007
431 PIPE; PURGE,ENG ROOM 8-97235-920-1 01 1 0008-
432 HOSE; PURGE,PIPE TO PIPE 8-97232-280-0 01 1 9907-0007
432 HOSE; PURGE,PIPE TO PIPE 8-97236-079-1 01 1 0008-0307
432 HOSE; PURGE,PIPE TO PIPE 8-97289-588-1 01 1 0308-
433 CLIP; PURGE PIPE
ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 9907-0007
433 CLIP; PURGE PIPE
ID=7.8 & 4.7 & 4.7 & 4.7 		8-97236-078-0 01 1 0008-
434 CLIP; PURGE HOSE
(A) ID=11 		8-94238-570-0 02 1 9907-0007
434 CLIP; PURGE HOSE
(A) ID=12 		8-94238-610-0 02 1 0008-
434 CLIP; PURGE HOSE
(B) ID=17 		8-94382-792-1 01 1 9907-
434 CLIP; PURGE HOSE
(C) ID=16.5 & 4.8 		8-94415-087-0 01 1 9910-
435 HOSE; RUBBER,EVAPO & VACUUM
L=255 		8-97230-433-0 01 1 9907-0007
435 HOSE; RUBBER,EVAPO & VACUUM 8-97234-120-1 01 1 0008-

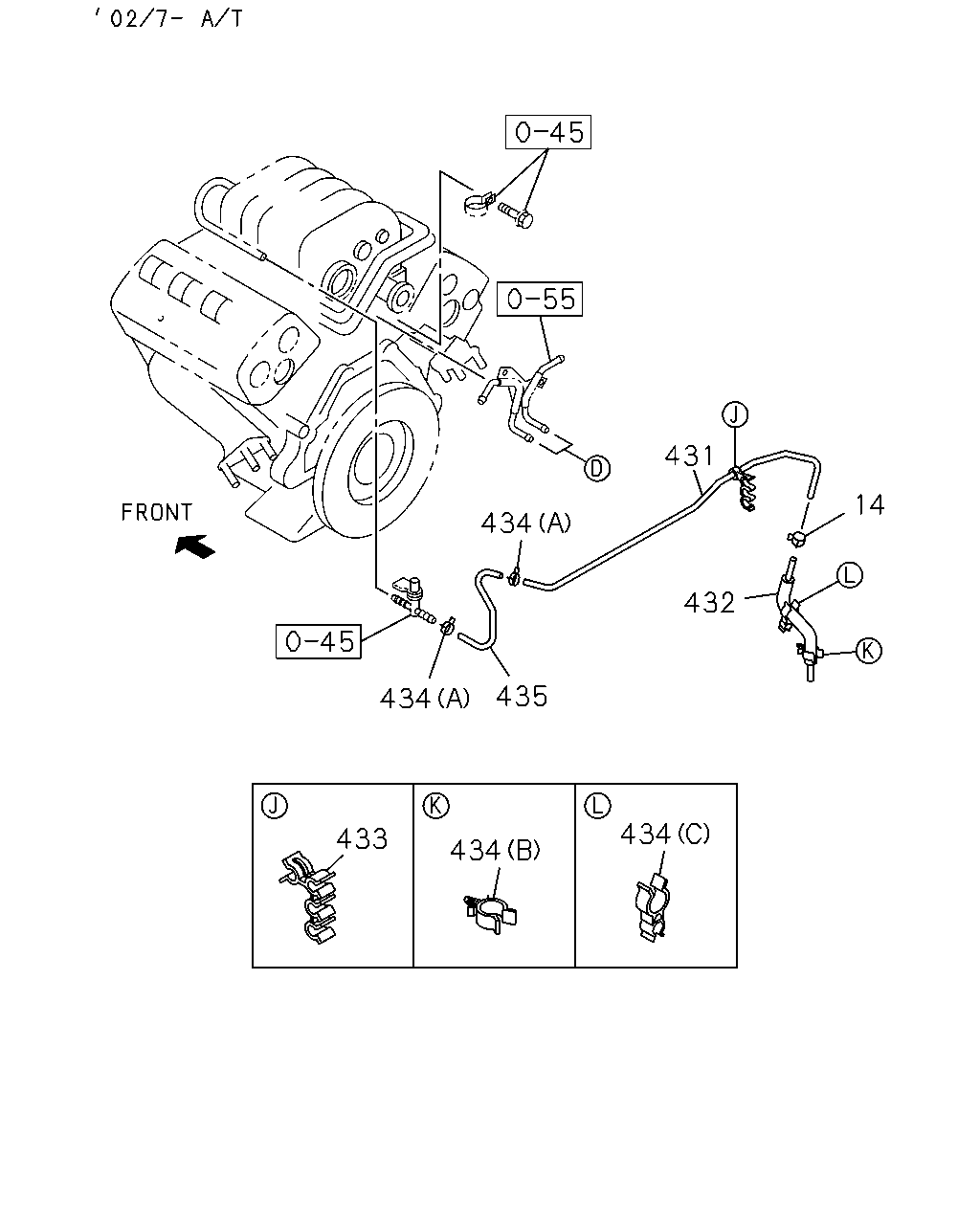

çizim 69623
431 14 434 432 435 434 434 433 434
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
ID=11 		8-94238-570-0 01 1 9907-0007
14 CLIP; HOSE
ID=12 		8-94238-610-0 01 1 0008-
431 PIPE; PURGE,ENG ROOM 8-97229-942-1 01 1 9907-9908
431 PIPE; PURGE,ENG ROOM 8-97233-139-0 01 1 9909-0007
431 PIPE; PURGE,ENG ROOM 8-97235-920-1 01 1 0008-
432 HOSE; PURGE,PIPE TO PIPE 8-97232-280-0 01 1 9907-0007
432 HOSE; PURGE,PIPE TO PIPE 8-97236-079-1 01 1 0008-0307
432 HOSE; PURGE,PIPE TO PIPE 8-97289-588-1 01 1 0308-
433 CLIP; PURGE PIPE
ID=6.4 & 4.8 & 4.8 & 4.8 		8-97204-275-0 01 1 9907-0007
433 CLIP; PURGE PIPE
ID=7.8 & 4.7 & 4.7 & 4.7 		8-97236-078-0 01 1 0008-
434 CLIP; PURGE HOSE
(A) ID=11 		8-94238-570-0 02 1 9907-0007
434 CLIP; PURGE HOSE
(A) ID=12 		8-94238-610-0 02 1 0008-
434 CLIP; PURGE HOSE
(B) ID=17 		8-94382-792-1 01 1 9907-
434 CLIP; PURGE HOSE
(C) ID=16.5 & 4.8 		8-94415-087-0 01 1 9910-
435 HOSE; RUBBER,EVAPO & VACUUM
L=255 		8-97230-433-0 01 1 9907-0007
435 HOSE; RUBBER,EVAPO & VACUUM 8-97234-120-1 01 1 0008-

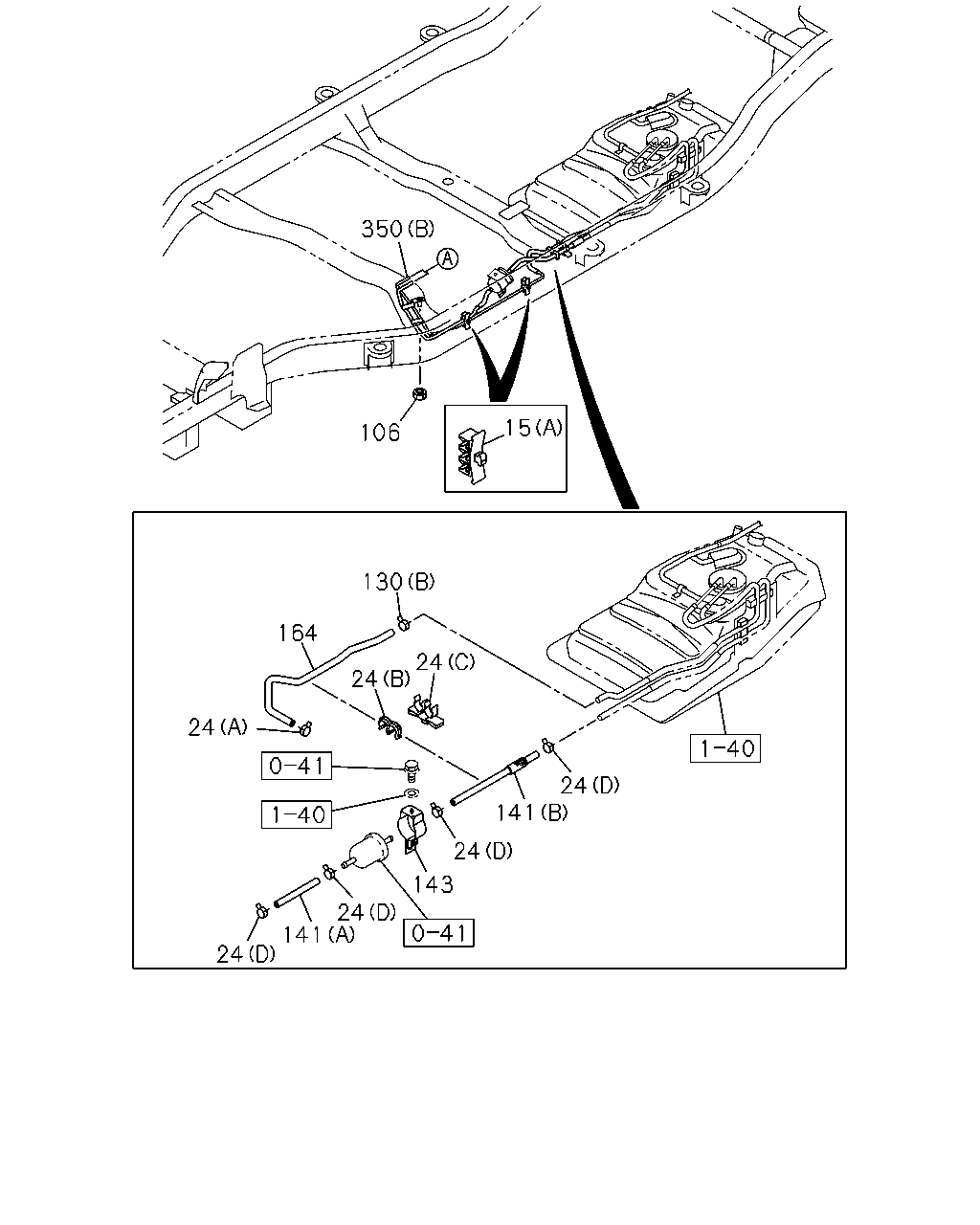

çizim 70082
350 15 106 130 164 24 24 24 24 141 24 143 24 141 24
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; FUEL PIPE
(A) 		8-97125-117-0 02 1 9707-
15 CLIP; FUEL PIPE
(B) 		8-97287-365-0 01 1 0011-0206
15 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5C(RSN) (B) 		8-97287-365-0 01 1 0207-0307
15 CLIP; FUEL PIPE
(C) 		8-97287-366-0 01 1 0011-0206
15 CLIP; FUEL PIPE
M/T MUA 5 SPEED 5C(RSN) (C) 		8-97287-366-0 01 1 0207-0307
24 CLIP; FUEL HOSE
(A) ID=13 		8-94238-571-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(C) 		8-97019-746-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(D) ID=12 		8-97148-892-1 04 1 9707-0307
24 CLIP; FUEL HOSE
(B) 		8-97173-119-0 01 1 9707-0307
24 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 9909-0206
24 CLIP; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) (E) 		8-97233-274-0 01 1 0207-0307
24 CLIP; FUEL HOSE
A/T AISIN(RMD),M/T MUA 5 SPEED 5C(RSN) (E) 		8-97233-274-0 01 1 0207-0307
24 CLIP; FUEL HOSE
(E) 		8-97233-274-0 01 1 0308-
106 NUT; FUEL PIPE
M6 FLANGE 		0-91150-106-0 01 1 9707-9712
106 NUT; FUEL PIPE
M6 FLANGE 		8-97063-399-0 01 1 9801-
130 CLIP; RUBBER HOSE
(B) ID=14 		8-94238-572-0 01 1 9707-0307
130 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9707-
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 03 1 9707-0206
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 02 1 0207-
130 CLIP; RUBBER HOSE
M/T MUA 5 SPEED 5C(RSN) (C) ID=12 		8-97148-892-1 01 1 0207-0307
141 HOSE; FUEL FILTER TO PIPE
(A) L=150 SERVICED BY L=3000 		0-01458-300-0 01 1 9707-0206
141 HOSE; FUEL FILTER TO PIPE
(A) L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 0207-0307
141 HOSE; FUEL FILTER TO PIPE
(B) 		8-97164-527-0 01 1 9707-0007
141 HOSE; FUEL FILTER TO PIPE
(B) L=300 SERVICED BY L=3000 		0-01458-300-0 01 1 0008-0206
141 HOSE; FUEL FILTER TO PIPE
(B) L=300 SERVICED BY L=3000 		0-01558-300-0 01 1 0207-0307
143 CLAMP; FUEL FILTER 8-97049-810-1 01 1 9707-
164 HOSE; RUBBER,FUEL RETURN 8-97130-562-2 01 1 9707-0007
164 HOSE; RUBBER,FUEL RETURN 8-97260-272-0 01 1 0008-0307
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97139-258-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97260-200-0 01 1 0008-0111
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97320-566-0 01 1 0112-0206
350 PIPE; FUEL,DEL & RET
(B) 		8-97320-566-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(B) 		8-97356-890-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9707-9810
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9811-0010
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97287-308-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (A) 		8-97349-243-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(A) 		8-97349-243-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97210-830-0 01 1 9811-9811
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97136-253-2 01 1 9707-0010
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97287-311-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97287-311-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97139-257-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97260-202-0 01 1 0008-0206

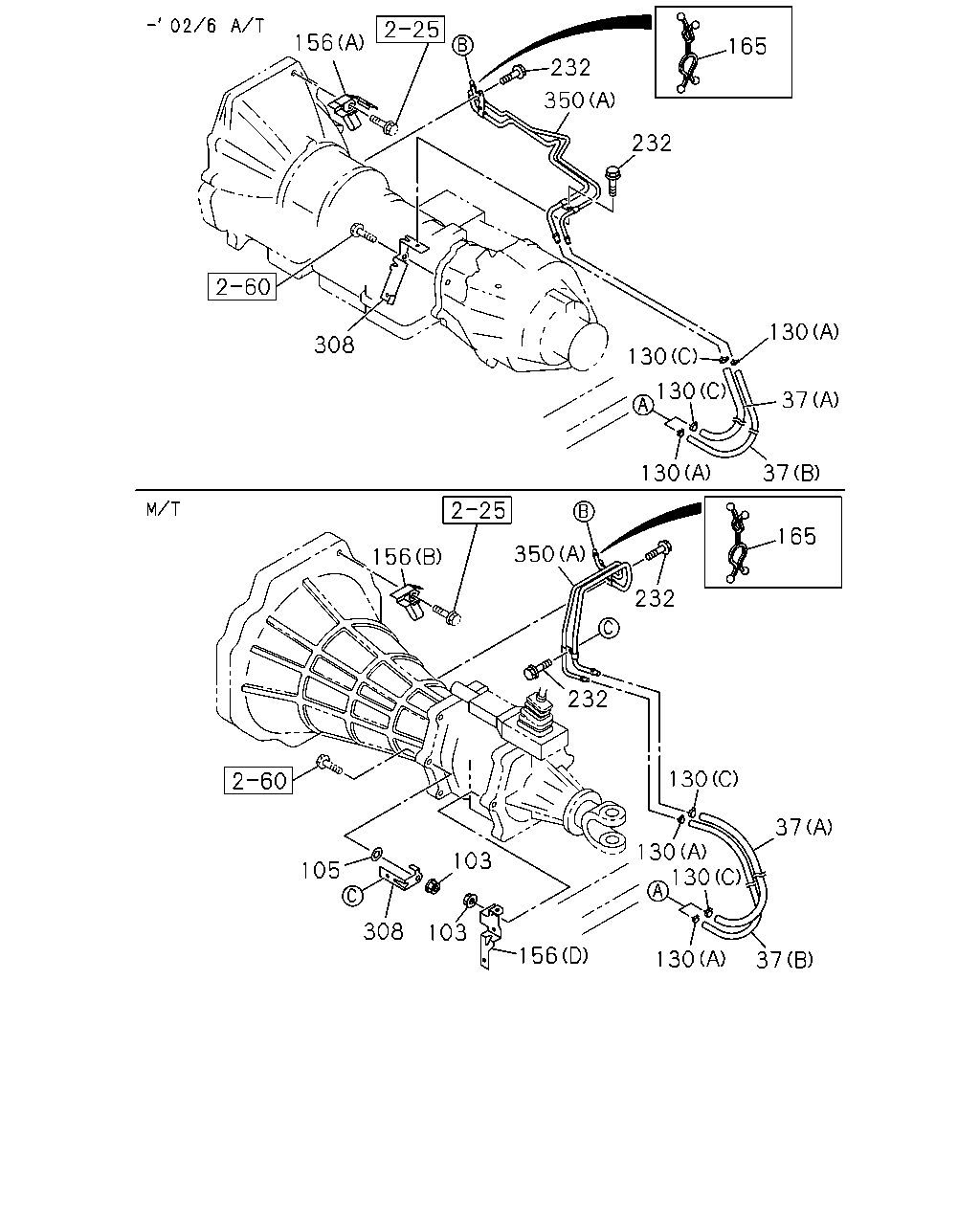

çizim 71196
156 165 232 350 232 130 308 130 130 37 130 37 165 350 156 232 232 130 37 130 130 103 105 308 103 156 130 37
BalonParca AdiParca NoAdetTipApplied Date
37 HOSE; RUBBER DELIVERY
(A) 		8-97165-094-1 01 1 9707-0206
37 HOSE; RUBBER DELIVERY
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97165-095-1 01 1 0207-0307
37 HOSE; RUBBER DELIVERY
(B) 		8-97165-096-1 01 1 9707-0206
37 HOSE; RUBBER DELIVERY
A/T AISIN(RMD) (A) 		8-97289-699-0 01 1 0207-0307
37 HOSE; RUBBER DELIVERY
(A) 		8-97289-699-0 01 1 0308-
37 HOSE; RUBBER DELIVERY
(B) 		8-97165-097-1 01 1 0207-
103 NUT; BRKT
M/T MUA 5 SPEED(RMN) M10 FLANGE 		0-91150-210-0 01 1 9707-0108
103 NUT; BRKT
M/T MUA 5 SPEED(RMN) M10 FLANGE 		8-94242-425-0 01 1 0109-0206
103 NUT; BRKT
M/T MUA 5 SPEED 5C(RSN) M10 FLANGE 		8-94242-425-0 01 1 0207-0307
105 WASHER; PL,BRKT
M/T MUA 5 SPEED(RMN) ID=10.5 		9-09164-510-0 01 1 9707-0108
130 CLIP; RUBBER HOSE
(B) ID=14 		8-94238-572-0 01 1 9707-0307
130 CLIP; RUBBER HOSE
(A) ID=11.5 		8-97138-011-0 02 1 9707-
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 03 1 9707-0206
130 CLIP; RUBBER HOSE
(C) ID=12 		8-97148-892-1 02 1 0207-
130 CLIP; RUBBER HOSE
M/T MUA 5 SPEED 5C(RSN) (C) ID=12 		8-97148-892-1 01 1 0207-0307
156 BRACKET; FUEL HOSE
A/T THM(RMQ) (A) 		8-97166-671-0 01 1 9707-9908
156 BRACKET; FUEL HOSE
A/T THM(RMQ) (A) 		8-97231-352-0 01 1 9909-0206
156 BRACKET; FUEL HOSE
A/T AISIN(RMD) (C) 		8-97310-646-1 01 1 0207-0402
156 BRACKET; FUEL HOSE
(C) 		8-97310-646-1 01 1 0403-
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) (D) 		8-97315-487-0 01 1 0207-0307
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED(RMN) (B) 		8-97166-672-0 01 1 9707-9908
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED(RMN) (B) 		8-97231-353-0 01 1 9909-0206
156 BRACKET; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) (B) 		8-97231-353-0 01 1 0207-0307
165 CLIP; FUEL HOSE 8-97174-301-0 01 1 9707-0011
165 CLIP; FUEL HOSE 8-97029-257-0 01 1 0012-0206
165 CLIP; FUEL HOSE
M/T MUA 5 SPEED 5C(RSN) 		8-97029-257-0 01 1 0207-0307
232 BOLT; CLIP,PIPE
M6X16 FLANGE 		0-28680-616-0 02 1 9707-0106
232 BOLT; CLIP,PIPE
M6X16 FLANGE 		0-28680-616-0 02 1 0107-0206
232 BOLT; CLIP,PIPE
M/T MUA 5 SPEED 5C(RSN) M6X16 FLANGE 		0-28680-616-0 02 1 0207-0307
308 BRACKET; FUEL PIPE
A/T THM(RMQ) 		8-97139-425-1 01 1 9707-9810
308 BRACKET; FUEL PIPE
A/T THM(RMQ) 		8-97210-829-0 01 1 9811-9811
308 BRACKET; FUEL PIPE
A/T THM(RMQ) 		8-97139-425-1 01 1 9811-0206
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED(RMN) 		8-97130-553-0 01 1 9707-0206
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5C(RSN) 		8-97130-553-0 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97139-258-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97260-200-0 01 1 0008-0111
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (B) 		8-97320-566-0 01 1 0112-0206
350 PIPE; FUEL,DEL & RET
(B) 		8-97320-566-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(B) 		8-97356-890-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9707-9810
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97179-674-0 01 1 9811-0010
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97287-308-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
A/T AISIN(RMD) (A) 		8-97349-243-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
(A) 		8-97349-243-1 01 1 0308-
350 PIPE; FUEL,DEL & RET
A/T THM(RMQ) (A) 		8-97210-830-0 01 1 9811-9811
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97136-253-2 01 1 9707-0010
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (A) 		8-97287-311-0 01 1 0011-0206
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5C(RSN) (A) 		8-97287-311-1 01 1 0207-0307
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97139-257-1 01 1 9707-0007
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED(RMN) (B) 		8-97260-202-0 01 1 0008-0206
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
