6-47 — MUD GUARD AND INSULATOR (#42123) — 158 parça

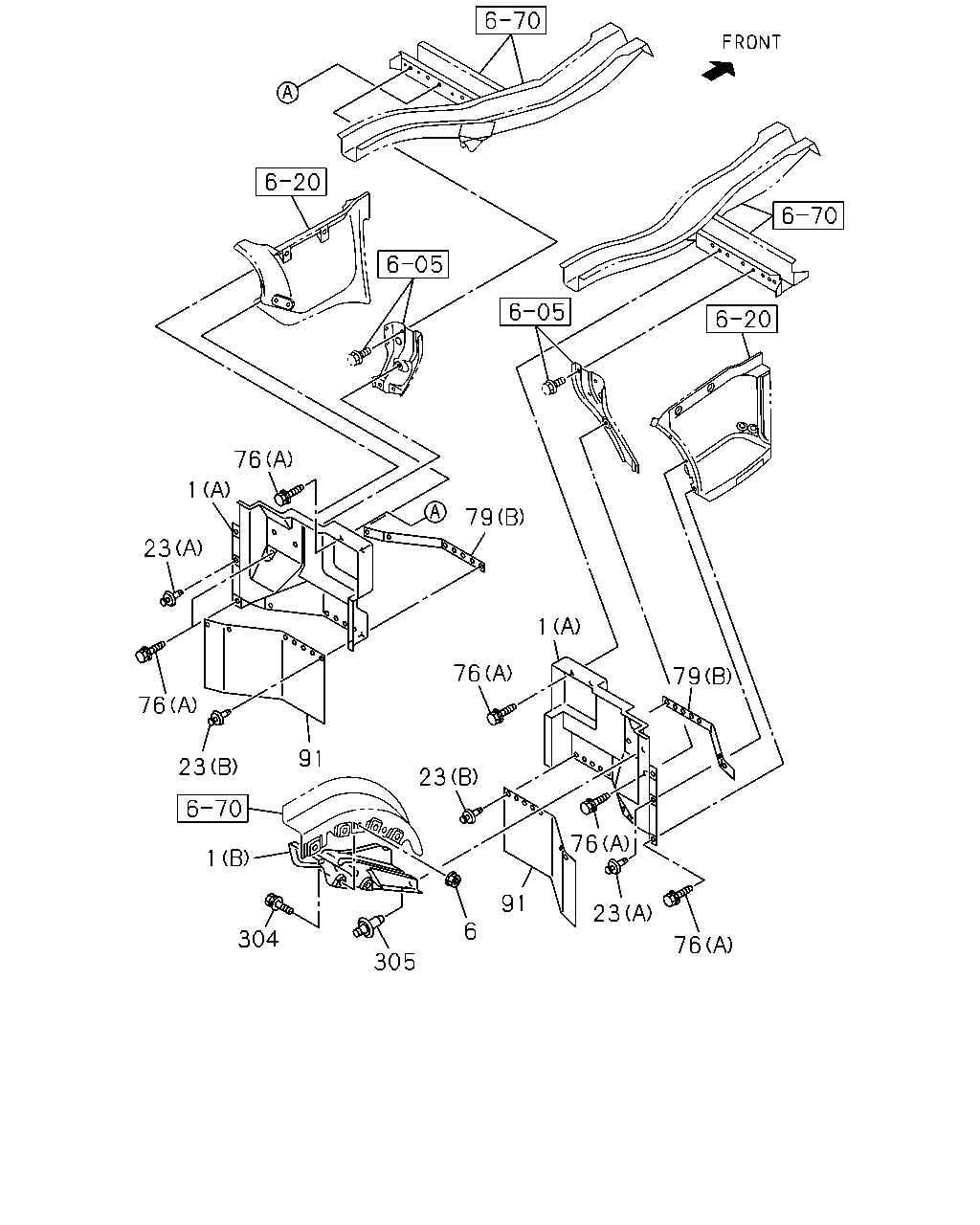

çizim 111852
76 1 79 23 1 76 79 76 91 23 23 76 1 91 23 6 304 76 305
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GUARD; MUD,FRT
(A) 		8-98039-851-1 01 1 0710- ● ● ●
1 GUARD; MUD,FRT
(A) 		8-98039-850-1 01 1 0710- ● ● ●
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98076-271-0 01 1 0710- ● ● ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 0710- ● ● ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 0710- ● ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 0710- ● ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805 ● ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-1211 ● ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1212- ● ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0710-0908 ● ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0909- ● ● ●
79 RETAINER; MUD COVER
(B) 		8-98060-066-0 02 1 0710- ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98094-501-0 01 1 0710-0710 ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-106-0 01 1 0710- ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98094-500-0 01 1 0710-0710 ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-105-0 01 1 0710- ● ● ●
91 COVER; MUD,FRT 8-98060-067-1 02 1 0710- ● ● ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 0710- ● ● ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 0710- ● ● ●

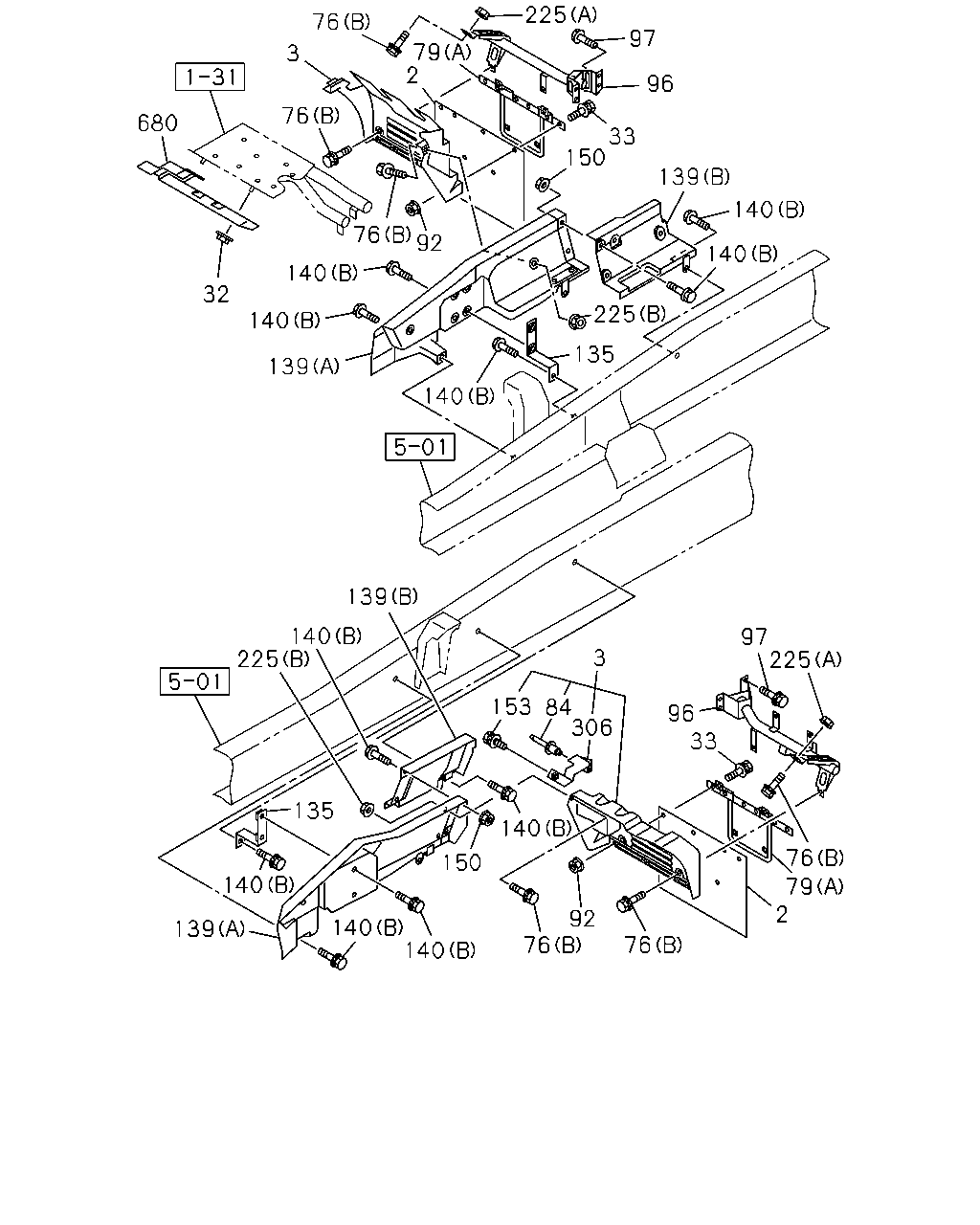

çizim 111858
97 96 33 139 140 140 225 135 140 139 140 140 76 92 76 3 76 79 2 150 225 32 680 139 140 225 135 140 139 140 140 150 76 140 92 76 2 79 76 33 96 97 225 84 306 3 153
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; MUD,TIRE RR 1-79931-512-1 02 1 0710- ● ● ●
3 GUARD; MUD,RR 1-79931-473-1 01 1 0710-1211 ● ● ●
3 GUARD; MUD,RR 8-98196-109-0 01 1 1212- ● ● ●
3 GUARD; MUD,RR 8-98076-257-0 01 1 0710-1302 ● ● ●
3 GUARD; MUD,RR 8-98219-767-0 01 1 1303- ● ● ●
32 NUT; MUD GUARD
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710- ● ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 08 1 0710-0711 ● ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 0712- ● ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805 ● ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-1211 ● ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1212- ● ● ●
76 BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 08 1 0710-0908 ● ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 0909- ● ● ●
79 RETAINER; MUD COVER
(B) 		8-98060-066-0 02 1 0710- ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98094-501-0 01 1 0710-0710 ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-106-0 01 1 0710- ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98094-500-0 01 1 0710-0710 ● ● ●
79 RETAINER; MUD COVER
(A) 		8-98102-105-0 01 1 0710- ● ● ●
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1212- ● ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 08 1 0710- ● ● ●
96 STAY; MUD GUARD 1-79931-519-4 01 1 0710- ● ● ●
96 STAY; MUD GUARD 1-79931-540-3 01 1 0710- ● ● ●
97 BOLT; STAY TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0710- ● ● ●
135 BRACKET; SIDE PANEL 1-53457-191-0 02 1 0710- ● ● ●
139 PANEL; SIDE
(B) 		1-53194-591-0 01 1 0710- ● ● ●
139 PANEL; SIDE
(A) 		1-53194-620-5 01 1 0710- ● ● ●
139 PANEL; SIDE
(B) 		1-53194-590-0 01 1 0710- ● ● ●
139 PANEL; SIDE
(A) 		1-53194-619-4 01 1 0710- ● ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28050-830-0 03 1 0710- ●
140 BOLT; SIDE PANEL
(A) M8X30 FLANGE 		0-28050-830-0 03 1 0710- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28050-830-0 07 1 0710-0711 ●
140 BOLT; SIDE PANEL
(A) M8X30 FLANGE 		0-28050-830-0 07 1 0710-0711 ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28050-830-0 08 1 0712- ●
140 BOLT; SIDE PANEL
(A) M8X30 FLANGE 		0-28050-830-0 08 1 0712- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE 		0-28050-812-0 02 1 0809- ●
140 BOLT; SIDE PANEL
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0809- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE 		0-28050-825-0 04 1 0809- ●
140 BOLT; SIDE PANEL
(D) M8X25 FLANGE 		0-28050-825-0 04 1 0809- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE 		0-28050-825-0 01 1 0809-0906 ●
140 BOLT; SIDE PANEL
(D) M8X25 FLANGE 		0-28050-825-0 01 1 0809-0906 ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE 		0-28050-825-0 02 1 0907- ●
140 BOLT; SIDE PANEL
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0907- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER 		1-09030-084-0 12 1 0809- ●
140 BOLT; SIDE PANEL
(D) M8X22 W/LK&PL WASHER 		1-09030-084-0 12 1 0809- ● ●
140 BOLT; SIDE PANEL
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 16 1 0710- ● ● ●
150 NUT; SIDE PANEL
M8 W/DISHED WASHER 		8-97329-625-0 04 1 0710- ● ● ●
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1212- ● ● ●
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710- ● ● ●
306 BRACKET; MUD GUARD 8-98196-125-0 01 1 1212- ● ● ●
680 GUARD; MUD,UPPER 1-79931-494-1 01 1 0710-0808 ● ● ●
680 GUARD; MUD,UPPER 8-98123-402-0 01 1 0809- ● ● ●

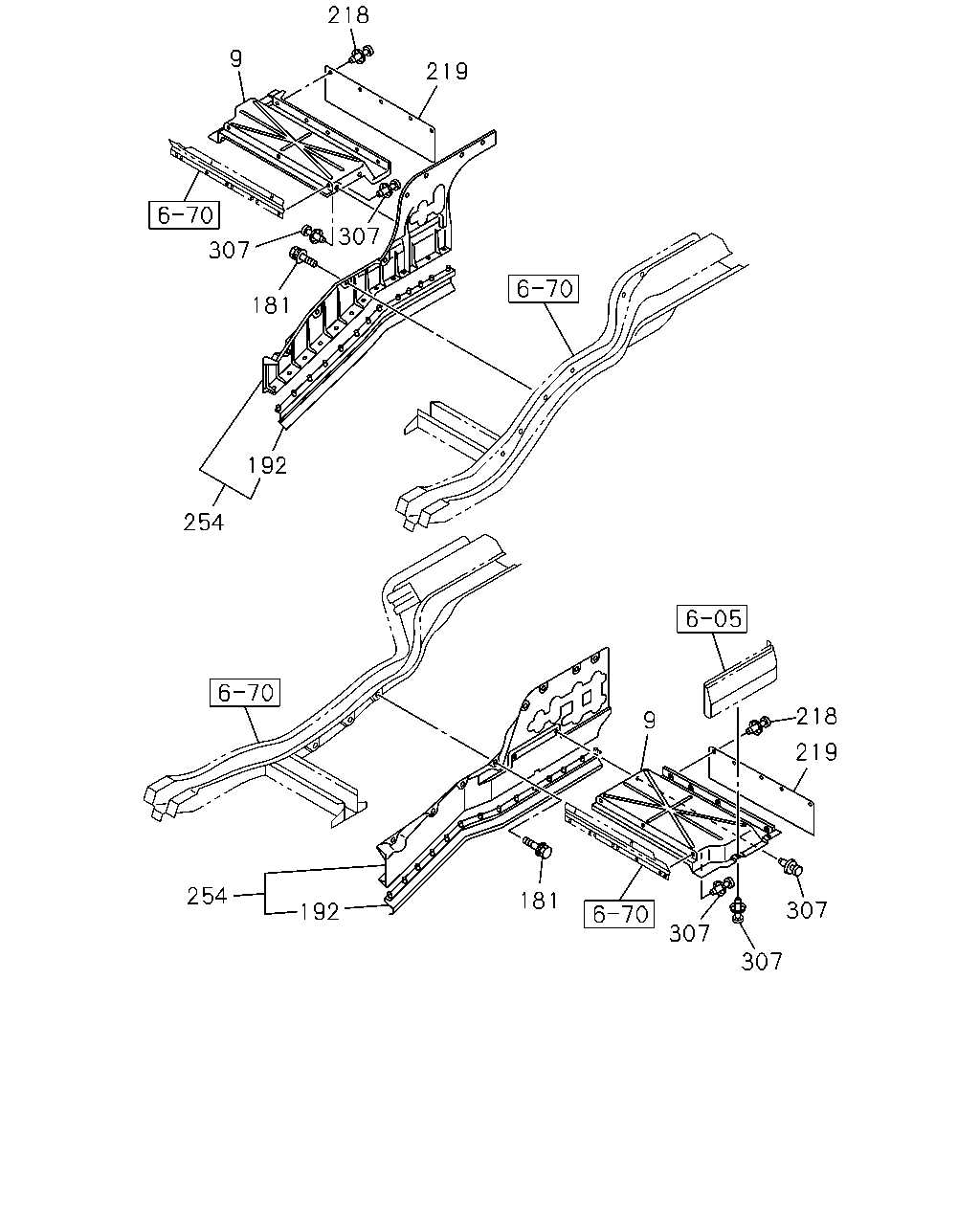

çizim 111874
218 9 219 307 307 181 192 254 218 9 219 254 181 307 192 307 307
BalonParca AdiParca NoAdetTipApplied Date A B C
9 GUARD; SPLASH,WHEEL HOUSE 8-98040-120-2 01 1 0710- ● ● ●
9 GUARD; SPLASH,WHEEL HOUSE 8-98040-119-2 01 1 0710- ● ● ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 16 1 0710- ● ● ●
192 SEAL; MUD COVER 8-98069-361-0 01 1 0710- ● ● ●
192 SEAL; MUD COVER 8-98069-360-0 01 1 0710- ● ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 10 1 0710- ● ● ●
219 FLAP; MUD GUARD 8-98041-151-1 02 1 0710- ● ● ●
254 COVER; MUD,VALANCE 8-98039-928-1 01 1 0710- ● ● ●
254 COVER; MUD,VALANCE 8-98039-927-3 01 1 0710- ● ● ●
307 RETAINER
D8X13.5 		1-09987-248-1 14 1 0710- ● ● ●

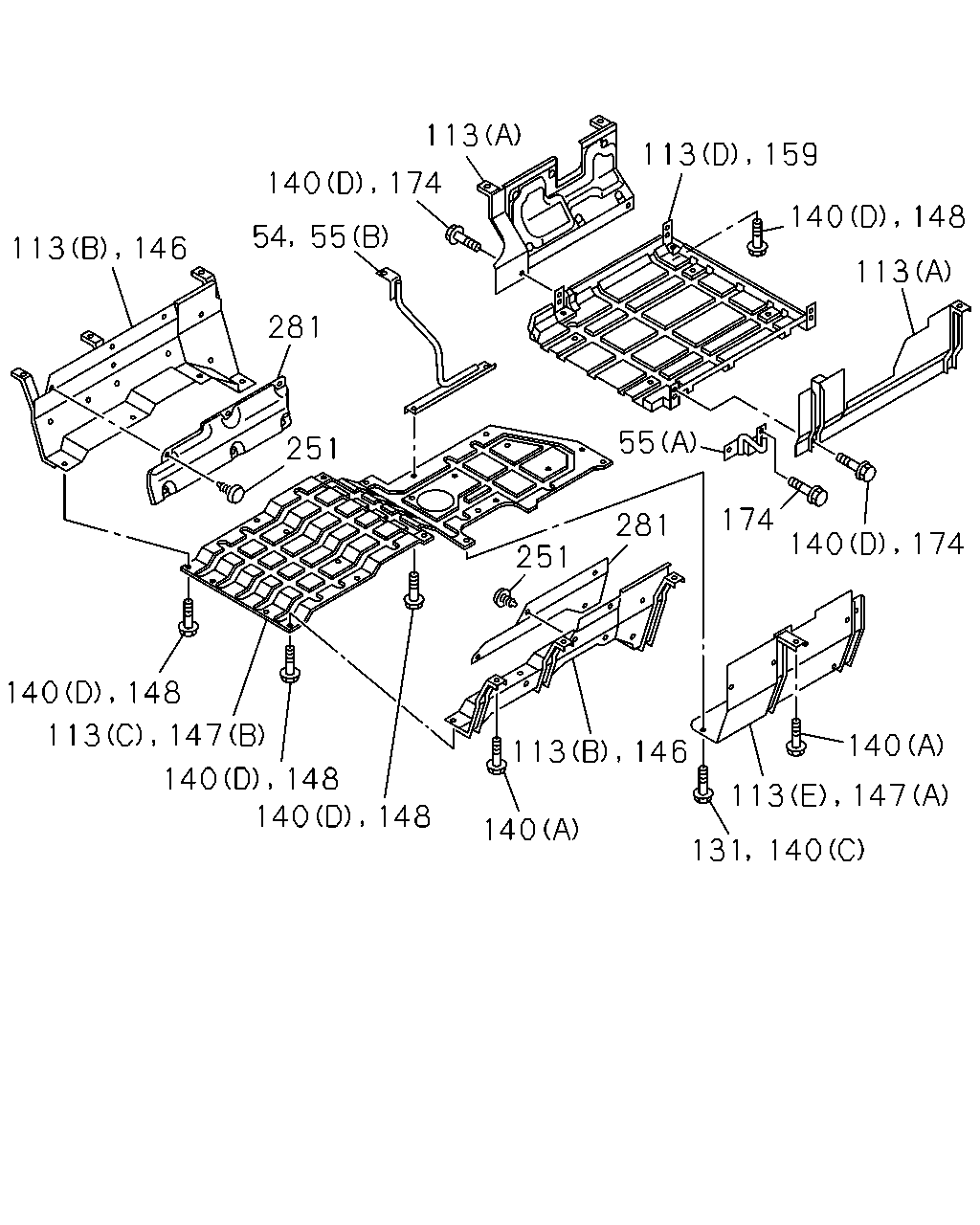

çizim 111877
113 113 159 140 174 140 148 55 54 113 146 113 281 55 251 174 281 140 174 251 148 140 113 147 140 113 146 140 148 140 113 147 148 140 131 140
BalonParca AdiParca NoAdetTipApplied Date A B C
54 STAY; UNDER COVER,FRT
ZF9S1110 M/T(Y5E) 		8-98064-086-2 01 1 0710-0808 ●
54 STAY; UNDER COVER,FRT 8-98064-086-2 01 1 0710-0808 ● ●
55 STAY; UNDER COVER,RR
ZF9S1110 M/T(Y5E) (A) 		8-98078-177-2 01 1 0710- ●
55 STAY; UNDER COVER,RR
(A) 		8-98078-177-2 01 1 0710- ● ●
55 STAY; UNDER COVER,RR
ZF9S1110 M/T(Y5E) (B) 		8-98064-086-2 01 1 0809- ●
55 STAY; UNDER COVER,RR
(B) 		8-98064-086-2 01 1 0809- ● ●
113 PANEL; SIDE
ZF9S1110 M/T(Y5E) (A) 		8-98078-185-3 01 1 0710- ●
113 PANEL; SIDE
(A) 		8-98078-185-3 01 1 0710- ● ●
113 PANEL; SIDE
ZF9S1110 M/T(Y5E) (A) 		8-98078-188-3 01 1 0710- ●
113 PANEL; SIDE
(A) 		8-98078-188-3 01 1 0710- ● ●
113 PANEL; SIDE
ZF9S1110 M/T(Y5E) (C) 		8-98017-762-1 01 1 0809- ●
113 PANEL; SIDE
(C) 		8-98017-762-1 01 1 0809- ● ●
113 PANEL; SIDE
ZF9S1110 M/T(Y5E) (D) 		8-98017-772-1 01 1 0809- ●
113 PANEL; SIDE
(D) 		8-98017-772-1 01 1 0809- ● ●
113 PANEL; SIDE
ZF9S1110 M/T(Y5E) (E) 		8-98078-182-0 01 1 0809- ●
113 PANEL; SIDE
(E) 		8-98078-182-0 01 1 0809- ● ●
113 PANEL; SIDE
ZF9S1110 M/T(Y5E) (B) 		8-98114-851-0 01 1 0809- ●
113 PANEL; SIDE
(B) 		8-98114-851-0 01 1 0809- ● ●
113 PANEL; SIDE
ZF9S1110 M/T(Y5E) (B) 		8-98017-756-2 01 1 0809- ●
113 PANEL; SIDE
(B) 		8-98017-756-2 01 1 0809- ● ●
131 BOLT; PANEL
ZF9S1110 M/T(Y5E) M8X12 FLANGE 		0-28050-812-0 02 1 0710-0808 ●
131 BOLT; PANEL
M8X12 FLANGE 		0-28050-812-0 02 1 0710-0808 ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28050-830-0 03 1 0710- ●
140 BOLT; SIDE PANEL
(A) M8X30 FLANGE 		0-28050-830-0 03 1 0710- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28050-830-0 07 1 0710-0711 ●
140 BOLT; SIDE PANEL
(A) M8X30 FLANGE 		0-28050-830-0 07 1 0710-0711 ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28050-830-0 08 1 0712- ●
140 BOLT; SIDE PANEL
(A) M8X30 FLANGE 		0-28050-830-0 08 1 0712- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE 		0-28050-812-0 02 1 0809- ●
140 BOLT; SIDE PANEL
(C) M8X12 FLANGE 		0-28050-812-0 02 1 0809- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE 		0-28050-825-0 04 1 0809- ●
140 BOLT; SIDE PANEL
(D) M8X25 FLANGE 		0-28050-825-0 04 1 0809- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE 		0-28050-825-0 01 1 0809-0906 ●
140 BOLT; SIDE PANEL
(D) M8X25 FLANGE 		0-28050-825-0 01 1 0809-0906 ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE 		0-28050-825-0 02 1 0907- ●
140 BOLT; SIDE PANEL
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0907- ● ●
140 BOLT; SIDE PANEL
ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER 		1-09030-084-0 12 1 0809- ●
140 BOLT; SIDE PANEL
(D) M8X22 W/LK&PL WASHER 		1-09030-084-0 12 1 0809- ● ●
140 BOLT; SIDE PANEL
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 16 1 0710- ● ● ●
146 PANEL; SIDE,UNDER,FRT
ZF9S1110 M/T(Y5E) 		8-98017-759-4 01 1 0710-0802 ●
146 PANEL; SIDE,UNDER,FRT 8-98017-759-4 01 1 0710-0802 ● ●
146 PANEL; SIDE,UNDER,FRT
ZF9S1110 M/T(Y5E) 		8-98114-851-0 01 1 0803-0808 ●
146 PANEL; SIDE,UNDER,FRT 8-98114-851-0 01 1 0803-0808 ● ●
146 PANEL; SIDE,UNDER,FRT
ZF9S1110 M/T(Y5E) 		8-98017-756-2 01 1 0710-0808 ●
146 PANEL; SIDE,UNDER,FRT 8-98017-756-2 01 1 0710-0808 ● ●
147 PANEL; SIDE,UNDER,RR
ZF9S1110 M/T(Y5E) (B) 		8-98017-762-0 01 1 0710-0808 ●
147 PANEL; SIDE,UNDER,RR
(B) 		8-98017-762-0 01 1 0710-0808 ● ●
147 PANEL; SIDE,UNDER,RR
ZF9S1110 M/T(Y5E) (A) 		8-98078-182-0 01 1 0710-0808 ●
147 PANEL; SIDE,UNDER,RR
(A) 		8-98078-182-0 01 1 0710-0808 ● ●
148 BOLT; PANEL TO PANEL
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28050-820-0 04 1 0710-0711 ●
148 BOLT; PANEL TO PANEL
M8X20 FLANGE 		0-28050-820-0 04 1 0710-0711 ● ●
148 BOLT; PANEL TO PANEL
ZF9S1110 M/T(Y5E) M8X25 FLANGE 		0-28050-825-0 04 1 0712-0808 ●
148 BOLT; PANEL TO PANEL
M8X25 FLANGE 		0-28050-825-0 04 1 0712-0808 ● ●
148 BOLT; PANEL TO PANEL
ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER 		1-09030-093-0 10 1 0710-0711 ●
148 BOLT; PANEL TO PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 10 1 0710-0711 ● ●
148 BOLT; PANEL TO PANEL
ZF9S1110 M/T(Y5E) M8X22 W/LK&PL WASHER 		1-09030-084-0 12 1 0712-0808 ●
148 BOLT; PANEL TO PANEL
M8X22 W/LK&PL WASHER 		1-09030-084-0 12 1 0712-0808 ● ●
159 PANEL; SIDE,TRANS,CTR
ZF9S1110 M/T(Y5E) 		8-98017-772-1 01 1 0710-0808 ●
159 PANEL; SIDE,TRANS,CTR 8-98017-772-1 01 1 0710-0808 ● ●
174 BOLT; STAY FIX
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
174 BOLT; STAY FIX
M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ● ●
174 BOLT; STAY FIX
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ●
174 BOLT; STAY FIX
M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ● ●
174 BOLT; STAY FIX
ZF9S1110 M/T(Y5E) M8X25 FLANGE 		0-28050-825-0 01 1 0712-0808 ●
174 BOLT; STAY FIX
M8X25 FLANGE 		0-28050-825-0 01 1 0712-0808 ● ●
174 BOLT; STAY FIX
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28050-830-0 02 1 0710-0711 ●
174 BOLT; STAY FIX
M8X30 FLANGE 		0-28050-830-0 02 1 0710-0711 ● ●
174 BOLT; STAY FIX
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28050-830-0 01 1 0712- ●
174 BOLT; STAY FIX
M8X30 FLANGE 		0-28050-830-0 01 1 0712- ● ●
174 BOLT; STAY FIX
ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0710-0711 ●
174 BOLT; STAY FIX
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 0710-0711 ● ●
251 CLIP; NOISE INSULATOR
ZF9S1110 M/T(Y5E) 		8-94165-394-0 10 1 0710-0808 ●
251 CLIP; NOISE INSULATOR 8-94165-394-0 10 1 0710-0808 ● ●
281 INSULATOR; NOISE
ZF9S1110 M/T(Y5E) 		8-98064-149-1 01 1 0710-0808 ●
281 INSULATOR; NOISE 8-98064-149-1 01 1 0710-0808 ● ●
281 INSULATOR; NOISE
ZF9S1110 M/T(Y5E) 		8-98064-148-0 01 1 0710-0808 ●
281 INSULATOR; NOISE 8-98064-148-0 01 1 0710-0808 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
