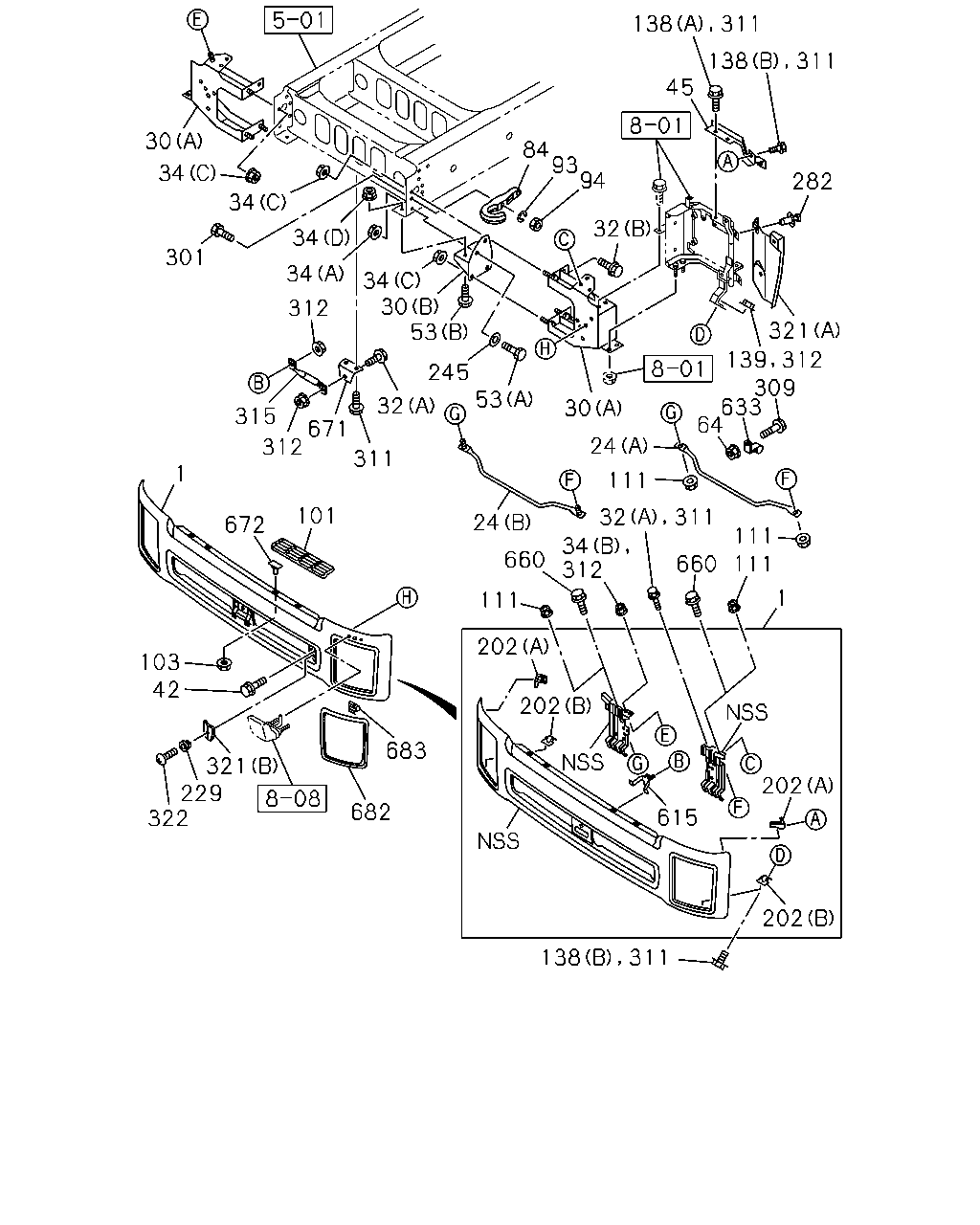

6-01 — FRONT BUMPER (#42113) — 74 parça

138 311 45 84 93 94 30 34 282 34 32 34 301 34 34 30 53 312 321 139 309 633 64 245 53 32 30 315 671 312 24 311 1 111 101 32 311 24 672 111 34 312 660 660 111 1 111 202 103 42 202 683 202 321 229 322 682 615 202 138 311 138 311 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BUMPER ASM; FRT HEAD LAMP WASHER<CE4> WHITE	8-97411-633-1	01	1	0710-1003	●	●
1	BUMPER ASM; FRT EXC. HEAD LAMP WASHER<CE4> WHITE	8-97409-903-1	01	1	0710-1003	●	●
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	0710-1003			●
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1004-	●	●	●
24	BAR; FRT BUMPER (A)	8-97611-514-0	01	1	0710-0802	●	●	●
24	BAR; FRT BUMPER (B)	8-97625-359-0	01	1	0803-	●	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	0710-	●	●	●
30	BRACKET; FRT BUMPER (B)	8-98053-546-1	01	1	0710-	●	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	0710-	●	●	●
30	BRACKET; FRT BUMPER (B)	8-98053-547-1	01	1	0710-	●	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	0710-	●	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	04	1	0710-0710	●	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	0710-	●	●	●
34	NUT; BRKT,BUMPER (A) M16	0-91110-516-0	02	1	0710-	●	●	●
34	NUT; BRKT,BUMPER (B) M10 FLANGE	0-91180-110-0	01	1	0710-0710	●	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	0710-	●	●	●
34	NUT; BRKT,BUMPER (D) M14 FLANGE	0-91180-214-0	04	1	0710-	●	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	0710-	●	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	0710-	●	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	0710-	●	●	●
53	BOLT; BRKT TO FRAME (A) M16X40	0-20851-640-0	02	1	0710-	●	●	●
53	BOLT; BRKT TO FRAME (B) M14X45 FLANGE	0-28851-445-0	04	1	0710-	●	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0710-	●	●	●
84	HOOK	1-57181-027-1	01	1	0710-	●	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	0710-	●	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	0710-	●	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	0710-	●	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	0710-	●	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	0710-	●	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
138	BOLT; BRKT FIX (A) M10X25 FLANGE	0-28651-025-0	04	1	0710-0710	●	●	●
138	BOLT; BRKT FIX (B) M10X30	8-94324-205-0	04	1	0710-0710	●	●	●
138	BOLT; BRKT FIX (B) M10X30	8-94324-205-0	02	1	0710-0712	●	●	●
139	NUT; BRKT FIX M10 FLANGE	0-91180-110-0	02	1	0710-0710	●	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	0710-1003	●	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (A)	8-97613-636-0	01	1	0710-1003	●	●
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	8-97613-636-0	01	1	1004-	●	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	0710-1003	●	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (A)	8-97613-637-0	01	1	0710-1003	●	●
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (A)	8-97613-637-0	01	1	1004-	●	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	0710-1003	●	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (B)	8-97613-640-1	01	1	0710-1003	●	●
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	8-97613-640-1	01	1	1004-	●	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	0710-1003	●	●	●
202	BRACKET; BUMPER SIDE HEAD LAMP WASHER<CE4> (B)	8-97613-641-1	01	1	0710-1003	●	●
202	BRACKET; BUMPER SIDE BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) (B)	8-97613-641-1	01	1	1004-	●	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	0710-	●	●	●
245	WASHER; PL,BRKT TO FRAME ID=17 OD=30	0-91610-516-0	02	1	0710-	●	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	0710-	●	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	0710-	●	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0710-0710	●	●	●
311	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	06	1	0710-	●	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	05	1	0710-0712	●	●	●
311	BOLT; BRKT M10X30	8-94324-205-0	07	1	0801-	●	●	●
312	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	0710-0710	●	●	●
312	NUT; BRKT M10 FLANGE	0-91180-110-0	05	1	0710-0802	●	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0803-	●	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	0710-	●	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	0710-	●	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	0710-	●	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	0710-	●	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	0710-	●	●	●
322	SCREW; COVER FIX M5X16 TAPPING	0-72180-516-0	02	1	0710-	●	●	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	0710-1003	●	●	●
615	BRACKET; BUMPER CENTER HEAD LAMP WASHER<CE4>	8-97613-643-1	01	1	0710-1003	●	●
615	BRACKET; BUMPER CENTER BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915)	8-97613-643-1	01	1	1004-	●	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	0710-	●	●	●
660	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	0710-0802	●	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	0710-	●	●	●
672	STUD; STEP	8-97611-666-0	04	1	0710-	●	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	0710-	●	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	0710-	●	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	0710-	●	●	●
