5-30 — SPARE TIRE CARRIER AND COVER (#42112) — 36 parça

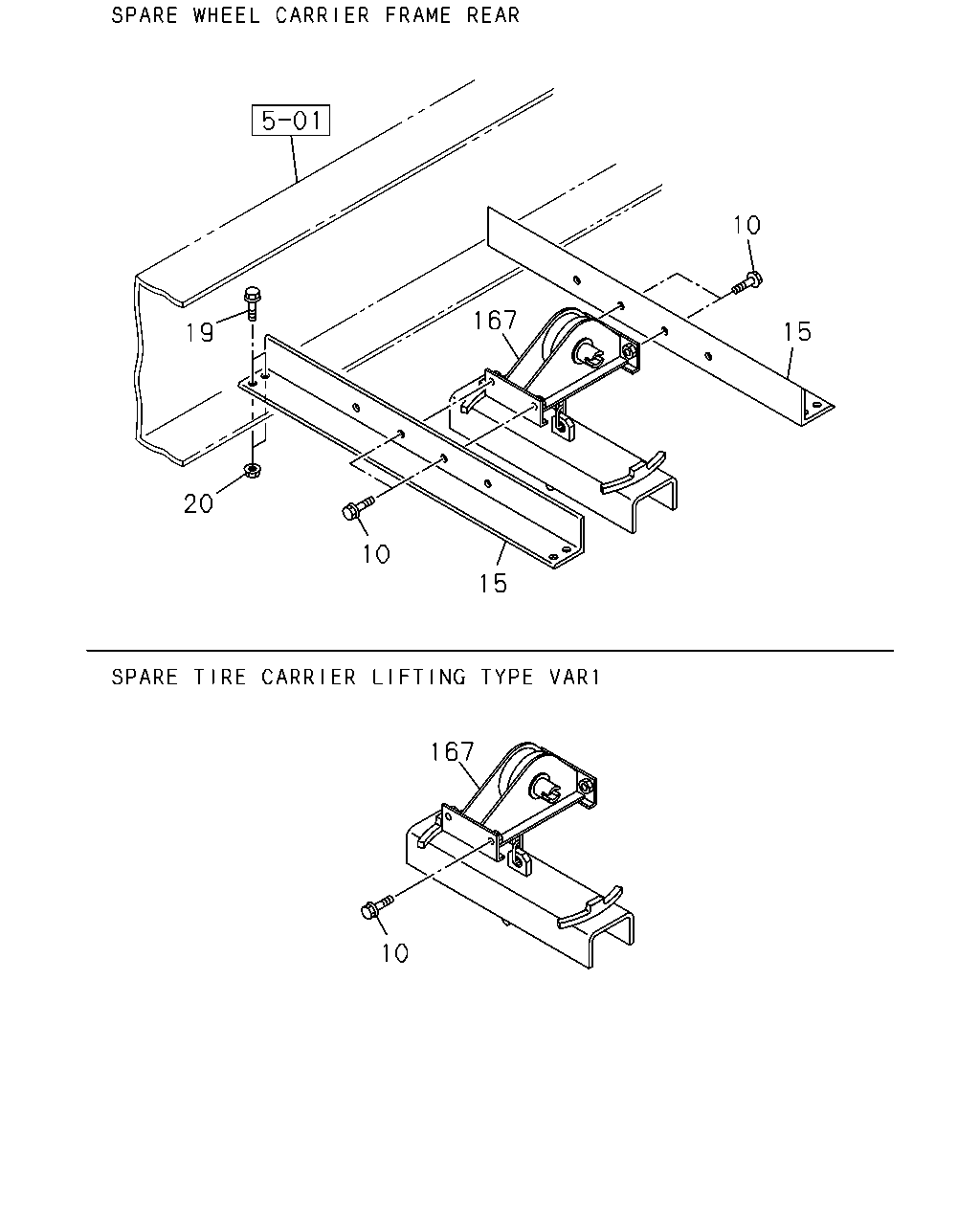

çizim 111826
10 167 15 19 20 10 15 167 10
BalonParca AdiParca NoAdetTipApplied Date A B C
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0710-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0710-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 0710-0710 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 0710- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0710-0710 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE 		0-28051-030-0 08 1 0710- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0710- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-4 01 1 0710- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> 		1-53630-210-4 01 1 0710- ●
167 HANGER; TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-4 01 1 0710- ●

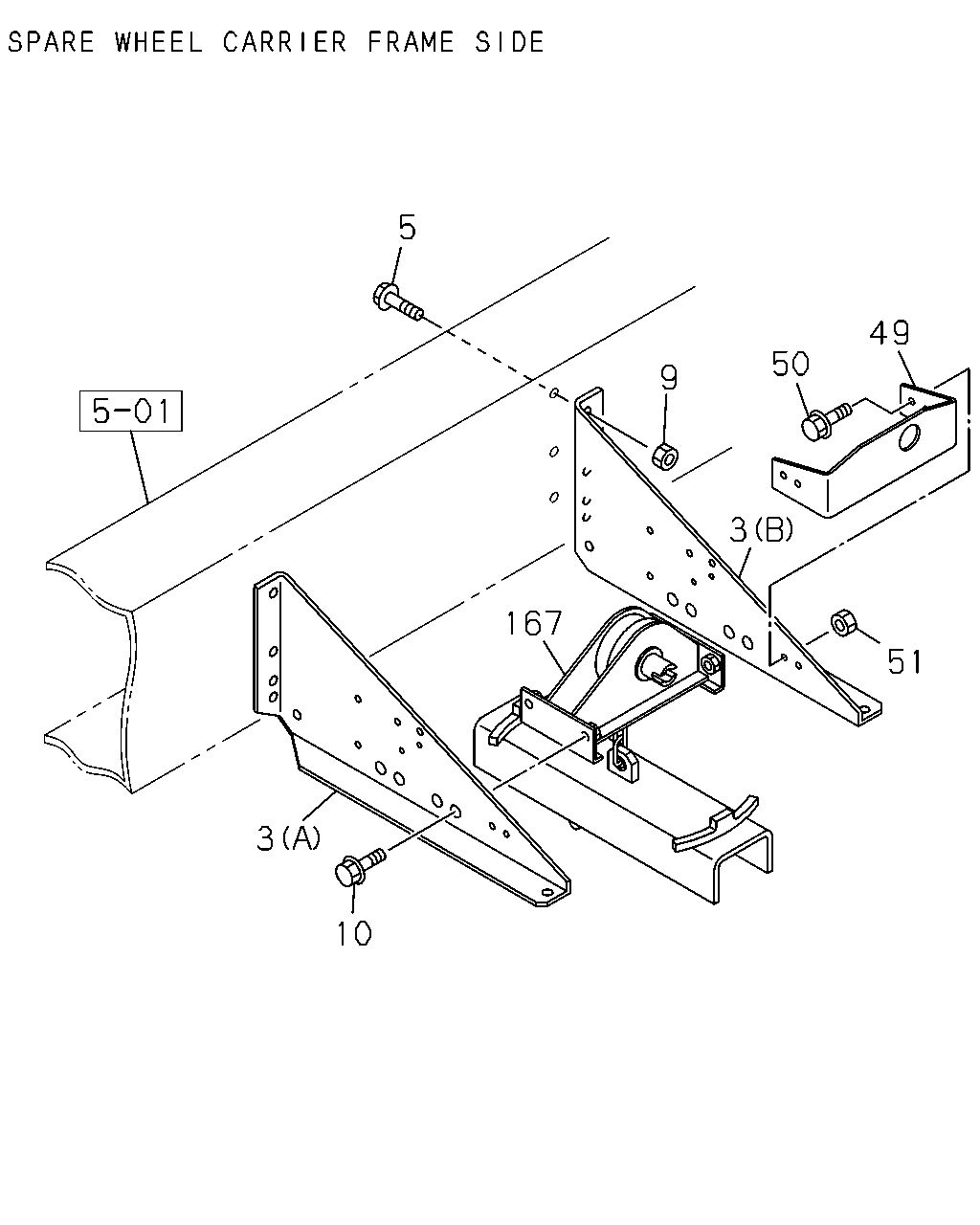

çizim 111827
5 49 50 9 3 167 51 3 10
BalonParca AdiParca NoAdetTipApplied Date A B C
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-391-0 01 1 0710-0712 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98106-690-0 01 1 0801- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-392-0 01 1 0710-0712 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98106-691-0 01 1 0801- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 06 1 0710- ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 03 1 0710-0810 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 01 1 0811-0907 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 01 1 0908- ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0710-0809 ● ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0810- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0810- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0710-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0710-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 0710- ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 0710- ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 0710-1203 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1204- ● ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-4 01 1 0710- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTINGTYPE VAR1<SY8> 		1-53630-210-4 01 1 0710- ●
167 HANGER; TIRE
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-210-4 01 1 0710- ●
