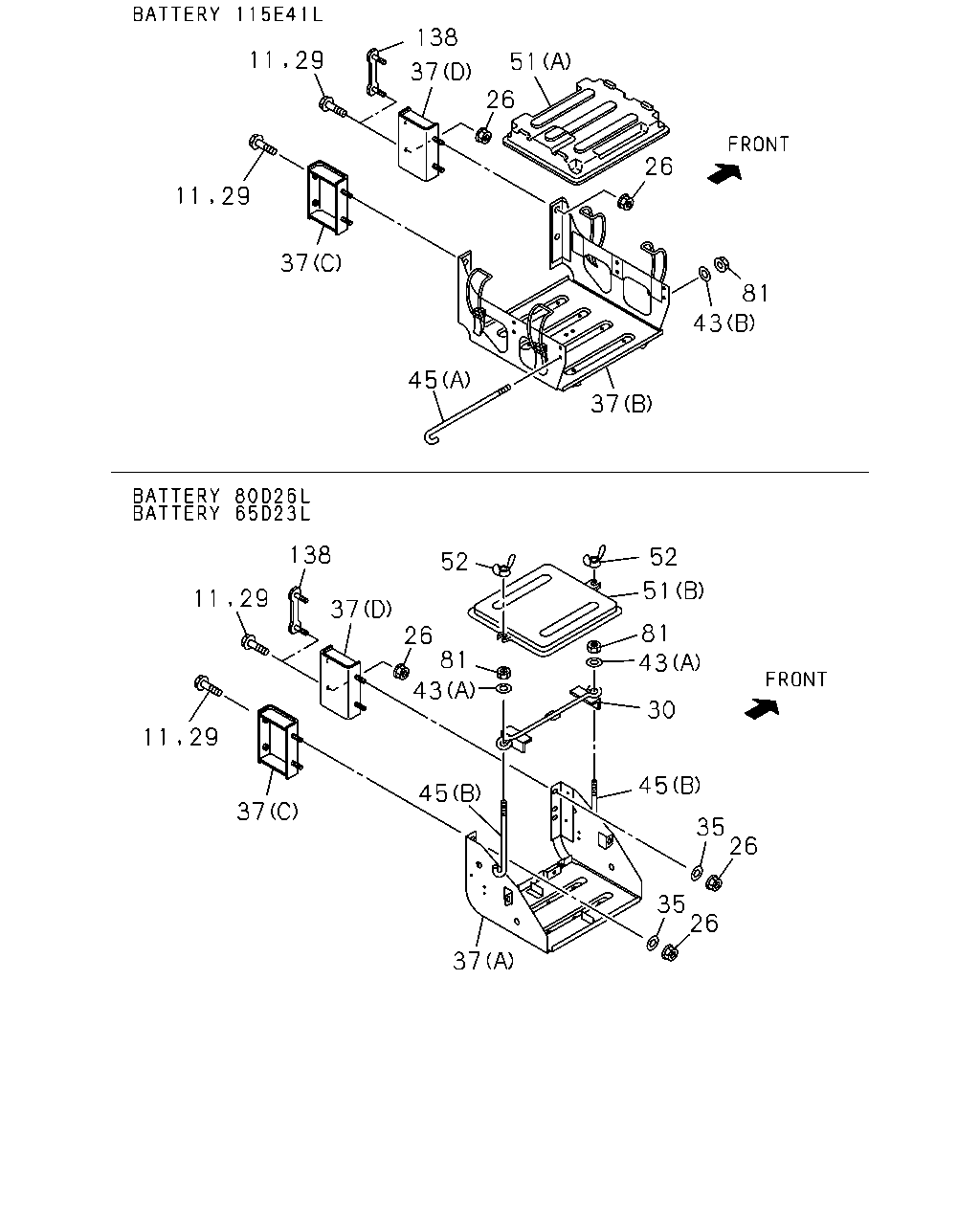

5-20 — BATTERY CARRIER (#42111) — 40 parça

138 29 11 51 37 26 26 29 11 37 81 43 45 37 138 52 52 51 29 11 37 81 43 26 81 43 30 29 11 45 45 37 35 26 35 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BOLT; BRKT FIX WHEEL BASE 4200MM(42W) M10X35 FLANGE	0-28651-035-0	04	1	1008-	●
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1008-		●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-0710	●	●	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	04	1	0710-0710	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-0710		●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0711-0809	●	●	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	02	1	0711-	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0711-		●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	04	1	0903-	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0903-		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0710-0803	●	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0804-1007	●		●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1008-			●
29	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X35 FLANGE	0-28651-035-0	04	1	1008-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	02	1	0804-1007		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0710-	●	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0710-0711	●	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-	●	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0710-0710	●	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0710-	●	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0710-	●	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (C)	8-98070-047-0	01	1	0710-0905	●
37	BRACKET; BATTERY (C)	8-98070-047-0	01	1	0710-0905		●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (C)	8-98144-194-0	01	1	0906-	●
37	BRACKET; BATTERY (C)	8-98144-194-0	01	1	0906-		●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	0710-0710	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	0711-	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	0711-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0710-0710	●	●	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0710-	●	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A)	8-97134-740-0	02	1	0710-0710	●	●	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	9-53616-615-0	02	1	0710-	●	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0710-0710	●	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0710-	●	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0710-	●	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0710-0805	●	●	●
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE	0-91180-108-0	02	1	0806-	●	●	●
138	STUD	8-98066-802-0	01	1	0804-1010		●
138	STUD	8-98178-497-0	01	1	1011-1311		●
138	STUD	8-98255-710-0	01	1	1312-		●
