Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#42106) — 333 parça

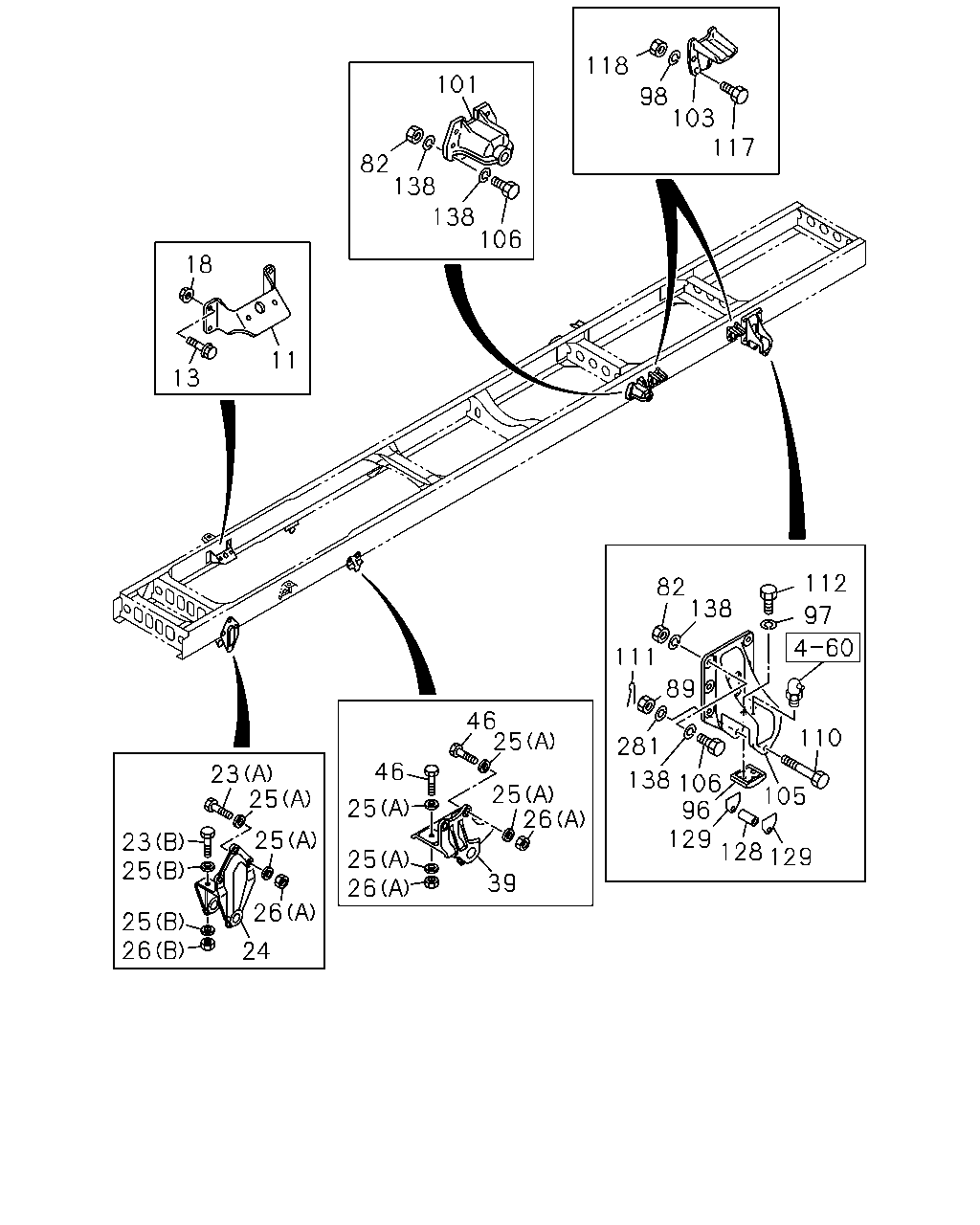

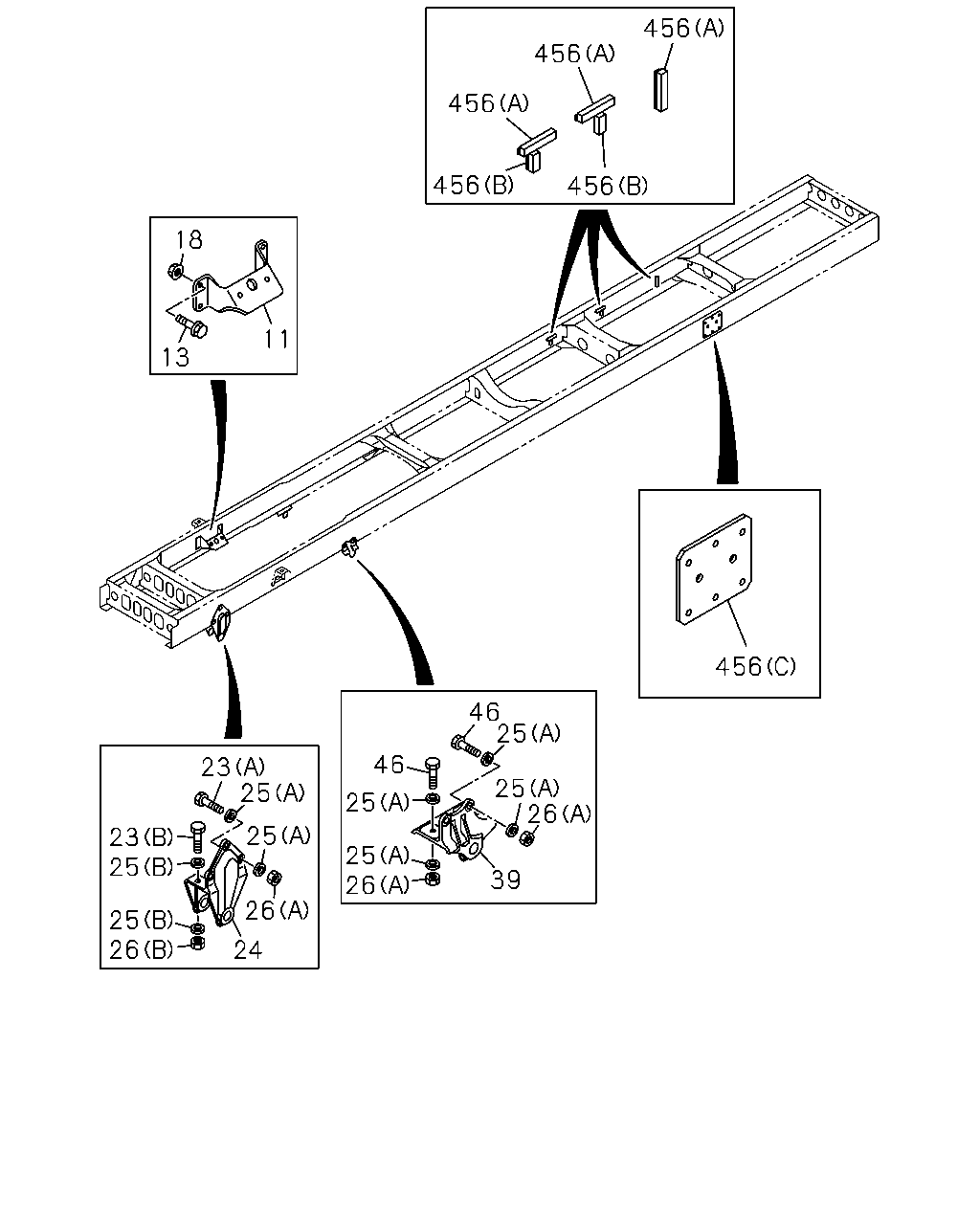

456 456 456 456 456 18 11 13 456 46 25 46 23 25 25 25 26 25 23 25 25 26 39 26 25 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	0710-			●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0710-	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-	●	●	●	●
456	PATCH; STOPPER (A)	8-97611-248-0	06	1	0710-0804	●			●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (A)	8-97611-248-0	06	1	0710-0804		●
456	PATCH; STOPPER (A)	8-97611-248-0	06	1	0805-1201	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (A)	8-97611-248-0	06	1	0805-1201		●		●
456	PATCH; STOPPER (A)	8-97642-212-0	06	1	1202-	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (A)	8-97642-212-0	06	1	1202-		●		●
456	PATCH; STOPPER (B)	8-97611-249-0	04	1	0710-0804	●			●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (B)	8-97611-249-0	04	1	0710-0804		●
456	PATCH; STOPPER (B)	8-97611-249-0	04	1	0805-1201	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (B)	8-97611-249-0	04	1	0805-1201		●		●
456	PATCH; STOPPER (B)	8-97642-213-0	04	1	1202-	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (B)	8-97642-213-0	04	1	1202-		●		●
456	PATCH; STOPPER (C)	8-97611-251-0	01	1	0710-0804	●			●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (C)	8-97611-251-0	01	1	0710-0804		●
456	PATCH; STOPPER (C)	8-97611-251-0	01	1	0805-0910	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (C)	8-97611-251-0	01	1	0805-0910		●		●
456	PATCH; STOPPER (C)	8-97611-251-0	01	1	0911-	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (C)	8-97611-251-0	01	1	0911-				●

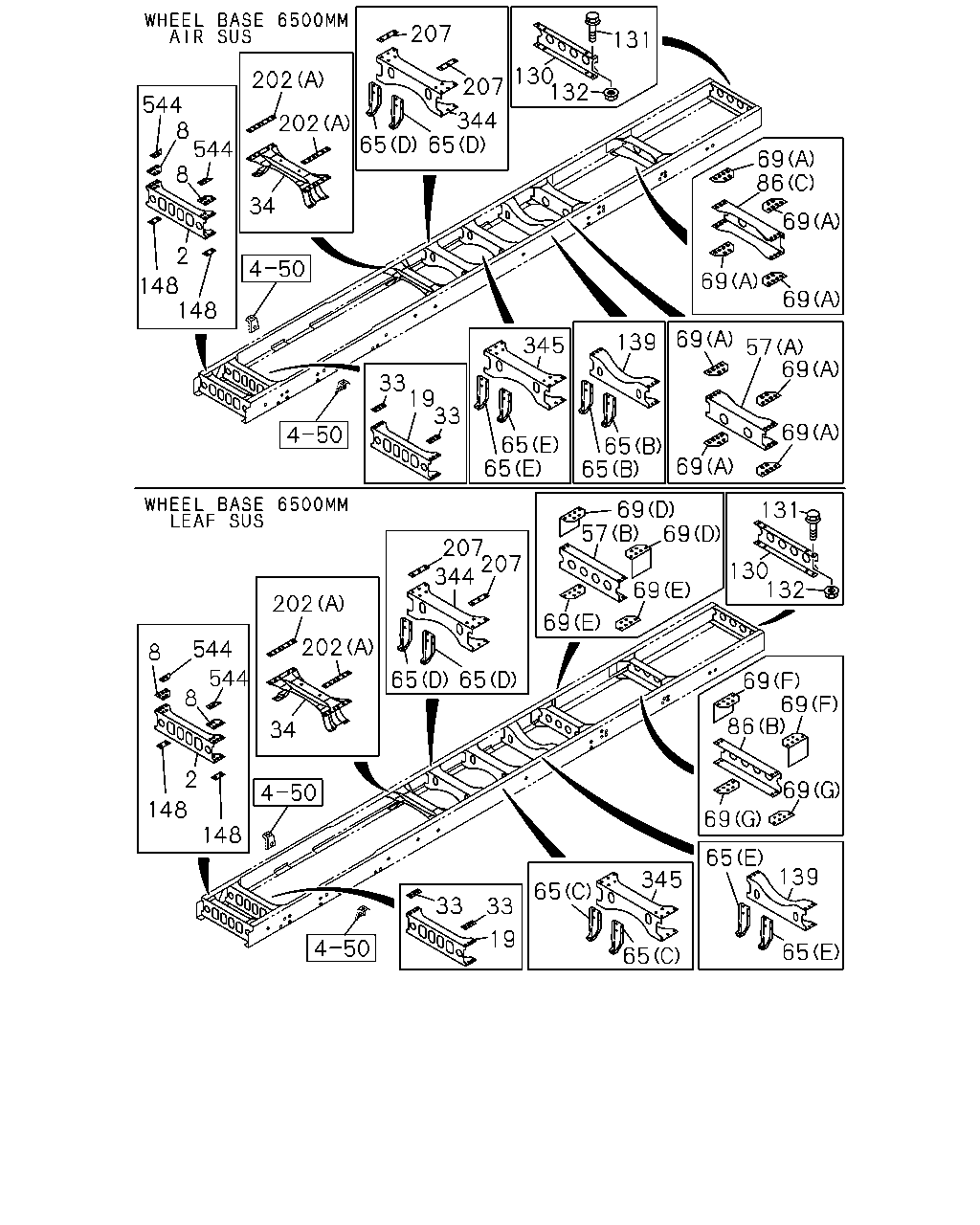

69 34 69 69 86 33 69 202 544 33 8 202 544 8 19 2 148 148 69 69 69 69 57 131 130 132 202 202 33 33 34 544 8 544 8 19 69 2 148 69 86 148 69 69 207 344 69 69 207 69 69 65 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97611-239-2	01	1	0710-0804	●			●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	0710-0804		●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97611-239-2	01	1	0805-	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	0805-		●		●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	0710-0907			●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0710-0907		●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	0908-			●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0908-		●		●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	0710-0910			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97612-486-0	02	1	0710-0910		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97612-486-0	02	1	0911-		●
65	BRACKET; CENTER BRG (B)	8-97621-250-0	02	1	0911-			●
65	BRACKET; CENTER BRG (B)	8-97611-328-0	02	1	0710-0712				●
65	BRACKET; CENTER BRG (B)	8-97614-136-0	02	1	0801-0804				●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	02	1	0805-				●
65	BRACKET; CENTER BRG (A)	8-97611-329-0	02	1	0710-0804				●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (A)	8-97611-329-0	02	1	0805-				●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (A)	8-97614-133-0	02	1	0908-				●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (B)	8-97621-881-0	02	1	0908-				●
65	BRACKET; CENTER BRG (D)	8-97614-126-0	02	1	0710-		●
65	BRACKET; CENTER BRG (E)	8-97614-140-0	02	1	0710-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (C)	8-97623-367-0	02	1	0710-		●
69	GUSSET; RR SUSP,UPR (A)	8-97611-247-0	04	1	0710-	●
69	GUSSET; RR SUSP,UPR (B)	8-97611-280-0	02	1	0710-	●
69	GUSSET; RR SUSP,UPR (C)	8-97611-314-0	02	1	0710-	●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	0710-0907			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	0710-0907		●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	0908-		●		●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	0710-0907			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	0710-0907		●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	0908-		●		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (A)	8-97611-247-0	08	1	0710-0804				●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	0710-0804		●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	0805-		●		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97611-907-1	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97611-908-1	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97611-910-0	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97611-911-0	01	1	0710-		●
86	MEMBER; CROSS,RR SUSP RR (A)	8-97611-312-1	01	1	0710-	●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	0710-0907			●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0710-0907		●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	0908-			●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0908-		●		●
86	MEMBER; CROSS,RR SUSP RR (C)	8-97611-239-2	01	1	0710-0804				●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (C)	8-97611-239-2	01	1	0710-0804		●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (C)	8-97611-239-2	01	1	0805-		●		●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-		●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-		●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-		●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	0710-	●	●	●	●
202	SPACER; 3RD C/MBR (B)	8-97610-873-0	02	1	0710-	●
202	SPACER; 3RD C/MBR (A)	8-97610-872-0	02	1	0710-		●	●	●
207	SPACER; 4TH C/MBR	8-97611-244-0	02	1	0710-		●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-		●	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-	●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	0710-			●	●

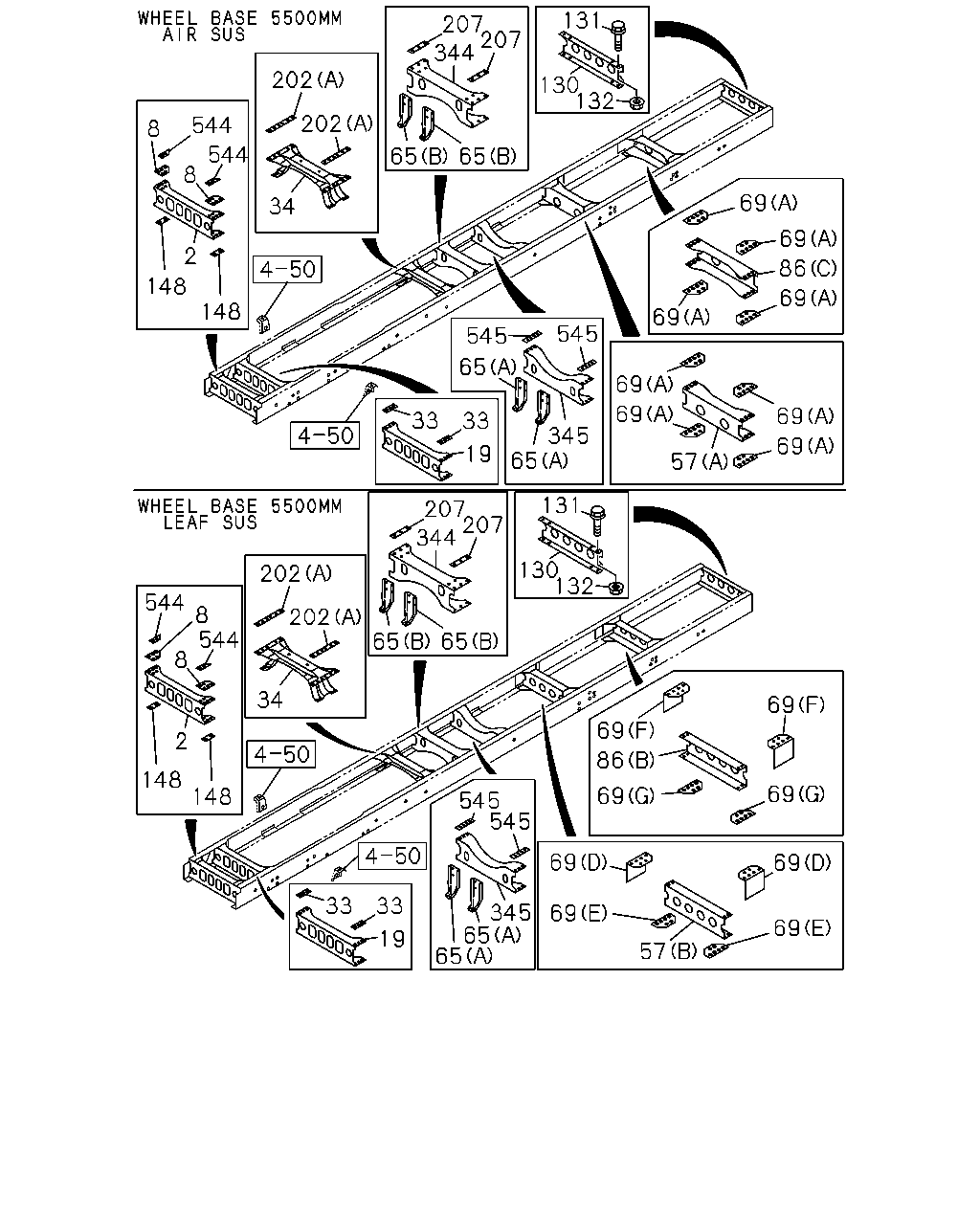

207 131 130 132 202 207 544 8 544 8 344 65 202 65 69 86 69 34 2 69 69 148 148 69 139 345 57 69 33 19 33 69 65 65 65 65 69 69 131 207 207 344 130 132 69 202 69 202 544 8 544 65 65 69 69 86 8 34 2 69 148 69 148 65 139 345 65 33 33 19 65 65 57 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97611-239-2	01	1	0710-0804	●			●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	0710-0804		●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97611-239-2	01	1	0805-	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	0805-		●		●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	0710-0907			●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0710-0907		●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	0908-			●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0908-		●		●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	0710-0910			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97612-486-0	02	1	0710-0910		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97612-486-0	02	1	0911-		●
65	BRACKET; CENTER BRG (B)	8-97621-250-0	02	1	0911-			●
65	BRACKET; CENTER BRG (B)	8-97611-328-0	02	1	0710-0712				●
65	BRACKET; CENTER BRG (B)	8-97614-136-0	02	1	0801-0804				●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	02	1	0805-				●
65	BRACKET; CENTER BRG (A)	8-97611-329-0	02	1	0710-0804				●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (A)	8-97611-329-0	02	1	0805-				●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (A)	8-97614-133-0	02	1	0908-				●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (B)	8-97621-881-0	02	1	0908-				●
65	BRACKET; CENTER BRG (D)	8-97614-126-0	02	1	0710-		●
65	BRACKET; CENTER BRG (E)	8-97614-140-0	02	1	0710-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (C)	8-97623-367-0	02	1	0710-		●
69	GUSSET; RR SUSP,UPR (A)	8-97611-247-0	04	1	0710-	●
69	GUSSET; RR SUSP,UPR (B)	8-97611-280-0	02	1	0710-	●
69	GUSSET; RR SUSP,UPR (C)	8-97611-314-0	02	1	0710-	●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	0710-0907			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	0710-0907		●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	0908-		●		●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	0710-0907			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	0710-0907		●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	0908-		●		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (A)	8-97611-247-0	08	1	0710-0804				●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	0710-0804		●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	0805-		●		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97611-907-1	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97611-908-1	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97611-910-0	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97611-911-0	01	1	0710-		●
86	MEMBER; CROSS,RR SUSP RR (A)	8-97611-312-1	01	1	0710-	●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	0710-0907			●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0710-0907		●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	0908-			●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0908-		●		●
86	MEMBER; CROSS,RR SUSP RR (C)	8-97611-239-2	01	1	0710-0804				●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (C)	8-97611-239-2	01	1	0710-0804		●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (C)	8-97611-239-2	01	1	0805-		●		●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-		●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-		●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-		●	●	●
139	MEMBER; CROSS,6TH	8-97611-238-1	01	1	0710-		●
148	SPACER; C/MBR	8-97611-039-0	02	1	0710-	●	●	●	●
202	SPACER; 3RD C/MBR (B)	8-97610-873-0	02	1	0710-	●
202	SPACER; 3RD C/MBR (A)	8-97610-872-0	02	1	0710-		●	●	●
207	SPACER; 4TH C/MBR	8-97611-244-0	02	1	0710-		●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-		●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-		●		●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-	●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	0710-			●	●

118 101 98 103 117 82 138 138 106 18 11 13 112 82 138 97 111 89 46 25 110 281 46 23 25 25 138 106 96 129 25 26 105 25 128 129 23 25 25 26 39 26 25 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	0710-			●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-	●	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-	●	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-	●	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-	●	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-	●	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-	●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0710-	●	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-	●	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-	●	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-	●	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-	●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	0710-0907			●
82	NUT; BRKT FVR LEAF SUS(FGR***) M14	0-91110-514-0	24	1	0710-0907		●
82	NUT; BRKT M14	0-91110-514-0	24	1	0908-			●
82	NUT; BRKT FVR LEAF SUS(FGR***) M14	0-91110-514-0	24	1	0908-		●		●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0710-			●
89	NUT; LEAF SPR STOPPER FVR LEAF SUS(FGR***) M14 SLOTTED	0-91116-514-0	02	1	0710-		●		●
96	PAD; RR SPR	1-53359-047-0	02	1	0710-			●
96	PAD; RR SPR FVR LEAF SUS(FGR***)	1-53359-047-0	02	1	0710-		●		●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0710-			●
97	WASHER; LK,PAD FVR LEAF SUS(FGR***) ID=14.2	0-91510-514-0	04	1	0710-		●		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	0710-0907			●
98	WASHER; LK,STOPPER FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	16	1	0710-0907		●
98	WASHER; LK,STOPPER ID=14.2	0-91510-814-0	16	1	0908-			●
98	WASHER; LK,STOPPER FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	16	1	0908-		●		●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0710-0907			●
101	BRACKET; RR SPR,FRT FVR LEAF SUS(FGR***)	1-53353-078-1	02	1	0710-0907		●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0908-			●
101	BRACKET; RR SPR,FRT FVR LEAF SUS(FGR***)	1-53353-078-1	02	1	0908-		●		●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0710-0907			●
103	STOPPER; SUB SPR FVR LEAF SUS(FGR***)	1-53356-057-0	04	1	0710-0907		●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0908-			●
103	STOPPER; SUB SPR FVR LEAF SUS(FGR***)	1-53356-057-0	04	1	0908-		●		●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0710-0907			●
105	BRACKET; RR SPR,RR FVR LEAF SUS(FGR***)	1-53354-064-1	02	1	0710-0907		●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0908-			●
105	BRACKET; RR SPR,RR FVR LEAF SUS(FGR***)	1-53354-064-1	02	1	0908-		●		●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0710-0907			●
106	BOLT; BRKT FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	24	1	0710-0907		●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0908-			●
106	BOLT; BRKT FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	24	1	0908-		●		●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0710-			●
110	BOLT; LEAF SPR STOPPER FVR LEAF SUS(FGR***)	1-09000-007-0	02	1	0710-		●		●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0710-			●
111	PIN; SPLIT,LEAF SPR STOPPER FVR LEAF SUS(FGR***) OD=2.8 L=28	0-81123-028-0	02	1	0710-		●		●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0710-			●
112	BOLT; PAD FVR LEAF SUS(FGR***) M14X35	0-20851-435-0	04	1	0710-		●		●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	0710-0907			●
117	BOLT; STOPPER FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	16	1	0710-0907		●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	0908-			●
117	BOLT; STOPPER FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	16	1	0908-		●		●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0710-0907			●
118	NUT; STOPPER FVR LEAF SUS(FGR***) M14	0-91110-514-0	16	1	0710-0907		●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0908-			●
118	NUT; STOPPER FVR LEAF SUS(FGR***) M14	0-91110-514-0	16	1	0908-		●		●
128	COLLAR; RUBBER	1-53359-004-0	02	1	0710-			●
128	COLLAR; RUBBER FVR LEAF SUS(FGR***)	1-53359-004-0	02	1	0710-		●		●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0710-			●
129	SHIM; SIDE FVR LEAF SUS(FGR***) T=4.5	1-53359-061-1	02	1	0710-		●		●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0710-			●
129	SHIM; SIDE FVR LEAF SUS(FGR***) T=3.2	1-53359-062-1	02	1	0710-		●		●
138	WASHER; LK,BRKT ID=14.2	0-91510-814-0	24	1	0710-0907			●
138	WASHER; LK,BRKT FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	24	1	0710-0907		●
138	WASHER; LK,BRKT ID=14.2	0-91510-814-0	24	1	0908-			●
138	WASHER; LK,BRKT FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	24	1	0908-		●		●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0710-			●
281	WASHER; LEAF SPR STOPPER FVR LEAF SUS(FGR***) ID=15 OD=30	9-09160-614-0	04	1	0710-		●		●

131 207 207 344 130 132 202 202 544 8 544 65 65 8 69 34 69 2 86 148 69 148 69 545 545 65 69 69 69 33 33 345 65 69 19 57 131 207 207 344 130 132 202 544 8 544 202 65 65 8 34 69 69 2 86 148 69 69 148 545 545 69 69 33 33 345 65 65 69 69 19 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-	●	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-	●	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-	●	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-	●	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97611-239-2	01	1	0710-0804	●			●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	0710-0804		●
57	MEMBER; CROSS,RR SUSP FRT (A)	8-97611-239-2	01	1	0805-	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	0805-		●		●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	0710-0907			●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0710-0907		●
57	MEMBER; CROSS,RR SUSP FRT (B)	8-97610-858-5	01	1	0908-			●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0908-		●		●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	0710-0910			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97612-486-0	02	1	0710-0910		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97612-486-0	02	1	0911-		●
65	BRACKET; CENTER BRG (B)	8-97621-250-0	02	1	0911-			●
65	BRACKET; CENTER BRG (B)	8-97611-328-0	02	1	0710-0712				●
65	BRACKET; CENTER BRG (B)	8-97614-136-0	02	1	0801-0804				●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	02	1	0805-				●
65	BRACKET; CENTER BRG (A)	8-97611-329-0	02	1	0710-0804				●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (A)	8-97611-329-0	02	1	0805-				●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (A)	8-97614-133-0	02	1	0908-				●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (B)	8-97621-881-0	02	1	0908-				●
65	BRACKET; CENTER BRG (D)	8-97614-126-0	02	1	0710-		●
65	BRACKET; CENTER BRG (E)	8-97614-140-0	02	1	0710-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (C)	8-97623-367-0	02	1	0710-		●
69	GUSSET; RR SUSP,UPR (A)	8-97611-247-0	04	1	0710-	●
69	GUSSET; RR SUSP,UPR (B)	8-97611-280-0	02	1	0710-	●
69	GUSSET; RR SUSP,UPR (C)	8-97611-314-0	02	1	0710-	●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	0710-0907			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	0710-0907		●
69	GUSSET; RR SUSP,UPR (E)	8-97610-865-0	02	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	0908-		●		●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	0710-0907			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	0710-0907		●
69	GUSSET; RR SUSP,UPR (G)	8-97610-866-0	02	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	0908-		●		●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (D)	8-97619-800-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (D)	8-97619-801-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (F)	8-97619-802-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	0710-0907			●
69	GUSSET; RR SUSP,UPR (F)	8-97619-803-0	01	1	0908-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	0908-				●
69	GUSSET; RR SUSP,UPR (A)	8-97611-247-0	08	1	0710-0804				●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	0710-0804		●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	0805-		●		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97611-907-1	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97611-908-1	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97611-910-0	01	1	0710-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97611-911-0	01	1	0710-		●
86	MEMBER; CROSS,RR SUSP RR (A)	8-97611-312-1	01	1	0710-	●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	0710-0907			●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0710-0907		●
86	MEMBER; CROSS,RR SUSP RR (B)	8-97610-858-5	01	1	0908-			●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	0908-		●		●
86	MEMBER; CROSS,RR SUSP RR (C)	8-97611-239-2	01	1	0710-0804				●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (C)	8-97611-239-2	01	1	0710-0804		●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (C)	8-97611-239-2	01	1	0805-		●		●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-		●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-		●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-		●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	0710-	●	●	●	●
202	SPACER; 3RD C/MBR (B)	8-97610-873-0	02	1	0710-	●
202	SPACER; 3RD C/MBR (A)	8-97610-872-0	02	1	0710-		●	●	●
207	SPACER; 4TH C/MBR	8-97611-244-0	02	1	0710-		●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-		●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-		●		●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-	●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	0710-			●	●
545	SPACER; 5TH C/MBR	8-97611-245-0	02	1	0710-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
