4-71 — AIR SUSPENSION PIPING (#42104) — 48 parça

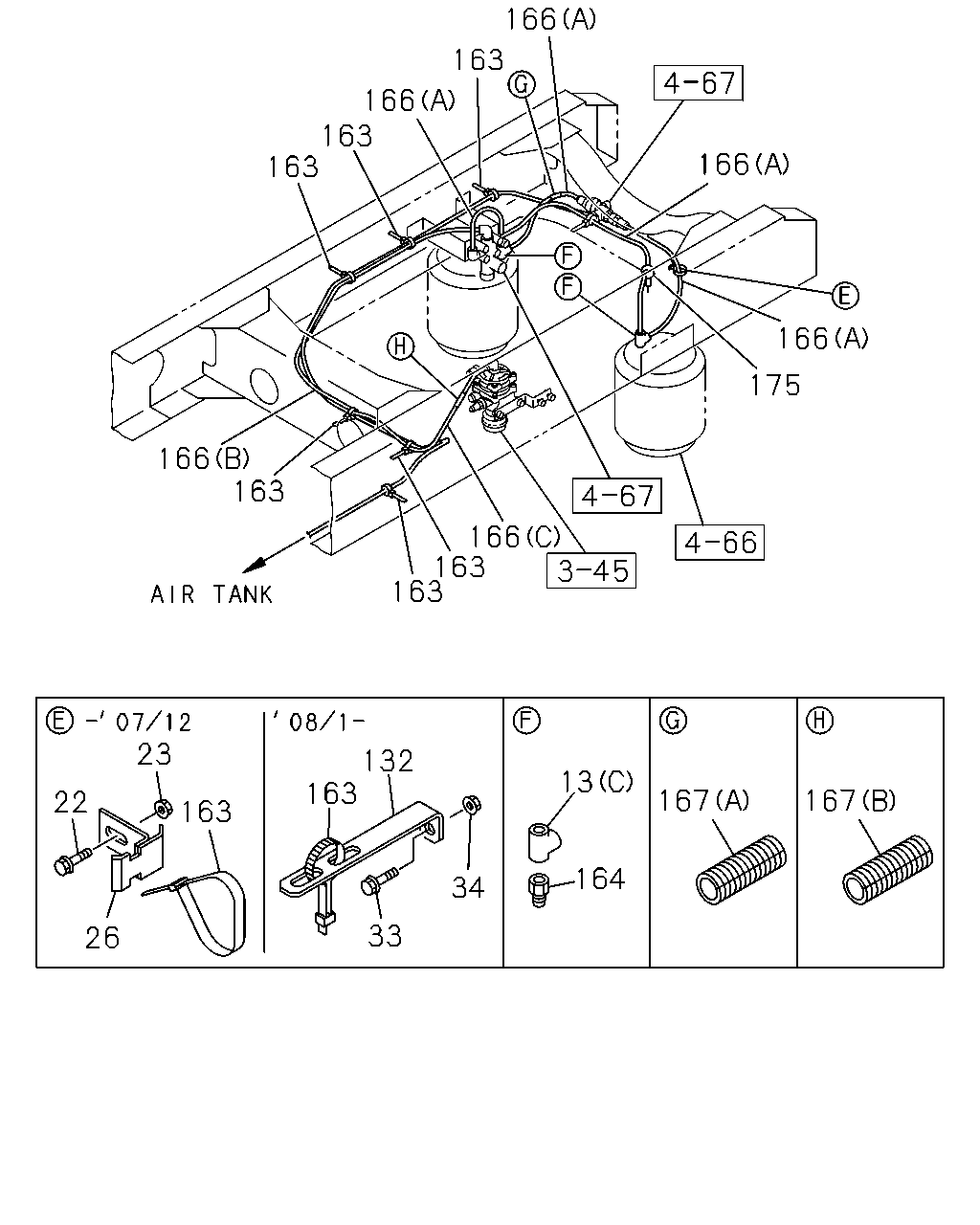

çizim 111823
166 163 166 163 163 166 166 175 166 163 166 163 163 23 132 163 13 167 167 22 163 164 34 33 26
BalonParca AdiParca NoAdetTipApplied Date A B
13 UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-0711 ●
13 UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09661-059-0 01 1 0712-0808 ●
13 UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809- ●
13 UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0710-0711 ●
13 UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT 		1-09661-214-0 01 1 0712- ●
13 UNION; AIR PIPE
(C) DIN12X2 & R1/4 3WAY 		1-09661-071-0 02 1 0710- ●
22 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0712 ● ●
23 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0712 ● ●
26 BRACKET; CLIP 1-47479-693-0 01 1 0710-0712 ● ●
33 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ●
132 BRACKET; CLIP
L=150 H=30 		1-47477-629-2 01 1 0801- ●
163 CLIP; BAND
L=350 		1-09707-183-0 05 1 0710-0712 ● ●
163 CLIP; BAND
L=350 		1-09707-183-0 05 1 0801-0907 ●
163 CLIP; BAND
L=350 		1-09707-183-0 03 1 0908- ●
163 CLIP; BAND
L=350 		1-09707-183-0 01 1 0710-0712 ●
163 CLIP; BAND
L=350 		1-09707-183-0 07 1 0801-0804 ●
163 CLIP; BAND
L=350 		1-09707-183-0 06 1 0805- ●
164 CONNECTOR 8-98120-199-0 01 1 0806- ● ●
164 CONNECTOR 8-98120-199-0 01 1 0806- ●
166 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
166 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ●
166 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ●
167 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
167 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ●
175 CLIP
L=350 		1-09707-183-0 01 1 0710-0712 ●

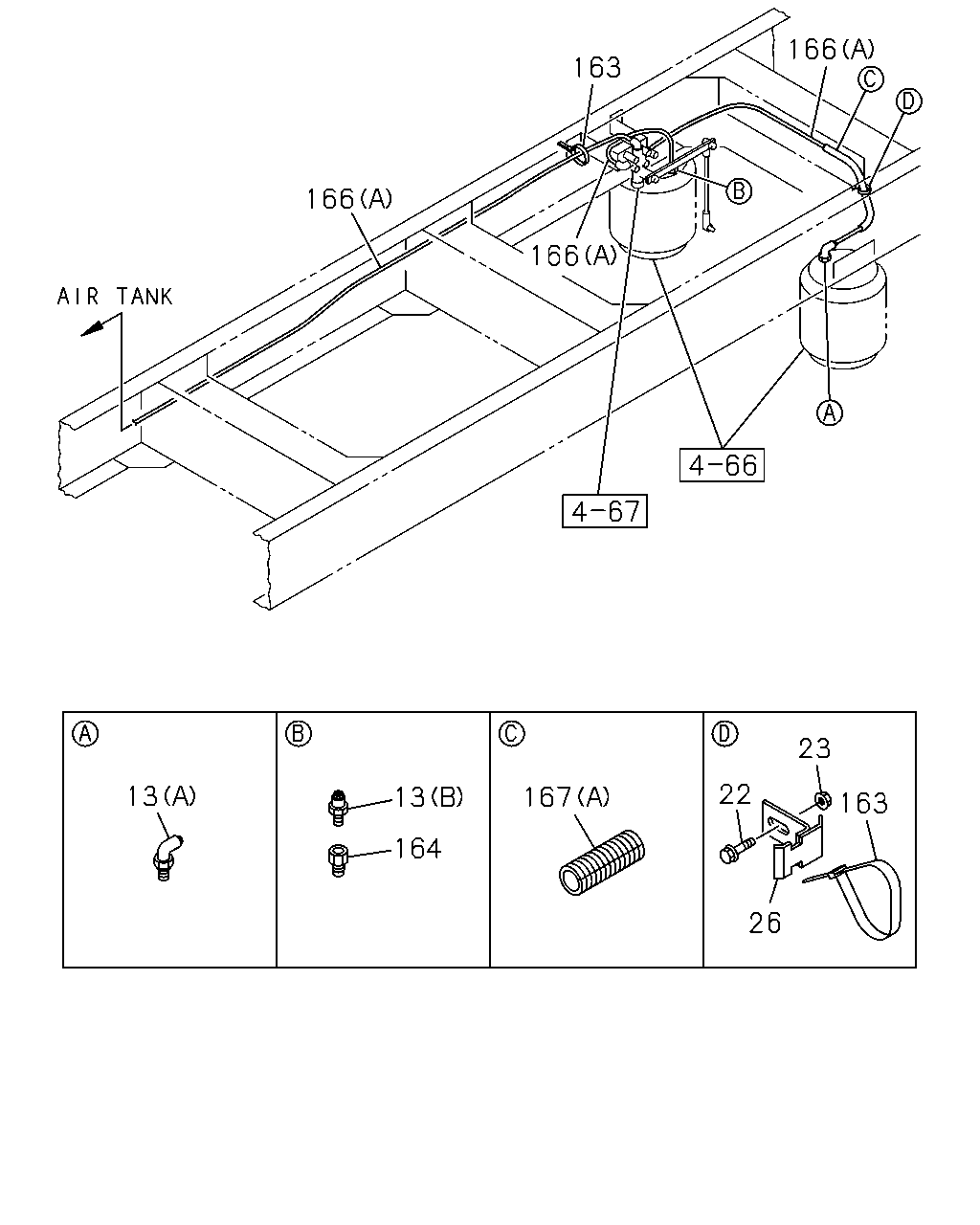

çizim 111842
166 163 166 166 23 22 13 13 167 163 164 26
BalonParca AdiParca NoAdetTipApplied Date A B
13 UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-0711 ●
13 UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09661-059-0 01 1 0712-0808 ●
13 UNION; AIR PIPE
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0809- ●
13 UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0710-0711 ●
13 UNION; AIR PIPE
(B) DIN12 & R1/4 STRAIGHT 		1-09661-214-0 01 1 0712- ●
13 UNION; AIR PIPE
(C) DIN12X2 & R1/4 3WAY 		1-09661-071-0 02 1 0710- ●
22 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0712 ● ●
23 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0712 ● ●
26 BRACKET; CLIP 1-47479-693-0 01 1 0710-0712 ● ●
163 CLIP; BAND
L=350 		1-09707-183-0 05 1 0710-0712 ● ●
163 CLIP; BAND
L=350 		1-09707-183-0 05 1 0801-0907 ●
163 CLIP; BAND
L=350 		1-09707-183-0 03 1 0908- ●
163 CLIP; BAND
L=350 		1-09707-183-0 01 1 0710-0712 ●
163 CLIP; BAND
L=350 		1-09707-183-0 07 1 0801-0804 ●
163 CLIP; BAND
L=350 		1-09707-183-0 06 1 0805- ●
164 CONNECTOR 8-98120-199-0 01 1 0806- ● ●
164 CONNECTOR 8-98120-199-0 01 1 0806- ●
166 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
166 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ●
166 TUBE; NYLON
(C) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ●
167 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
167 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ●
