◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28B - VENTILATION SYSTEM ▶
0-28B — VENTILATION SYSTEM (#421) — 26 parça

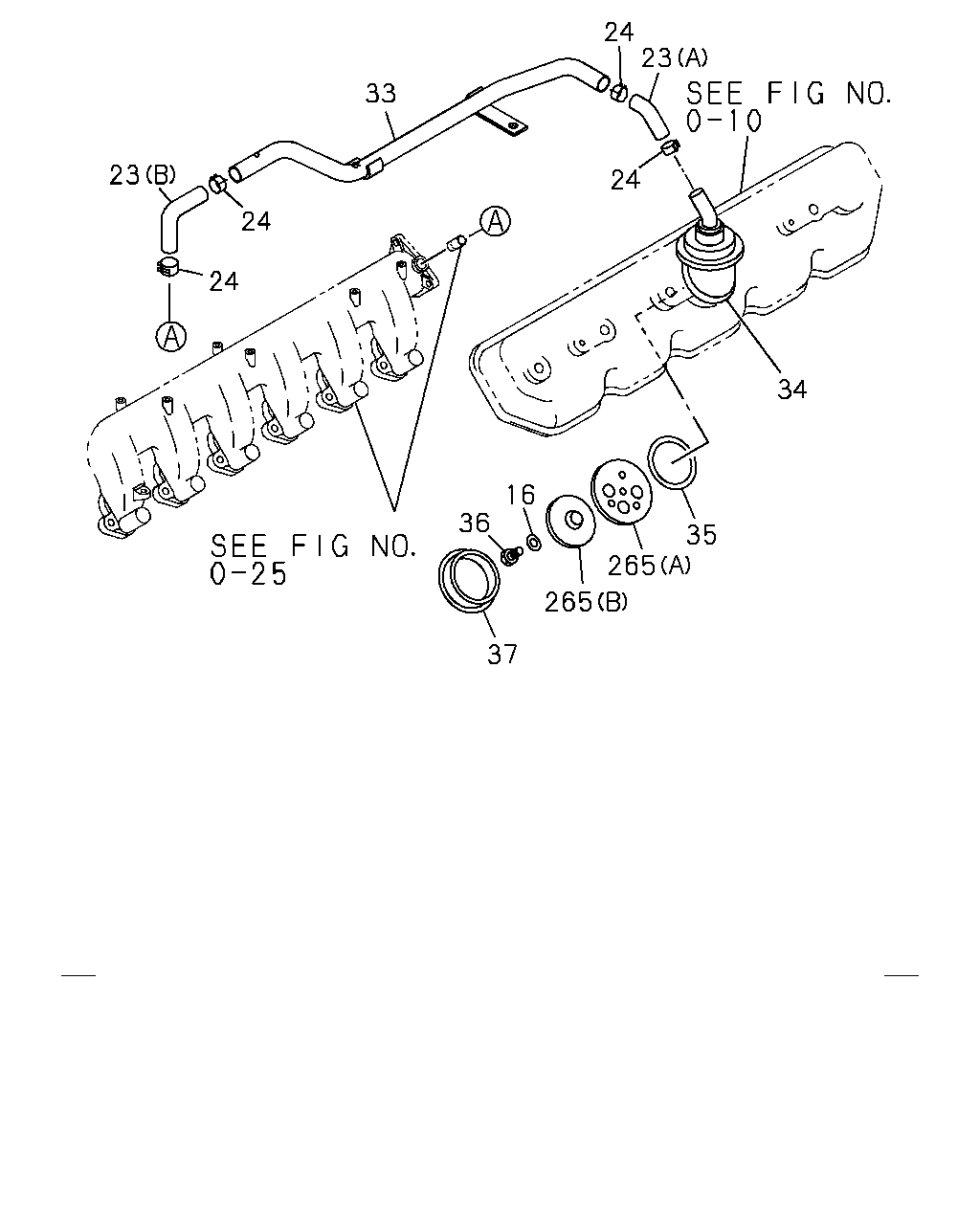

çizim 96358
24 33 23 24 24 24 23 34 35 16 36 265 265 37
BalonParca AdiParca NoAdetTipApplied Date A B
16 WASHER; LK,BREATHER
ID=6.1 		9-09150-506-0 04 1 8712- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-274-0 01 1 8712-8807 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		1-09360-663-0 01 1 8712-8807 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A),(B) 		1-09360-831-0 02 1 8808-9001 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		1-09360-775-1 01 1 9002- ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		1-09360-831-0 01 1 9002- ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=19 L=20 		9-09525-835-0 01 1 8712-8807 ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=26 		1-09707-091-0 04 1 8808-9001 ●
24 CLIP; RUBBER HOSE,VENTILATOR
ID=20 		1-09707-084-1 04 1 8712- ● ●
33 PIPE; VENTILATOR 1-14236-075-0 01 1 8712-8807 ●
33 PIPE; VENTILATOR 1-14236-086-1 01 1 8808-8809 ●
33 PIPE; VENTILATOR 1-14236-089-1 01 1 8810-9001 ●
33 PIPE; VENTILATOR 1-14236-084-4 01 1 9002- ●
34 VENTILATOR 1-14360-039-1 01 1 8712-9001 ●
34 VENTILATOR 1-14360-043-2 01 1 9002-9602 ●
34 VENTILATOR 1-14360-052-0 01 1 9603- ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-209-0 01 1 8712-9001 ●
35 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09623-418-0 01 1 9002- ●
36 BOLT; VENTILATOR
M6X12 		9-02050-612-0 04 1 8712-9001 ●
36 BOLT; VENTILATOR
M6X12 		9-02050-612-0 04 1 9002-9005 ●
36 BOLT; VENTILATOR
M6X12 		0-20800-612-0 04 1 9006-9504 ●
36 BOLT; VENTILATOR
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 		0-20800-612-0 04 1 9505- ●
36 BOLT; VENTILATOR
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
37 GROMMET; BREATHER,HD COVER
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-09333-132-0 01 1 9501- ●
265 PLATE; BAFFLE HD COVER
(B) OD=75 		1-14369-051-0 01 1 8712- ● ●
265 PLATE; BAFFLE HD COVER
(A) OD=92 		1-14369-052-0 01 1 8712- ● ●
