◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#42085) — 75 parça

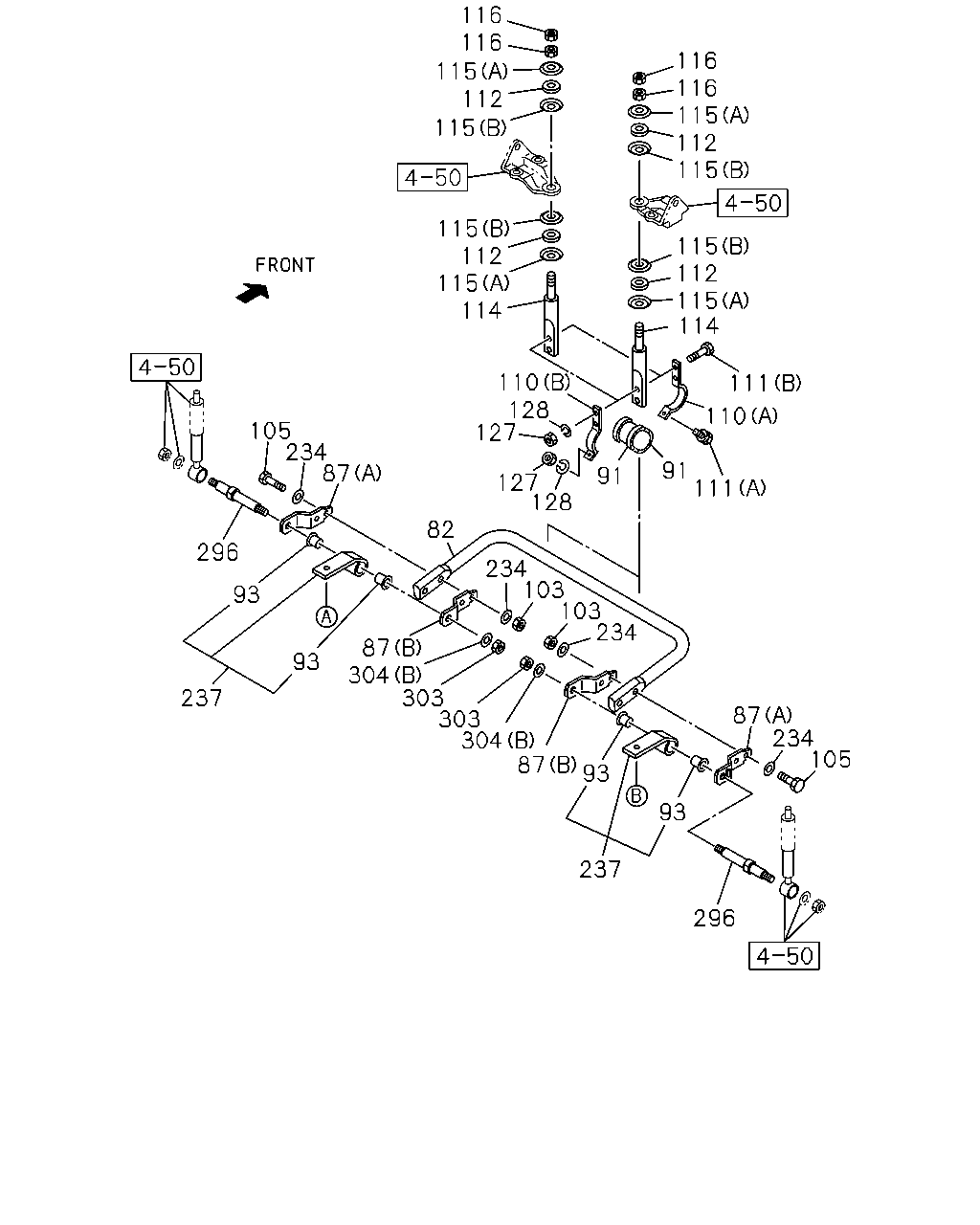

çizim 111789
116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 237 87 234 105 93 237 296
BalonParca AdiParca NoAdetTipApplied Date A B C
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98012-961-1 01 1 0710- ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 0710- ● ● ●
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 0710- ● ● ●
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 0710- ● ● ●
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 0710- ● ● ●
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 0710- ● ● ●
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 0710- ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 0710- ● ● ●
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 0710- ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 0710- ● ● ●
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 0710- ● ● ●
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 0710- ● ● ●
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-065-0 02 1 0710- ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 0710- ● ● ●
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 0710- ● ● ●
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 0710- ● ● ●
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 0710- ● ● ●
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 0710- ● ● ●
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 0710- ● ● ●
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-662-0 02 1 0710- ● ● ●
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 0710- ● ● ●
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 0710- ● ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 0710- ● ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 0710- ● ● ●
çizim 111793
267 274 348 274 267 272
BalonParca AdiParca NoAdetTipApplied Date A B C
267 CLIP; HARNESS
ID=11 L=16 		0-95235-025-0 06 1 0710- ● ● ●
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 0710-0710 ● ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 0710- ● ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 0710- ●
348 BRACKET; CLIP 8-98034-794-0 01 1 0710- ● ● ●
348 BRACKET; CLIP 8-98034-793-0 01 1 0710- ● ● ●

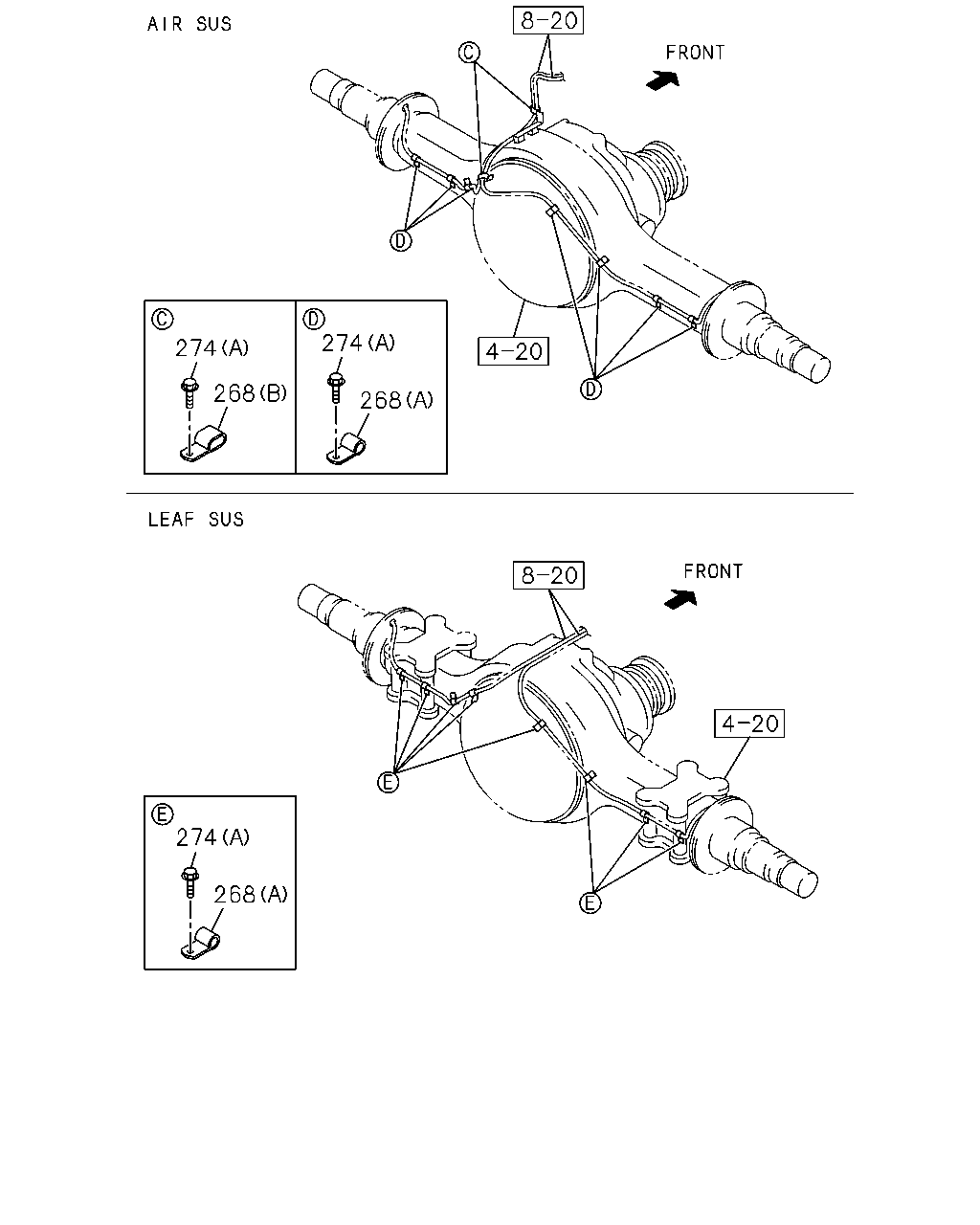

çizim 111794
274 274 268 268 274 268
BalonParca AdiParca NoAdetTipApplied Date A B C
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 07 1 0710- ● ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 01 1 0710-0710 ● ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 02 1 0710- ● ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 0710- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 0710-0710 ● ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 0710- ● ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 0710- ●

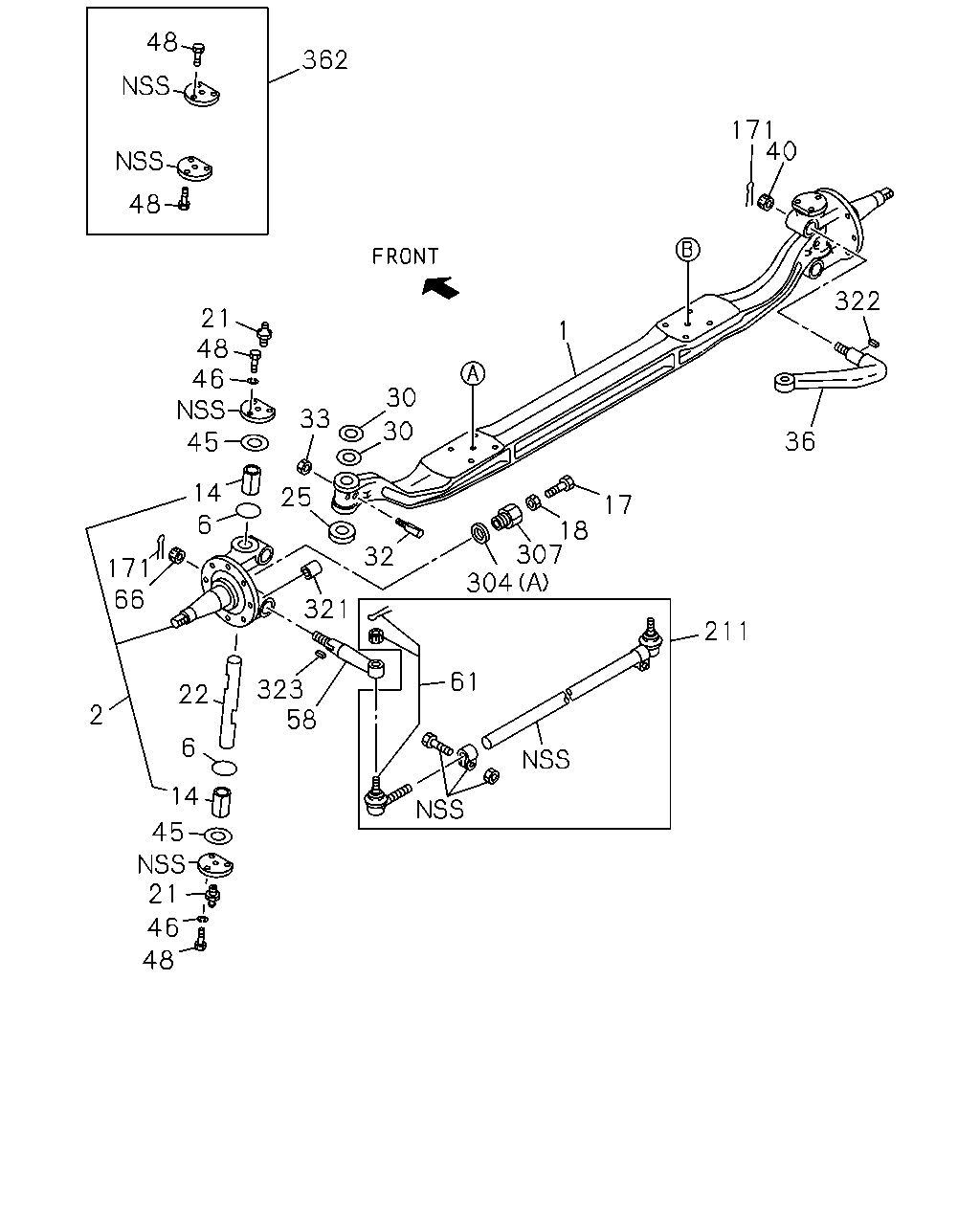

çizim 111796
48 362 171 40 48 322 21 48 46 45 1 30 33 30 36 14 6 25 17 18 307 304 32 171 66 321 211 61 323 58 22 2 6 14 45 21 46 48
BalonParca AdiParca NoAdetTipApplied Date A B C
1 AXLE; FRT 1-43111-161-0 01 1 0710- ● ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 0710- ● ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 0710- ● ● ●
6 SEAL; KING PIN 1-09625-634-0 04 1 0710- ● ● ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 0710- ● ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 0710- ● ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 0710- ● ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 0710- ● ● ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 0710- ● ● ●
25 BEARING; THRUST,KING PIN 1-43173-004-0 02 1 0710- ● ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-338-0 AR 1 0710- ● ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-339-0 AR 1 0710- ● ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-340-0 AR 1 0710- ● ● ●
32 BOLT; KEY,KING PIN
L=98.4 		1-43116-014-0 02 1 0710- ● ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 0710- ● ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 0710- ● ● ●
36 ARM; KNUCKLE 1-43133-087-0 01 1 0710- ● ● ●
40 NUT; KNUCKLE ARM 1-43139-059-0 01 1 0710- ● ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 0710- ● ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 0710- ● ● ●
48 BOLT; COVER 1-43139-045-0 12 1 0710- ● ● ●
58 ARM; TIE ROD 1-43134-061-0 01 1 0710- ● ● ●
58 ARM; TIE ROD 1-43135-066-0 01 1 0710- ● ● ●
61 ROD END; TIE ROD 1-43155-058-0 01 1 0710- ● ● ●
61 ROD END; TIE ROD 1-43156-058-0 01 1 0710- ● ● ●
66 NUT; TIE ROD END 1-43139-052-0 02 1 0710- ● ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 0710- ● ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 0710- ● ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 0710- ● ● ●
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		9-09164-520-0 02 1 0710- ● ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 0710- ● ● ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 0710- ● ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 0710- ● ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 0710- ● ● ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 0710- ● ● ●
