◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#42084) — 1069 parça
çizim 111765
104 8 9 8 106 225 56 9 74 1 71 128 9 17 10 14 12 83 13 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1457 		1-37124-395-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=725 		8-98092-402-0 01 1 0710- ●
1 SHAFT; PROP
(D) L=1119 		8-98092-528-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=654 		8-98091-298-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1194 		8-98091-323-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1239 		8-98039-901-0 01 1 0908- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-0 01 1 0908- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0710-0710 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 0710- ●
1 SHAFT; PROP
(D) L=1184 		8-98092-529-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0710 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0711- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0711-0907 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0711- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 03 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 02 1 0711- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0710-0907 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0908- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0908- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0710-0710 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0711- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0711-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0711- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0711- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0806- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0806- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
71 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
71 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0710-0810 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
83 PLATE; LK,UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0710- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0710- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0710-0907 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0908- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0908- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0710- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 		1-37241-103-1 01 1 0710- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=330 		1-37241-124-0 01 1 0710-0907 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=330 		1-37241-124-0 01 1 0908- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 0908- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0710- ●

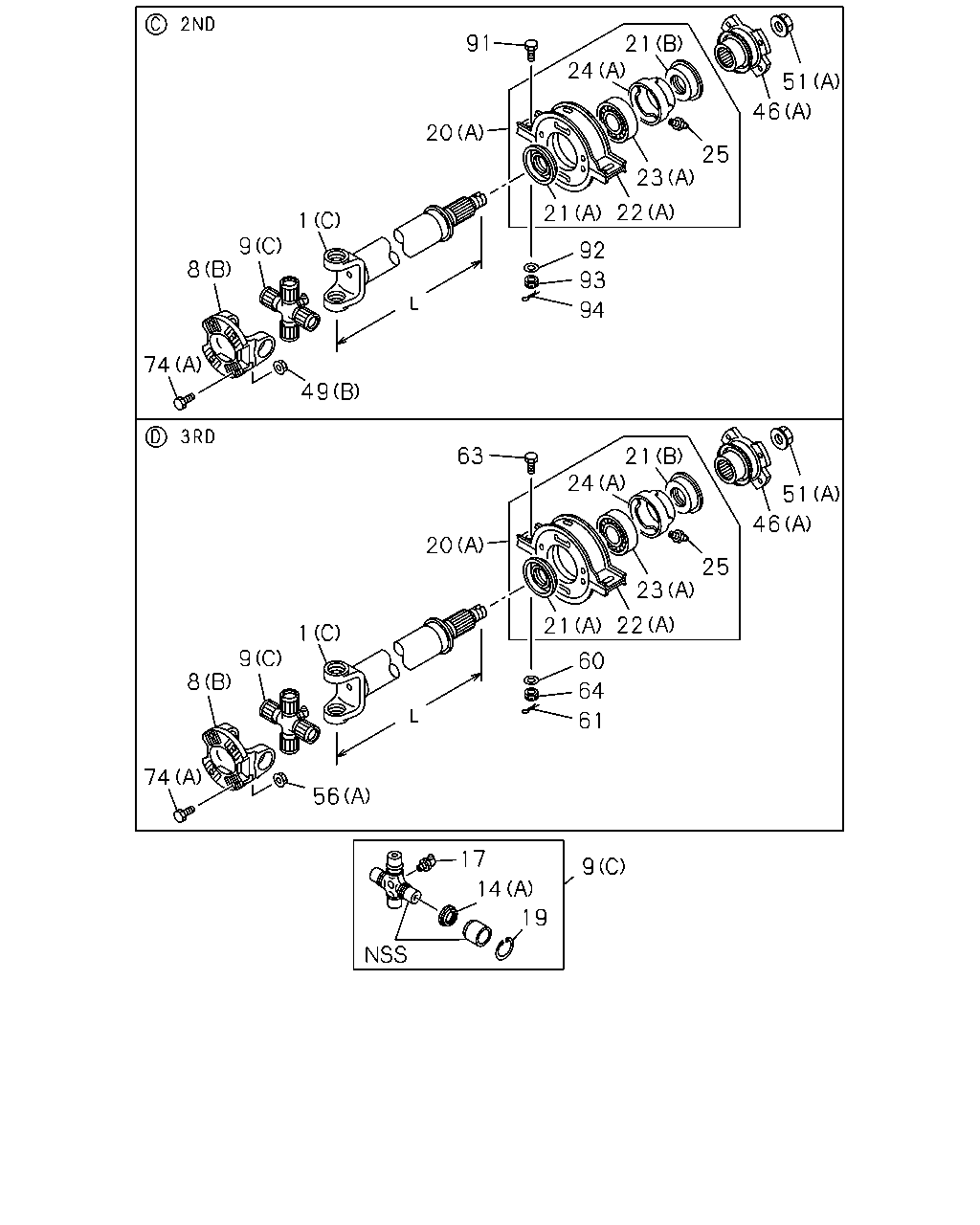

çizim 111773
91 21 24 51 46 20 25 23 22 21 1 9 8 92 93 94 74 49 63 21 24 51 46 20 25 23 22 21 1 9 8 60 64 61 74 56 17 9 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1457 		1-37124-395-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=725 		8-98092-402-0 01 1 0710- ●
1 SHAFT; PROP
(D) L=1119 		8-98092-528-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=654 		8-98091-298-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1194 		8-98091-323-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1239 		8-98039-901-0 01 1 0908- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-0 01 1 0908- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0710-0710 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 0710- ●
1 SHAFT; PROP
(D) L=1184 		8-98092-529-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0710 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0711- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0711-0907 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0711- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 03 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 02 1 0711- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0710-0907 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0908- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0908- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0710-0710 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0711- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0711-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0711- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0710-0710 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0711- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 16 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0710 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0711- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0710 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0711- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0710 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0711- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0710 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0711- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
FVR AIR SUS(FGD***) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
FVR LEAF SUS(FGR***) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0712- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0710 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0711- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 0710- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
49 NUT; YOKE
(B) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
49 NUT; YOKE
(B) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
49 NUT; YOKE
(B) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0710 ● ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0711- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 0710- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0806- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0806- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
60 WASHER; PL,RET TO BRKT
ID=17 		1-09503-241-1 02 1 0710- ●
61 PIN; SPLIT
OD=3.7 L=25 		0-81124-025-0 02 1 0710- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M16X45 		1-09042-030-0 02 1 0710- ●
64 NUT; RET TO BRKT
M16 SLOTTED 		0-91116-516-0 02 1 0710-1204 ●
64 NUT; RET TO BRKT
M16 SLOTTED 		8-98049-689-0 02 1 1205- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0710-0810 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0710- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0710- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0710-1204 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710- ● ●
çizim 111774
51 78 21 24 20 21 46 25 23 22 1 9 71 8 74 79 80 81 9 17 14 10 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1457 		1-37124-395-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=725 		8-98092-402-0 01 1 0710- ●
1 SHAFT; PROP
(D) L=1119 		8-98092-528-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=654 		8-98091-298-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1194 		8-98091-323-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1239 		8-98039-901-0 01 1 0908- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-0 01 1 0908- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0710-0710 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 0710- ●
1 SHAFT; PROP
(D) L=1184 		8-98092-529-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0710 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0711- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0711-0907 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0711- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 03 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 02 1 0711- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0710-0907 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0908- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0908- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0710-0710 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0711- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0711-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0711- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0710 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0711- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0710 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0711- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0710 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0711- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0710 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0711- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
FVR AIR SUS(FGD***) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
FVR LEAF SUS(FGR***) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0712- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0710 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0711- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 0710- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0710 ● ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0711- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 0710- ●
71 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
71 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0710-0810 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-1204 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
çizim 111777
78 21 24 51 46 20 25 23 22 21 1 9 8 79 80 81 71 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1457 		1-37124-395-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=725 		8-98092-402-0 01 1 0710- ●
1 SHAFT; PROP
(D) L=1119 		8-98092-528-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=654 		8-98091-298-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1194 		8-98091-323-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1239 		8-98039-901-0 01 1 0908- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-0 01 1 0908- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0710-0710 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 0710- ●
1 SHAFT; PROP
(D) L=1184 		8-98092-529-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0710 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0711- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0711-0907 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0711- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 03 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 02 1 0711- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0710-0907 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0908- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0908- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0710-0710 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0711- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0711-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0711- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0710-0710 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0711- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 16 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0710 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0711- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0710 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0711- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0710 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0711- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0710 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0711- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
FVR AIR SUS(FGD***) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
FVR LEAF SUS(FGR***) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0712- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0710 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0711- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 0710- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0710 ● ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0711- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 0710- ●
71 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
71 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
71 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
71 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ● ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-1204 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710- ● ● ●
çizim 111779
56 9 1 8 128 225 104 9 8 106 74 56 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1457 		1-37124-395-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=725 		8-98092-402-0 01 1 0710- ●
1 SHAFT; PROP
(D) L=1119 		8-98092-528-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=654 		8-98091-298-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1194 		8-98091-323-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1239 		8-98039-901-0 01 1 0908- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-0 01 1 0908- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0710-0710 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 0710- ●
1 SHAFT; PROP
(D) L=1184 		8-98092-529-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0710 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0711- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0711-0907 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0711- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 03 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 02 1 0711- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0710-0907 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0908- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0908- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0710-0710 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0711- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0711-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0711- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0710-0710 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0711- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0711- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0710-0907 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0908- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 16 1 0710- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0806- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0806- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0710-0810 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0710- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0710- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0710-0907 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0908- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0908- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0710- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 		1-37241-103-1 01 1 0710- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=330 		1-37241-124-0 01 1 0710-0907 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=330 		1-37241-124-0 01 1 0908- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 0908- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0710- ●
çizim 111781
56 8 9 1 128 107 9 8 106 106 225 104 74 17 9 10 14 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1457 		1-37124-395-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=725 		8-98092-402-0 01 1 0710- ●
1 SHAFT; PROP
(D) L=1119 		8-98092-528-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=654 		8-98091-298-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1194 		8-98091-323-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1239 		8-98039-901-0 01 1 0908- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-0 01 1 0908- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0710-0710 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 0710- ●
1 SHAFT; PROP
(D) L=1184 		8-98092-529-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0710 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0711- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0711-0907 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0711- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 03 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 02 1 0711- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0710-0907 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0908- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0908- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0710-0710 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0711- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0711-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0711- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0711- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0806- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0806- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0710-0810 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
83 PLATE; LK,UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0710- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0710- ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0710- ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0710-0907 ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0908- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0908- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 0710- ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 		1-37241-103-1 01 1 0710- ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=330 		1-37241-124-0 01 1 0710-0907 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=330 		1-37241-124-0 01 1 0908- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 0908- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 0710- ●
çizim 111782
51 46 91 92 21 24 20 22 56 21 25 23 1 9 49 8 74 93 94 9 17 10 14 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(A) L=1457 		1-37124-395-0 01 1 0710- ●
1 SHAFT; PROP
(B) L=725 		8-98092-402-0 01 1 0710- ●
1 SHAFT; PROP
(D) L=1119 		8-98092-528-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-297-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (E) L=654 		8-98091-298-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (G) L=1194 		8-98091-323-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (D) L=1239 		8-98039-901-0 01 1 0908- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1225 		8-98092-405-0 01 1 0908- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0710-0710 ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(B) L=595 		8-98092-400-0 01 1 0711- ●
1 SHAFT; PROP
(C) L=1070 		8-98092-406-0 02 1 0710- ●
1 SHAFT; PROP
(D) L=1184 		8-98092-529-0 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-066-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0710-0710 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0711- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0711- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0710-0907 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0908- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 0710- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 04 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-091-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0711-0907 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 		1-37300-110-0 02 1 0908- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 01 1 0711- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 		1-37300-111-0 01 1 0711- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 67.5 		1-37300-110-0 03 1 0710-0710 ●
9 JOURNAL ASM; PROP SHAFT
(C) NIPPLE 90 		1-37300-111-0 02 1 0711- ●
10 BOLT; UJT
M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0710-0907 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 08 1 0908- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 08 1 0908- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0710-0710 ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 04 1 0711- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (A) 		1-37249-131-0 04 1 0711- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 0710- ●
14 COVER; DUST,SPIDER
(A) 		1-37249-131-0 16 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0907 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0908- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0711-0907 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0908-1006 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1007- ●
17 NIPPLE; GREASE,PROP SHAFT
90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0710 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0711- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0710 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0710-0710 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 01 1 0711- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (A) ID=60 		1-37510-115-0 01 1 0711- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) ID=60 		1-37510-115-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (A) D=120 		1-09625-127-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0710-0710 ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 0711- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) 		1-09625-621-0 01 1 0711- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (C) D=120 		1-09625-126-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 02 1 0710- ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 02 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0710-0710 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 01 1 0711- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37516-048-2 01 1 0711- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 0710- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-048-2 02 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0710-0710 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 01 1 0711- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (A) 		9-00090-256-0 01 1 0711- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 0710- ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-256-0 02 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0710-0710 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 01 1 0711- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (A) 		1-37529-109-0 01 1 0711- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 0710- ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-109-0 02 1 0710- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0710 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0711-0907 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0908- ●
25 NIPPLE; GREASE,CENTER BRG
FVR AIR SUS(FGD***) P90 PROP SHAFT(C5T) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
FVR LEAF SUS(FGR***) MT6 STRAIGHT 		1-09380-006-0 02 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 02 1 0712- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0710-0710 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 01 1 0711- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (A) 		1-37245-348-0 01 1 0711- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 0710- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-348-0 02 1 0710- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 0710- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
49 NUT; YOKE
(B) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
49 NUT; YOKE
(B) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
49 NUT; YOKE
(B) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0710-0710 ● ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 01 1 0711- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (A) M39 FLANGE 		1-09440-046-0 01 1 0711- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 0710- ●
51 NUT; FLANGE,SPLINED
(A) M39 FLANGE 		1-09440-046-0 02 1 0710- ●
56 NUT; YOKE
(B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 0710- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 08 1 0806- ● ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (A) M14 FLANGE 		8-97365-444-0 08 1 0806- ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
56 NUT; YOKE
(A) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ●
56 NUT; YOKE
(A) M14 FLANGE 		8-97365-444-0 04 1 0806- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 08 1 0710-0810 ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 08 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0811- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
74 BOLT; YOKE,TRANS
(A) M14X50 		1-09000-645-0 04 1 0710-0810 ●
83 PLATE; LK,UJT,PROP SHAFT
(A) 		1-37356-008-0 04 1 0710- ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37356-010-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
(A) 		1-37355-020-0 04 1 0710- ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) (B) T=6 		1-37355-022-0 04 1 0710- ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0710- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0710- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0710-1204 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
