◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#42081) — 744 parça

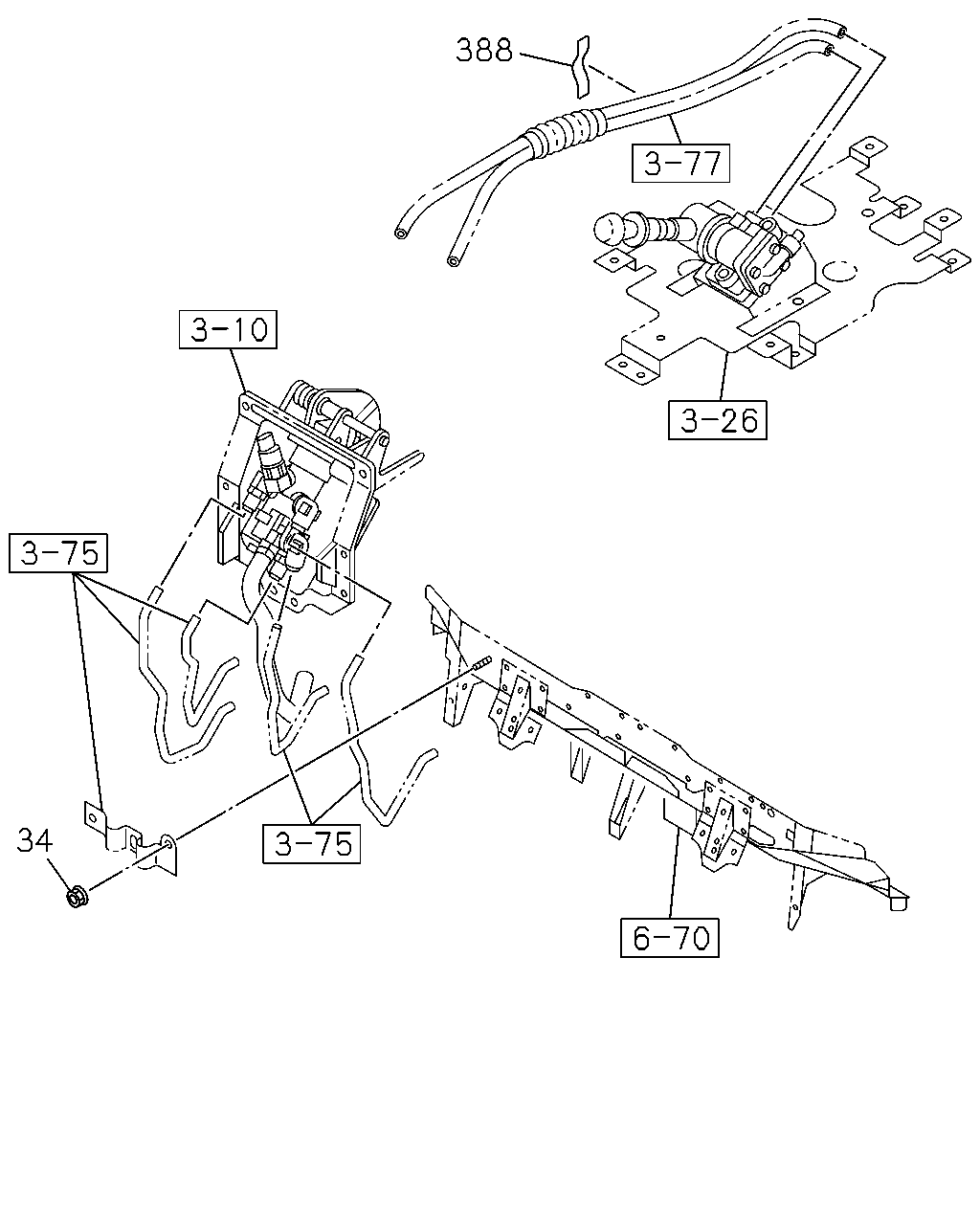

çizim 111766
388 34
BalonParca AdiParca NoAdetTipApplied Date A B C
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0712 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0806 ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0806 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0810-0907 ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0810-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0908- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ● ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ● ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ● ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ● ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0807-0809 ●
388 SEAL
100X40 		1-72498-022-1 03 1 0710- ● ● ●

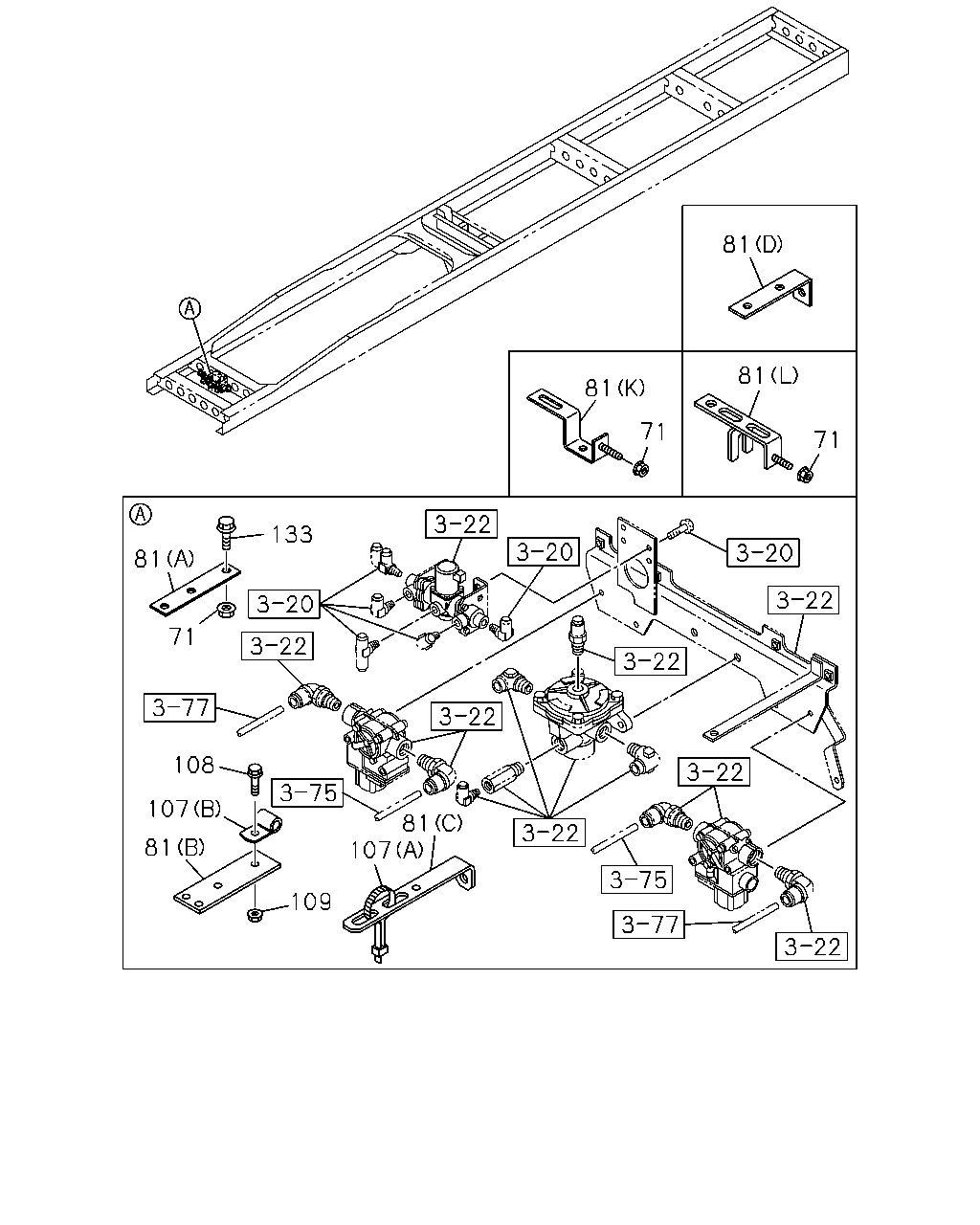

çizim 111768
81 81 81 71 71 133 81 71 108 107 81 107 81 109
BalonParca AdiParca NoAdetTipApplied Date A B C
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0801-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 03 1 0801-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710-0811 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0712 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0811 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0801-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710- ●
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0710- ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0710-0808 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-693-0 02 1 0710-0808 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 02 1 0809-0907 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 02 1 0809-0907 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 02 1 0908- ●
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 02 1 0908- ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 03 1 0801-0803 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-693-0 03 1 0801-0803 ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (C) L=100 H=30 		1-47477-645-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (C) L=100 H=30 		1-47477-645-2 02 1 0808-0812 ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (J) 		1-47479-381-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (J) 		1-47479-381-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (I) 		1-47476-699-2 01 1 0712- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0710-0806 ● ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0807-0807 ● ● ●
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0710-0902 ● ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ● ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ● ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (F) 		1-47479-693-0 01 1 0710-0808 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0808 ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (F) 		1-47479-693-0 01 1 0809- ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (E) 		8-98047-730-0 02 1 0710-0710 ●
81 BRACKET; CLIP
(E) 		8-98047-730-0 02 1 0710-0710 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 01 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 41 1 0908- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0806-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 08 1 0806-0811 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0812-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 37 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 03 1 0802-0811 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 41 1 0812-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0908-1002 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 53 1 1003- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0812-0907 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 38 1 0908- ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 19 1 0710-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 35 1 0812-1101 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 36 1 1102- ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 43 1 0812-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 35 1 0710-0712 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0801-0806 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 0807-1002 ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0801-0803 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 03 1 0801-0803 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0804-0811 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ● ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-0811 ● ●
133 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0812-0907 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0801-0811 ●

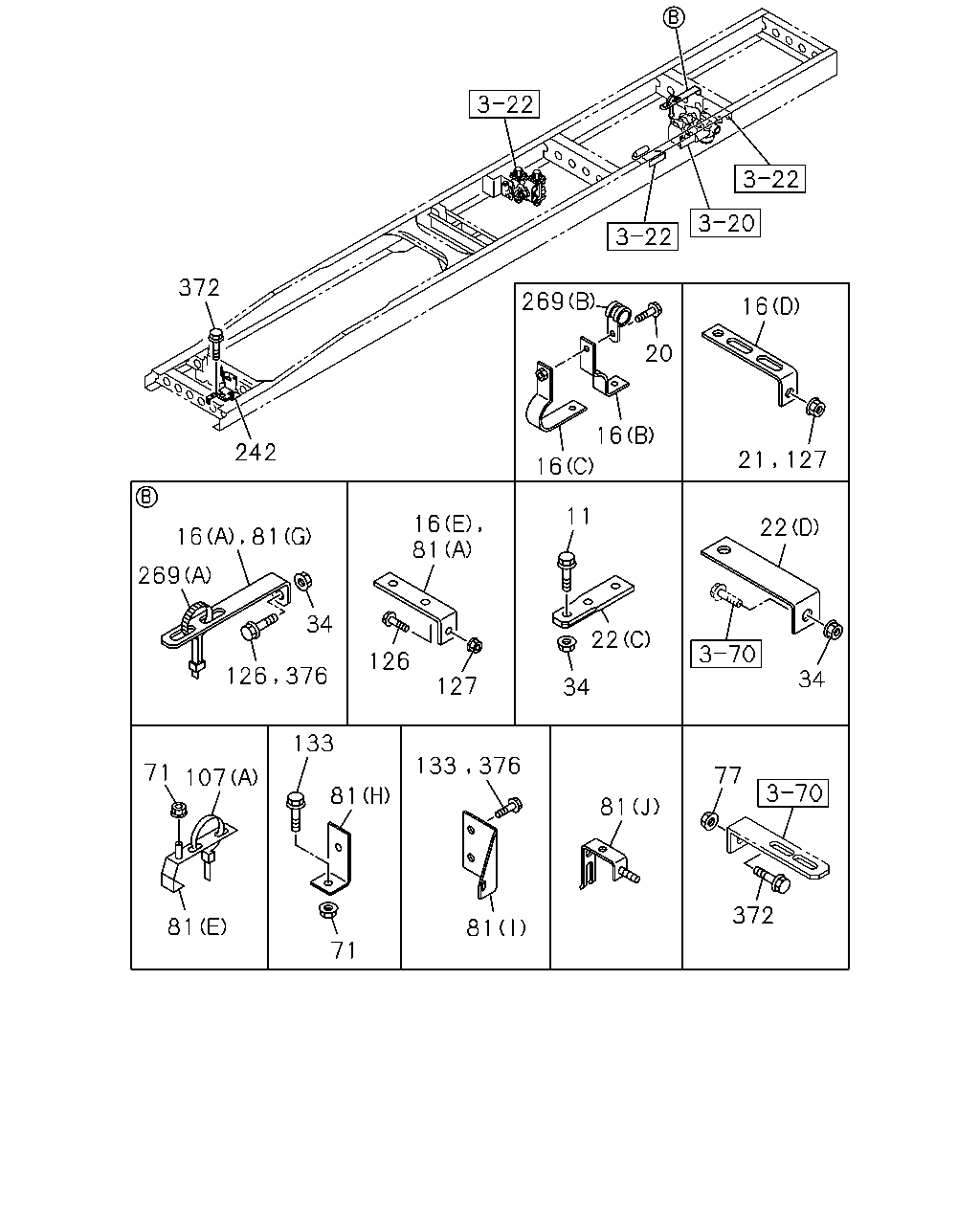

çizim 111783
372 269 16 20 16 242 21 127 16 11 16 81 22 16 81 269 34 22 126 34 127 34 133 133 376 71 77 107 81 81 372 81 81 71 126 376
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0710-0710 ●
11 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ●
11 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0811 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812- ●
16 BRACKET; PIPE CLIP
(B) 		1-47478-588-0 01 1 0710-0802 ●
16 BRACKET; PIPE CLIP
(B) 		1-47478-588-0 01 1 0803- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-249-0 01 1 0710-0802 ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-249-0 01 1 0803- ● ●
16 BRACKET; PIPE CLIP
(A) L=215 		1-47479-288-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-598-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 0710-0711 ●
16 BRACKET; PIPE CLIP
(E) L=90 		1-47477-755-1 01 1 0710-0711 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ●
20 BOLT; CLIP
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0710 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0710-0907 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0908- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0801-0907 ●
22 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0710-0907 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (A) 		1-47475-881-0 01 1 0710-0907 ●
22 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0908- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		1-47475-881-0 01 1 0908- ●
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0710-0712 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (B) L=60 H=30 		1-47477-716-1 01 1 0710-0712 ●
22 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 0801-0808 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (E) 		1-47479-693-0 01 1 0801-0808 ●
22 BRACKET; CLIP
(E) 		8-98119-184-1 01 1 0809-0907 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (E) 		8-98119-184-1 01 1 0809-0907 ●
22 BRACKET; CLIP
(E) 		8-98119-184-1 01 1 0908- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98119-184-1 01 1 0908- ●
22 BRACKET; CLIP
(C) L=100 		1-47477-620-1 03 1 0710-0710 ●
22 BRACKET; CLIP
(C) L=100 		1-47477-620-1 02 1 0710-0712 ●
22 BRACKET; CLIP
(C) L=100 		1-47477-620-1 01 1 0801- ●
22 BRACKET; CLIP
(D) L=55 B=25 		1-47478-439-0 01 1 0710-0712 ●
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0807-0809 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0712 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0806 ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0806 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0810-0907 ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0810-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0908- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ● ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ● ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ● ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ● ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0807-0809 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0801-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 03 1 0801-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710-0811 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0712 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0811 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0801-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710- ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ●
77 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0804-0811 ●
77 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0804-0811 ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
77 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
77 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 0801- ●
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0710- ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0710-0808 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-693-0 02 1 0710-0808 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 02 1 0809-0907 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 02 1 0809-0907 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 02 1 0908- ●
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 02 1 0908- ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 03 1 0801-0803 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-693-0 03 1 0801-0803 ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (C) L=100 H=30 		1-47477-645-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (C) L=100 H=30 		1-47477-645-2 02 1 0808-0812 ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (J) 		1-47479-381-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (J) 		1-47479-381-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (I) 		1-47476-699-2 01 1 0712- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0710-0806 ● ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0807-0807 ● ● ●
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0710-0902 ● ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ● ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ● ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (F) 		1-47479-693-0 01 1 0710-0808 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0808 ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (F) 		1-47479-693-0 01 1 0809- ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (E) 		8-98047-730-0 02 1 0710-0710 ●
81 BRACKET; CLIP
(E) 		8-98047-730-0 02 1 0710-0710 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 01 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 41 1 0908- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0806-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 08 1 0806-0811 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0812-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 37 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 03 1 0802-0811 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 41 1 0812-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0908-1002 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 53 1 1003- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0812-0907 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 38 1 0908- ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 19 1 0710-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 35 1 0812-1101 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 36 1 1102- ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 43 1 0812-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 35 1 0710-0712 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0801-0806 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 0807-1002 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0908-0908 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0908- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0801-0803 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 03 1 0801-0803 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0804-0811 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ● ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-0811 ● ●
133 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0812-0907 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0801-0811 ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0710- ● ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=26 L=27 		1-09701-006-0 02 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 02 1 0801- ● ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0710-0712 ● ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 01 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0811 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 01 1 0801-0811 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0812- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0801- ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ● ● ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ●
372 BOLT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0801-0803 ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0801-0803 ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0804-0811 ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 0804-0811 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0811 ●
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
372 BOLT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0903- ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0811 ●
376 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0811 ●
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
376 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0802 ● ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0907 ●
376 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0907 ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M8X30 FLANGE 		0-28650-830-0 02 1 0803- ●

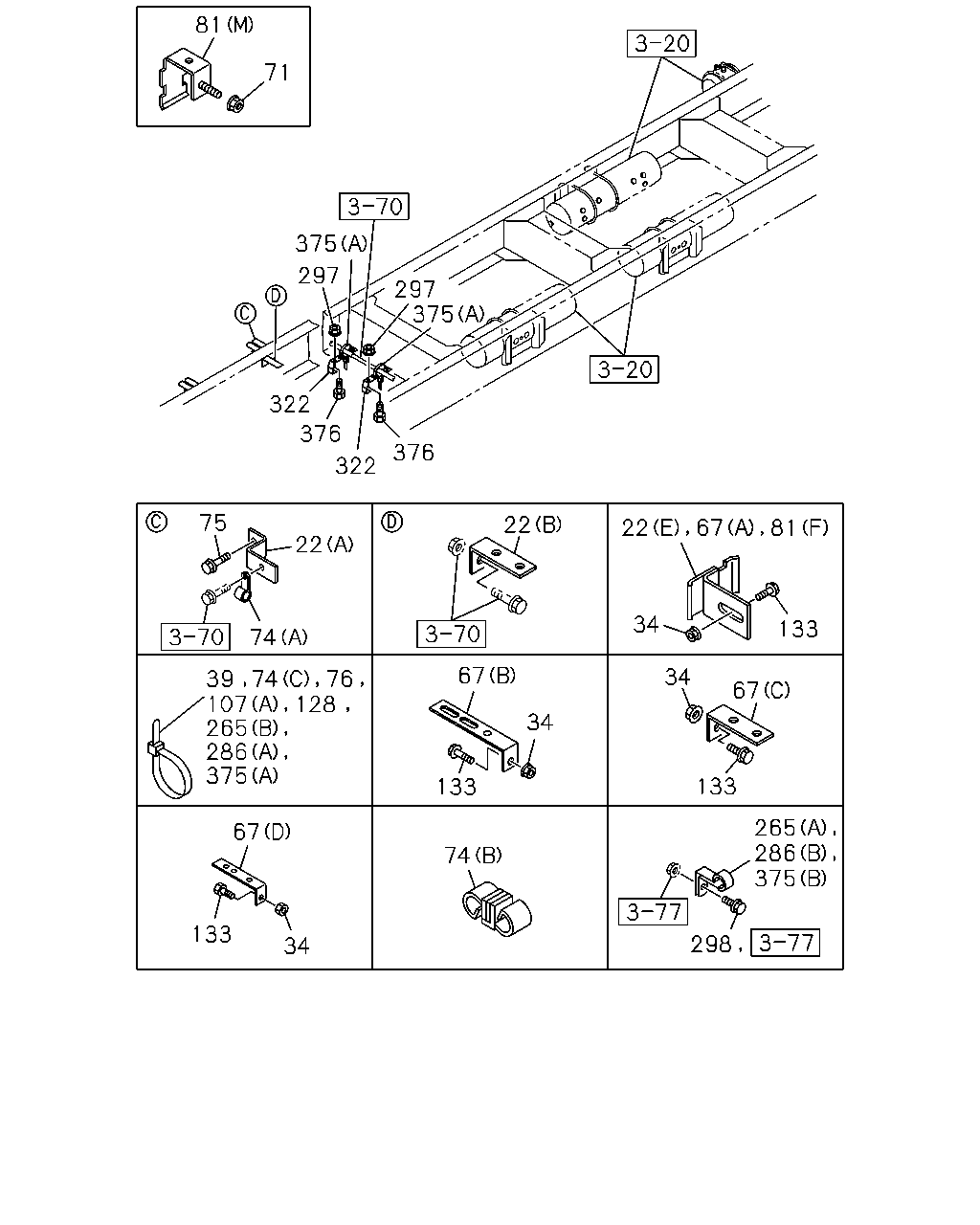

çizim 111784
81 71 375 297 297 375 322 376 376 322 75 22 81 22 34 133 74 67 34 107 128 265 286 375 67 34 133 133 265 286 375 67 74 133 298 34 67 22 39 74 76
BalonParca AdiParca NoAdetTipApplied Date A B C
22 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0710-0907 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (A) 		1-47475-881-0 01 1 0710-0907 ●
22 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0908- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		1-47475-881-0 01 1 0908- ●
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0710-0712 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (B) L=60 H=30 		1-47477-716-1 01 1 0710-0712 ●
22 BRACKET; CLIP
(E) 		1-47479-693-0 01 1 0801-0808 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (E) 		1-47479-693-0 01 1 0801-0808 ●
22 BRACKET; CLIP
(E) 		8-98119-184-1 01 1 0809-0907 ●
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (E) 		8-98119-184-1 01 1 0809-0907 ●
22 BRACKET; CLIP
(E) 		8-98119-184-1 01 1 0908- ●
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) 		8-98119-184-1 01 1 0908- ●
22 BRACKET; CLIP
(C) L=100 		1-47477-620-1 03 1 0710-0710 ●
22 BRACKET; CLIP
(C) L=100 		1-47477-620-1 02 1 0710-0712 ●
22 BRACKET; CLIP
(C) L=100 		1-47477-620-1 01 1 0801- ●
22 BRACKET; CLIP
(D) L=55 B=25 		1-47478-439-0 01 1 0710-0712 ●
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0807-0809 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0712 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0806 ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0806 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0810-0907 ● ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0810-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0908- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ● ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ● ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ● ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0801 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ● ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0802-0811 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0807-0809 ●
39 CLIP; AIR PIPE
L=350 		1-09707-183-0 04 1 0710-0804 ●
39 CLIP; AIR PIPE
WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 04 1 0710-0804 ●
39 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0812-0907 ●
39 CLIP; AIR PIPE
WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 01 1 0812-0907 ●
39 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0908- ●
39 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 01 1 0908- ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 02 1 0710-0711 ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 02 1 0712-0801 ● ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0802-0811 ● ● ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0802-0811 ● ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0812- ● ● ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0812- ●
67 BRACKET; CLIP
(A) 		8-98119-184-1 01 1 0809-0907 ●
67 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (A) 		8-98119-184-1 01 1 0809-0907 ●
67 BRACKET; CLIP
(A) 		8-98119-184-1 01 1 0908- ●
67 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98119-184-1 01 1 0908- ●
67 BRACKET; CLIP
(C) L=60 H=30 		1-47477-716-1 01 1 0801-0801 ● ●
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0710-0711 ●
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0712-0801 ●
67 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (A) 		1-47479-693-0 01 1 0712-0801 ●
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0802-0808 ● ●
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0802-0808 ●
67 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (A) 		1-47479-693-0 01 1 0802-0808 ●
67 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (A) 		1-47479-693-0 01 1 0809- ●
67 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0801-0801 ●
67 BRACKET; CLIP
(D) L=150 		8-98108-503-0 01 1 0801- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0801-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 03 1 0801-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0811 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 0710-0811 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0812-0907 ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0712 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0811 ● ●
71 NUT; BRKT
WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 01 1 0801-0811 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710- ●
74 CLIP; NYLON TUBE
(A) ID=16 L=28 		1-09700-872-0 01 1 0710-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) ID=16 L=28 		1-09700-872-0 01 1 0710-0907 ●
74 CLIP; NYLON TUBE
(A) ID=16 L=28 		1-09700-872-0 01 1 0908- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=16 L=28 		1-09700-872-0 01 1 0908- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0710-0811 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0812-0907 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 03 1 0812-0907 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 02 1 0908- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0710-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0908- ● ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0710- ● ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 10 1 0710-0711 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 11 1 0712-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 01 1 0812-0911 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0812-0911 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 12 1 0908-1009 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 1010- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 01 1 0712-0712 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 01 1 0712-0712 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 01 1 0712-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 01 1 0712-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 01 1 0712-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 01 1 0712-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 07 1 0812-0907 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 07 1 0812-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 07 1 0908-1009 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 07 1 0908-1009 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 07 1 0908-1009 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 07 1 1010- ● ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 07 1 1010- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 07 1 0710-0811 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 10 1 0812-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 03 1 0908-1009 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 0908-1009 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 09 1 1010- ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 13 1 0801-0806 ●
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 14 1 0807- ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ●
75 BOLT; CLIP
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0907 ●
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0908- ●
75 BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 0908- ●
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 0710-0907 ●
76 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 04 1 0710-0907 ●
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 0908- ●
76 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 03 1 0908- ●
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0710- ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 02 1 0710-0808 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-693-0 02 1 0710-0808 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 02 1 0809-0907 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 02 1 0809-0907 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 02 1 0908- ●
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 02 1 0908- ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 03 1 0801-0803 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-693-0 03 1 0801-0803 ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (C) L=100 H=30 		1-47477-645-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (C) L=100 H=30 		1-47477-645-2 02 1 0808-0812 ●
81 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (J) 		1-47479-381-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (J) 		1-47479-381-2 02 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (I) 		1-47476-699-2 01 1 0712- ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0710-0806 ● ● ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0807-0807 ● ● ●
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 04 1 0808-0812 ●
81 BRACKET; CLIP
(K) 		8-98129-212-0 04 1 0901-1012 ● ● ●
81 BRACKET; CLIP
(L) 		8-98177-873-0 04 1 1101- ● ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0710-0902 ● ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ● ●
81 BRACKET; CLIP
(M) 		8-98186-380-0 01 1 1106- ● ● ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (F) 		1-47479-693-0 01 1 0710-0808 ●
81 BRACKET; CLIP
(F) 		1-47479-693-0 01 1 0710-0808 ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (F) 		1-47479-693-0 01 1 0809- ●
81 BRACKET; CLIP
WHEEL BASE 4200MM(42W) (E) 		8-98047-730-0 02 1 0710-0710 ●
81 BRACKET; CLIP
(E) 		8-98047-730-0 02 1 0710-0710 ●
81 BRACKET; CLIP
(F) 		8-98119-184-1 01 1 0809- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 41 1 0908- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0806-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 08 1 0806-0811 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0812-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 37 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 03 1 0802-0811 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 41 1 0812-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0908-1002 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 53 1 1003- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0812-0907 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (A) L=350 		1-09707-183-0 38 1 0908- ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 19 1 0710-0811 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 35 1 0812-1101 ●
107 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 36 1 1102- ●
107 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 43 1 0812-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 35 1 0710-0712 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 26 1 0801-0806 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 27 1 0807-1002 ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1003- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 0801-0803 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 03 1 0801-0803 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0804-0811 ● ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ● ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0801 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0802-0811 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0812-0907 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ●
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 02 1 0908- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0801 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ● ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0802-0811 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ● ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
133 BOLT; BRKT
WHEEL BASE 4200MM(42W) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-0811 ● ●
133 BOLT; BRKT
ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0812-0907 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0801-0811 ●
265 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) COUNTRY NEW ZEALAND(CX6) (B) L=350 		1-09707-183-0 01 1 0810-0907 ● ●
265 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) COUNTRY NEW ZEALAND(CX6) (B) L=350 		1-09707-183-0 02 1 0908- ● ●
265 CLIP; NYLON TUBE
(A) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0710- ● ● ●
265 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (B) L=350 		1-09707-183-0 01 1 0908- ●
286 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908- ●
286 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 01 1 0908- ●
286 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 01 1 0710-0805 ●
286 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0806-0811 ●
286 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 01 1 0806-0811 ●
286 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (B) ID=16 L=50 H=25 		1-09700-838-0 01 1 0801-0805 ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
297 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 0710-0802 ● ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0803-0907 ●
297 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0803-0907 ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
297 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M8 FLANGE 		0-91180-108-0 02 1 0803- ●
298 BOLT; CLIP
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0805 ●
322 BRACKET; CLIP 8-98047-730-0 02 1 0710-0710 ●
322 BRACKET; CLIP
WHEEL BASE 6500MM(65W) 		8-98047-730-0 02 1 0710-0710 ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		1-47479-598-0 02 1 0710-0802 ● ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-47479-598-0 01 1 0803-0907 ●
322 BRACKET; CLIP
WHEEL BASE 6500MM(65W) 		1-47479-598-0 01 1 0803-0907 ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-47479-598-0 01 1 0908- ●
322 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-47479-598-0 01 1 0908- ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) 		1-47479-598-0 02 1 0803- ●
375 CLIP; AIR PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0803 ●
375 CLIP; AIR PIPE
WHEEL BASE 6500MM(65W) (B) ID=15 H=24 L=20 		1-09700-606-0 02 1 0710-0803 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) (A) L=350 		1-09707-183-0 02 1 0710-0710 ● ●
375 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 0710-0710 ●
375 CLIP; AIR PIPE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 0710-0710 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) (A) L=350 		1-09707-183-0 02 1 0710-0811 ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> (A) L=350 		1-09707-183-0 03 1 0812-0907 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 03 1 0812-0907 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ASSISTOR SHIFT CONTROL<WX8> (A) L=350 		1-09707-183-0 03 1 0908- ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 03 1 0908- ●
375 CLIP; AIR PIPE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 01 1 0712-0811 ●
375 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 01 1 0712-0811 ●
375 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 02 1 0812-0907 ●
375 CLIP; AIR PIPE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 0812-0907 ●
375 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 02 1 0908- ●
375 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 02 1 0908- ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 01 1 0812-0906 ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 01 1 0907- ●
375 CLIP; AIR PIPE
WHEEL BASE 4200MM(42W) (A) L=350 		1-09707-183-0 01 1 0907- ●
375 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 01 1 0907- ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0811 ●
376 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0811 ●
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
376 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0812-0907 ●
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0802 ● ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0907 ●
376 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0907 ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) M8X30 FLANGE 		0-28650-830-0 02 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
