3-77 — BRAKE PIPING; AIR,REAR (#42080) — 98 parça

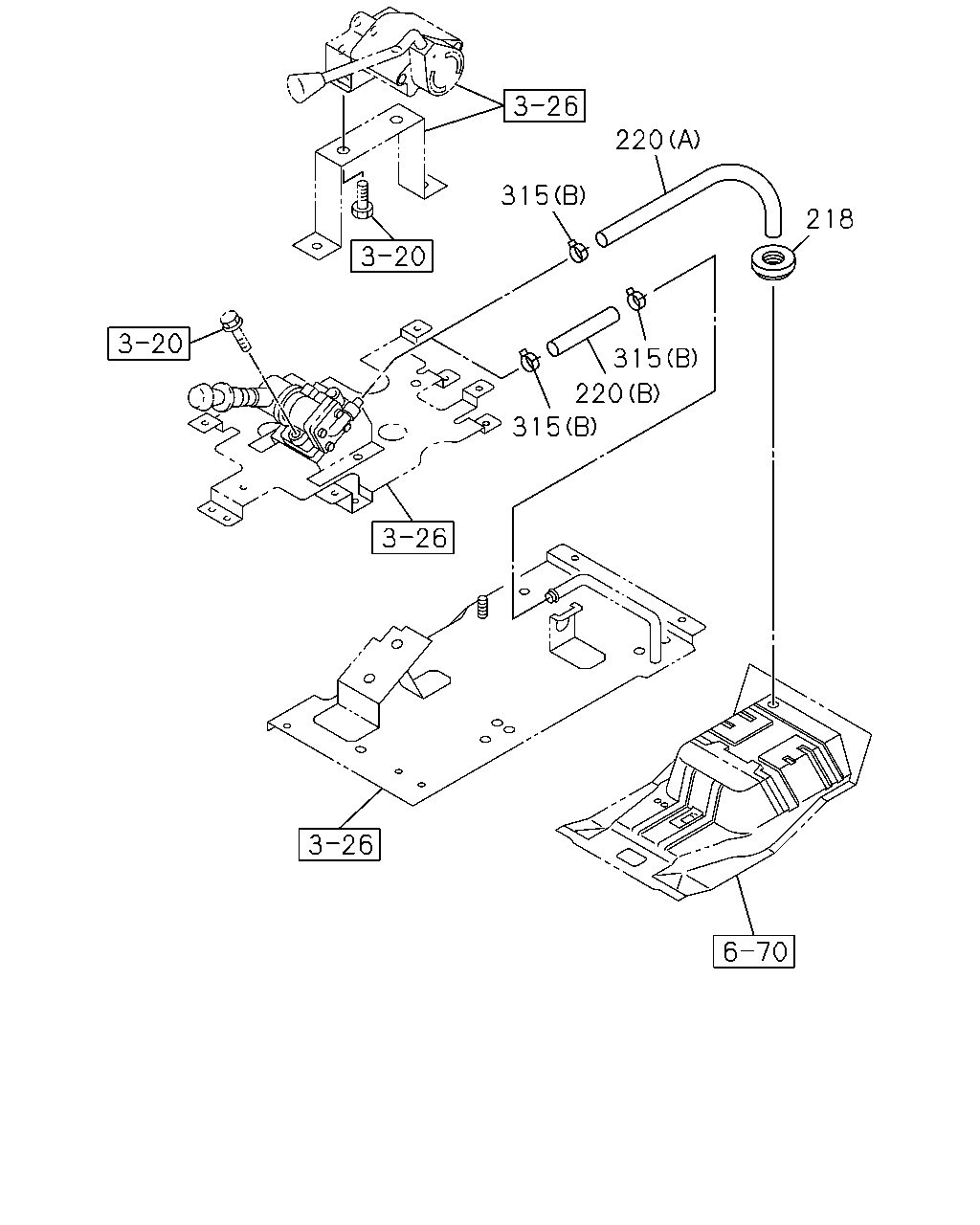

çizim 111762
220 315 218 315 220 315
BalonParca AdiParca NoAdetTipApplied Date A B C
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0912- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
(A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
(B) L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710- ●
315 CLIP
(B) ID=14 		8-94238-572-0 02 1 0912- ●

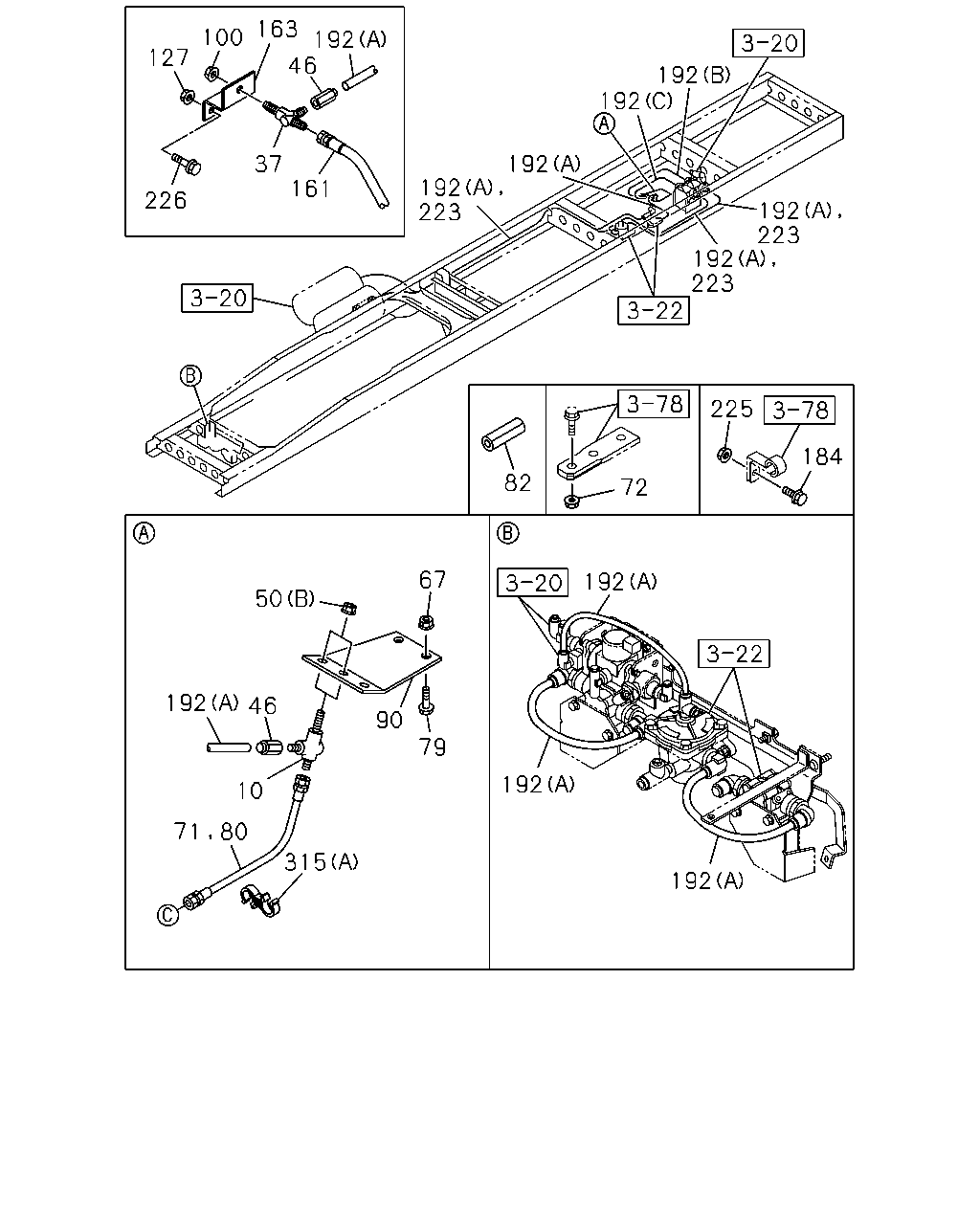

çizim 111764
163 100 192 46 127 192 192 192 37 192 223 161 226 192 223 192 223 225 184 82 72 67 192 50 192 46 90 79 192 10 71 80 315 192
BalonParca AdiParca NoAdetTipApplied Date A B C
10 CONNECTOR; FLEX HOSE
M16 2WAY 		1-09650-182-1 02 1 0710- ●
37 UNION; AIR PIPE
M16 2WAY 		1-09650-182-1 01 1 0710- ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0710-0803 ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-0803 ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 0804- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ●
71 HOSE; FLEX,RWD RR
L=660 		1-09363-814-0 02 1 0710-0910 ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0712 ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
80 HOSE; FLEX,POWER CHAMBER
L=660 		1-09363-814-0 02 1 0911- ●
82 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0811 ●
82 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0811 ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 0710- ●
100 NUT; UNION
M12 		0-91111-512-0 01 1 0710- ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 0710- ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
127 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0801 ●
161 HOSE; FLEX,QUICK RELEASE VLV 1-09363-969-0 01 1 0710- ●
163 BRACKET; FLEX HOSE 8-98092-676-0 01 1 0710- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 0710- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 0710- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 0710- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
226 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 02 1 0812- ●
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 0912- ● ●
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 0710- ●
315 CLIP
(B) ID=14 		8-94238-572-0 02 1 0912- ●

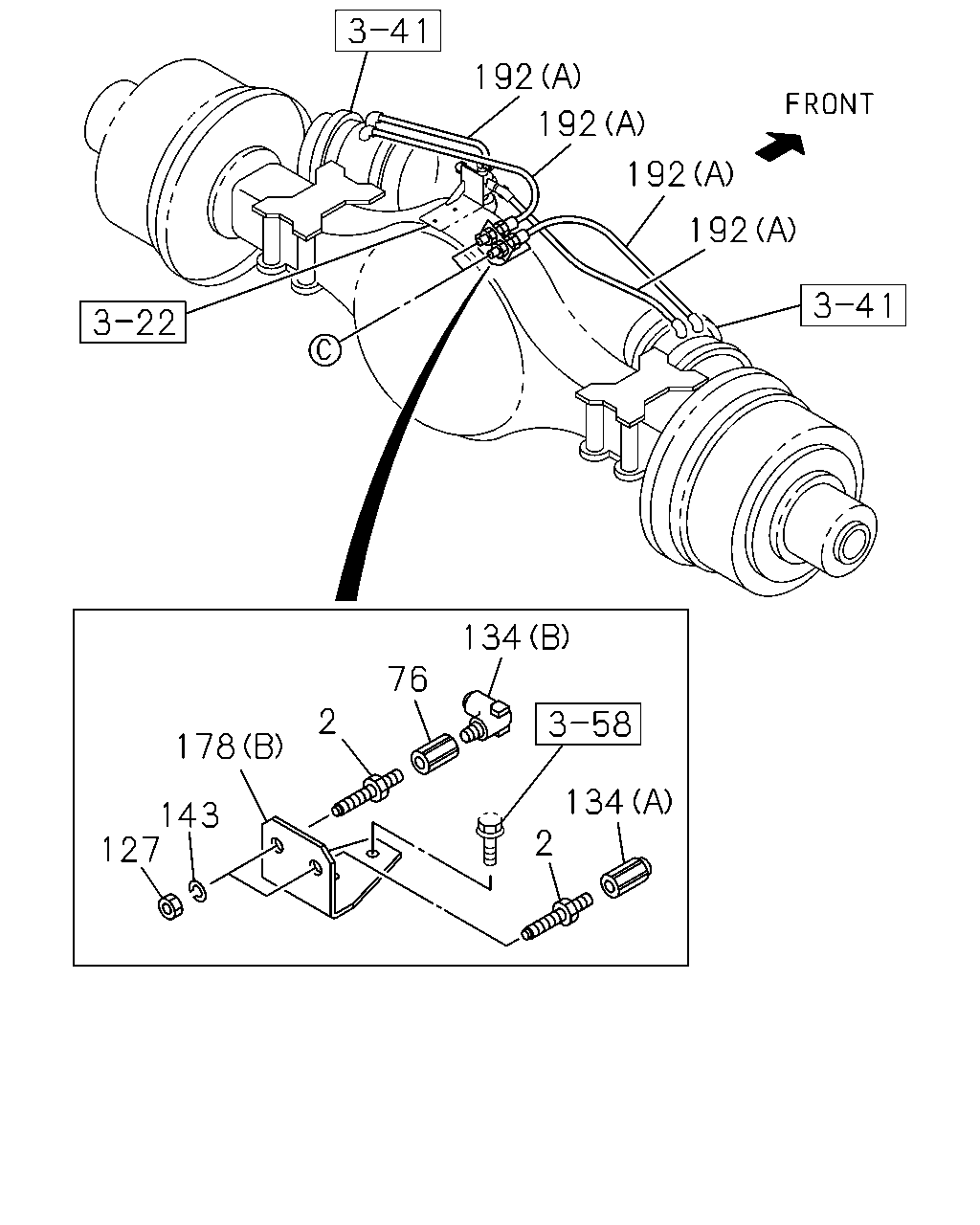

çizim 111770
192 192 192 192 134 76 2 178 134 2 143 127
BalonParca AdiParca NoAdetTipApplied Date A B C
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 02 1 0710- ●
76 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710- ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 0710- ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
127 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0801 ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710- ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 02 1 0710- ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0710- ● ●
178 BRACKET; UNION
(B) 		8-98057-822-0 01 1 0710- ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 0710- ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 0710- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 0710- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 0710- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●

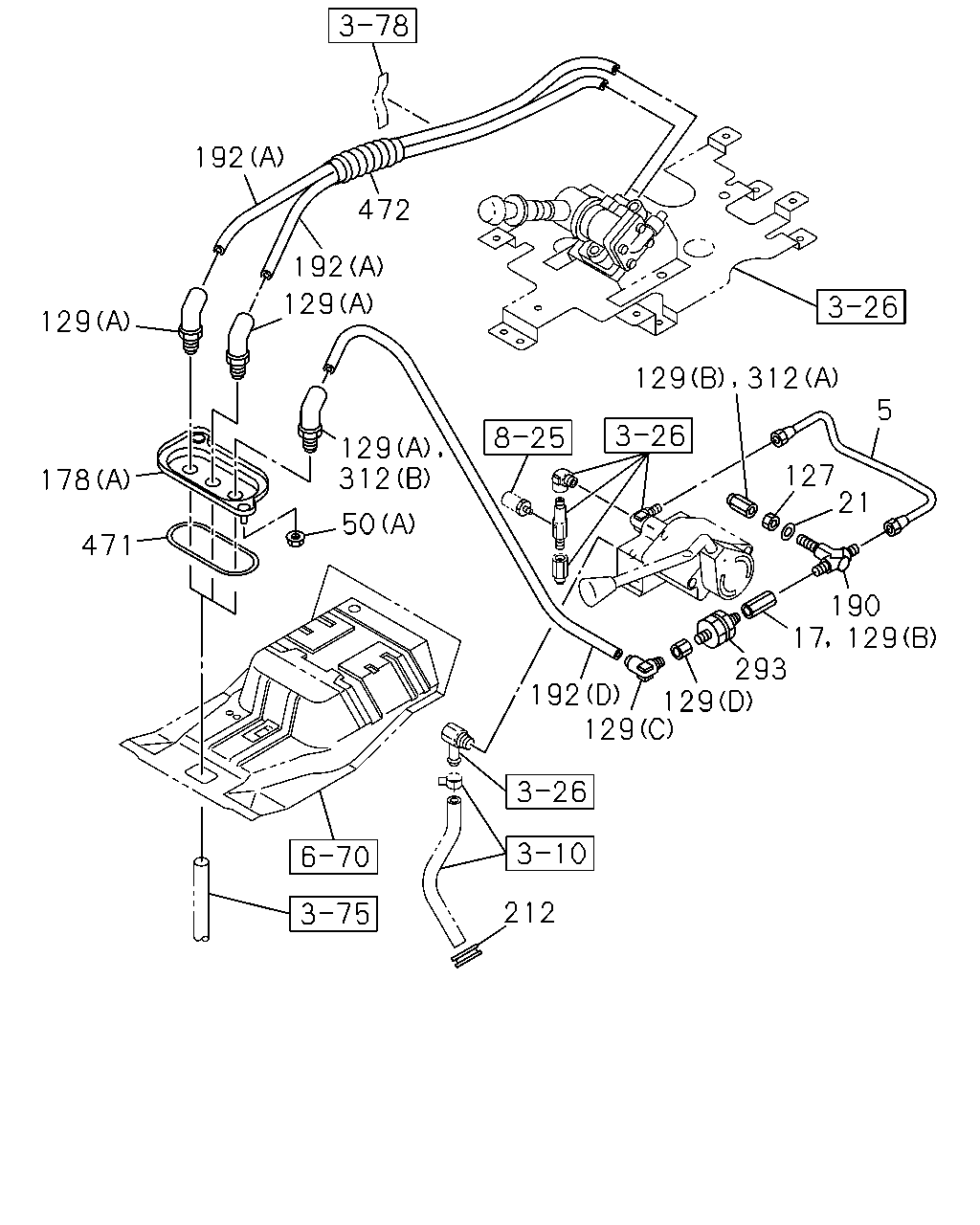

çizim 111771
192 472 192 129 129 5 129 312 127 21 178 50 471 190 293 192 129 129 212 17 129 129 312
BalonParca AdiParca NoAdetTipApplied Date A B C
5 PIPE; AIR,UNION TO PARKING VLV 8-97610-775-1 01 1 0710- ●
17 UNION; AIR PIPE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 0710-1101 ●
21 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 01 1 0710-0801 ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 0710- ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 0710- ●
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
127 NUT; UNION
M16 		0-91111-516-0 01 1 0710-0801 ●
129 CONNECTOR; NYLON TUBE
(A) 		8-97611-963-1 01 1 0710-1101 ● ● ●
129 CONNECTOR; NYLON TUBE
(A) 		8-97611-963-1 01 1 0710-1101 ● ●
129 CONNECTOR; NYLON TUBE
(A) 		8-97611-963-1 01 1 1102- ● ● ●
129 CONNECTOR; NYLON TUBE
(A) 		8-97611-963-1 01 1 1102- ● ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0710-1101 ●
129 CONNECTOR; NYLON TUBE
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1102- ●
129 CONNECTOR; NYLON TUBE
(C) 		1-09660-924-1 01 1 0710-1006 ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1007- ●
129 CONNECTOR; NYLON TUBE
(D) 		1-09660-930-1 01 1 0710-1006 ●
129 CONNECTOR; NYLON TUBE
(D) 		8-97633-768-0 01 1 1007- ●
129 CONNECTOR; NYLON TUBE
(A) 		8-97611-963-1 02 1 0710-1101 ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 0710- ● ●
178 BRACKET; UNION
(B) 		8-98057-822-0 01 1 0710- ●
178 BRACKET; UNION
(A) 		8-98017-056-1 01 1 0710- ●
190 UNION; 3 WAY
M16 3WAY 		0-92148-610-0 01 1 0710-0801 ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 0710- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 0710- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 0710- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ● ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1102- ●
293 VALVE; CHECK 1-48410-479-1 01 1 0710- ●
312 CONNECTOR; SUPPLY
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1102- ●
312 CONNECTOR; SUPPLY
(B) 		8-97611-963-1 01 1 1102- ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710- ● ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710- ● ● ●
