3-70 — BRAKE PIPING; AIR,AIR MASTER (#42078) — 99 parça

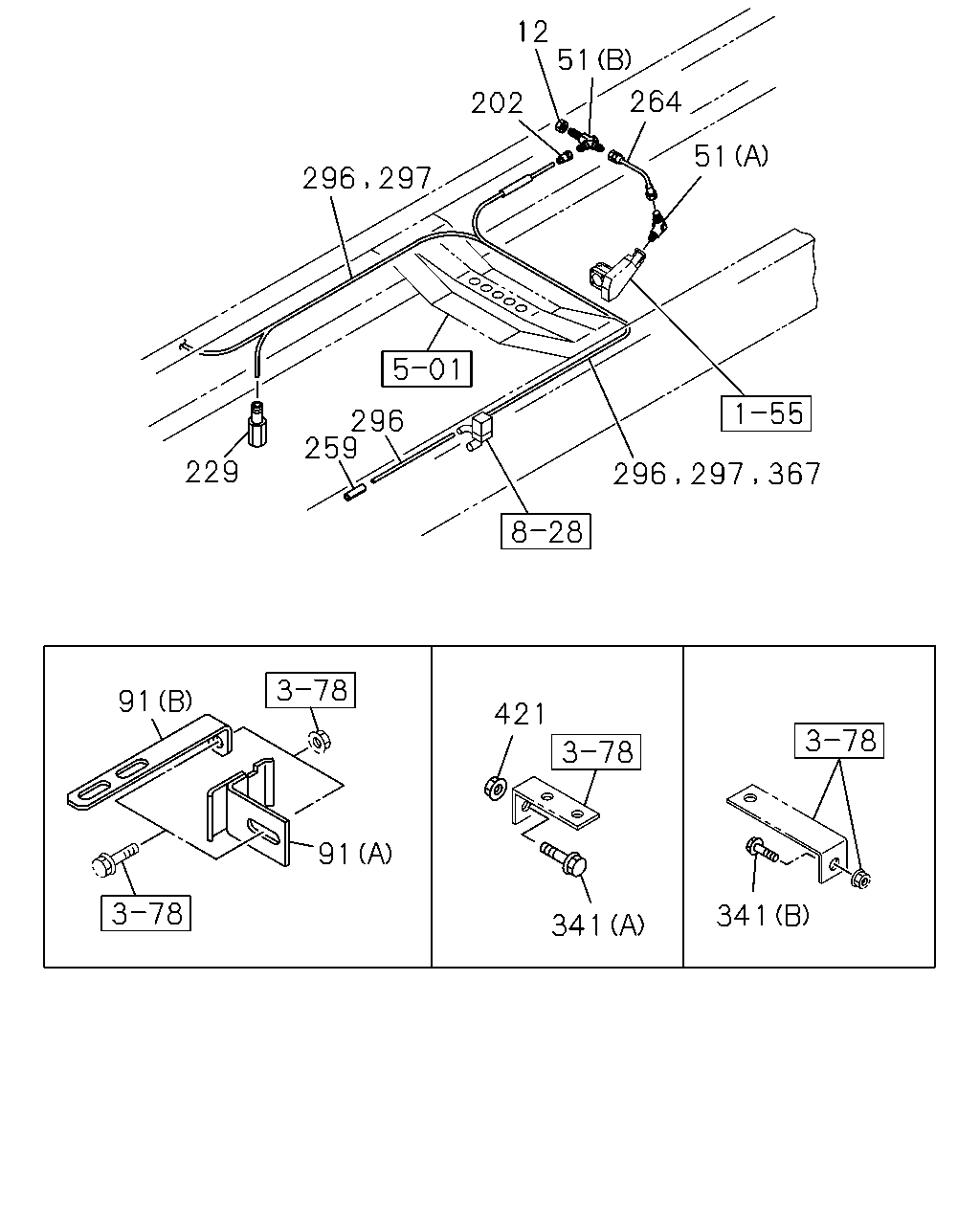

çizim 111760
12 51 264 202 51 296 296 259 229 91 421 91 341 341 297 296 297 367
BalonParca AdiParca NoAdetTipApplied Date A B C
12 NUT; UNION
M12 		0-91111-512-0 01 1 0710- ● ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710- ● ● ●
51 UNION
(B) M12 2WAY 		1-09654-059-2 01 1 0710- ● ● ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0710-0811 ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6500MM(65W) (B) L=150 H=30 		1-47477-629-2 01 1 0710-0811 ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0812-0907 ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6500MM(65W) (B) L=150 H=30 		1-47477-629-2 01 1 0812-0907 ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0908- ●
91 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) L=150 H=30 		1-47477-629-2 01 1 0908- ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0710-0712 ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6500MM(65W) (A) 		1-47479-693-0 01 1 0710-0712 ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0801-0803 ● ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6500MM(65W) (A) 		1-47479-693-0 01 1 0801-0803 ●
91 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0804-0808 ●
91 BRACKET; TUBE CLIP
(A) 		8-98119-184-1 01 1 0809- ●
91 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 02 1 0801- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710- ● ● ●
229 ADAPTER; NYLON TUBE
ZF9S1110 M/T(Y5E) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0803 ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-0803 ● ●
229 ADAPTER; NYLON TUBE
FULLER FS8209HD DD M/T(Y3A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0710-0805 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0806-0907 ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0806-0907 ●
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 0908- ●
259 SLEEVE; RUBBER,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0908- ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0710-0712 ● ● ●
264 HOSE; FLEX
L=280 		1-09363-672-0 01 1 0801- ● ●
264 HOSE; FLEX
L=370 		1-09363-771-0 01 1 0801- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
341 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0712 ●
341 BOLT; BRKT
WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0712 ●
341 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0802 ●
341 BOLT; BRKT
WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0801-0802 ●
341 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0806 ●
341 BOLT; BRKT
WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0806 ●
341 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0807-0809 ● ●
341 BOLT; BRKT
WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0807-0809 ●
341 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0810-0907 ●
341 BOLT; BRKT
WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0810-0907 ●
341 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
341 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0908- ●
341 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0712 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0710- ● ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-0712 ●
421 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 0710-0712 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ●
421 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
421 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0908- ●

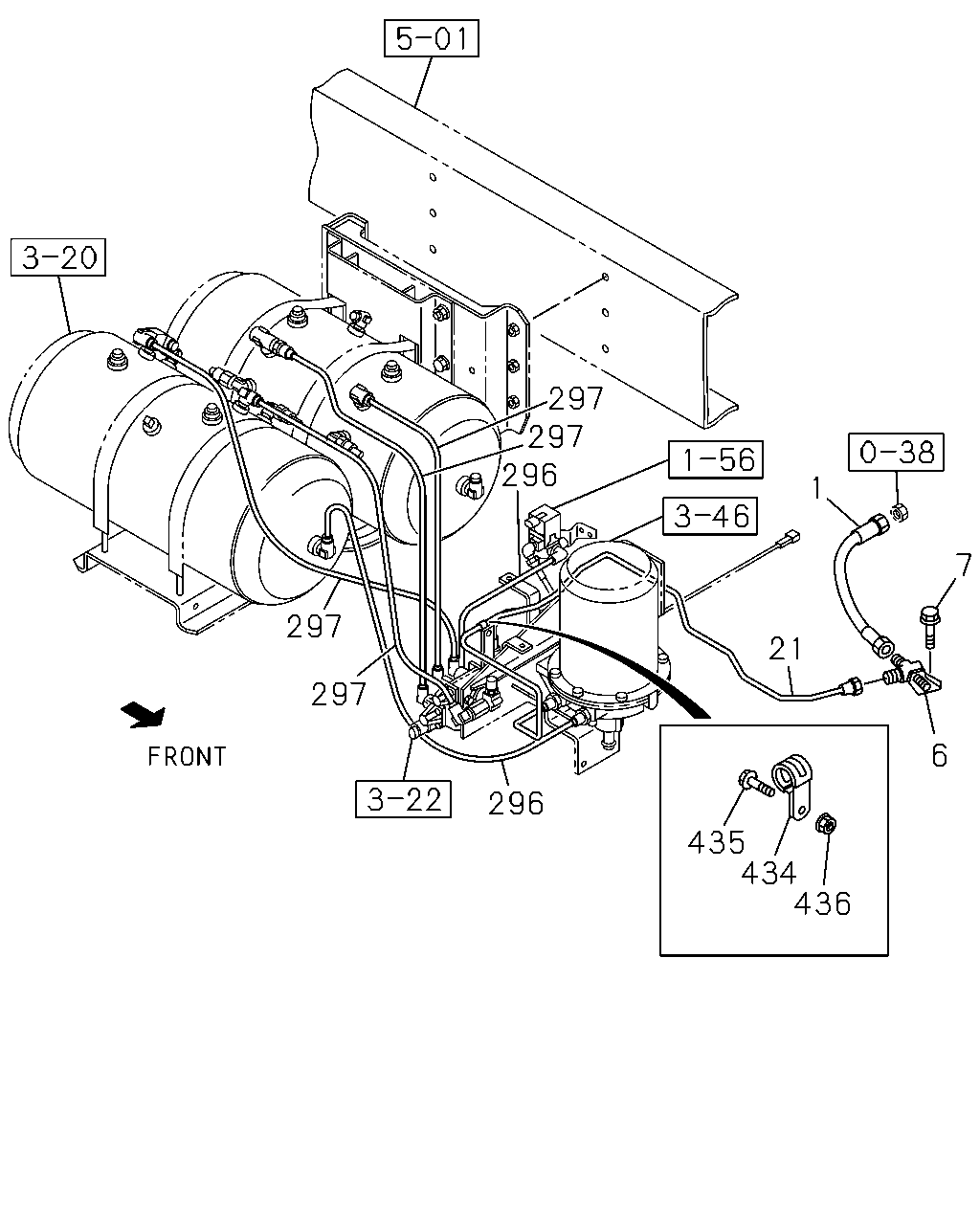

çizim 111776
297 297 296 1 7 297 21 297 6 296 435 434 436
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,AIR TANK
L=320 		8-98067-411-0 01 1 0710- ● ● ●
6 BRACKET; FLEX HOSE,AIR TANK 8-98076-344-0 01 1 0710- ● ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ● ●
21 PIPE; AIR,UNION TO AIR DRYER 8-98094-948-1 01 1 0710-0806 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 6500MM(65W) 		8-98094-948-1 01 1 0710-0806 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=2033 		8-98126-152-1 01 1 0807-0907 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 6500MM(65W) L=2033 		8-98126-152-1 01 1 0807-0907 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=2033 		8-98126-152-1 01 1 0908- ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=2033 		8-98126-152-1 01 1 0908- ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 4200MM(42W) L=1715 		8-98095-083-0 01 1 0710-0711 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 0710-0711 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 4200MM(42W) L=1730 		8-98105-723-0 01 1 0712-0801 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1730 		8-98105-723-0 01 1 0712-0801 ●
21 PIPE; AIR,UNION TO AIR DRYER
WHEEL BASE 4200MM(42W) L=1715 		8-98095-083-0 01 1 0802- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=1715 		8-98095-083-0 01 1 0802- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ● ●
434 CLIP
ID=7 L=20 		0-95234-635-0 01 1 0710- ● ● ●
434 CLIP
ID=16 L=20 		0-95235-536-0 02 1 0710-0711 ● ● ●
434 CLIP
ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
WHEEL BASE 6500MM(65W) ID=16 L=20 		0-95235-536-0 02 1 0712-0801 ●
434 CLIP
ID=16 L=20 		0-95235-536-0 02 1 0802- ● ● ●
434 CLIP
WHEEL BASE 4200MM(42W) ID=16 L=28 		0-95235-556-0 02 1 0712-0801 ●
434 CLIP
ID=16 L=28 		0-95235-556-0 02 1 0712-0801 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
