◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#42076) — 72 parça

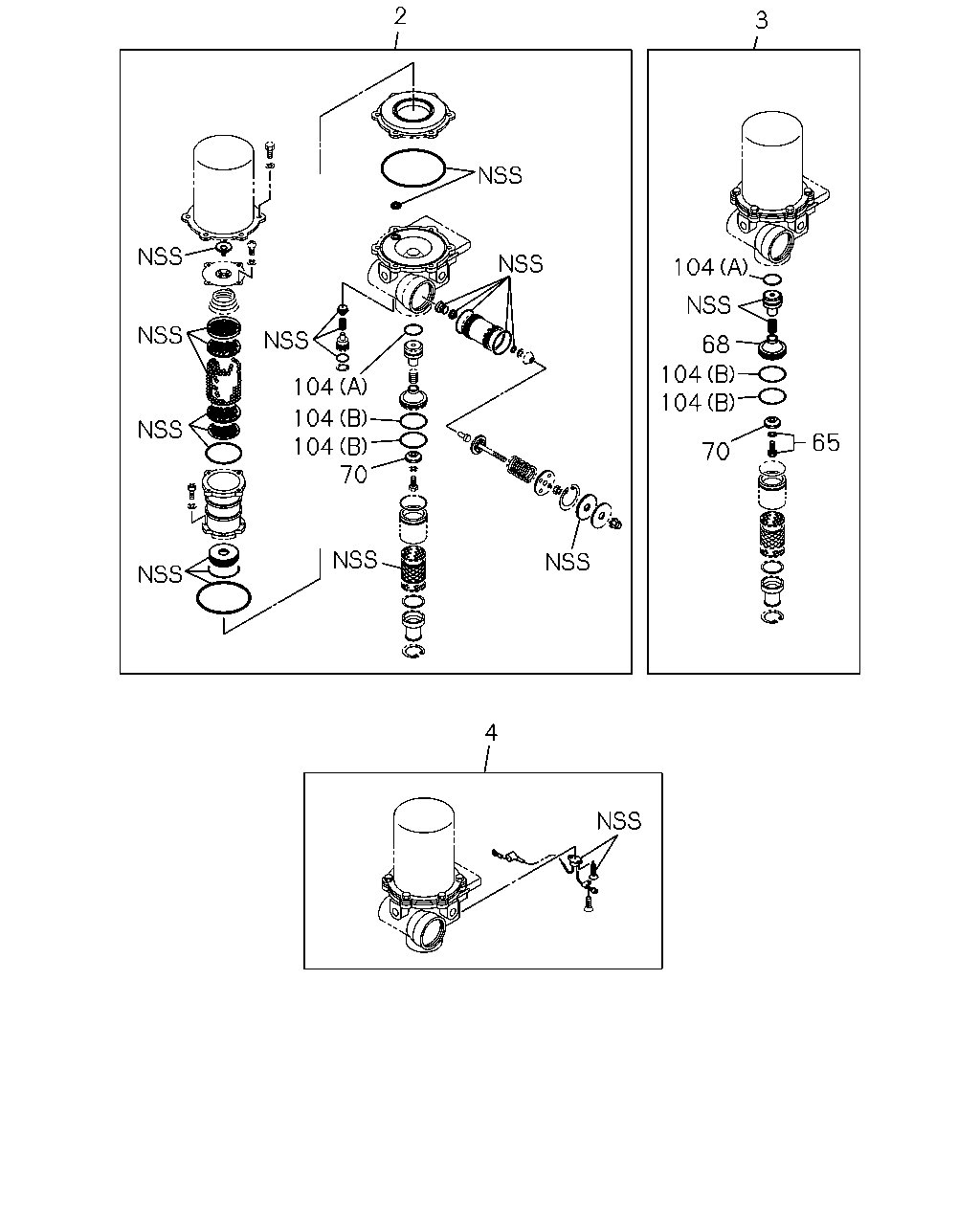

çizim 111755
2 3 104 68 104 104 104 104 104 70 65 70 4
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; AIR DRYER 1-85576-448-0 01 1 0710-1211 ● ● ●
2 REPAIR KIT; AIR DRYER 8-98226-328-0 01 1 1212- ● ● ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 0710-1211 ● ● ●
3 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1212- ● ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-444-0 01 1 0710- ● ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710- ● ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710- ● ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710- ● ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-1211 ● ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-1211 ● ● ●
104 GASKET
(B) 		1-48199-496-0 01 1 1212- ● ● ●

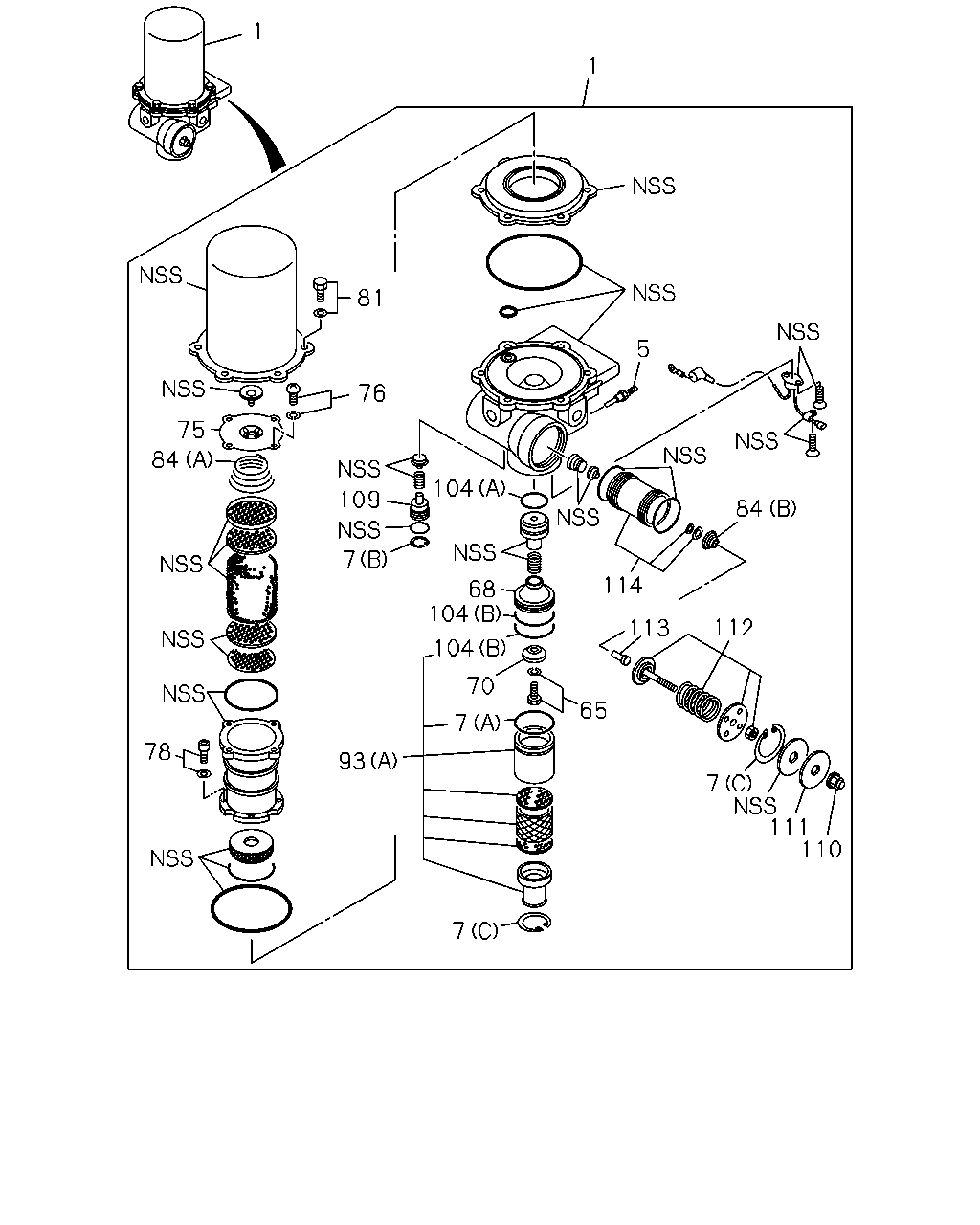

çizim 111767
110 111 7 112 113 114 84 5 1 81 76 109 7 104 68 104 104 70 7 65 7 93 78 84 75 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRYER; AIR 1-48190-371-2 01 1 0710-1211 ● ● ●
1 DRYER; AIR 8-98225-292-0 01 1 1212- ● ● ●
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 0710- ● ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710- ● ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710- ● ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710- ● ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710- ● ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 0710- ● ● ●
68 BODY; VALVE 1-48199-515-0 01 1 0710- ● ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 0710- ● ● ●
75 COVER; CASE,AIR DRYER 1-48199-562-0 01 1 0710- ● ● ●
76 BOLT; COVER,AIR DRYER 1-48199-561-0 06 1 0710- ● ● ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-557-0 04 1 0710- ● ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 08 1 0710- ● ● ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 0710- ● ● ●
84 SPRING; AIR DRYER
(A) 		1-48199-564-0 01 1 0710- ● ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710- ● ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710- ● ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 0710-1211 ● ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 0710-1211 ● ● ●
104 GASKET
(B) 		1-48199-496-0 01 1 1212- ● ● ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 0710- ● ● ●
110 NUT; CAP 1-48199-527-0 01 1 0710- ● ● ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 0710- ● ● ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 0710- ● ● ●
113 STEM; EXHAUST 1-48199-522-0 01 1 0710- ● ● ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 0710- ● ● ●

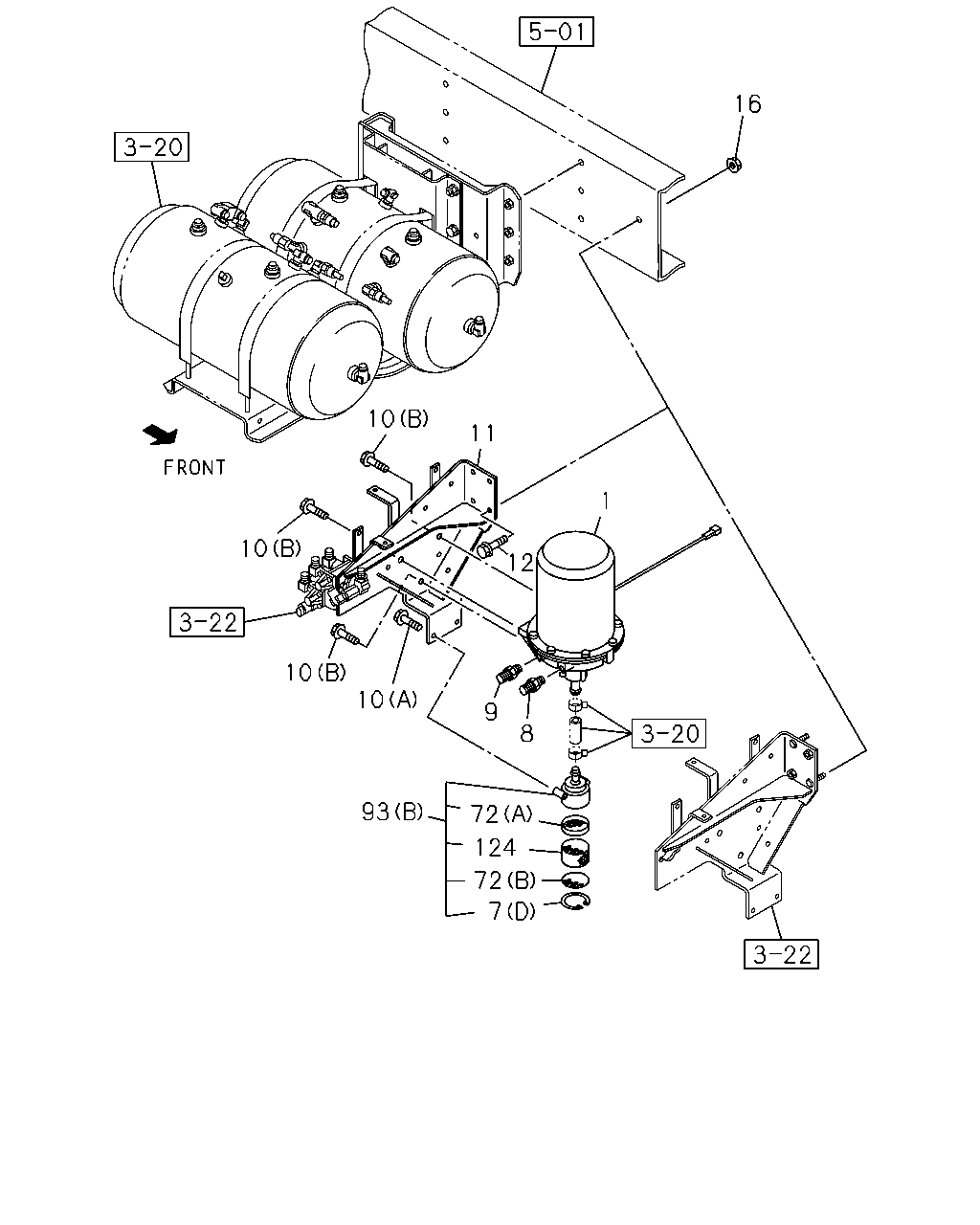

çizim 111772
16 10 11 1 10 12 10 10 9 8 93 72 124 72 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRYER; AIR 1-48190-371-2 01 1 0710-1211 ● ● ●
1 DRYER; AIR 8-98225-292-0 01 1 1212- ● ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 0710- ● ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 0710- ● ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 0710- ● ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 0710- ● ● ●
8 CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0710- ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
FLARE M22 PT1/2 		0-92121-815-0 01 1 0710- ● ● ●
10 BOLT; AIR DRYER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ● ●
10 BOLT; AIR DRYER
(B) M12X25 FLANGE 		0-28651-225-0 03 1 0710-0906 ● ● ●
10 BOLT; AIR DRYER
(B) M12X25 FLANGE 		0-28051-225-0 03 1 0907- ● ● ●
11 BRACKET; AIR DRYER 8-98073-219-1 01 1 0710-0805 ●
11 BRACKET; AIR DRYER
WHEEL BASE 6500MM(65W) 		8-98073-219-1 01 1 0710-0805 ●
11 BRACKET; AIR DRYER 8-98119-704-0 01 1 0806-0907 ●
11 BRACKET; AIR DRYER
WHEEL BASE 6500MM(65W) 		8-98119-704-0 01 1 0806-0907 ●
11 BRACKET; AIR DRYER 8-98119-704-0 01 1 0908-1009 ●
11 BRACKET; AIR DRYER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98119-704-0 01 1 0908-1009 ●
11 BRACKET; AIR DRYER 8-98173-266-0 01 1 1010- ●
11 BRACKET; AIR DRYER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98173-266-0 01 1 1010- ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0907 ●
12 BOLT; BRKT
WHEEL BASE 6500MM(65W) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0907 ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
12 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X35 FLANGE 		0-28651-035-0 02 1 0908- ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0907 ●
16 NUT; BRKT
WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 0710-0907 ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0908- ●
16 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 0908- ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 0710- ● ● ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 0710- ● ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 0710- ● ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 0710- ● ● ●
124 FILTER; SILENCER 1-48199-465-0 01 1 0710- ● ● ●
