Isuzu WW
▶
TRUCKS
▶
FVR
▶
11425 - FVR/GVR(AUST)EURO4
▶
3 - Brakes, Brake System
▶

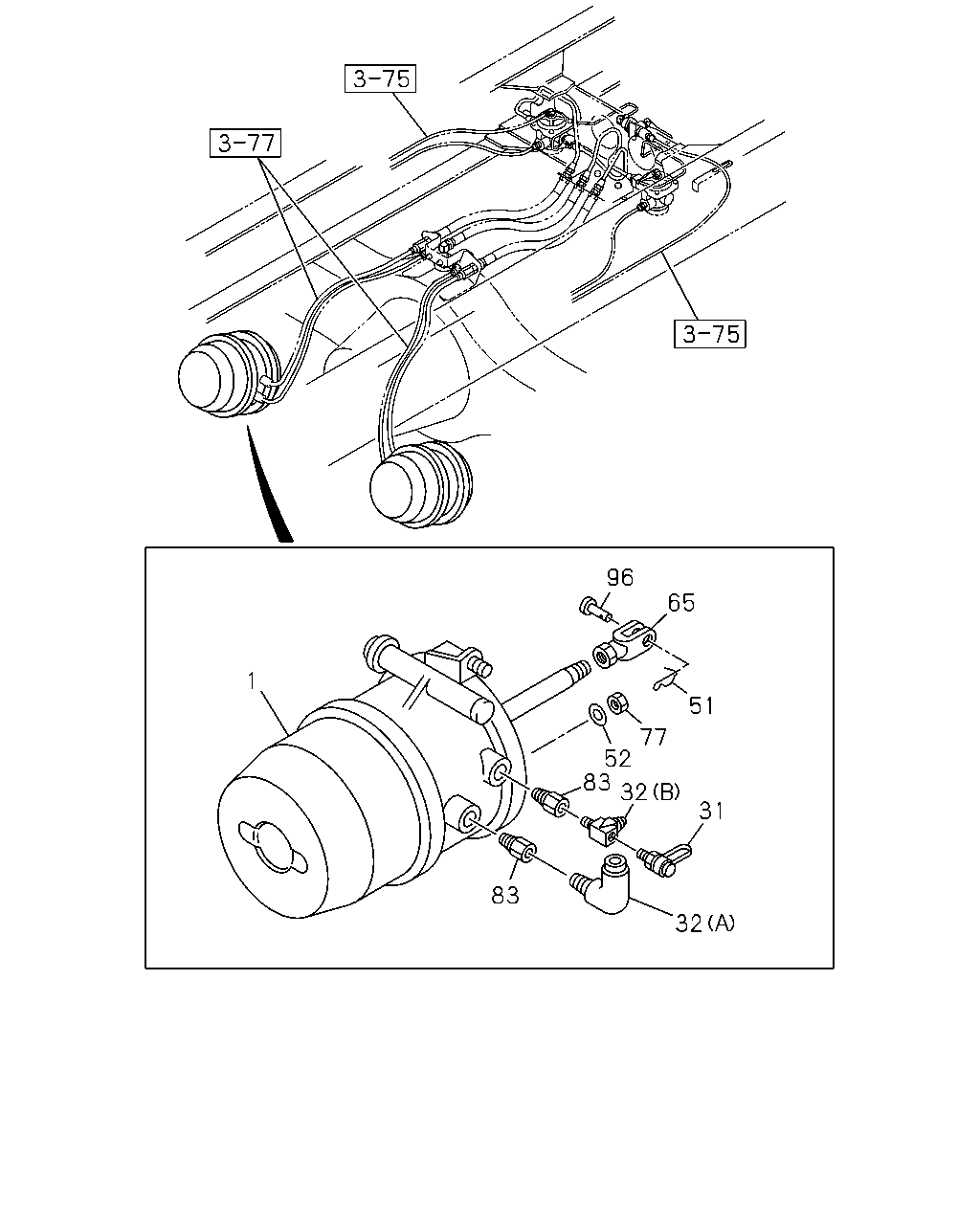

3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#42074) — 18 parça
Tümü
A - FGD5MV
B - FGR5MV
C - GGD5MV
96
65
1
51
77
52
83
32
31
83
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CHAMBER ASM; SPRING
1-48250-941-0
01
1
0710-1205
●
●
●
1
CHAMBER ASM; SPRING
1-48250-959-0
01
1
1206-1206
●
●
●
1
CHAMBER ASM; SPRING
1-48250-941-0
01
1
1206-1211
●
●
●
1
CHAMBER ASM; SPRING
1-48250-959-0
01
1
1212-
●
●
●
1
CHAMBER ASM; SPRING
1-48250-942-0
01
1
0710-1205
●
●
●
1
CHAMBER ASM; SPRING
1-48250-960-0
01
1
1206-1206
●
●
●
1
CHAMBER ASM; SPRING
1-48250-942-0
01
1
1206-1211
●
●
●
1
CHAMBER ASM; SPRING
1-48250-960-0
01
1
1212-
●
●
●
31
CONNECTOR
1-47459-013-1
01
1
0710-
●
●
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY
1-09660-845-0
01
1
0710-
●
●
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0710-
●
●
●
32
CONNECTOR; SPR CHAMBER
(A) DIN12 & NPTF3/8 ELBOW
1-09660-962-0
02
1
0710-
●
●
●
51
PIN; SPLIT
1-48259-275-0
02
1
0710-
●
●
●
52
WASHER; PL
1-41519-038-0
04
1
0710-
●
●
●
65
JOINT; JAW
1-48259-321-0
02
1
0710-
●
●
●
77
NUT; SPR CHAMBER BRK
1-87050-052-0
04
1
0710-
●
●
●
83
ADAPTER; SPR CHAMBER
NPTF3/8 & RC3/8
1-09660-548-0
02
1
0710-
●
●
●
96
PIN; JAW JOINT
1-48259-273-0
02
1
0710-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
