Sayfa 4-40 - Isuzu EPC

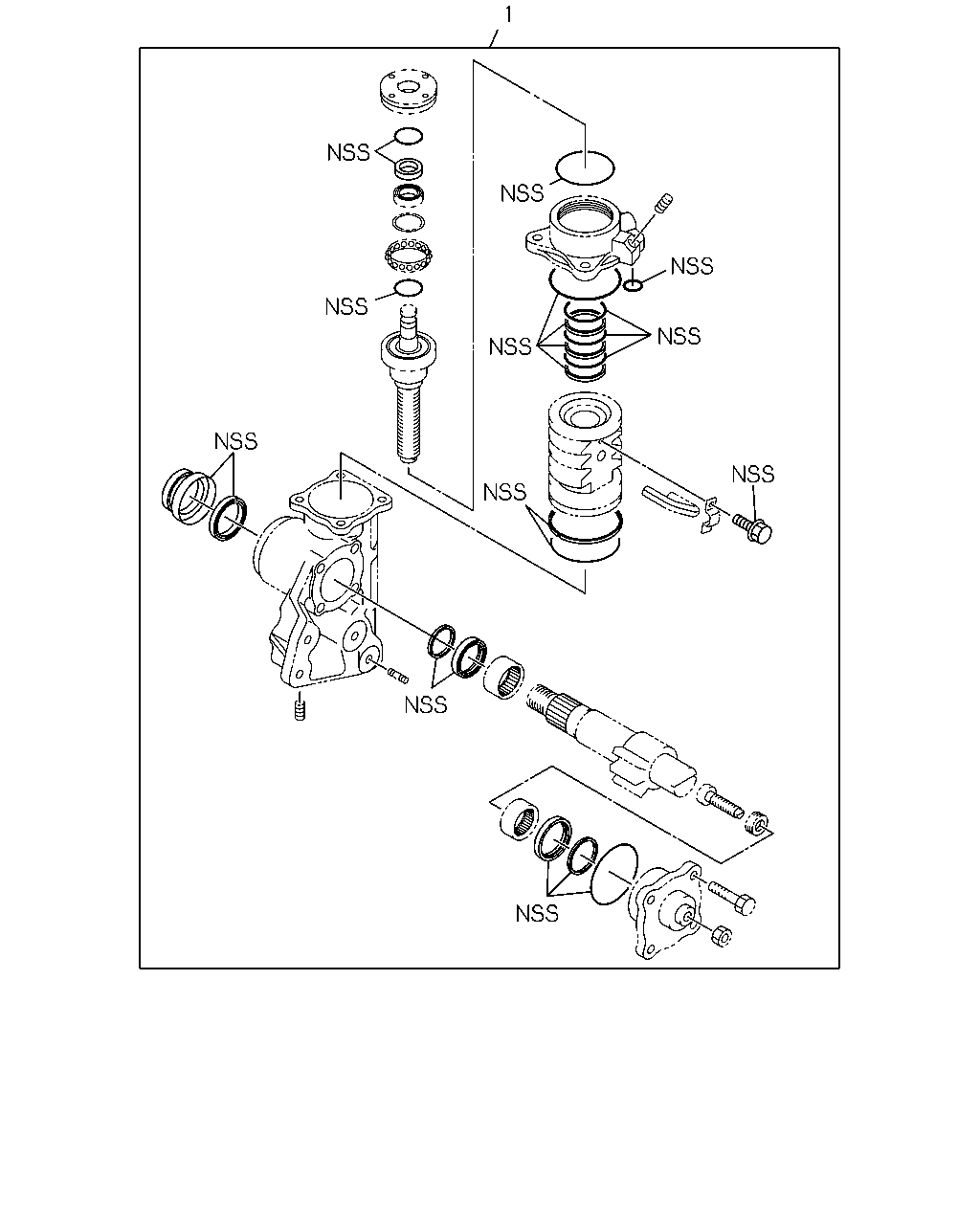

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97305-046-0, 97305046	8-97218-602-1	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97264-465-0	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97356-105-6, 97356105	8-97356-138-0	01	1	-

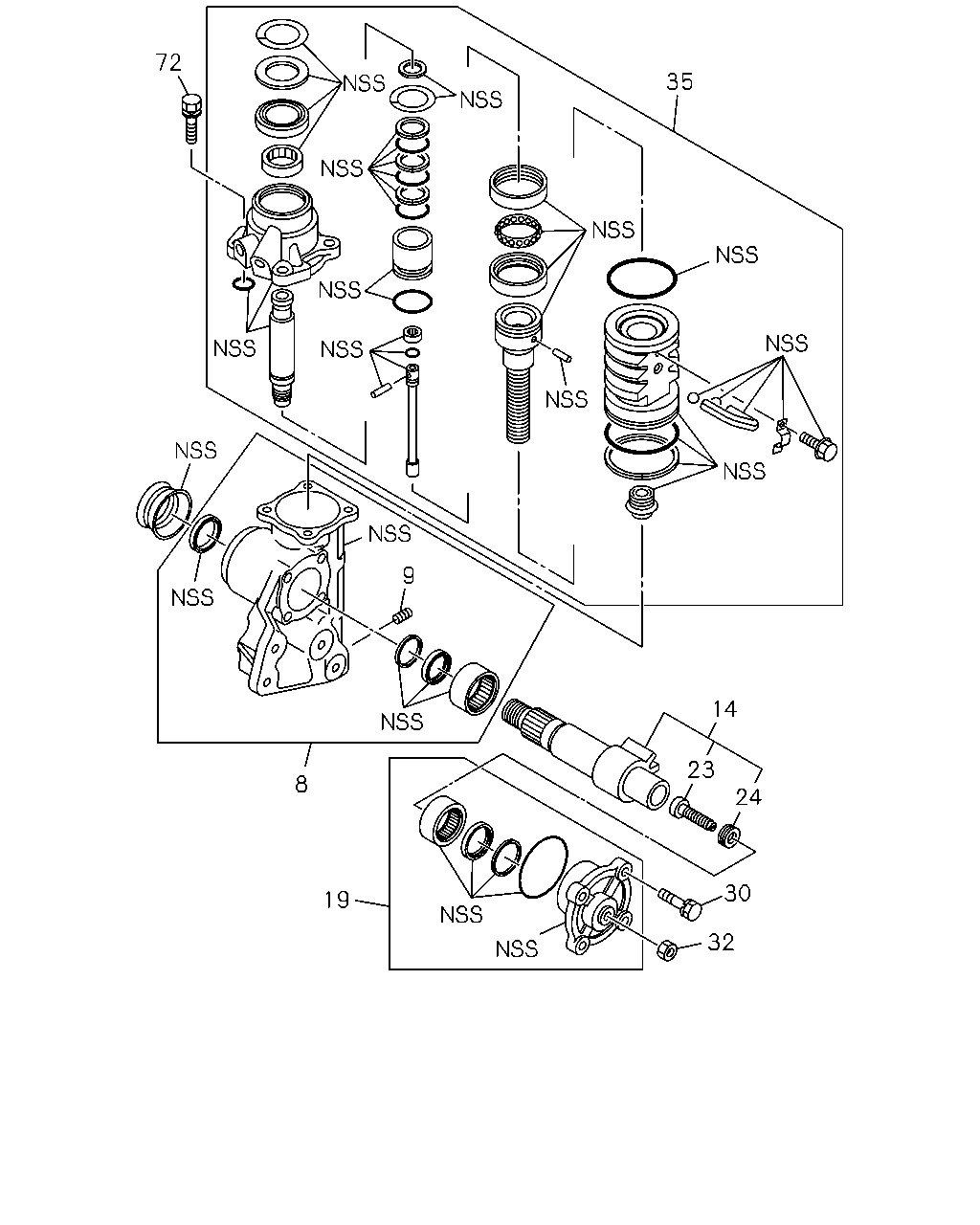

35 72 24 23 14 8 32 13 30 19 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	06.803 BOX ASM; STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97202-838-2	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843	8-97202-845-1	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-126-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: E = 8-98012-214-0, 98012214	8-98012-521-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97014-820-0	02	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105	8-97014-820-0	01	1	-
13	06.786 BEARING; SHAFT,BOX SIDE,STRG UNI ASM PART: A = 8-97251-843-1, 97251843	8-97014-828-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97202-843-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97306-555-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-137-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-933-1	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-933-1	01	1	-0702
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-333-0	01	1	0703-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105, E = 8-98012-214-0, 98012214	8-97014-842-0	01	1	-
24	06.822 RETAINER; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105, E = 8-98012-214-0, 98012214	8-97014-841-0	01	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-836-0	04	1	-0702
30	06.809 BOLT; COVER STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-836-0	04	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-336-0	04	1	0703-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-834-0	01	1	-0702
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-834-0	01	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-337-0	01	1	0703-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: E = 8-98012-214-0, 98012214	8-97264-467-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843	8-97287-220-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97306-554-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-135-1	01	1	-0803
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98112-932-0	01	1	0804-
72	06.550 BOLT; HSG FIX STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	1-44519-110-0	04	1	-
72	06.550 BOLT; HSG FIX STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	1-44519-110-0	04	1	-0702
72	06.550 BOLT; HSG FIX STRG UNIT 06.809 ASM PART: B = 8-97305-046-0, 97305046	8-97014-836-0	04	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809 ASM PART: C = 8-97356-105-6, 97356105	8-98036-336-0	04	1	0703-

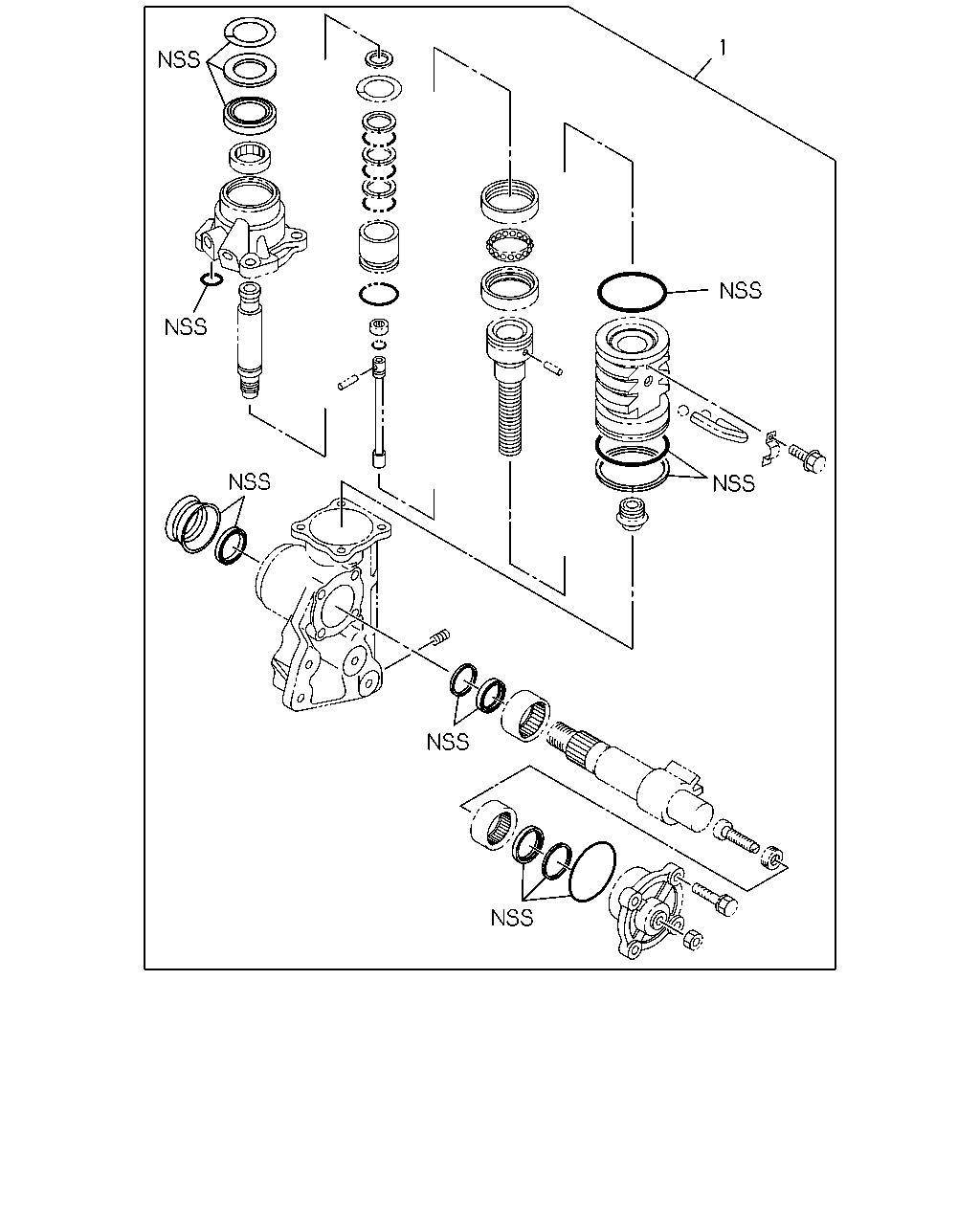

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97305-046-0, 97305046	8-97218-602-1	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97264-465-0	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97356-105-6, 97356105	8-97356-138-0	01	1	-

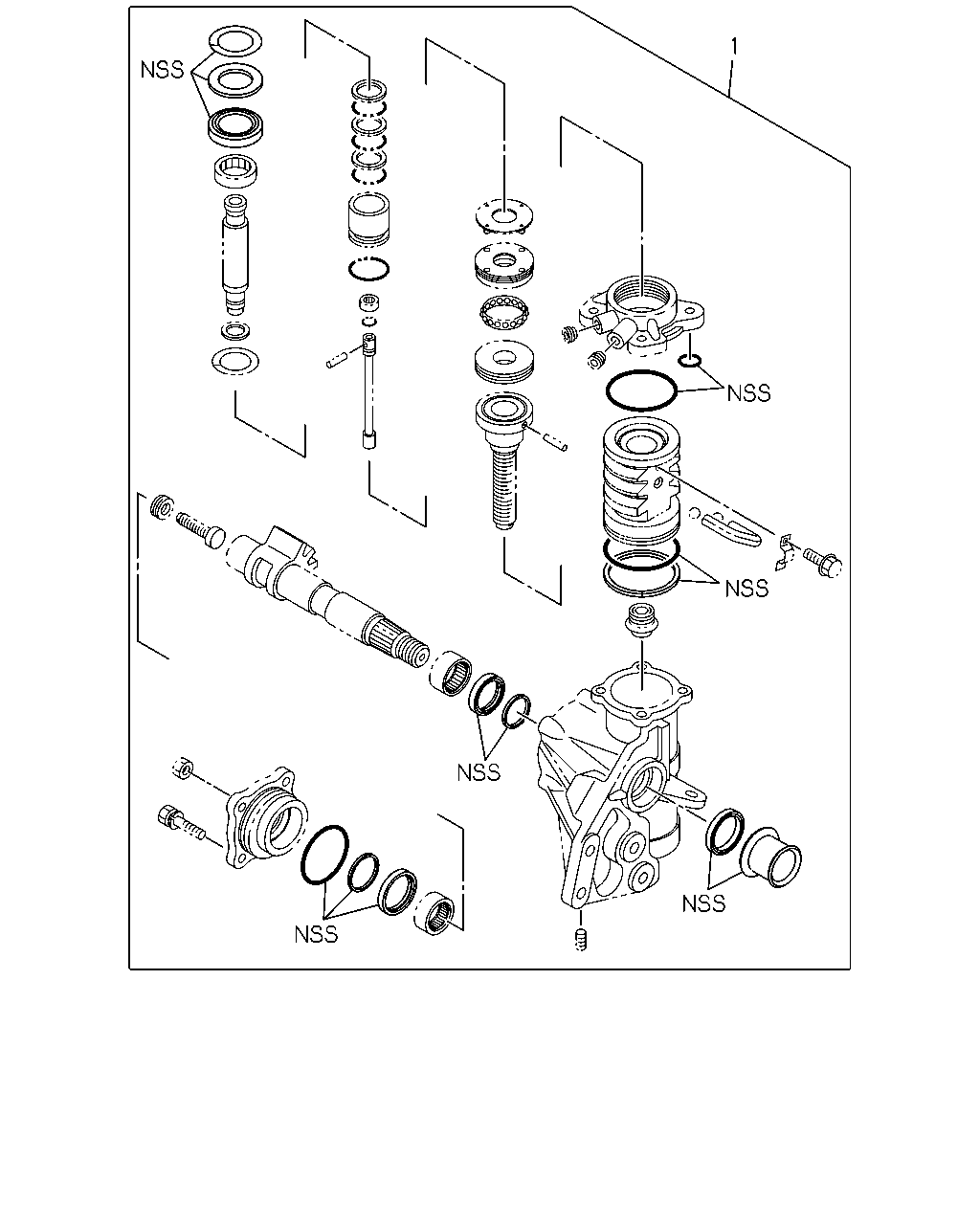

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: B = 8-97305-046-0, 97305046	8-97218-602-1	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97264-465-0	01	1	-
1	06.507 REPAIR KIT; STRG UNIT,1 YEAR ASM PART: C = 8-97356-105-6, 97356105	8-97356-138-0	01	1	-

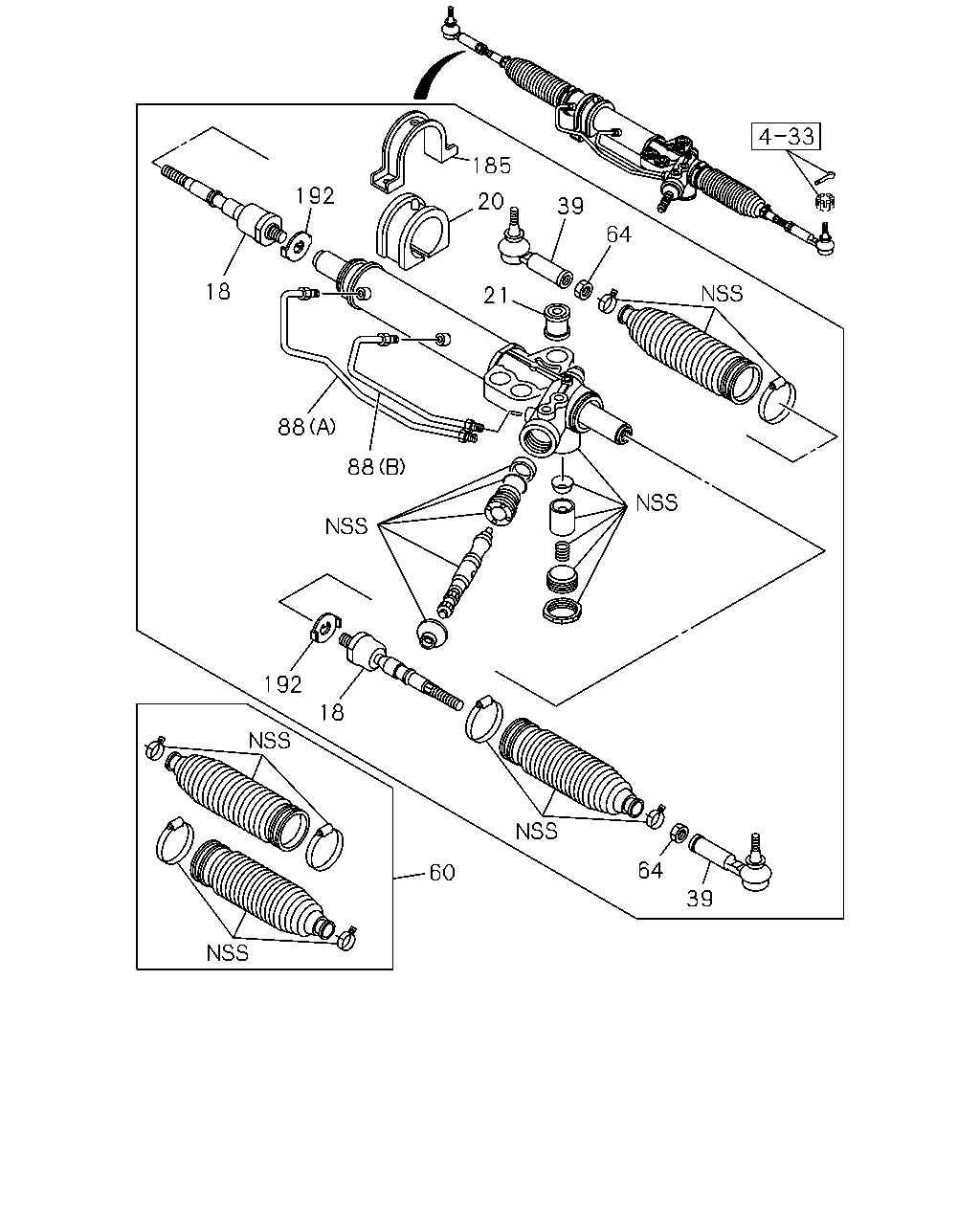

185 192 20 39 64 18 21 88 88 192 18 64 60 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	06.230 ROD ASM; INNER ASM PART: D = 8-97388-318-1, 97388318	8-98048-487-0	02	1	-
20	06.509 RUBBER; MTG ASM PART: D = 8-97388-318-1, 97388318	8-98061-373-0	01	1	-
21	06.509 RUBBER; MTG,PINION SIDE ASM PART: D = 8-97388-318-1, 97388318	8-98061-372-0	03	1	-
39	06.233 ROD END ASM; OUTER ASM PART: D = 8-97388-318-1, 97388318	8-98008-838-0	02	1	-
60	06.242 BOOT KIT; STRG HSG ASM PART: D = 8-97388-318-1, 97388318	8-97357-199-0	01	1	-
64	06.242 NUT; ROD END OUTER TO INNER 03.330, M18 ASM PART: D = 8-97388-318-1, 97388318	0-91111-518-0	02	1	-
88	06.671 PIPE; HSG TO VLV (B) ASM PART: D = 8-97388-318-1, 97388318	8-98051-924-0	01	1	-
88	06.671 PIPE; HSG TO VLV (A) ASM PART: D = 8-97388-318-1, 97388318	8-98051-925-0	01	1	-
185	06.509 BRACKET; P/S ASM PART: D = 8-97388-318-1, 97388318	8-97373-370-0	01	1	-
192	06.521 WASHER; LK,JOINT ASM PART: D = 8-97388-318-1, 97388318	8-97357-196-0	02	1	-

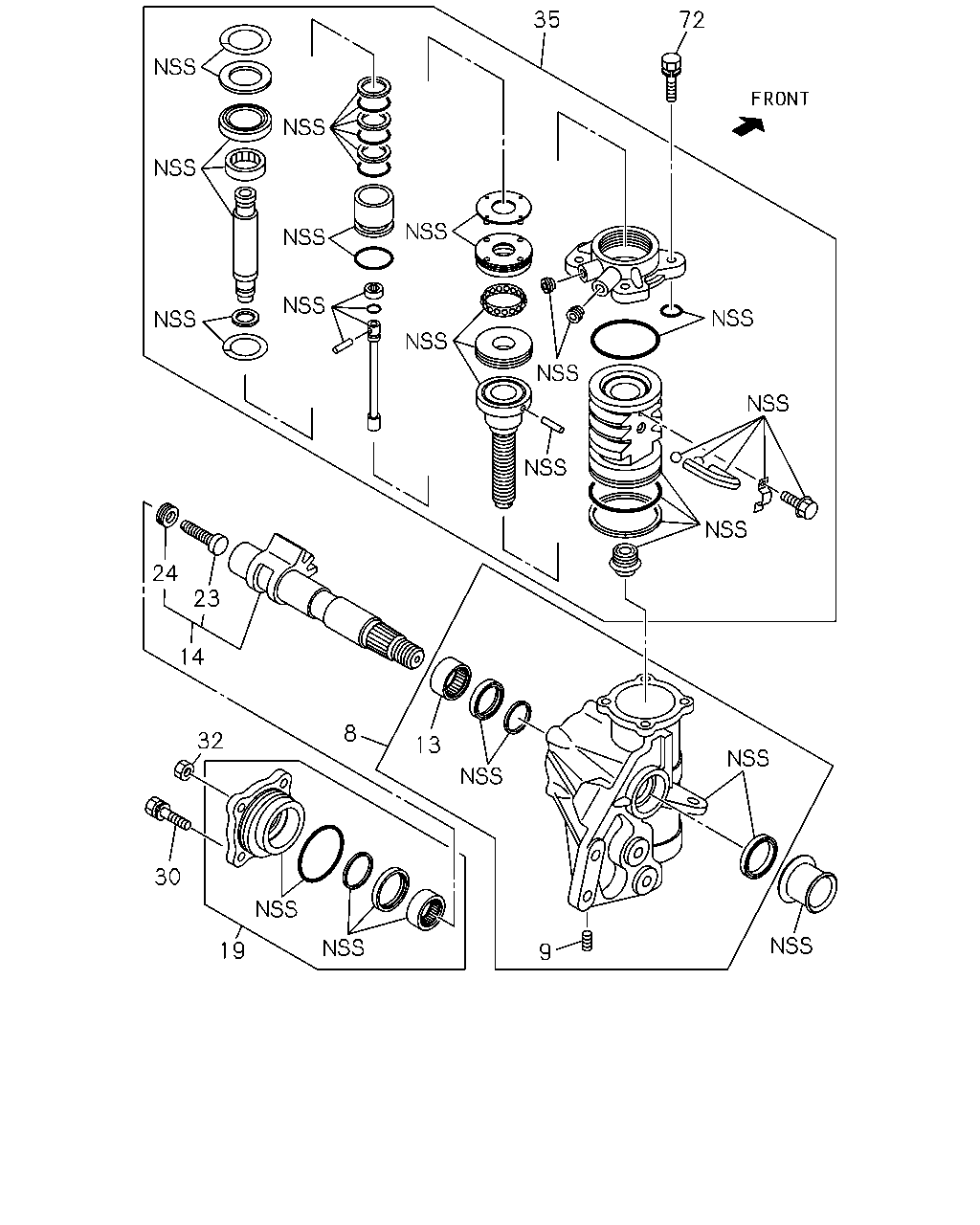

72 35 9 14 23 8 24 30 19 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	06.803 BOX ASM; STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97202-838-2	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843	8-97202-845-1	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-126-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: E = 8-98012-214-0, 98012214	8-98012-521-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97014-820-0	02	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105	8-97014-820-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97202-843-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97306-555-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-137-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-933-1	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-933-1	01	1	-0702
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-333-0	01	1	0703-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105, E = 8-98012-214-0, 98012214	8-97014-842-0	01	1	-
24	06.822 RETAINER; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105, E = 8-98012-214-0, 98012214	8-97014-841-0	01	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-836-0	04	1	-0702
30	06.809 BOLT; COVER STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-836-0	04	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-336-0	04	1	0703-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-834-0	01	1	-0702
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-834-0	01	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-337-0	01	1	0703-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: E = 8-98012-214-0, 98012214	8-97264-467-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843	8-97287-220-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97306-554-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-135-1	01	1	-0803
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98112-932-0	01	1	0804-
72	06.550 BOLT; HSG FIX STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	1-44519-110-0	04	1	-
72	06.550 BOLT; HSG FIX STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	1-44519-110-0	04	1	-0702
72	06.550 BOLT; HSG FIX STRG UNIT 06.809 ASM PART: B = 8-97305-046-0, 97305046	8-97014-836-0	04	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809 ASM PART: C = 8-97356-105-6, 97356105	8-98036-336-0	04	1	0703-

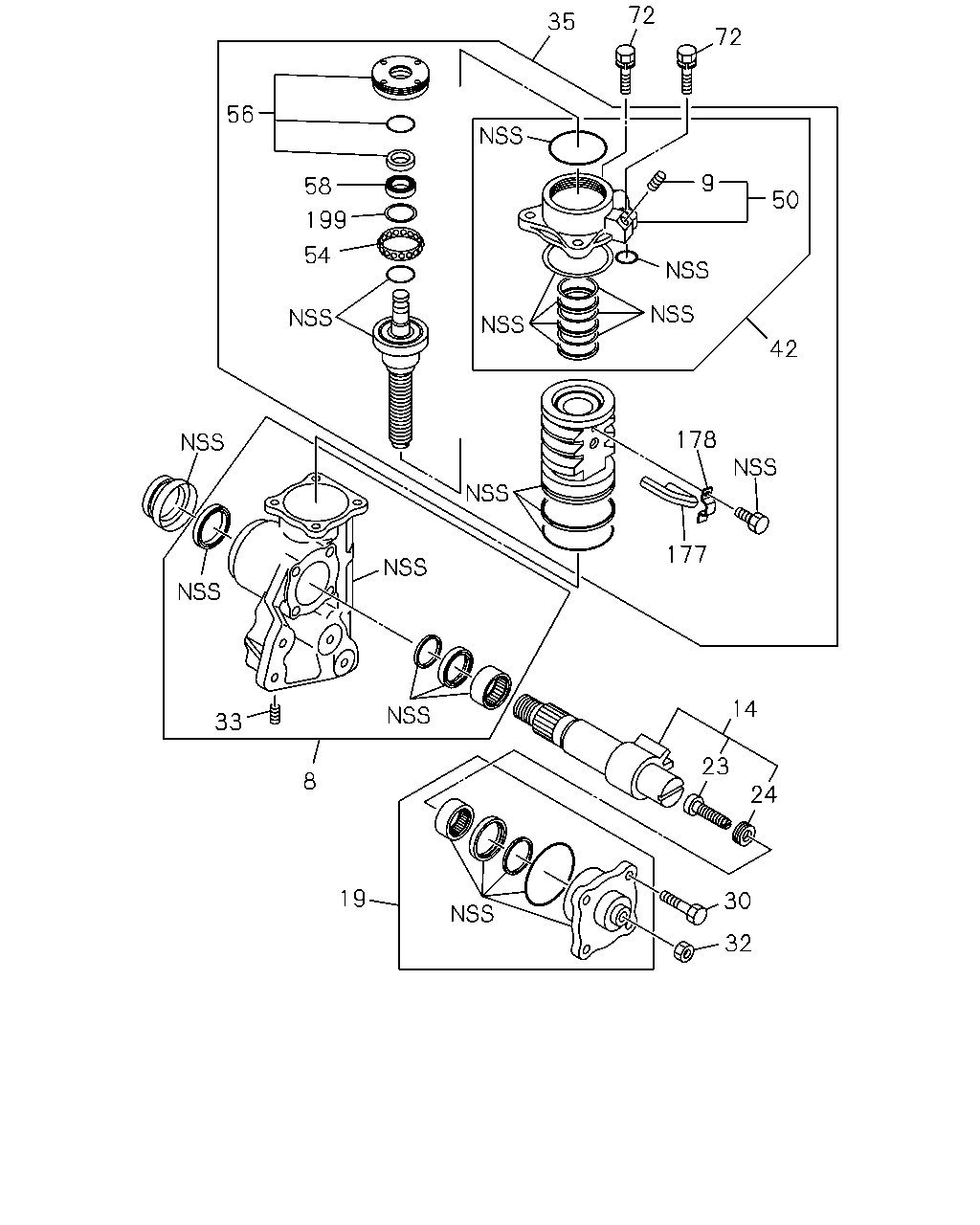

72 35 72 56 9 58 50 199 54 42 178 177 14 33 23 8 24 19 30 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	06.803 BOX ASM; STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97202-838-2	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843	8-97202-845-1	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-126-0	01	1	-
8	06.803 BOX ASM; STRG UNIT ASM PART: E = 8-98012-214-0, 98012214	8-98012-521-0	01	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97014-820-0	02	1	-
9	06.806 PLUG; FILLER,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105	8-97014-820-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	8-97202-843-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97306-555-0	01	1	-
14	06.850 SHAFT; SECTOR,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-137-0	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-933-1	01	1	-
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-933-1	01	1	-0702
19	06.807 COVER; SIDE STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-333-0	01	1	0703-
23	06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105, E = 8-98012-214-0, 98012214	8-97014-842-0	01	1	-
24	06.822 RETAINER; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, C = 8-97356-105-6, 97356105, E = 8-98012-214-0, 98012214	8-97014-841-0	01	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-836-0	04	1	-0702
30	06.809 BOLT; COVER STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-836-0	04	1	-
30	06.809 BOLT; COVER STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-336-0	04	1	0703-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97014-834-0	01	1	-0702
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, B = 8-97305-046-0, 97305046, E = 8-98012-214-0, 98012214	8-97014-834-0	01	1	-
32	06.822 NUT; ADJ SCREW,STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98036-337-0	01	1	0703-
33	06.806 PLUG; DRAIN,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97014-820-0	02	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: E = 8-98012-214-0, 98012214	8-97264-467-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: A = 8-97251-843-1, 97251843	8-97287-220-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97306-554-0	01	1	-
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-97356-135-1	01	1	-0803
35	06.586 HOUSING & SCREW ASM; STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	8-98112-932-0	01	1	0804-
42	06.586 HOUSING & SEAL ASM; STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97014-822-0	01	1	-
50	06.586 HOUSING ASM; VALVE STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97014-821-0	01	1	-
54	06.835 CASE; BEARING STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97014-810-0	01	1	-
56	06.560 PLUG & SEAL ASM; STRG UNIT 06.850 ASM PART: B = 8-97305-046-0, 97305046	8-97076-364-1	01	1	-
58	06.835 BEARING; HSG STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97014-812-0	01	1	-
72	06.550 BOLT; HSG FIX STRG UNIT ASM PART: A = 8-97251-843-1, 97251843, E = 8-98012-214-0, 98012214	1-44519-110-0	04	1	-
72	06.550 BOLT; HSG FIX STRG UNIT ASM PART: C = 8-97356-105-6, 97356105	1-44519-110-0	04	1	-0702
72	06.550 BOLT; HSG FIX STRG UNIT 06.809 ASM PART: B = 8-97305-046-0, 97305046	8-97014-836-0	04	1	-
72	06.550 BOLT; HSG FIX STRG UNIT 06.809 ASM PART: C = 8-97356-105-6, 97356105	8-98036-336-0	04	1	0703-
177	06.822 TUBE; BALL BRG STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97014-809-0	02	1	-
178	06.822 CLIP; BALL TUBE STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97014-808-0	01	1	-
199	06.521 WASHER; WAVE,STRG UNIT ASM PART: B = 8-97305-046-0, 97305046	8-97201-812-0	01	1	-
