4-36 — POWER STEERING CONTROL; ENGINE SIDE (#42070) — 29 parça

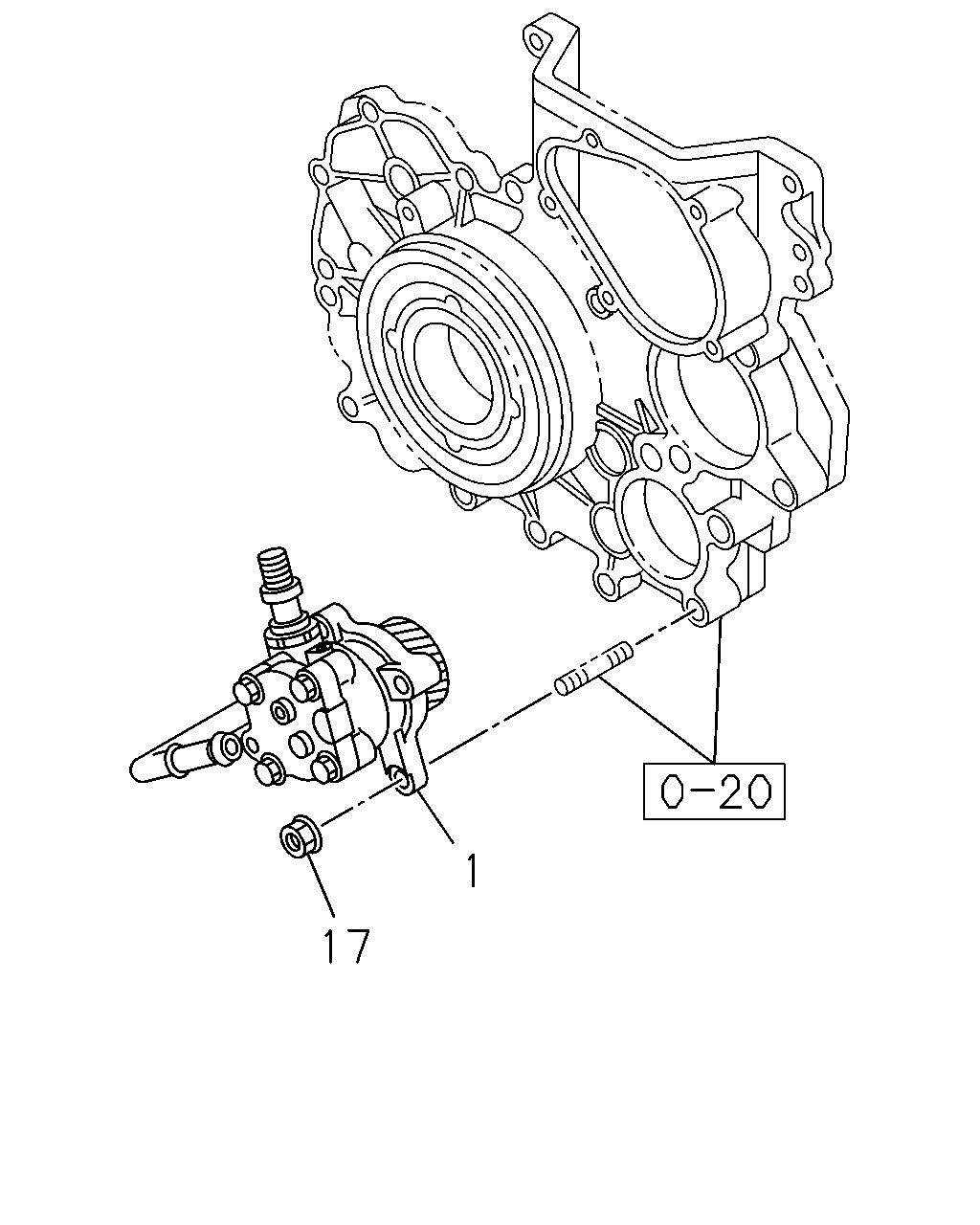

çizim 11715
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0302-0606 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98006-823-3 01 1 0607- ● ● ●
17 06.606 NUT; POWER STRG PUMP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ● ●
17 06.606 NUT; POWER STRG PUMP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ●
17 06.606 NUT; POWER STRG PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 0607- ● ● ●

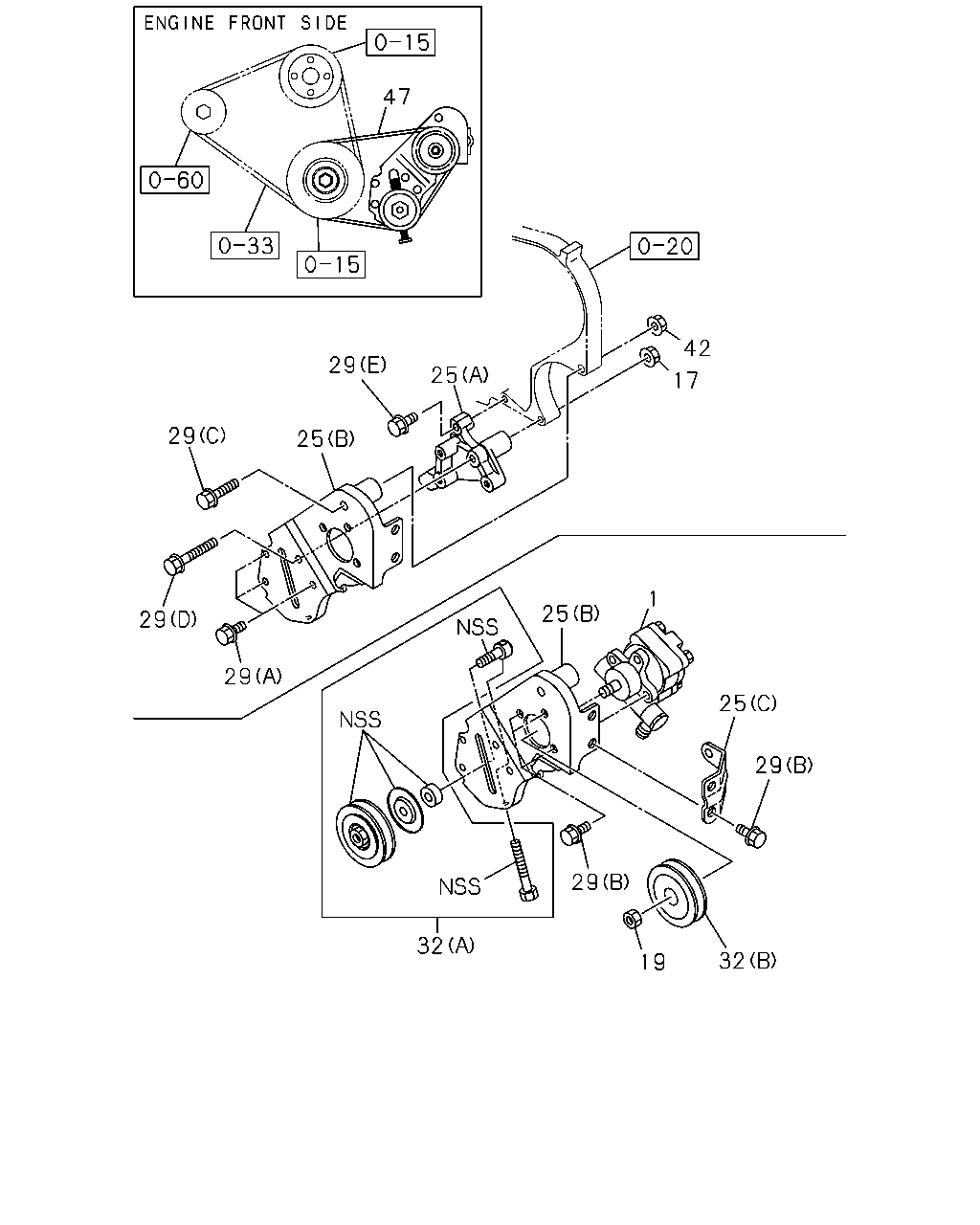

çizim 50688
47 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0302-0606 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98006-823-3 01 1 0607- ● ● ●
17 06.606 NUT; POWER STRG PUMP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ● ●
17 06.606 NUT; POWER STRG PUMP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ●
17 06.606 NUT; POWER STRG PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 0607- ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
06.606 M12 		8-94139-015-0 01 1 0302-0606 ● ● ●
25 06.606 BRACKET; P/S PUMP
(B) 		8-97065-974-0 01 1 0302-0606 ● ● ●
25 06.606 BRACKET; P/S PUMP
(A) 		8-97107-869-0 01 1 0302-0606 ● ● ●
25 06.606 BRACKET; P/S PUMP
(C) 		8-97107-872-0 01 1 0302-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0302-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0302-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0302-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0302-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0302-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0601-0606 ● ● ●
32 06.665 PULLEY; IDLER,P/S
06.655 (A) 		8-94128-866-0 01 1 0302-0606 ● ● ●
32 06.665 PULLEY; IDLER,P/S
(B) 		8-97084-332-2 01 1 0302-0606 ● ● ●
42 06.672 NUT; ADJ PLATE
04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0602 ● ● ●
42 06.672 NUT; ADJ PLATE
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ●
47 01.066 BELT; P/S PUMP 8-97085-131-0 01 1 0302-0606 ● ● ●
