Sayfa 0-50B - Isuzu EPC

0-50B — OIL COOLER AND OIL FILTER (#4207) — 342 parça

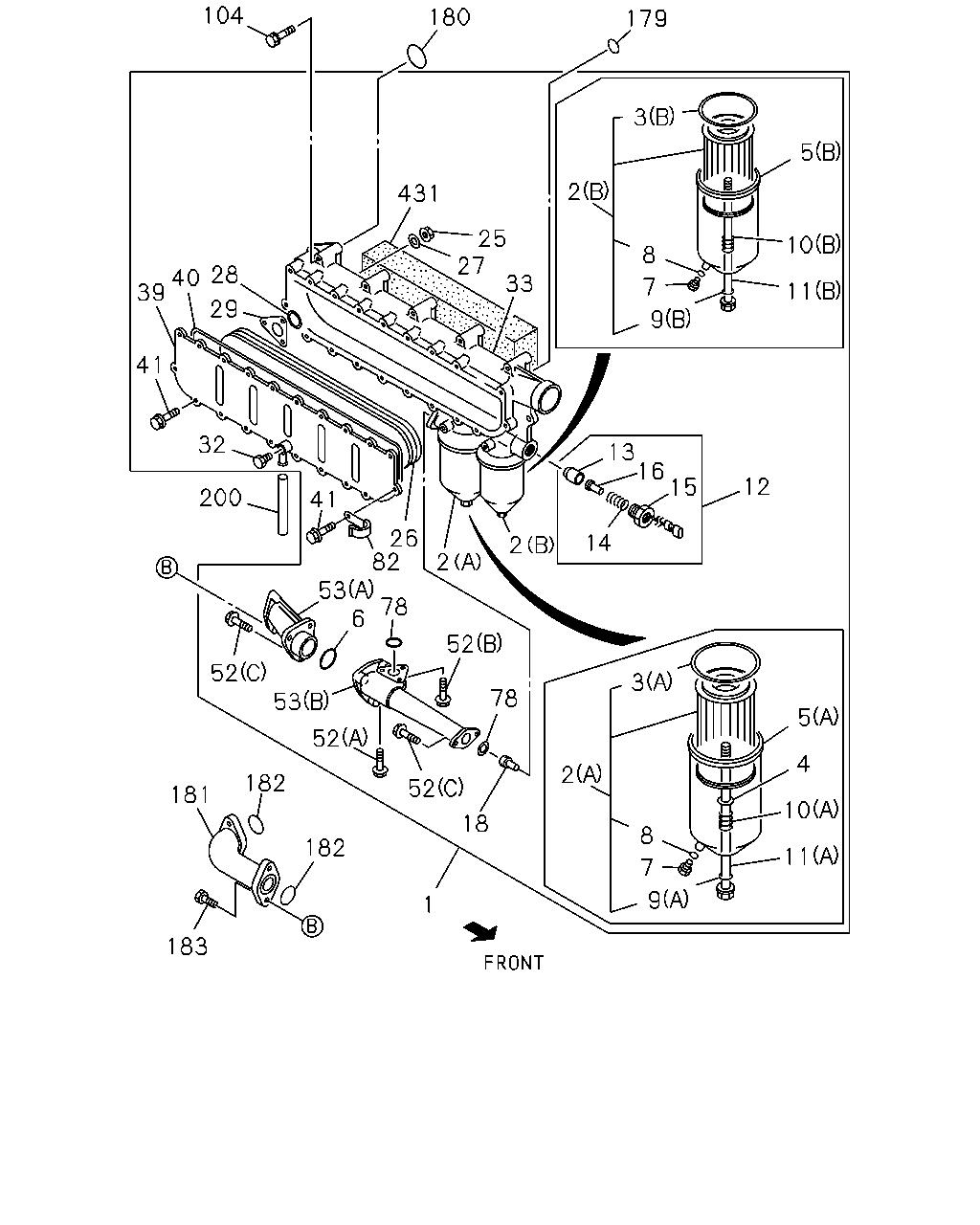

104 180 179 3 5 2 431 25 27 10 8 28 40 39 33 7 11 29 9 41 32 13 16 15 12 41 200 26 82 14 2 2 53 6 78 52 52 3 78 53 5 52 4 2 182 52 181 10 18 8 182 11 7 9 1 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER & COOLER ASM; OIL	1-13200-958-1	01	1	9603-9901	●
1	FILTER & COOLER ASM; OIL	1-13200-958-1	01	1	9905-	●
1	FILTER & COOLER ASM; OIL	1-13200-957-1	01	1	9603-9901		●
1	FILTER & COOLER ASM; OIL	1-13200-957-1	01	1	9905-		●	●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9603-9901	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9905-9905	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-9909		●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9910-		●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-175-0	01	1	9603-9901	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-175-0	01	1	9905-	●
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-116-0	01	1	9603-9901		●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-187-0	01	1	9603-9612		●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-205-0	01	1	9701-9901		●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-200-0	01	1	9603-9901		●
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-116-0	01	1	9905-		●	●	●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-205-0	01	1	9905-		●	●	●
3	GASKET (A)	1-09623-548-0	01	1	9603-9901	●
3	GASKET (B)	1-09623-552-0	01	1	9603-9901	●
3	GASKET (A)	1-09623-548-0	01	1	9905-	●
3	GASKET (B)	1-09623-552-0	01	1	9905-	●
3	GASKET (B)	1-13213-010-0	01	1	9603-9901		●
3	GASKET (A)	1-13213-011-2	01	1	9603-9901		●
3	GASKET (B)	1-13213-010-0	01	1	9905-		●	●	●
3	GASKET (A)	1-13213-011-2	01	1	9905-		●	●	●
4	WASHER; ELEMENT	1-13234-005-0	01	1	9603-9901	●
4	WASHER; ELEMENT	1-13234-005-0	01	1	9905-	●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9603-9901		●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9905-		●	●	●
5	CASE; OIL FILTER (A)	1-13211-258-0	01	1	9603-9901	●
5	CASE; OIL FILTER (B)	1-13211-259-0	01	1	9603-9901	●
5	CASE; OIL FILTER (A)	1-13211-258-0	01	1	9905-	●
5	CASE; OIL FILTER (B)	1-13211-259-0	01	1	9905-	●
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	9603-9901		●
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	9603-9901		●
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	9905-		●	●	●
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	9905-		●	●	●
6	GASKET; VLV CASE	1-09623-417-0	02	1	9603-9901	●
6	GASKET; VLV CASE	1-09623-417-0	02	1	9905-	●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9603-9901		●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9905-		●	●	●
7	PLUG; CENTER BOLT	1-13219-272-0	02	1	9603-9901	●
7	PLUG; CENTER BOLT	1-13219-272-0	02	1	9905-	●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9603-9901		●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9905-		●	●	●
8	GASKET; PLUG	1-09623-550-0	02	1	9603-9901	●
8	GASKET; PLUG	1-09623-550-0	02	1	9905-	●
8	GASKET; PLUG ID=11.8	9-09923-579-0	02	1	9603-9901		●
8	GASKET; PLUG ID=11.8	9-09923-579-0	02	1	9905-		●	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-549-0	01	1	9603-9901	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-551-0	01	1	9603-9901	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-549-0	01	1	9905-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-551-0	01	1	9905-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	9603-9901		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	9603-9901		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	9905-		●	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	9905-		●	●	●
10	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9603-9901	●
10	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9603-9901	●
10	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9905-	●
10	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9905-	●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9603-9901		●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9603-9901		●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9905-		●	●	●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9905-		●	●	●
11	BOLT; CENTER (A)	1-13219-281-1	01	1	9603-9901	●
11	BOLT; CENTER (B)	1-13219-309-0	01	1	9603-9901	●
11	BOLT; CENTER (A)	1-13219-281-1	01	1	9905-	●
11	BOLT; CENTER (B)	1-13219-309-0	01	1	9905-	●
11	BOLT; CENTER (A)	1-13231-071-0	01	1	9603-9901		●
11	BOLT; CENTER (B)	1-13231-072-0	01	1	9603-9901		●
11	BOLT; CENTER (A)	1-13231-071-0	01	1	9905-		●	●	●
11	BOLT; CENTER (B)	1-13231-072-0	01	1	9905-		●	●	●
12	VALVE ASM; BYPASS	1-13200-875-0	01	1	9603-9901		●
12	VALVE ASM; BYPASS	1-13200-875-0	01	1	9905-		●	●	●
13	VALVE; RELIEF	9-13262-010-0	01	1	9603-9901		●
13	VALVE; RELIEF	9-13262-010-0	01	1	9905-		●	●	●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	9603-9901	●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	9905-	●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9603-9901		●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9905-		●	●	●
15	PLUG; RELIEF VLV	1-13265-024-0	01	1	9603-9901		●
15	PLUG; RELIEF VLV	1-13265-024-0	01	1	9905-		●	●	●
16	VALVE ASM; RELIEF	1-13262-005-0	01	1	9603-9901	●
16	VALVE ASM; RELIEF	1-13262-005-0	01	1	9905-	●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	9603-9901		●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	9905-		●	●	●
18	VALVE ASM; OIL COOLER	1-21740-004-0	01	1	9603-9901	●
18	VALVE ASM; OIL COOLER	1-21740-004-0	01	1	9905-	●
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9603-9901		●
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9905-		●	●	●
25	NUT; CORE TO BODY M10	9-09120-410-0	04	1	9603-9901	●
25	NUT; CORE TO BODY M10	9-09120-410-0	04	1	9905-	●
25	NUT; CORE TO BODY M10	9-09110-410-0	06	1	9603-9612		●
25	NUT; CORE TO BODY M10 FLANGE	0-91250-210-0	06	1	9701-9901		●
25	NUT; CORE TO BODY M10 FLANGE	0-91250-210-0	06	1	9905-		●	●	●
26	CORE ASM; OIL COOLER	1-21723-044-2	01	1	9603-9901	●
26	CORE ASM; OIL COOLER	1-21723-044-2	01	1	9905-	●
26	CORE ASM; OIL COOLER	1-21491-034-0	01	1	9603-9901		●
26	CORE ASM; OIL COOLER	1-21491-034-0	01	1	9905-		●	●	●
27	WASHER; PL,CORE TO BODY ID=10.5 OD=22	9-09160-610-0	12	1	9603-9901	●
27	WASHER; PL,CORE TO BODY ID=10.5 OD=22	9-09160-610-0	12	1	9905-	●
27	WASHER; PL,CORE TO BODY	9-09100-510-0	06	1	9603-9612		●
28	GASKET; CORE TO BODY	1-09623-560-0	02	1	9603-9901		●
28	GASKET; CORE TO BODY	1-09623-560-0	02	1	9905-		●	●	●
29	GASKET; CORE TO BODY (A)	1-21729-079-1	01	1	9603-9901	●
29	GASKET; CORE TO BODY (B)	1-21729-080-1	01	1	9603-9901	●
29	GASKET; CORE TO BODY (A)	1-21729-079-1	01	1	9905-	●
29	GASKET; CORE TO BODY (B)	1-21729-080-1	01	1	9905-	●
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	9603-9901		●
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	9905-		●	●	●
32	PLUG; DRAIN	1-13219-276-0	01	1	9603-9901		●
32	PLUG; DRAIN	1-13219-276-0	01	1	9905-		●	●	●
33	HOUSING ASM; COOLER	1-21721-076-0	01	1	9603-9901	●
33	HOUSING ASM; COOLER	1-21721-076-0	01	1	9905-	●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9603-9901		●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9905-		●	●	●
39	COVER; OIL COOLER	1-21721-066-0	01	1	9603-9901	●
39	COVER; OIL COOLER	1-21721-066-0	01	1	9905-	●
39	COVER; OIL COOLER	1-21722-028-0	01	1	9603-9901		●
39	COVER; OIL COOLER	1-21722-028-0	01	1	9905-		●	●	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-520-0	01	1	9603-9901	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-520-0	01	1	9905-	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9603-9901		●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9905-		●	●	●
41	BOLT; COVER FIX	1-09033-004-0	12	1	9603-9901	●
41	BOLT; COVER FIX	1-09033-004-0	12	1	9905-	●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9603-9901		●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9905-		●	●	●
52	BOLT; OIL INL PIPE & VLV CASE (A) M10X35	9-01056-035-0	06	1	9603-9901	●
52	BOLT; OIL INL PIPE & VLV CASE (B) M10X55	9-01056-055-0	01	1	9603-9901	●
52	BOLT; OIL INL PIPE & VLV CASE (C) M10X70	9-01056-070-0	01	1	9603-9901	●
52	BOLT; OIL INL PIPE & VLV CASE (A) M10X35	9-01056-035-0	06	1	9905-	●
52	BOLT; OIL INL PIPE & VLV CASE (B) M10X55	9-01056-055-0	01	1	9905-	●
52	BOLT; OIL INL PIPE & VLV CASE (C) M10X70	9-01056-070-0	01	1	9905-	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9603-9901		●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9603-9901		●
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30	9-02050-830-0	05	1	9603-9612		●
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30 FLANGE	0-28080-830-0	05	1	9701-9901		●
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30 FLANGE	0-28080-830-0	05	1	9905-		●	●	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9905-		●	●	●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9905-		●	●	●
53	PIPE; OIL INL	1-21726-050-0	01	1	9603-9901	●
53	PIPE; OIL INL	1-21726-050-0	01	1	9905-	●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9603-9901		●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9603-9901		●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9905-		●	●	●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9905-		●	●	●
78	GASKET; PIPE	1-09623-522-0	01	1	9603-9901	●
78	GASKET; PIPE	1-09623-522-0	01	1	9905-	●
78	GASKET; PIPE	1-13219-257-0	02	1	9603-9901		●
78	GASKET; PIPE	1-13219-257-0	02	1	9905-		●	●	●
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	9603-9901	●	●
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	9905-	●	●	●	●
104	BOLT; OIL COOLER M10X90 FLANGE	0-28181-090-0	05	1	9603-9901	●	●
104	BOLT; OIL COOLER M10X90 FLANGE	0-28181-090-0	05	1	9905-	●	●	●	●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9603-9901		●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9905-		●	●	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9603-9901	●	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9905-	●	●	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9603-9901	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9905-	●	●	●	●
181	CONNECTOR; HSG TO COOLER	1-13312-082-0	01	1	9603-9901	●	●
181	CONNECTOR; HSG TO COOLER	1-13312-082-0	01	1	9905-	●	●	●	●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9603-9901	●	●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9905-	●	●	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9603-9901	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9905-	●	●	●	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9901	●	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●	●	●
431	SPACER; OIL COOLER	1-19389-182-0	01	1	9603-9901		●
431	SPACER; OIL COOLER	1-19389-182-0	01	1	9905-		●	●	●

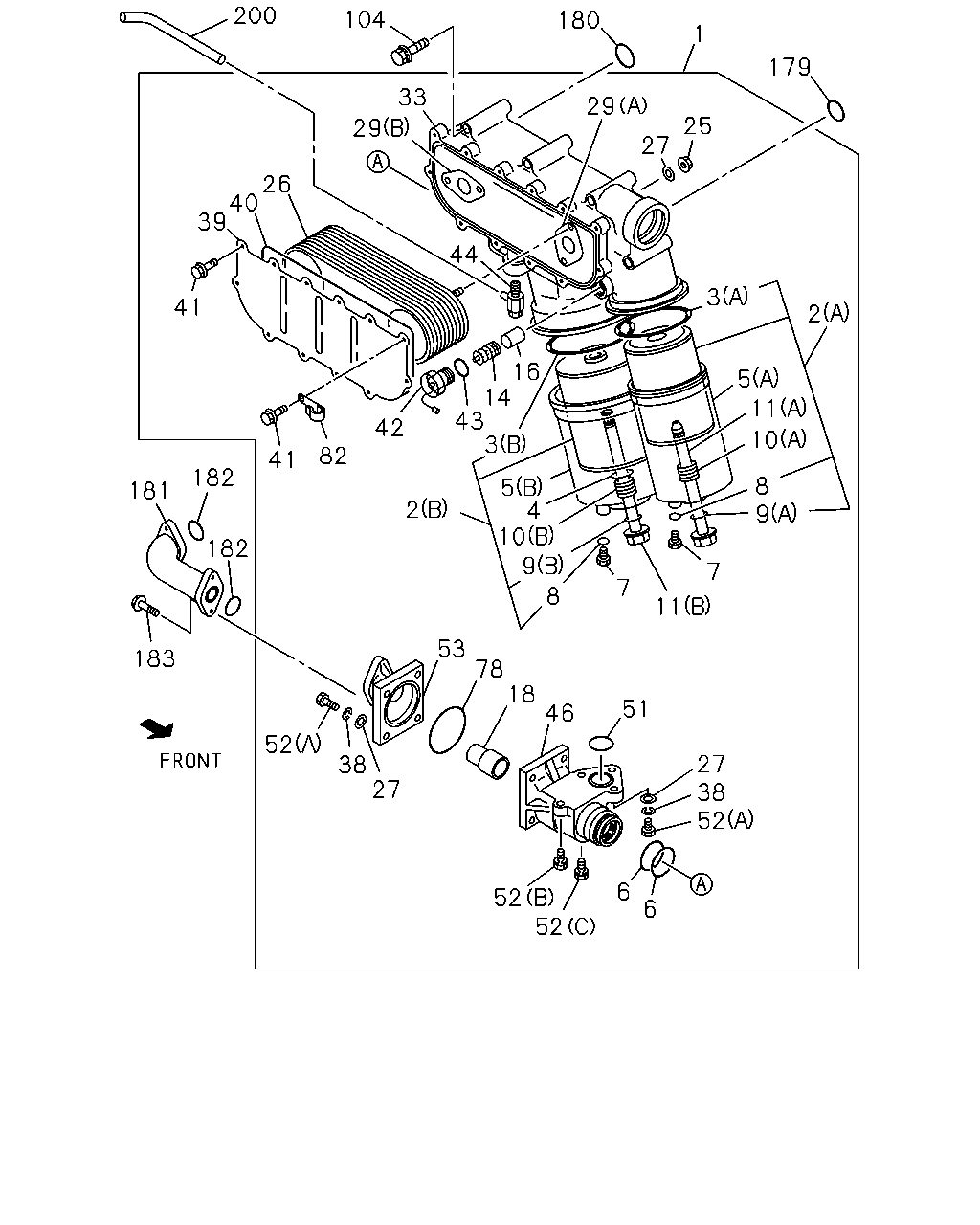

200 104 180 1 179 33 29 25 29 27 26 40 39 44 3 41 2 16 14 43 3 5 11 42 10 82 41 182 8 9 5 4 10 9 181 2 182 7 7 8 11 53 78 18 46 183 51 52 27 38 52 38 27 6 52 52 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER & COOLER ASM; OIL	1-13200-958-1	01	1	9603-9901	●
1	FILTER & COOLER ASM; OIL	1-13200-958-1	01	1	9905-	●
1	FILTER & COOLER ASM; OIL	1-13200-957-1	01	1	9603-9901		●
1	FILTER & COOLER ASM; OIL	1-13200-957-1	01	1	9905-		●	●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9603-9901	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9905-9905	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-9909		●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9910-		●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-175-0	01	1	9603-9901	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-175-0	01	1	9905-	●
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-116-0	01	1	9603-9901		●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-187-0	01	1	9603-9612		●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-205-0	01	1	9701-9901		●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-200-0	01	1	9603-9901		●
2	ELEMENT; OIL FILTER (B) PARTIAL TOKYO ROKI	1-13240-116-0	01	1	9905-		●	●	●
2	ELEMENT; OIL FILTER (A) TOKYO ROKI	1-13240-205-0	01	1	9905-		●	●	●
3	GASKET (A)	1-09623-548-0	01	1	9603-9901	●
3	GASKET (B)	1-09623-552-0	01	1	9603-9901	●
3	GASKET (A)	1-09623-548-0	01	1	9905-	●
3	GASKET (B)	1-09623-552-0	01	1	9905-	●
3	GASKET (B)	1-13213-010-0	01	1	9603-9901		●
3	GASKET (A)	1-13213-011-2	01	1	9603-9901		●
3	GASKET (B)	1-13213-010-0	01	1	9905-		●	●	●
3	GASKET (A)	1-13213-011-2	01	1	9905-		●	●	●
4	WASHER; ELEMENT	1-13234-005-0	01	1	9603-9901	●
4	WASHER; ELEMENT	1-13234-005-0	01	1	9905-	●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9603-9901		●
4	WASHER; ELEMENT	1-13219-259-0	01	1	9905-		●	●	●
5	CASE; OIL FILTER (A)	1-13211-258-0	01	1	9603-9901	●
5	CASE; OIL FILTER (B)	1-13211-259-0	01	1	9603-9901	●
5	CASE; OIL FILTER (A)	1-13211-258-0	01	1	9905-	●
5	CASE; OIL FILTER (B)	1-13211-259-0	01	1	9905-	●
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	9603-9901		●
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	9603-9901		●
5	CASE; OIL FILTER (B)	1-13211-198-3	01	1	9905-		●	●	●
5	CASE; OIL FILTER (A)	1-13211-200-3	01	1	9905-		●	●	●
6	GASKET; VLV CASE	1-09623-417-0	02	1	9603-9901	●
6	GASKET; VLV CASE	1-09623-417-0	02	1	9905-	●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9603-9901		●
6	GASKET; VLV CASE	1-13219-258-0	01	1	9905-		●	●	●
7	PLUG; CENTER BOLT	1-13219-272-0	02	1	9603-9901	●
7	PLUG; CENTER BOLT	1-13219-272-0	02	1	9905-	●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9603-9901		●
7	PLUG; CENTER BOLT	1-09604-088-0	02	1	9905-		●	●	●
8	GASKET; PLUG	1-09623-550-0	02	1	9603-9901	●
8	GASKET; PLUG	1-09623-550-0	02	1	9905-	●
8	GASKET; PLUG ID=11.8	9-09923-579-0	02	1	9603-9901		●
8	GASKET; PLUG ID=11.8	9-09923-579-0	02	1	9905-		●	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-549-0	01	1	9603-9901	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-551-0	01	1	9603-9901	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-549-0	01	1	9905-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-551-0	01	1	9905-	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	9603-9901		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	9603-9901		●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09623-499-0	01	1	9905-		●	●	●
9	GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	9905-		●	●	●
10	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9603-9901	●
10	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9603-9901	●
10	SPRING; ELEMENT (A)	1-09580-387-0	01	1	9905-	●
10	SPRING; ELEMENT (B)	1-09580-484-0	01	1	9905-	●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9603-9901		●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9603-9901		●
10	SPRING; ELEMENT (B)	1-13219-263-0	01	1	9905-		●	●	●
10	SPRING; ELEMENT (A)	1-13219-264-0	01	1	9905-		●	●	●
11	BOLT; CENTER (A)	1-13219-281-1	01	1	9603-9901	●
11	BOLT; CENTER (B)	1-13219-309-0	01	1	9603-9901	●
11	BOLT; CENTER (A)	1-13219-281-1	01	1	9905-	●
11	BOLT; CENTER (B)	1-13219-309-0	01	1	9905-	●
11	BOLT; CENTER (A)	1-13231-071-0	01	1	9603-9901		●
11	BOLT; CENTER (B)	1-13231-072-0	01	1	9603-9901		●
11	BOLT; CENTER (A)	1-13231-071-0	01	1	9905-		●	●	●
11	BOLT; CENTER (B)	1-13231-072-0	01	1	9905-		●	●	●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	9603-9901	●
14	SPRING; RELIEF VLV	1-13263-004-0	01	1	9905-	●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9603-9901		●
14	SPRING; RELIEF VLV	9-09940-985-0	01	1	9905-		●	●	●
16	VALVE ASM; RELIEF	1-13262-005-0	01	1	9603-9901	●
16	VALVE ASM; RELIEF	1-13262-005-0	01	1	9905-	●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	9603-9901		●
16	VALVE ASM; RELIEF	1-13269-005-0	01	1	9905-		●	●	●
18	VALVE ASM; OIL COOLER	1-21740-004-0	01	1	9603-9901	●
18	VALVE ASM; OIL COOLER	1-21740-004-0	01	1	9905-	●
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9603-9901		●
18	VALVE ASM; OIL COOLER	1-21740-002-0	01	1	9905-		●	●	●
25	NUT; CORE TO BODY M10	9-09120-410-0	04	1	9603-9901	●
25	NUT; CORE TO BODY M10	9-09120-410-0	04	1	9905-	●
25	NUT; CORE TO BODY M10	9-09110-410-0	06	1	9603-9612		●
25	NUT; CORE TO BODY M10 FLANGE	0-91250-210-0	06	1	9701-9901		●
25	NUT; CORE TO BODY M10 FLANGE	0-91250-210-0	06	1	9905-		●	●	●
26	CORE ASM; OIL COOLER	1-21723-044-2	01	1	9603-9901	●
26	CORE ASM; OIL COOLER	1-21723-044-2	01	1	9905-	●
26	CORE ASM; OIL COOLER	1-21491-034-0	01	1	9603-9901		●
26	CORE ASM; OIL COOLER	1-21491-034-0	01	1	9905-		●	●	●
27	WASHER; PL,CORE TO BODY ID=10.5 OD=22	9-09160-610-0	12	1	9603-9901	●
27	WASHER; PL,CORE TO BODY ID=10.5 OD=22	9-09160-610-0	12	1	9905-	●
27	WASHER; PL,CORE TO BODY	9-09100-510-0	06	1	9603-9612		●
29	GASKET; CORE TO BODY (A)	1-21729-079-1	01	1	9603-9901	●
29	GASKET; CORE TO BODY (B)	1-21729-080-1	01	1	9603-9901	●
29	GASKET; CORE TO BODY (A)	1-21729-079-1	01	1	9905-	●
29	GASKET; CORE TO BODY (B)	1-21729-080-1	01	1	9905-	●
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	9603-9901		●
29	GASKET; CORE TO BODY	1-13213-014-1	02	1	9905-		●	●	●
33	HOUSING ASM; COOLER	1-21721-076-0	01	1	9603-9901	●
33	HOUSING ASM; COOLER	1-21721-076-0	01	1	9905-	●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9603-9901		●
33	HOUSING ASM; COOLER	1-21721-069-4	01	1	9905-		●	●	●
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	08	1	9905-	●
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	08	1	9603-9901	●
39	COVER; OIL COOLER	1-21721-066-0	01	1	9603-9901	●
39	COVER; OIL COOLER	1-21721-066-0	01	1	9905-	●
39	COVER; OIL COOLER	1-21722-028-0	01	1	9603-9901		●
39	COVER; OIL COOLER	1-21722-028-0	01	1	9905-		●	●	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-520-0	01	1	9603-9901	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-520-0	01	1	9905-	●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9603-9901		●
40	GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-13213-013-0	01	1	9905-		●	●	●
41	BOLT; COVER FIX	1-09033-004-0	12	1	9603-9901	●
41	BOLT; COVER FIX	1-09033-004-0	12	1	9905-	●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9603-9901		●
41	BOLT; COVER FIX	1-13219-163-1	20	1	9905-		●	●	●
42	CHAMBER ASM; SWITCH,FILTER	1-13260-097-0	01	1	9603-9901	●
42	CHAMBER ASM; SWITCH,FILTER	1-13260-097-0	01	1	9905-	●
43	GASKET; SWITCH CHAMBER	1-09630-114-0	01	1	9603-9901	●
43	GASKET; SWITCH CHAMBER	1-09630-114-0	01	1	9905-	●
44	COCK ASM; WATER DRAIN	1-09680-066-0	01	1	9603-9901	●
44	COCK ASM; WATER DRAIN	1-09680-066-0	01	1	9905-	●
46	CASE; THERMO VLV	1-21726-051-0	01	1	9603-9901	●
46	CASE; THERMO VLV	1-21726-051-0	01	1	9905-	●
51	GASKET; VLV CASE	1-09623-559-0	01	1	9603-9901	●
51	GASKET; VLV CASE	1-09623-559-0	01	1	9905-	●
52	BOLT; OIL INL PIPE & VLV CASE (A) M10X35	9-01056-035-0	06	1	9603-9901	●
52	BOLT; OIL INL PIPE & VLV CASE (B) M10X55	9-01056-055-0	01	1	9603-9901	●
52	BOLT; OIL INL PIPE & VLV CASE (C) M10X70	9-01056-070-0	01	1	9603-9901	●
52	BOLT; OIL INL PIPE & VLV CASE (A) M10X35	9-01056-035-0	06	1	9905-	●
52	BOLT; OIL INL PIPE & VLV CASE (B) M10X55	9-01056-055-0	01	1	9905-	●
52	BOLT; OIL INL PIPE & VLV CASE (C) M10X70	9-01056-070-0	01	1	9905-	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9603-9901		●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9603-9901		●
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30	9-02050-830-0	05	1	9603-9612		●
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30 FLANGE	0-28080-830-0	05	1	9701-9901		●
52	BOLT; OIL INL PIPE & VLV CASE (C) M8X30 FLANGE	0-28080-830-0	05	1	9905-		●	●	●
52	BOLT; OIL INL PIPE & VLV CASE (A)	1-13219-261-1	02	1	9905-		●	●	●
52	BOLT; OIL INL PIPE & VLV CASE (B)	1-13219-262-1	01	1	9905-		●	●	●
53	PIPE; OIL INL	1-21726-050-0	01	1	9603-9901	●
53	PIPE; OIL INL	1-21726-050-0	01	1	9905-	●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9603-9901		●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9603-9901		●
53	PIPE; OIL INL (A)	1-13219-255-0	01	1	9905-		●	●	●
53	PIPE; OIL INL (B)	1-13219-256-2	01	1	9905-		●	●	●
78	GASKET; PIPE	1-09623-522-0	01	1	9603-9901	●
78	GASKET; PIPE	1-09623-522-0	01	1	9905-	●
78	GASKET; PIPE	1-13219-257-0	02	1	9603-9901		●
78	GASKET; PIPE	1-13219-257-0	02	1	9905-		●	●	●
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	9603-9901	●	●
82	HOLDER; OIL COOLER ID=11 L=30	1-09700-511-0	01	1	9905-	●	●	●	●
104	BOLT; OIL COOLER M10X90 FLANGE	0-28181-090-0	05	1	9603-9901	●	●
104	BOLT; OIL COOLER M10X90 FLANGE	0-28181-090-0	05	1	9905-	●	●	●	●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9603-9901		●
104	BOLT; OIL COOLER M10X60 FLANGE	0-28181-060-0	02	1	9905-		●	●	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9603-9901	●	●
179	GASKET; OIL OUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9905-	●	●	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9603-9901	●	●
180	GASKET; WATER OUT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-425-0	01	1	9905-	●	●	●	●
181	CONNECTOR; HSG TO COOLER	1-13312-082-0	01	1	9603-9901	●	●
181	CONNECTOR; HSG TO COOLER	1-13312-082-0	01	1	9905-	●	●	●	●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9603-9901	●	●
182	GASKET; CONNECTOR,HSG TO COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	02	1	9905-	●	●	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9603-9901	●	●
183	BOLT; CONNECTOR,HSG TO COOLER M8X22 FLANGE	0-28080-822-0	04	1	9905-	●	●	●	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9901	●	●
200	PIPE; VINYL,WATER DRAIN L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
