Sayfa 4-35 - Isuzu EPC

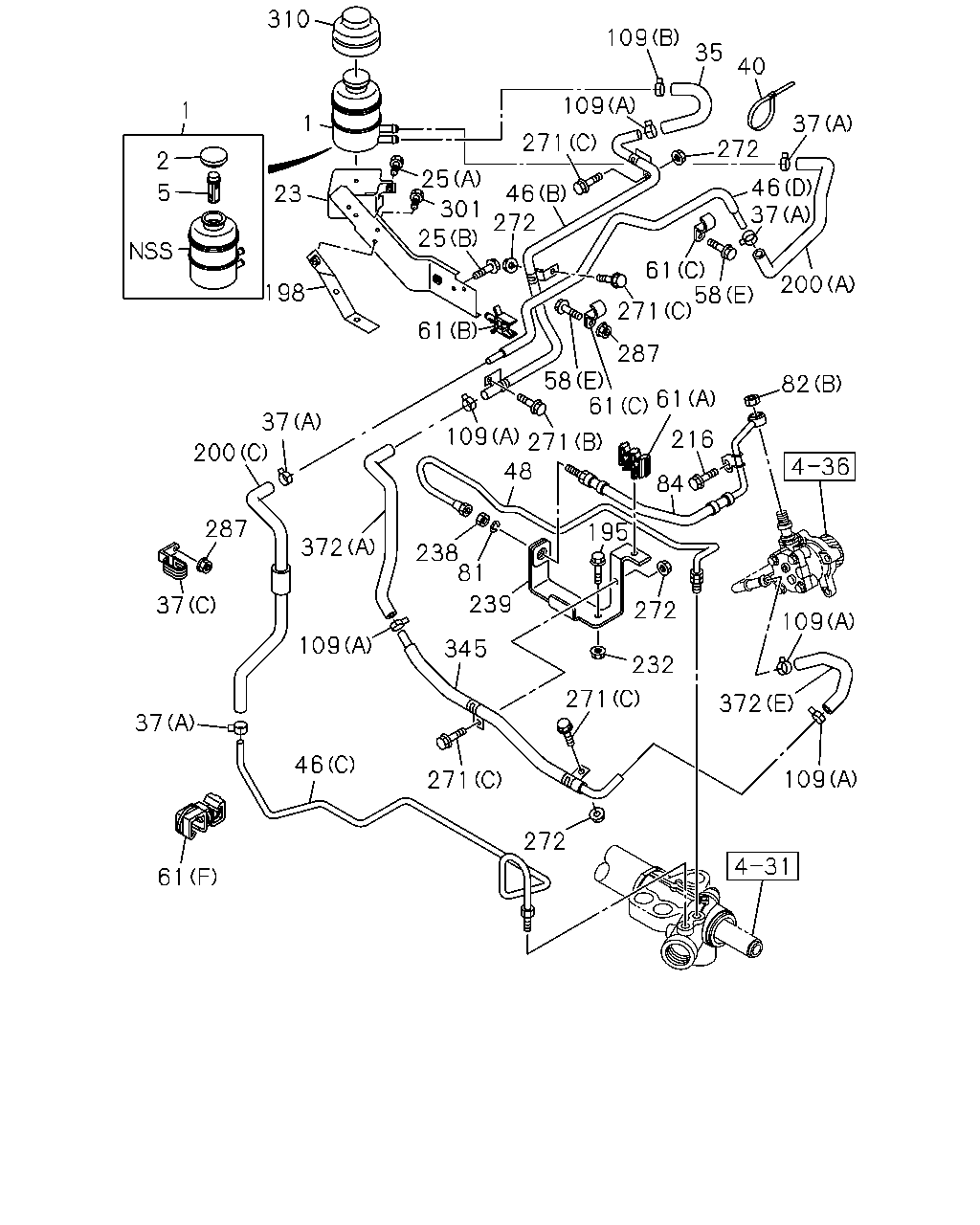

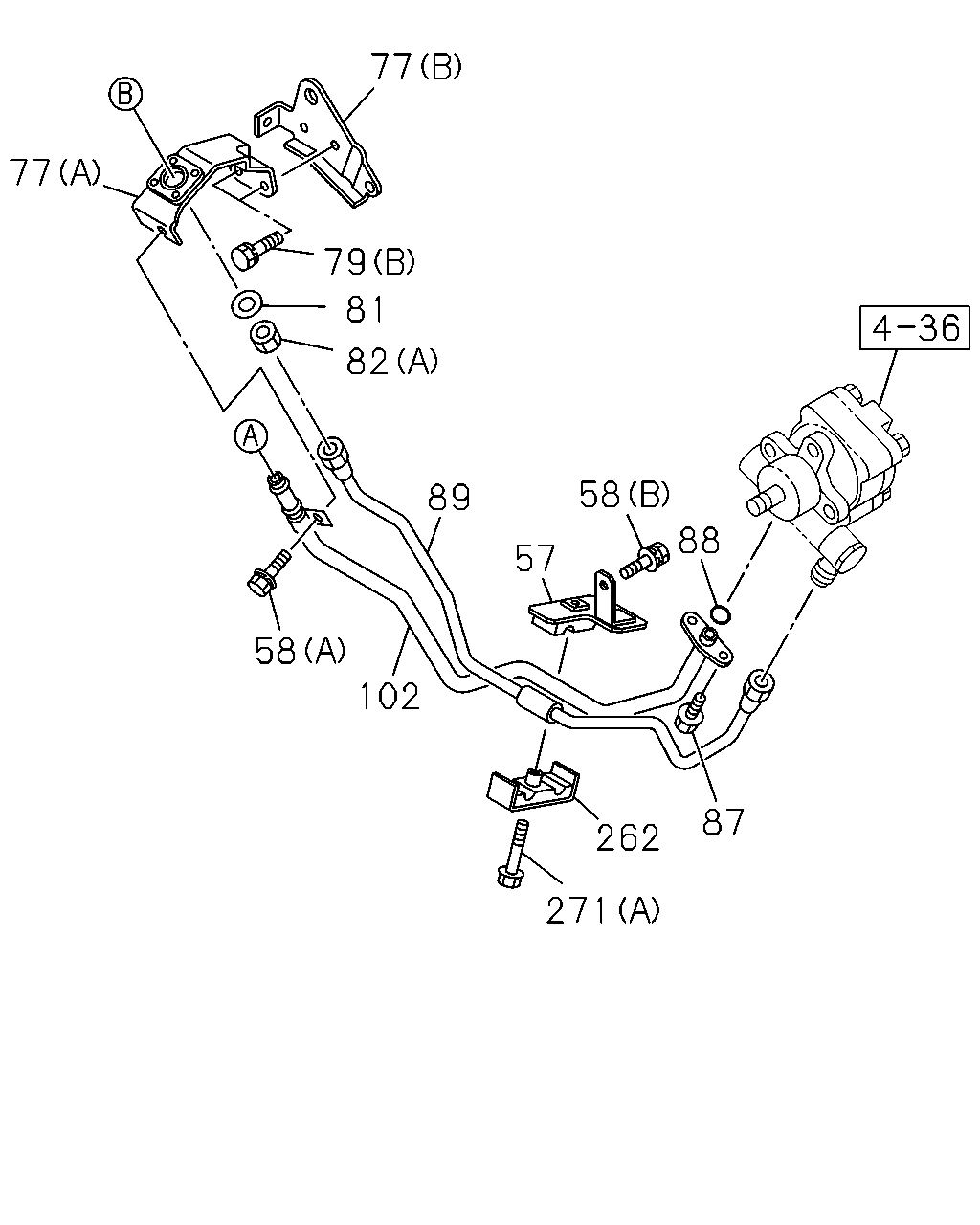

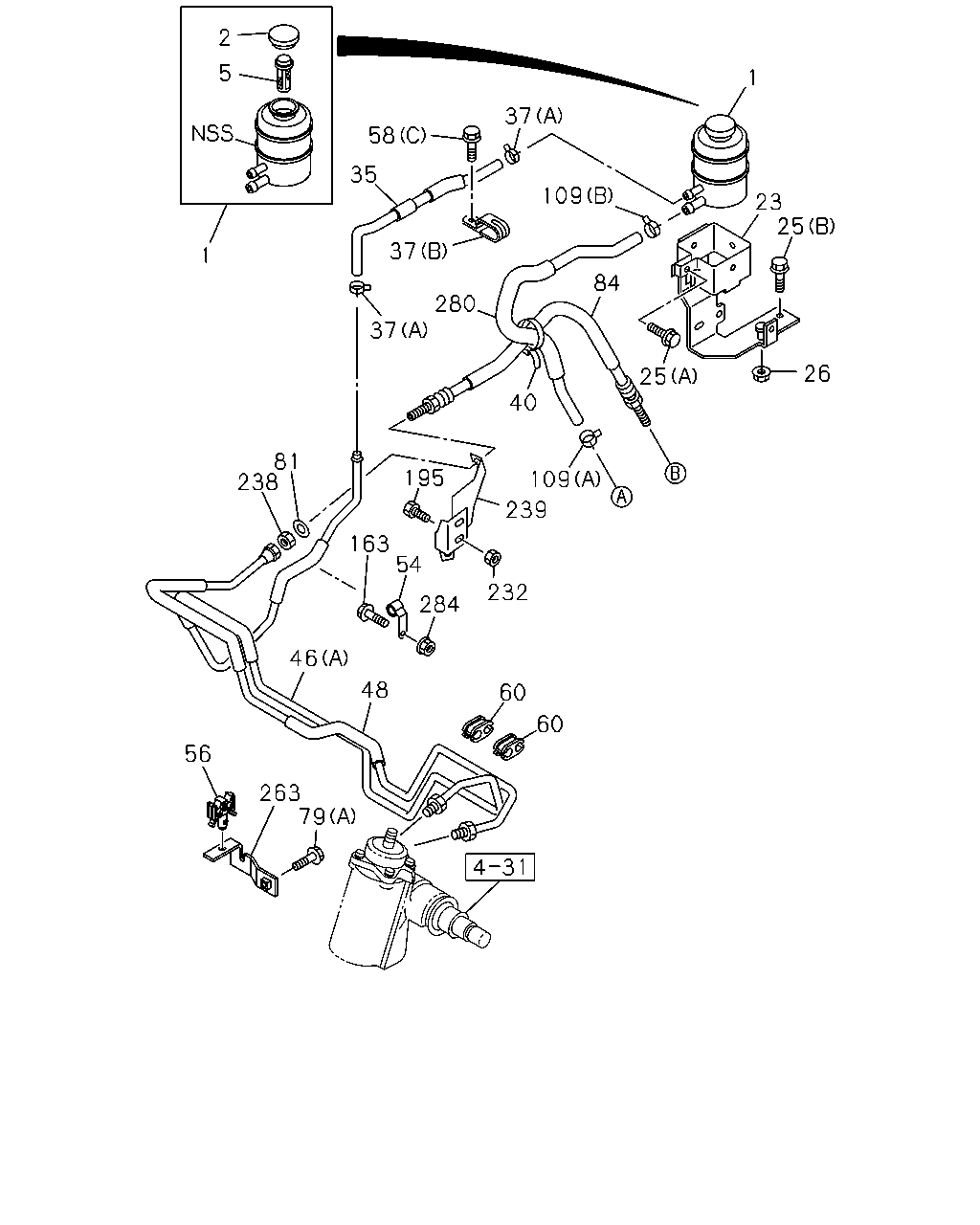

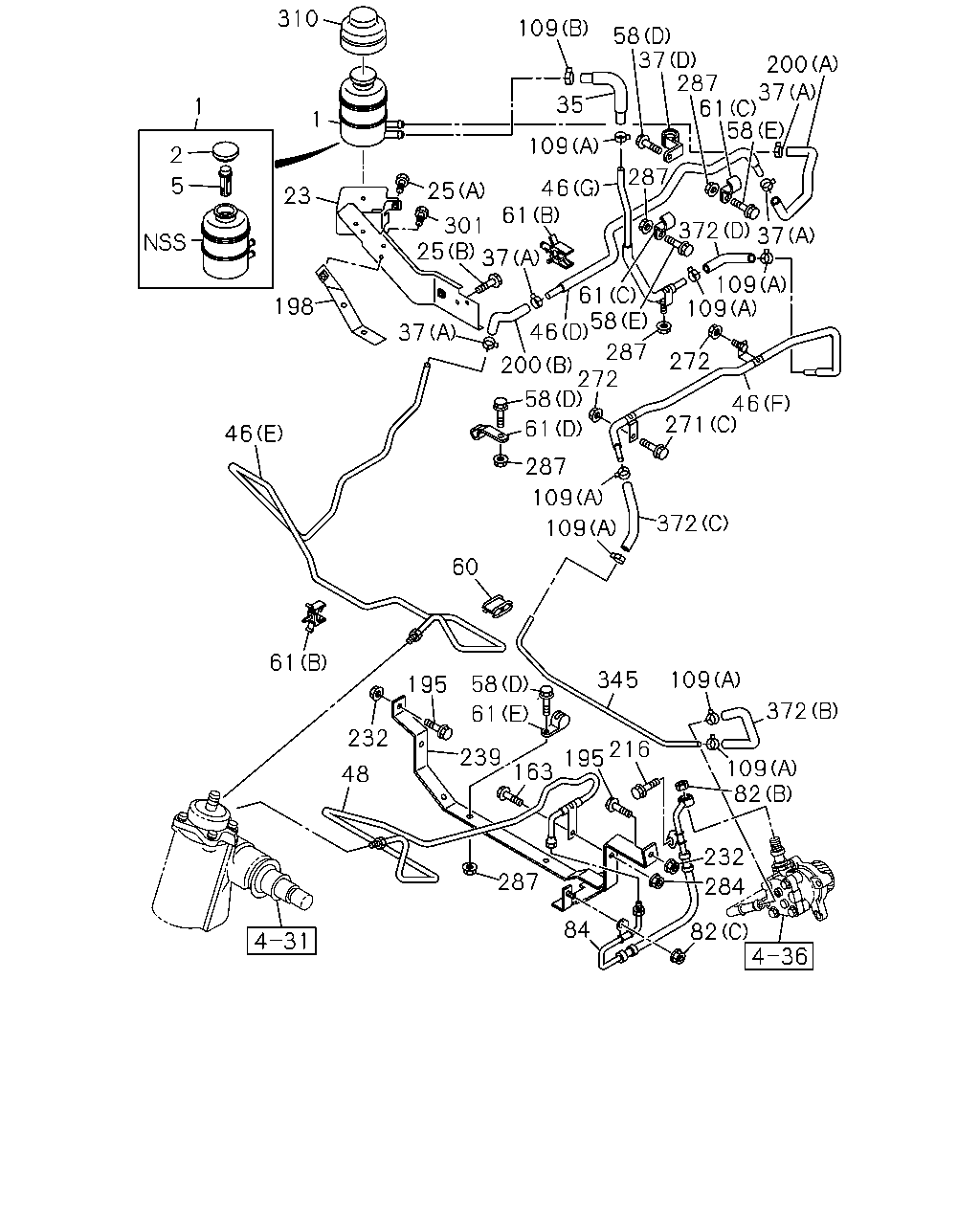

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#42069) — 340 parça

310 109 58 37 200 287 37 61 58 35 1 1 109 2 287 5 46 61 25 23 301 25 37 372 37 109 109 61 58 46 198 37 287 200 272 58 272 46 271 61 46 287 109 372 109 60 61 345 109 58 195 372 61 232 216 195 239 163 109 82 48 232 287 284 84 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0302-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0302-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0302-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97289-416-0	01	1	0302-0606	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98001-425-1	01	1	0607-0703	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0704-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-692-0	01	1	0607-	●
35	06.671 HOSE; RETURN,P/S TANK	8-97289-444-1	01	1	0302-0606	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-787-0	01	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 01.240 (A) ID=16	8-94392-924-0	02	1	0607-0706	●
37	01.762 CLIP; HOSE,P/S 01.097 (A) ID=16	8-97329-628-0	02	1	0707-	●
37	01.762 CLIP; HOSE,P/S (C) ID=24 & 24 L=49	1-09701-018-0	01	1	0607-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (B)	8-98000-611-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97262-203-0	01	1	0302-0606	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-97380-461-1	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (E)	8-98000-438-2	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (F)	8-98000-440-3	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98000-441-3	01	1	0607-0702		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98071-400-0	01	1	0703-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97289-410-0	01	1	0302-0302		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97356-186-0	01	1	0303-0606		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (D)	8-98000-599-2	01	1	0607-	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97211-308-1	01	1	0302-0606	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97380-460-2	01	1	0607-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97211-310-0	01	1	0302-0302		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97356-184-0	01	1	0303-0606		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-437-2	01	1	0607-		●	●
58	06.672 BOLT; CLIP 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0302-0512	●	●	●
58	06.672 BOLT; CLIP 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0606	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	02	1	0302-0606	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE 04.866 (F) ID=10 & 10	1-09709-277-1	01	1	0607-	●
61	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-	●
61	06.672 CLIP; OIL PIPE 03.162 (C) ID=6 L=22	1-09700-139-0	02	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (D) ID=11 L=40	8-94259-342-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (E) ID=16 L=16	9-09525-526-0	04	1	0607-		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (A) M16	8-94370-339-0	01	1	0302-0606	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (B) M12 SELF LOCK	8-97028-390-1	01	1	0607-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
84	06.670 HOSE; FLEX,P/S	8-98000-690-1	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S	8-97260-172-1	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S	8-97358-341-0	01	1	0302-0606	●	●	●
84	06.670 HOSE; FLEX,P/S	8-98000-696-3	01	1	0607-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0302-0606	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0607-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0302-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0607-		●	●
163	06.671 BOLT; OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-		●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
195	06.635 BOLT; BRKT 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0302-0512	●	●	●
195	06.635 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0601-0606	●	●	●
195	06.635 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN (C)	8-98031-527-0	01	1	0607-	●
200	06.670 HOSE; RUBBER,RETURN (A)	8-98000-694-1	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN 06.671 (B) L=150	0-09809-150-0	01	1	0607-		●	●
216	06.672 BOLT; FLEX HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
232	06.672 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602		●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
239	06.606 BRACKET; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	01	1	0302-0506	●	●	●
239	06.606 BRACKET; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	02	1	0507-0606	●	●	●
239	06.606 BRACKET; FLEX HOSE	8-97380-478-1	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0302-0506	●	●	●
239	06.606 BRACKET; FLEX HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	02	1	0507-0606	●	●	●
239	06.606 BRACKET; FLEX HOSE	8-98000-457-4	01	1	0607-		●	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0302-0512	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-	●	●	●
284	06.670 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602		●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0607-	●	●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-97380-462-2	01	1	0607-	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-98000-439-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (A)	8-98000-693-1	01	1	0607-	●
372	06.673 HOSE; RUBBER (E)	8-98036-842-0	01	1	0607-	●
372	06.673 HOSE; RUBBER (B)	8-98025-540-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (C)	8-98032-217-0	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (D)	8-98036-841-1	01	1	0607-0702		●	●
372	06.673 HOSE; RUBBER (D)	8-98070-955-0	01	1	0703-		●	●

310 109 35 40 109 1 1 37 271 272 2 25 46 37 5 46 272 23 301 25 61 58 271 287 200 198 61 58 61 61 82 37 109 271 216 200 48 84 287 195 372 238 81 239 37 272 109 109 345 232 271 372 37 46 109 271 272 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0302-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0302-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0302-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97289-416-0	01	1	0302-0606	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98001-425-1	01	1	0607-0703	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0704-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-692-0	01	1	0607-	●
35	06.671 HOSE; RETURN,P/S TANK	8-97289-444-1	01	1	0302-0606	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-787-0	01	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 01.240 (A) ID=16	8-94392-924-0	02	1	0607-0706	●
37	01.762 CLIP; HOSE,P/S 01.097 (A) ID=16	8-97329-628-0	02	1	0707-	●
37	01.762 CLIP; HOSE,P/S (C) ID=24 & 24 L=49	1-09701-018-0	01	1	0607-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0607-		●	●
40	06.672 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0302-0606	●	●	●
40	06.672 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (B)	8-98000-611-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97262-203-0	01	1	0302-0606	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-97380-461-1	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (E)	8-98000-438-2	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (F)	8-98000-440-3	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98000-441-3	01	1	0607-0702		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98071-400-0	01	1	0703-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97289-410-0	01	1	0302-0302		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97356-186-0	01	1	0303-0606		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (D)	8-98000-599-2	01	1	0607-	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97211-308-1	01	1	0302-0606	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97380-460-2	01	1	0607-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97211-310-0	01	1	0302-0302		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97356-184-0	01	1	0303-0606		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-437-2	01	1	0607-		●	●
58	06.672 BOLT; CLIP 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0302-0512	●	●	●
58	06.672 BOLT; CLIP 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0606	●	●	●
61	06.672 CLIP; OIL PIPE 04.866 (F) ID=10 & 10	1-09709-277-1	01	1	0607-	●
61	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-	●
61	06.672 CLIP; OIL PIPE 03.162 (C) ID=6 L=22	1-09700-139-0	02	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (D) ID=11 L=40	8-94259-342-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (E) ID=16 L=16	9-09525-526-0	04	1	0607-		●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0607-	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (A) M16	8-94370-339-0	01	1	0302-0606	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (B) M12 SELF LOCK	8-97028-390-1	01	1	0607-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
84	06.670 HOSE; FLEX,P/S	8-98000-690-1	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S	8-97260-172-1	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S	8-97358-341-0	01	1	0302-0606	●	●	●
84	06.670 HOSE; FLEX,P/S	8-98000-696-3	01	1	0607-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0302-0606	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0607-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0302-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0607-		●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
195	06.635 BOLT; BRKT 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0302-0512	●	●	●
195	06.635 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0601-0606	●	●	●
195	06.635 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN (C)	8-98031-527-0	01	1	0607-	●
200	06.670 HOSE; RUBBER,RETURN (A)	8-98000-694-1	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN 06.671 (B) L=150	0-09809-150-0	01	1	0607-		●	●
216	06.672 BOLT; FLEX HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
232	06.672 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602		●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0302-0606	●	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	01	1	0302-0506	●	●	●
239	06.606 BRACKET; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	02	1	0507-0606	●	●	●
239	06.606 BRACKET; FLEX HOSE	8-97380-478-1	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0302-0506	●	●	●
239	06.606 BRACKET; FLEX HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	02	1	0507-0606	●	●	●
239	06.606 BRACKET; FLEX HOSE	8-98000-457-4	01	1	0607-		●	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0302-0512	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0607-	●	●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-97380-462-2	01	1	0607-	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-98000-439-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (A)	8-98000-693-1	01	1	0607-	●
372	06.673 HOSE; RUBBER (E)	8-98036-842-0	01	1	0607-	●
372	06.673 HOSE; RUBBER (B)	8-98025-540-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (C)	8-98032-217-0	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (D)	8-98036-841-1	01	1	0607-0702		●	●
372	06.673 HOSE; RUBBER (D)	8-98070-955-0	01	1	0703-		●	●

77 77 79 81 82 58 89 88 57 58 102 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	06.672 BRACKET; POWER STRG PIPE	8-97312-558-1	01	1	0302-0606	●	●	●
58	06.672 BOLT; CLIP 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0302-0512	●	●	●
58	06.672 BOLT; CLIP 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0606	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE HEATER & DEFROSTER(C41) (A)	8-97208-424-0	01	1	0302-0606	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE HEATER & DEFROSTER(C41) (B)	8-97240-137-0	01	1	0302-0606	●	●	●
79	06.672 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506	●
79	06.672 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●
79	06.672 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●
79	06.672 BOLT; BRKT HEATER & DEFROSTER(C41) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0302-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0607-	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (A) M16	8-94370-339-0	01	1	0302-0606	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (B) M12 SELF LOCK	8-97028-390-1	01	1	0607-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
87	06.672 BOLT; POWER STRG PIPE 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0512	●	●	●
87	06.672 BOLT; POWER STRG PIPE 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0606	●	●	●
88	06.673 RING; OIL PIPE 06.609 ID=11.0	9-09561-111-0	01	1	0302-0606	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H	8-97312-555-0	01	1	0302-0606	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H	8-97312-556-0	01	1	0302-0606		●	●
102	06.671 PIPE; SUCTION,P/S	8-97312-557-1	01	1	0302-0606	●	●	●
262	06.672 CLIP; P/S PIPE	8-97300-961-0	01	1	0302-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0302-0512	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●

2 5 1 37 58 35 109 23 25 37 1 84 280 37 26 25 40 81 238 195 109 239 163 54 232 284 46 48 60 60 56 263 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0302-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0302-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0302-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-97289-416-0	01	1	0302-0606	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98001-425-1	01	1	0607-0703	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0704-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602		●	●
26	06.635 NUT; OIL TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-692-0	01	1	0607-	●
35	06.671 HOSE; RETURN,P/S TANK	8-97289-444-1	01	1	0302-0606	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-787-0	01	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 01.240 (A) ID=16	8-94392-924-0	02	1	0607-0706	●
37	01.762 CLIP; HOSE,P/S 01.097 (A) ID=16	8-97329-628-0	02	1	0707-	●
37	01.762 CLIP; HOSE,P/S (C) ID=24 & 24 L=49	1-09701-018-0	01	1	0607-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0607-		●	●
40	06.672 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0302-0606	●	●	●
40	06.672 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (B)	8-98000-611-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97262-203-0	01	1	0302-0606	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-97380-461-1	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (E)	8-98000-438-2	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (F)	8-98000-440-3	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98000-441-3	01	1	0607-0702		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98071-400-0	01	1	0703-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97289-410-0	01	1	0302-0302		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (A)	8-97356-186-0	01	1	0303-0606		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (D)	8-98000-599-2	01	1	0607-	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97211-308-1	01	1	0302-0606	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97380-460-2	01	1	0607-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97211-310-0	01	1	0302-0302		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97356-184-0	01	1	0303-0606		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-437-2	01	1	0607-		●	●
54	06.672 CLIP; OIL PIPE ID=11 L=40	8-94259-342-0	01	1	0302-0606	●	●	●
56	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	01	1	0302-0606	●	●	●
58	06.672 BOLT; CLIP 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0302-0512	●	●	●
58	06.672 BOLT; CLIP 00.685 (C) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0606	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	02	1	0302-0606	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0607-		●	●
79	06.672 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506	●
79	06.672 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●
79	06.672 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●
79	06.672 BOLT; BRKT HEATER & DEFROSTER(C41) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0302-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S	8-98000-690-1	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S	8-97260-172-1	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S	8-97358-341-0	01	1	0302-0606	●	●	●
84	06.670 HOSE; FLEX,P/S	8-98000-696-3	01	1	0607-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0302-0606	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0607-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0302-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0607-		●	●
163	06.671 BOLT; OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-		●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
195	06.635 BOLT; BRKT 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0302-0512	●	●	●
195	06.635 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0601-0606	●	●	●
195	06.635 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-		●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
232	06.672 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602		●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0302-0606	●	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	01	1	0302-0506	●	●	●
239	06.606 BRACKET; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	02	1	0507-0606	●	●	●
239	06.606 BRACKET; FLEX HOSE	8-97380-478-1	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0302-0506	●	●	●
239	06.606 BRACKET; FLEX HOSE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	02	1	0507-0606	●	●	●
239	06.606 BRACKET; FLEX HOSE	8-98000-457-4	01	1	0607-		●	●
263	06.672 BRACKET; P/S PIPE	8-97211-312-0	01	1	0302-0506	●
263	06.672 BRACKET; P/S PIPE	8-97211-312-0	02	1	0507-0606	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-97315-641-1	01	1	0302-0606	●	●	●
284	06.670 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602		●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
