4-33 — STEERING LINKAGE (#42068) — 119 parça

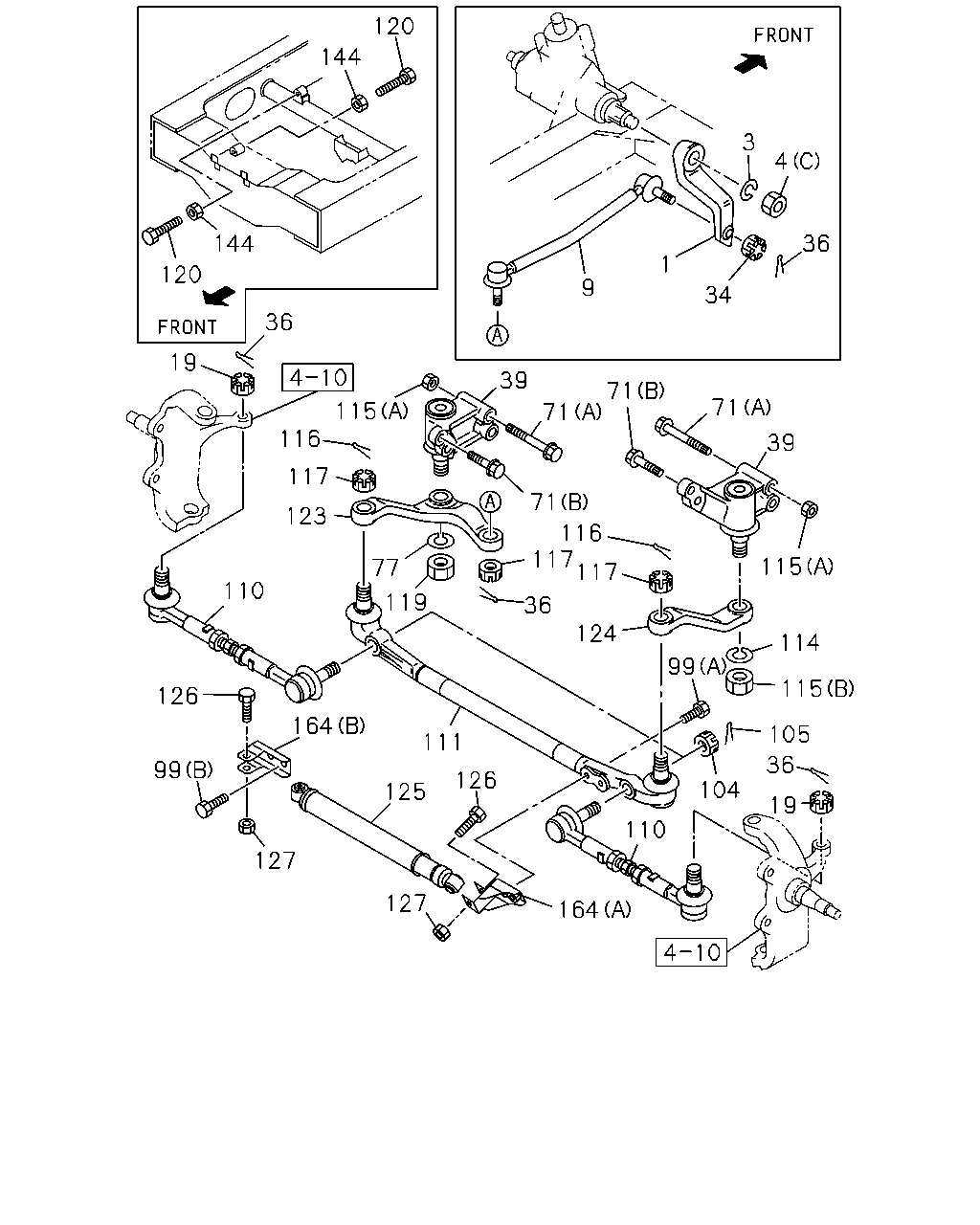

çizim 12416
120 144 3 4 36 144 1 120 9 34 36 19 39 71 71 115 71 116 39 117 71 123 116 117 117 115 77 110 119 36 124 114 99 115 126 164 105 111 36 99 126 104 125 19 110 127 127 164
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.859 ARM; PITMAN,STRG 8-97070-552-2 01 1 0302-0606 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0302- ● ●
3 06.861 WASHER; LK,PITMAN ARM
08.931 ID=27.5 		9-09150-527-0 01 1 0302-0603 ●
3 06.861 WASHER; LK,PITMAN ARM
ID=27.5 		0-91510-527-0 01 1 0604-0606 ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0302-0603 ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
4 06.861 NUT; PITMAN ARM
(C) M27 		5-12378-002-0 01 1 0302-0606 ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0302- ● ●
4 06.861 NUT; PITMAN ARM
08.915 (B) M22 		9-09111-522-0 01 1 0302-0512 ● ●
4 06.861 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 0601- ● ●
9 06.870 LINK; DRAG 8-97070-496-2 01 1 0302-0606 ●
9 06.870 LINK; DRAG 8-97325-819-0 01 1 0302- ● ●
19 06.865 NUT; PITMAN ARM,STOPPER 8-97017-762-0 02 1 0302-0610 ●
19 06.865 NUT; PITMAN ARM,STOPPER 8-97387-863-0 02 1 0611- ●
34 06.233 NUT; DRAG LINK TO PITMAN ARM
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0302-0606 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 03 1 0302-0606 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 02 1 0607-0611 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 02 1 0612-0612 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 02 1 0701- ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0302-0606 ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0607-0611 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 01 1 0612-0612 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0701- ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE 8-97189-457-0 01 1 0302-0606 ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE 8-97189-455-0 01 1 0302-0606 ●
71 06.896 BOLT; RELAY LEVER BRKT
EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5 		8-97085-383-0 04 1 0302-0606 ●
71 06.896 BOLT; RELAY LEVER BRKT
EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5 		8-97085-384-0 04 1 0302-0606 ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> 00.780 (A) M12X90 		0-28081-290-0 04 1 0302-0512 ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> 00.780 (A) M12X90 FLANGE 		0-28051-290-0 04 1 0601-0606 ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> 03.890 (B) M12X40 		9-92061-240-0 04 1 0302-0512 ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> (B) M12X40 		0-20951-240-0 04 1 0601-0606 ●
77 06.897 WASHER; LK,RELAY LEVER
08.931 ID=20.2 		9-09150-520-0 01 1 0302-0603 ●
77 06.897 WASHER; LK,RELAY LEVER
06.515 ID=20.2 		0-91510-520-0 01 1 0604-0606 ●
99 06.896 BOLT; BRKT
00.685 (A) M10X50 FLANGE 		0-28081-050-0 02 1 0302-0512 ●
99 06.896 BOLT; BRKT
09.173 (A) M10X50 FLANGE 		0-28051-050-0 02 1 0601-0606 ●
99 06.896 BOLT; BRKT
03.611 (B) M10X20 FLANGE 		0-28681-020-0 02 1 0302-0512 ●
99 06.896 BOLT; BRKT
02.343 (B) M10X20 FLANGE 		0-28651-020-0 02 1 0601-0606 ●
104 06.233 NUT; ROD END
06.234 M16 SLOTTED 		1-09442-021-1 02 1 0302-0606 ●
105 06.865 PIN; SPLIT,ROD END
06.881 L=19 		8-97349-766-0 02 1 0302-0606 ●
110 06.870 ROD; TRACK,OUTER 8-97107-318-1 02 1 0302-0606 ●
111 06.870 ROD; TRACK,CENTER 8-97062-180-2 01 1 0302-0606 ●
114 06.515 WASHER; RELAY LEVER BRKT
08.931 ID=20.2 		9-09150-520-0 01 1 0302-0603 ●
114 06.515 WASHER; RELAY LEVER BRKT
ID=20.2 		0-91510-520-0 01 1 0604-0606 ●
115 06.896 NUT; RELAY LEVER BRKT
06.606 (A) M12 		8-94139-015-0 08 1 0302-0606 ●
115 06.896 NUT; RELAY LEVER BRKT
08.915 (B) M20 		9-99111-520-0 01 1 0302-0512 ●
115 06.896 NUT; RELAY LEVER BRKT
06.234 (B) M20 		0-91111-520-0 01 1 0601-0606 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0302-0606 ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0302-0606 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0607- ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 02 1 0302-0606 ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0607-0610 ● ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 0611- ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0302-0606 ● ● ●
119 06.897 NUT; RELAY LEVER
08.915 M20 		9-99111-520-0 01 1 0302-0512 ●
119 06.897 NUT; RELAY LEVER
06.234 M20 		0-91111-520-0 01 1 0601-0606 ●
120 06.897 BOLT; RELAY LEVER STOPPER 8-97014-919-0 02 1 0302-0606 ●
123 06.895 LEVER; RELAY,RH 8-97061-692-0 01 1 0302-0606 ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-97036-547-1 01 1 0302-0606 ●
125 06.865 DAMPER; STEERING 8-97012-618-3 01 1 0302-0606 ●
125 06.865 DAMPER; STEERING 8-97230-742-0 01 1 0302-0606 ● ●
125 06.865 DAMPER; STEERING 8-98046-741-1 01 1 0607- ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28081-045-0 02 1 0302-0512 ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0601-0606 ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0607- ● ●
127 06.865 NUT; STRG DAMPER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0302-0602 ●
127 06.865 NUT; STRG DAMPER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0603-0606 ●
127 06.865 NUT; STRG DAMPER
08.917 M10 FLANGE 		0-91150-210-0 01 1 0302-0602 ● ●
127 06.865 NUT; STRG DAMPER
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
144 06.896 NUT; STOPPER BRKT
05.816 M12 		9-99110-412-0 02 1 0302-0512 ●
144 06.896 NUT; STOPPER BRKT
05.002 M12 		0-91110-512-0 02 1 0601-0606 ●
164 06.896 BRACKET; STEERING DAMPER
(A) 		8-97012-595-2 01 1 0302-0606 ●
164 06.896 BRACKET; STEERING DAMPER
(B) 		8-97025-765-1 01 1 0302-0606 ●

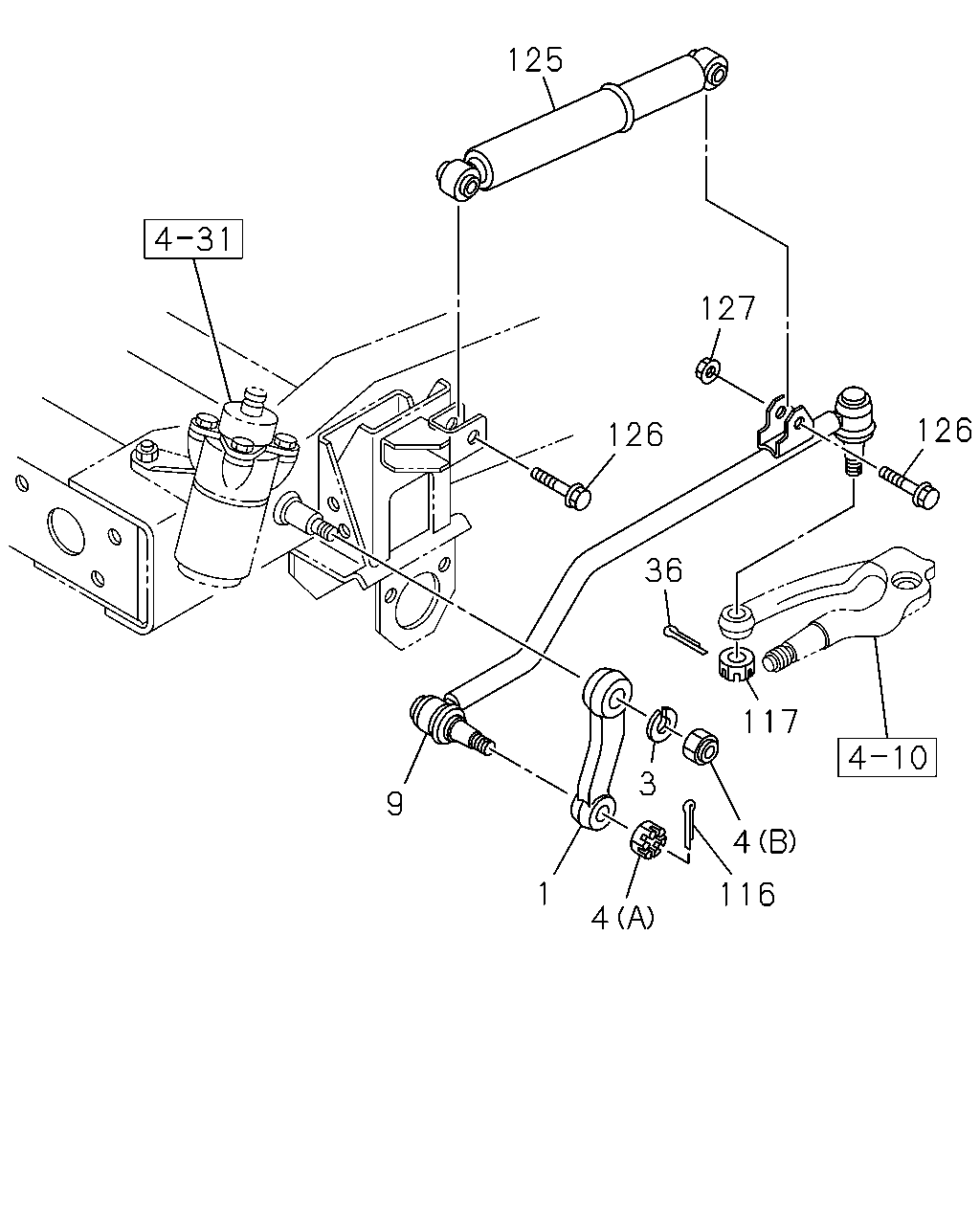

çizim 50291
125 127 126 126 36 117 3 9 4 1 116 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.859 ARM; PITMAN,STRG 8-97070-552-2 01 1 0302-0606 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 0302- ● ●
3 06.861 WASHER; LK,PITMAN ARM
08.931 ID=27.5 		9-09150-527-0 01 1 0302-0603 ●
3 06.861 WASHER; LK,PITMAN ARM
ID=27.5 		0-91510-527-0 01 1 0604-0606 ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 0302-0603 ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
4 06.861 NUT; PITMAN ARM
(C) M27 		5-12378-002-0 01 1 0302-0606 ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0302- ● ●
4 06.861 NUT; PITMAN ARM
08.915 (B) M22 		9-09111-522-0 01 1 0302-0512 ● ●
4 06.861 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 0601- ● ●
9 06.870 LINK; DRAG 8-97070-496-2 01 1 0302-0606 ●
9 06.870 LINK; DRAG 8-97325-819-0 01 1 0302- ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 03 1 0302-0606 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 02 1 0607-0611 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 02 1 0612-0612 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 02 1 0701- ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0302-0606 ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0607-0611 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 01 1 0612-0612 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0701- ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0302-0606 ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0302-0606 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0607- ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 02 1 0302-0606 ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0607-0610 ● ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 0611- ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0302-0606 ● ● ●
125 06.865 DAMPER; STEERING 8-97012-618-3 01 1 0302-0606 ●
125 06.865 DAMPER; STEERING 8-97230-742-0 01 1 0302-0606 ● ●
125 06.865 DAMPER; STEERING 8-98046-741-1 01 1 0607- ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28081-045-0 02 1 0302-0512 ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0601-0606 ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0607- ● ●
127 06.865 NUT; STRG DAMPER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0302-0602 ●
127 06.865 NUT; STRG DAMPER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0603-0606 ●
127 06.865 NUT; STRG DAMPER
08.917 M10 FLANGE 		0-91150-210-0 01 1 0302-0602 ● ●
127 06.865 NUT; STRG DAMPER
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●

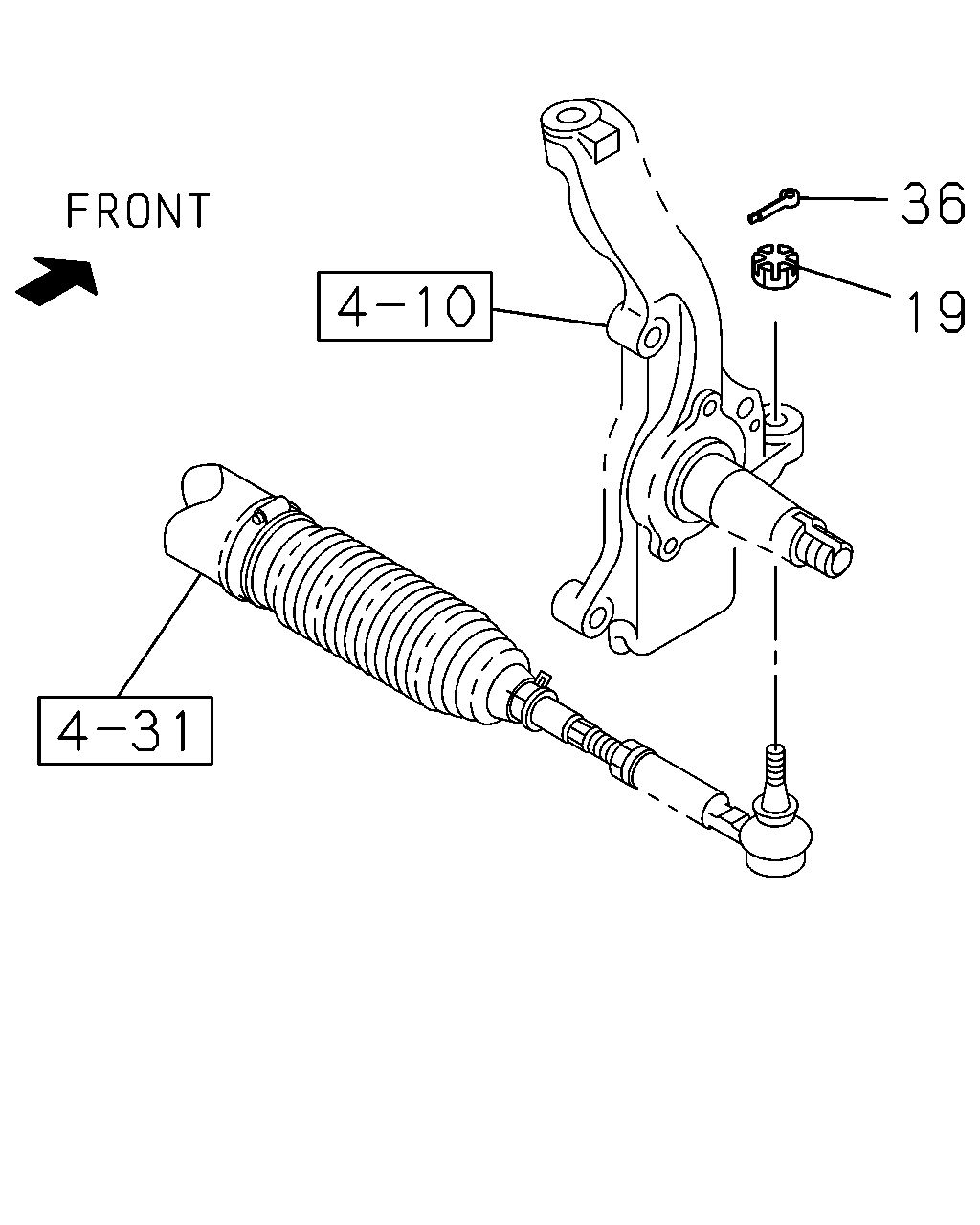

çizim 50693
36 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 06.865 NUT; PITMAN ARM,STOPPER 8-97017-762-0 02 1 0302-0610 ●
19 06.865 NUT; PITMAN ARM,STOPPER 8-97387-863-0 02 1 0611- ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 03 1 0302-0606 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 02 1 0607-0611 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 02 1 0612-0612 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 02 1 0701- ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0302-0606 ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0607-0611 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 01 1 0612-0612 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0701- ● ●
